Advantech Wireless Technologies delivers intelligent broadband communications solutions that achieve excellence and maximize performance with uncompromising quality. Ultimately, we help people stay connected and informed by designing and manufacturing advanced terrestrial and satellite communication… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

Overview

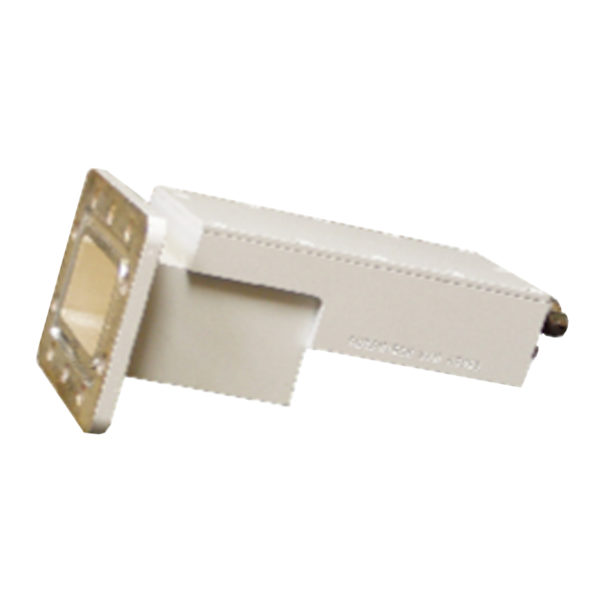

The Advantech‰’s Low Noise Amplifier (LNA) ALNA-C‰™ is a low noise, highly dynamic range amplifier suitable for use in satellite earth station receiver applications where ultra low noise and high reliability are critical, as well as in other systems operating in the frequency range of 3400 to 4200 MHz. The LNA combines low noise with high linearity and wide band. The built-in Interstage Transmit Reject Filter allows the LNA to operate at the input power of ‰-35 dBm in the TX band of 5.8 ‰- 6.75 GHz. The C-band LNA is available with Noise temperature ranging from 25 K to 45 K. With weather proved packaging, the LNA can meet the demands of the installations in severe environmental conditions. The 1:1 and 1:2 redundant system configurations can be provided. They require special Redundancy Kit. The Advantech‰’s LNA provides an industry leading MTBF of over 200,000 hours.

Features

  • Extended C-Band (3.4-4.2 GHz)
  • GaAs/HEMT Technology
  • Over 200,000 Hours MTBF
  • Built-in Regulator 11 to 15 VDC operation
  • Built-in Interstage Transmit Reject Filter
  • Single or redundant operation
  • Pressurizable W/G Input
  • Power supply via RF connector or Power Connector
  • Extreme operating temperature
  • Weatherproof housing
  • Three year warranty

Options

  • Input Isolator
  • Redundant operation

Accessories

  • External Transmit Reject Filter
Свернуть Развернуть
Основные возможности и технические характеристики

Overview

The Advantech‰’s Low Noise Amplifier (LNA) ALNA-C‰™ is a low noise, highly dynamic range amplifier suitable for use in satellite earth station receiver applications where ultra low noise and high reliability are critical, as well as in other systems operating in the frequency range of 3400 to 4200 MHz. The LNA combines low noise with high linearity and wide band. The built-in Interstage Transmit Reject Filter allows the LNA to operate at the input power of ‰-35 dBm in the TX band of 5.8 ‰- 6.75 GHz. The C-band LNA is available with Noise temperature ranging from 25 K to 45 K. With weather proved packaging, the LNA can meet the demands of the installations in severe environmental conditions. The 1:1 and 1:2 redundant system configurations can be provided. They require special Redundancy Kit. The Advantech‰’s LNA provides an industry leading MTBF of over 200,000 hours.

Features

  • Extended C-Band (3.4-4.2 GHz)
  • GaAs/HEMT Technology
  • Over 200,000 Hours MTBF
  • Built-in Regulator 11 to 15 VDC operation
  • Built-in Interstage Transmit Reject Filter
  • Single or redundant operation
  • Pressurizable W/G Input
  • Power supply via RF connector or Power Connector
  • Extreme operating temperature
  • Weatherproof housing
  • Three year warranty

Options

  • Input Isolator
  • Redundant operation

Accessories

  • External Transmit Reject Filter
Свернуть Развернуть
Сведения о реестре СИ
  • Реестр СИ не требуется
Свернуть Развернуть
Сведения о реестре СИ
  • Реестр СИ не требуется
Характеристики
Загрузить технические характеристики

C-Band LNA 25° to 45° K
Tech nical Specifications
Elec trical Characteristics
Frequency range  3.4 – 4.2 GHz
Noise Temperature @ 23°  25°, 30°, 35°, 40°, 45°
Gain  60 dB min
Gain flatness  2.0 dB p.p. full bandwidth
0.5 dB p.p. 40 MHz
Ga in slope   0.01 dB/MHz max
Gain variation over operating temperature range  2 dB p.p. max
Gain stability @ constant ambient temperature  ± 0.1dB / hour
± 0.2dB / 24 hours
Output power at 1dB of compression   +10 dBm min
Spurious   -55 dBc max
Max input power  0 dBm
Input  VSWR  2.5:1 Typical
Output VSWR  1.75:1
Operating voltage  11 - 15 VDC
Current consumption  150 - 170 mA
Mechanical Characteristics
Dimensions (L x W x H)  5.8" x 3.9" x 2.75" (147.32 x 99.06 x 69.85 mm)
Weight  1.32 lb (600 gr)
Input waveguide flange  CPR 229 G
Output connector  N Type female
Power connector  MS3112E8-3P
Environmental Conditions
Operating temperature   -40oC to +55oC
-50oC to +60oC (Optional)
Humidity  100%, condensing (2" rain/hour)
Altitude  10,000' AMSL, de-rated 2°C/1,000' from AMSL
