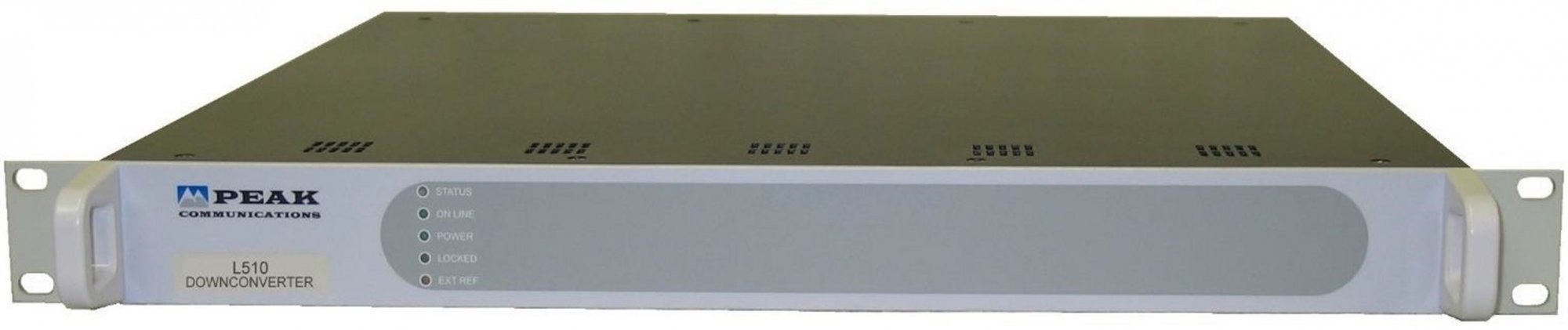

Преобразователь частоты вверх/вниз

IF
Для увеличения картинки наведите мышкой
IF
IF

Наличие: По запросу

По запросу
По запросу
По запросу



Peak Communications Ltd

We are a designer, manufacturer and supplier of high quality commercial and military satellite communications RF equipment. Peak Communications supplies to major telecommunications companies, system integrators, satellite users and defence agencies worldwide. We supply a wide range of communications products, including frequency converters (agile, block & fixed frequency), AUPC’s, beacon receivers, TLT’s and other satellite earth station RF infrastructure equipment. All of our products can be shipped… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

IF Frequency Converter Products;

IF70 70MHz to 140MHz Up Converter

IF140 140MHz to 70MHz Down Converter

The IF series Converters are 19-inch 1U rack mounted, 140MHz/70MHz Up & DownConverters. These Converters provide a low-cost solution for matching the IF’s of modems, converters and other units. Incorporated are high stability Ovenised Crystal Oscillators to ensure excellent stability and phase noise. Full alarm monitoring ensures that these units are fully compatible with the RCU100 and RCU200 1:1 and 1:2 redundancy controller units.

The IF series Converters are designed to meet the phase noise, spurious, level and frequency stability requirements of Intelsat IBS/Eutelsat SMS specifications and are compliant with IESS 308/309. The products are suitable for both very high and very low data rates and both digital and analogue TV signals.

The versatility of the design of these units ensures that customers’ specific requirements, such as gain and center frequency, can be accommodated.

Свернуть Развернуть
Основные возможности и технические характеристики

IF Frequency Converter Products;

IF70 70MHz to 140MHz Up Converter

IF140 140MHz to 70MHz Down Converter

The IF series Converters are 19-inch 1U rack mounted, 140MHz/70MHz Up & DownConverters. These Converters provide a low-cost solution for matching the IF’s of modems, converters and other units. Incorporated are high stability Ovenised Crystal Oscillators to ensure excellent stability and phase noise. Full alarm monitoring ensures that these units are fully compatible with the RCU100 and RCU200 1:1 and 1:2 redundancy controller units.

The IF series Converters are designed to meet the phase noise, spurious, level and frequency stability requirements of Intelsat IBS/Eutelsat SMS specifications and are compliant with IESS 308/309. The products are suitable for both very high and very low data rates and both digital and analogue TV signals.

The versatility of the design of these units ensures that customers’ specific requirements, such as gain and center frequency, can be accommodated.

Свернуть Развернуть
Сведения о реестре СИ
  • Реестр СИ не требуется
Свернуть Развернуть
Сведения о реестре СИ
  • Реестр СИ не требуется
Характеристики
IF series – Typical Specification External Reference Input (Option 1) with automatic detection
IF Input  frequency
Connection
Level
Factory selectable 5 or 10MHz
50Ω, BNC (f)
0dBm ±3dB
frequency

Connection
70MHz ±20MHz (IF70 unit)
140MHz ±20MHz (IF140 unit)
50Ω, BNC (f)
Mechanical
IF Output  width
Height
Depth
Construction
Weight
19” standard rack mounted
1U (1.75”)
~400mm (15.7”), plus connectors
Aluminium chassis
4kgs (8.8lbs)
frequency

Connector
Output 1dB GCP
140MHz ±20MHz (IF70 unit)
70MHz ±20MHz (IF140 unit)
50Ω, BNC (f)
0dBm
Transfer Characteristics  Control System Interface
conversion gain
Gain stability

Gain flatness
0dB nominal
±1dB from 0 to 40°C
±0.1dB per week, const. temp.
±0.5dB across any 40MHz band
Alarms LO lock fail
PSU fail
Summary failure relay (form C)
Environmental
RF Performance Operating temp
EMC
Safety
 -10°C to +50°C
EN 55022-part B & EN 50082-1
EN 60950
Phase noise



Harmonics
Spurious
 -80dBc/Hz at 100Hz
-85dBc/Hz at 1kHz
-87dBc/Hz at 10kHz
-90dBc/Hz at 100kHz
Better than -25dBc at 0dBm
≤-55dBm (in band non-carrier related)
≤-55dBc (in band carrier related)
≤-45dBc (always out of band)
Power Supply
voltage
Frequency
Power
90-264VAC
47-63Hz
50 Watts max.
Options
1) 5/10MHz external reference input
Internal Reference Stability  Associated Products;
Stability (1sec)
Stability (temp)
Ageing (day)
Ageing (year)
<1 x 10-10 per second
<±1 x 10-7 (0 to +50°C)
<±5 x 10-9
<±1 x 10-7
RCU100 1+1 Redundancy Unit
RCU200 2+1 Redundancy Unit
