Многофункциональные электронные нагрузки DC до 20,4 кВт

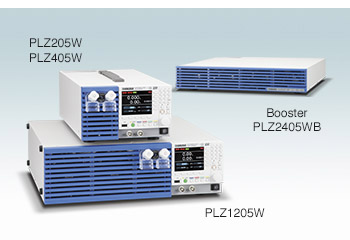

PLZ-5W/5WZ Series
Для увеличения картинки наведите мышкой
PLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ Series
PLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ SeriesPLZ-5W/5WZ Series

Наличие: По запросу

По запросу
По запросу
По запросу

Электронные нагрузки постоянного тока PLZ-5W/5WZ Series Подробнее




Японская компания Kikusui Electronics Corporation - производитель электронных измерительных приборов и оборудования для электропитания с 1951 года.

В 1983 году группа Kikusui основала фабрику Fuji Katsuyama Factory (FKF) в качестве внутреннего производственного центра. В течение 1990-х… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

 Outline

The PLZ-5W Series high performance electronic load is the successor to the highly respected PLZ-4W series, whilst still retaining the same high specification and build quality. Advances include a high visibility color display, low voltage operation from a minimum of 1 V to a maximum of 150 V. Programmable profiles of voltage/current can be applied (using the new ARB function, as used in LED/solar testing) in addition to the inherited 6 modes of operation: Constant Current, Constant Resistance, Constant Voltage, Constant Power, Constant Current + Constant Voltage, Constant Resistance + Constant Voltage.

Equipped with a high-speed response feature boasting a maximum slew rate of 60 A/μs (PLZ1205W) and a minimum setting resolution of 10 μA (PLZ205W). Additional features of the PLZ-5W series include: Soft-start function, variable slew rate, selectable response (CV/CR mode), switching function, ABC preset memory, 20 user-defined set-up configurations, and a sequence operation function. The advanced high-speed response makes the PLZ-5W ideal for the development and testing of today's modern power supplies that require variable high-speed current changes. This advantage extends to the testing of current clamps/transducers.
The PLZ-5W Series is available in 4 standard models which can be incrementally extended by adding additional booster units (PLZ2405W) to achieve a maximum of 10.8 kW / 2160 A DC electronic load.

The following communication interfaces are installed as standard: LAN (LXI compliant), USB, RS232C and analog control. An optional GPIB interface is available.

Features

  • Color liquid crystal display (LCD)
    High visibility color display. The voltage, current, power, current capacity (Ah) and power capacity (Wh) values are conveniently displayed.
  • Maximum Slew rate of 60 A/μs
    Achieving a rise time of 4 μs to reach the rated current of the electronic load. Power supply evaluation demands a fast transient response which the PLZ-5W series achieves with ease.
  • High speed voltage tracking characteristics
    High speed voltage tracking characteristic in CR mode is perfect for applications such as startup tests for power supplies.
  • Communication interfaces are included as standard
    LAN (LXI) / USB / RS232C as standard interface. Use a browser from a PC, smartphone, or tablet to access the web server built into the PLZ-5W series for convenient control and monitoring. *GPIB Option
  • Sequence Creation Software Wavy for PLZ-5W (SD023-PLZ-5W)
    The Wavy for PLZ-5W (SD023-PLZ-5W) is an application software that supports sequence creation and the operation of the Kikusui power supplies and the electronic load. The “Wavy” software allows you to create and edit sequences visually using a mouse without programming knowledge. It enables you to control the electronic load for such monitoring the voltage and current, logging and so on.
  • Arbitrary I-V characteristics (ARB) mode
    In ARB mode arbitrary I-V characteristics can be set by entering multiple I-V points (voltage and current value set points). From 3 to 100 points can be registered and the space between two points is automatically linearly interpolated. This mode can be used for simulation of LED loads and other DUT's with non-linear characteristics.
  • Booster (PLZ2405WB)
    Achieving 2400 W in "2U" size. Connecting up to 4 booster (PLZ2405WB) units with the master (PLZ1205W) increases the maximum system capability to 10.8 kW 2160 A. The optional parallel cable (PC01-PLZ-5W) is reguired to connect between the master and slave/booster units.
    *PLZ2405WB is a dedicated booster for PLZ1205W. It cannot be used with any other model.
  • Parallel operation
    Multiple units of the same type can be connected in parallel. Without using boosters, you can connect up to five units of the same model in parallel, including the master unit (max. 6 kW, 1200 A). In the parallel connection configuration, one control master operates with one or more slave units, enabling you to control the entire system and view the sum of the combines data on the master unit’s panel. To connect the units requires the use of as many optional parallel cables (PC01-PLZ-5W) as the number of units to be connected.
    *The PLZ2405WB (Booster) comes with 1 pc. of parallel operation cable (PC01-PLZ-5W).
  • PLZ-5W SR Large scale system SR Series (Smart Rack)
    The compact, large scale system, SR (Smart Rack) Series is available. The input power is available in 6 kW, 10.8 kW, 15.6 kW, and 20.4 kW. The maximum input current is 2160 A. (*1200 A for PLZ6005W)
  • Impedance measurement system PLZ-5WZ Series(factory option)
    • The all-new PLZ-5WZ series allows for easily configured impedance measurements with dedicated impedance measurement software.
    • Impedance measurements are made during discharge, allowing for real-time measurement of impedance values from the DUT.
    • Capable of R, jX, θ, and Z measurements.
    • Measures AC frequency from 100 Hz - 10 kHz (seven fixed settings) and signal levels can be set arbitrarily.
    • Equipped with a voltage slope correction function that minimizes the effect of voltage slope during during battery discharge tests.
    • Zero adjustment function allows for increased accuracy during critical impedance measurements.
    • Measurement results and graphical information can be copied directly from the application software to programs like Excel.
Свернуть Развернуть
Основные возможности и технические характеристики

 Outline

The PLZ-5W Series high performance electronic load is the successor to the highly respected PLZ-4W series, whilst still retaining the same high specification and build quality. Advances include a high visibility color display, low voltage operation from a minimum of 1 V to a maximum of 150 V. Programmable profiles of voltage/current can be applied (using the new ARB function, as used in LED/solar testing) in addition to the inherited 6 modes of operation: Constant Current, Constant Resistance, Constant Voltage, Constant Power, Constant Current + Constant Voltage, Constant Resistance + Constant Voltage.

Equipped with a high-speed response feature boasting a maximum slew rate of 60 A/μs (PLZ1205W) and a minimum setting resolution of 10 μA (PLZ205W). Additional features of the PLZ-5W series include: Soft-start function, variable slew rate, selectable response (CV/CR mode), switching function, ABC preset memory, 20 user-defined set-up configurations, and a sequence operation function. The advanced high-speed response makes the PLZ-5W ideal for the development and testing of today's modern power supplies that require variable high-speed current changes. This advantage extends to the testing of current clamps/transducers.
The PLZ-5W Series is available in 4 standard models which can be incrementally extended by adding additional booster units (PLZ2405W) to achieve a maximum of 10.8 kW / 2160 A DC electronic load.

The following communication interfaces are installed as standard: LAN (LXI compliant), USB, RS232C and analog control. An optional GPIB interface is available.

Features

  • Color liquid crystal display (LCD)
    High visibility color display. The voltage, current, power, current capacity (Ah) and power capacity (Wh) values are conveniently displayed.
  • Maximum Slew rate of 60 A/μs
    Achieving a rise time of 4 μs to reach the rated current of the electronic load. Power supply evaluation demands a fast transient response which the PLZ-5W series achieves with ease.
  • High speed voltage tracking characteristics
    High speed voltage tracking characteristic in CR mode is perfect for applications such as startup tests for power supplies.
  • Communication interfaces are included as standard
    LAN (LXI) / USB / RS232C as standard interface. Use a browser from a PC, smartphone, or tablet to access the web server built into the PLZ-5W series for convenient control and monitoring. *GPIB Option
  • Sequence Creation Software Wavy for PLZ-5W (SD023-PLZ-5W)
    The Wavy for PLZ-5W (SD023-PLZ-5W) is an application software that supports sequence creation and the operation of the Kikusui power supplies and the electronic load. The “Wavy” software allows you to create and edit sequences visually using a mouse without programming knowledge. It enables you to control the electronic load for such monitoring the voltage and current, logging and so on.
  • Arbitrary I-V characteristics (ARB) mode
    In ARB mode arbitrary I-V characteristics can be set by entering multiple I-V points (voltage and current value set points). From 3 to 100 points can be registered and the space between two points is automatically linearly interpolated. This mode can be used for simulation of LED loads and other DUT's with non-linear characteristics.
  • Booster (PLZ2405WB)
    Achieving 2400 W in "2U" size. Connecting up to 4 booster (PLZ2405WB) units with the master (PLZ1205W) increases the maximum system capability to 10.8 kW 2160 A. The optional parallel cable (PC01-PLZ-5W) is reguired to connect between the master and slave/booster units.
    *PLZ2405WB is a dedicated booster for PLZ1205W. It cannot be used with any other model.
  • Parallel operation
    Multiple units of the same type can be connected in parallel. Without using boosters, you can connect up to five units of the same model in parallel, including the master unit (max. 6 kW, 1200 A). In the parallel connection configuration, one control master operates with one or more slave units, enabling you to control the entire system and view the sum of the combines data on the master unit’s panel. To connect the units requires the use of as many optional parallel cables (PC01-PLZ-5W) as the number of units to be connected.
    *The PLZ2405WB (Booster) comes with 1 pc. of parallel operation cable (PC01-PLZ-5W).
  • PLZ-5W SR Large scale system SR Series (Smart Rack)
    The compact, large scale system, SR (Smart Rack) Series is available. The input power is available in 6 kW, 10.8 kW, 15.6 kW, and 20.4 kW. The maximum input current is 2160 A. (*1200 A for PLZ6005W)
  • Impedance measurement system PLZ-5WZ Series(factory option)
    • The all-new PLZ-5WZ series allows for easily configured impedance measurements with dedicated impedance measurement software.
    • Impedance measurements are made during discharge, allowing for real-time measurement of impedance values from the DUT.
    • Capable of R, jX, θ, and Z measurements.
    • Measures AC frequency from 100 Hz - 10 kHz (seven fixed settings) and signal levels can be set arbitrarily.
    • Equipped with a voltage slope correction function that minimizes the effect of voltage slope during during battery discharge tests.
    • Zero adjustment function allows for increased accuracy during critical impedance measurements.
    • Measurement results and graphical information can be copied directly from the application software to programs like Excel.
Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

  • Пошаговая инструкция по применению электронной программируемой нагрузки Kikusui серии PLZ-5W
  • PLZ-5W How to Perform Transient Response Test
Характеристики
Загрузить технические характеристики

Model Specification
PLZ205W DC Electronic Load: Max. 200 W, 1–150 V, 40 A. Equipped with six modes (Constant Current / Constant Resistance / Constant Voltage / Constant Power / Constant Current + Constant Voltage / Constant Resistance + Constant Voltage) plus Arbitrary I-V Characteristics (ARB) mode to reproduce nonlinear load characteristics. High-speed response with 4 μs start-up time. Sequence control functionality enables actual-load simulations. Parallel operation enables scalability. Comes with LAN, RS-232C and USB communication interfaces installed as a standard feature. *GPIB Option
PLZ405W DC Electronic Load: Max. 400 W, 1–150 V, 80 A. Equipped with six modes (Constant Current / Constant Resistance / Constant Voltage / Constant Power / Constant Current + Constant Voltage / Constant Resistance + Constant Voltage) plus Arbitrary I-V Characteristics (ARB) mode to reproduce nonlinear load characteristics. High-speed response with 4 μs start-up time. Sequence control functionality enables actual-load simulations. Parallel operation enables scalability. Comes with LAN, RS-232C and USB communication interfaces installed as a standard feature. *GPIB Option
PLZ1205W DC Electronic Load: Max. 1200 W, 1–150 V, 240 A. Equipped with six modes (Constant Current / Constant Resistance / Constant Voltage / Constant Power / Constant Current + Constant Voltage / Constant Resistance + Constant Voltage) plus Arbitrary I-V Characteristics (ARB) mode to reproduce nonlinear load characteristics. High-speed response with 4 μs start-up time. Sequence control functionality enables actual-load simulations. Parallel operation enables scalability. Comes with LAN, RS-232C and USB communication interfaces installed as a standard feature. *GPIB Option
PLZ2405WB Booster unit for PLZ1205W: Max. 2400 W, 1–150 V, 480 A. Able to connect up to four PLZ2405WB units in parallel to each PLZ1205W master unit (max. 10.8 kW, 2160 A). (Dedicated booster for PLZ1205W. Unable to connect to other models.)
PLZ6005W SR Large-capacity electronic load assembled with PLZ1205W and booster using dedicated rack parts. 6000 W, 1–150 V, 1200 A. Comes with digital interfaces (LAN, USB and RS-232C) as a standard feature. Capable of operation using the Sequence Creation software “Wavy.”
PLZ10005W SR Large-capacity electronic load assembled with PLZ1205W and booster using dedicated rack parts. 10.8 kW, 1–150 V, 2160 A. Comes with digital interfaces (LAN, USB and RS-232C) as a standard feature. Capable of operation using the Sequence Creation software “Wavy.”
PLZ15005W SR Large-capacity electronic load assembled with PLZ1205W and booster using dedicated rack parts. 15.6 kW, 1–150 V, 2160 A. Comes with digital interfaces (LAN, USB and RS-232C) as a standard feature. Capable of operation using the Sequence Creation software “Wavy.”
PLZ20005W SR Large-capacity electronic load assembled with PLZ1205W and booster using dedicated rack parts. 20.4 kW, 1–150 V, 2160 A. Comes with digital interfaces (LAN, USB and RS-232C) as a standard feature. Capable of operation using the Sequence Creation software “Wavy.”
PLZ205WZ (SPEC21192) DC load device with impedance measurement function in PLZ - 5W series. DC Electronic Load: Max. 200 W, 1–150 V, 40 A. Impedance measurements are made during discharge, allowing for real-time measurement of impedance values from the DUT. Capable of R, jX, θ, and Z measurements. Measures AC frequency from 100 Hz - 10 kHz (seven fixed settings) and signal levels can be set arbitrarily. Equipped with a voltage slope correction function that minimizes the effect of voltage slope during during battery discharge tests. Zero adjustment function allows for increased accuracy during critical impedance measurements. Measurement results and graphical information can be copied directly from the application software to programs like Excel.
PLZ405WZ (SPEC21192) DC load device with impedance measurement function in PLZ - 5W series. DC Electronic Load: Max. 400 W, 1–150 V, 80 A. Impedance measurements are made during discharge, allowing for real-time measurement of impedance values from the DUT. Capable of R, jX, θ, and Z measurements. Measures AC frequency from 100 Hz - 10 kHz (seven fixed settings) and signal levels can be set arbitrarily. Equipped with a voltage slope correction function that minimizes the effect of voltage slope during during battery discharge tests. Zero adjustment function allows for increased accuracy during critical impedance measurements.Measurement results and graphical information can be copied directly from the application software to programs like Excel.
PLZ1205WZ (SPEC21192) DC load device with impedance measurement function in PLZ - 5W series. DC Electronic Load: Max. 1200 W, 1–150 V, 240 A. Impedance measurements are made during discharge, allowing for real-time measurement of impedance values from the DUT. Capable of R, jX, θ, and Z measurements.Measures AC frequency from 100 Hz - 10 kHz (seven fixed settings) and signal levels can be set arbitrarily. Equipped with a voltage slope correction function that minimizes the effect of voltage slope during during battery discharge tests. Zero adjustment function allows for increased accuracy during critical impedance measurements. Measurement results and graphical information can be copied directly from the application software to programs like Excel.

Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
PLZ205W
Электронная нагрузка DC 200 Вт, 1–150 В, 40 А
По запросу
- шт +
PLZ405WZ (SPEC21192)
Устройство нагрузки постоянного тока с функцией измерения импеданса в PLZ - 5W серии 400 Вт, 1–150 В, 80 А
По запросу
- шт +
PLZ1205WZ (SPEC21192)
Устройство нагрузки постоянного тока с функцией измерения импеданса в PLZ - 5W серии. 1200 Вт, 1–150 В, 240 А
По запросу
- шт +
PLZ405W
Электронная нагрузка DC 400 Вт, 1–150 В, 80 А
По запросу
- шт +
PLZ1205W
Электронная нагрузка DC 1200 Вт, 1–150 В, 240 А
По запросу
- шт +
PLZ2405WB
Усилительный блок для PLZ1205W: макс. 2400 кВт, 1–150 В, 480 А
По запросу
- шт +
PLZ6005W SR
Электронная нагрузка большой емкости, собранная на PLZ1205W и усилителе, 6000 кВт, 1–150 В, 1200 А
По запросу
- шт +
PLZ10005W SR
Электронная нагрузка большой емкости, собранная на PLZ1205W и усилители, в стойке 10.8 кВт, 1–150 В, 2160 А
По запросу
- шт +
PLZ15005W SR
Электронная нагрузка большой емкости, собранная на PLZ1205W и усилители, в стойке 15.6 кВт, 1–150 В, 2160 А
По запросу
- шт +
PLZ20005W SR
Электронная нагрузка большой емкости, собранная на PLZ1205W и усилители, в стойке 20.4 кВт, 1–150 В, 2160 А
По запросу
- шт +
PLZ205WZ (SPEC21192)
Устройство нагрузки постоянного тока с функцией измерения импеданса в PLZ - 5W серии 200 Вт, 1–150 В, 40 А
По запросу
- шт +
Опции
Wavy for PLZ-5W (SD023-PLZ-5W)
ПО создание/управление тестовыми последовательностями
По запросу
- шт +
PIA5100
GPIB-преобразователь
По запросу
- шт +
PC01-PLZ-5W
Кабель для параллельной работы серии PLZ-5W
По запросу
- шт +
Библиотека

Основные сведения о продукте

Посмотреть более подробную информацию о возможностях этого продукта.

Технические характеристики

Отзывы
Добавить отзыв
Оцените товар:
Ваше имя
Достоинства

Недостатки

Комментарий

Символы на картинке
