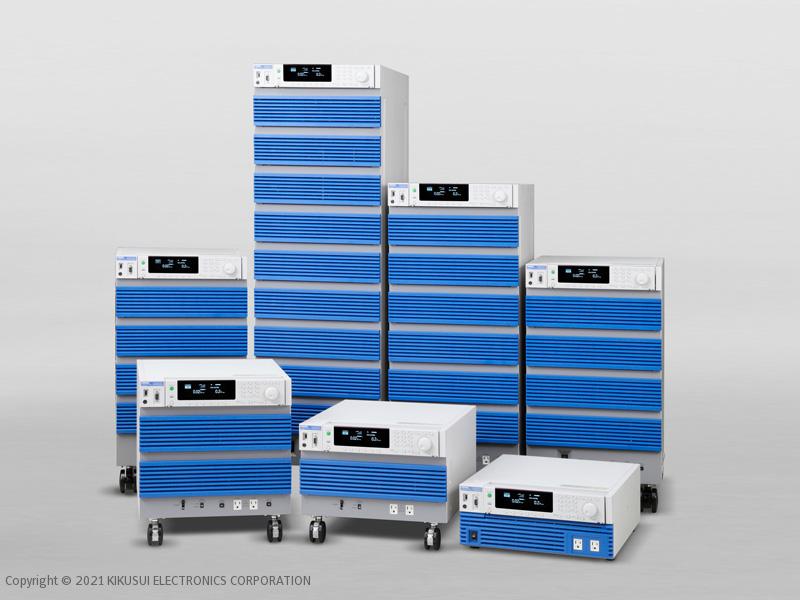

Источники питания переменного тока PCR-LE Подробнее




Японская компания Kikusui Electronics Corporation - производитель электронных измерительных приборов и оборудования для электропитания с 1951 года.

В 1983 году группа Kikusui основала фабрику Fuji Katsuyama Factory (FKF) в качестве внутреннего производственного центра. В течение 1990-х… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

Outline

The PCR-LE Series is a new line of advanced multifunctional AC power supply that has been developed from our PCR-L/LA Series (linear amplifier type). The PCR-LE Series provides high reliability and can be applied to various applications, by taking advantage of the features that can control broadband waveform freely. Moreover, the PCR-LE Series can be configured as a core device of a test system combined with E-loads and Power Analyzers for “Grid Connection Testing” in regard to dispersed power generation, such as Solar Power, Wind Power, Fuel Cell, and Gas Engine referred to as “New Energy Field”.
With various options, the low frequency immunity test and various power enviroment tests are supported. The options for parallel operation and three-phase operation enable you to expand a single-phase system up-to 27kVA, single-phase three wires up-to 54kVA, and a three-phase system up to 81kVA. The system can be applied to a large-scale EMC site for testing of industrial high-capacity air conditioners.

[Related Products] Multi-output model PCR-LE2 Series

The PCR-LE2 Series are designed based on the PCR-LE Series that supports single-phase output, single-phase 3-wire output, and three-phase output within the rated capacity by selecting the switch from the front panel operation.

Features

  • Wide-ranging specs DC output also supported
    • Output voltage rating (AC): 1 to 300V
    • Output frequency rating: 1 to 999.9Hz
    • Output voltage rating (DC): ± 1.4 to ± 424V
    In addition, the system supports a DC output mode and AC + DC output mode. The system can be useful in a wider range of fields such as chemistry- and physics-related areas.
  • Selectable response mode
    Allows select of a response mode for the internal amplifier system depending on the load condition and application.
    • High-speed response (FAST): *for requesting a rate of power rise/fall
    • Normal response (MEDIUM): for testing various power supply environments
    • Highly stable response (SLOW): for power supply for EMC testing sites
    *Excluding PCR6000LE and PCR9000LE
  • Power line abnormality simulation
    In AC mode, it is possible to simulate power line abnormalities by setting the output of the PCR-LE series system to the state of a power outage, voltage drop (dip), or voltage increase (pop). This allows the ability to test switching power supplies and electronic equipment.
  • Various measuring functions
    Output voltage/current RMS values, peak voltage/current, effective power/apparent power, and power factor can be measured. It is possible to analyze harmonics (up to 40th order) of the output current.
  • Sequence function
    The output voltage, frequency, and waveform can be changed along the way, thus, power supply environment testing can be automated. In addition to AC output, DC output and AC + DC output in sequence are also available. With the resolution setting by increments of 0.1 ms, the system provides functions to set the starting phase, sudden phase shift, as well as a jump and pause function.
  • Sensing, Regulation adjustment
    Even in cases in which load units are installed remotely, the voltage (RMS value) at the end of the load can be stabilized through correction of voltage drops. Hardware sensing and software sensing are provided as sensing function, allowing you to selectively use either one accordingly with the load condition and application.
  • Output current control
    The current limiting function enables you to control the output current (RMS) at a certain level for continuous operation by a selectable time setting (time/continuous) for a trip operation. Continuity tests for electric facilities (distribution panels, circuit breakers, devices for wiring, etc.) can be performed under stable conditions.
  • Eco-friendly function (Power-conservation function)
    • Sleep function
      The power unit goes into the sleep mode when no output is detected for a certain time to cut down on the power consumption.
    • Energy-saving operation function*
      You can utilize the energy-saving function to operate only the necessary power unit(s) depending on the required supply load.
      *Excluding PCR500LE and PCR1000LE

  • External communication
    RS232C (equipped as a standard). Remote control available with GPIB, USB, and LAN as options. Using LAN makes it possible to configure highly cost-effective systems, as LXI standard is supported.
  • Memory function
    It is possible to store up to 99 data sets of the output frequency, voltage (AC/DC), and a cyclic waveform under the waveform bank number on the memory of the main unit.
    In addition, you can use USB memory devices to store the data contained on the main unit memory, panel settings, power line abnormality simulations, and sequence data.
  • Standard supported
    Usable for systems to test conformance to the IEC61000-3 and 4 Series standards. Optional applications software also offered. Please refer to the end of the brochure for details.
  • Front panel serving as a remote control
    The front panel is detachable. With the optional extension cable, the panel functions as a remote control.
    You can operate the PCR-LE unit installed under your work desk/work bench remotely from the front panel connected with the optional extension cable (EC05-PCR).
  • Downsizing
    Comparison with the existing PCR-LA (4 kVA)
  • For "system interconnection tests" with reverse load flow
    Conforming to the guideline for requirements of system interconnection technologies
    *All the simulated reverse load flow power is consumed internally, thus, there will be no reverse load flow to the system.
  • Specifications for large capacity
    It is possible to expand to 27 kVA (single phase), 54 kVA (single phase 3-wire), and 81 kVA (three phase) by using the parallel, single phase 3-wire, and three phase operation options (expansion operation drivers). This allows the system to be used for large-scale EMC site power or as test power for large-capacity industrial air conditioners.
    • Parallel operation
      2 kVA or higher model / Max. connectable units: 5 / Max. expansion capacity: Single phase 27 kVA
      (Can be expanded to 54 kVA (single phase 3-wire) or 81 kVA (three phase) when used in combination with the single phase 3-wire option or three phase option.)
      *The separately-sold expansion operation driver is required.
    • Single phase 3-wire, three phase operation
      All models / Max. expanded capacity: 54 kVA (single phase 3-wire), 81 kVA (three phase)
      (When used in combination with the parallel operation option)
      * The separately-sold expansion operation driver is required.

  • Excellent maintenance ability due to the unit configuration
    The PCR-LE series (excluding PCR500LE) are a unit type configuration.The power unit can be serviced (replaced) by the unit of 1 kVA.
  • Other functions
    • Setting output impedance
    • Measuring harmonics current
    • Soft start (Rise time control)
    • Internally fixed Vcc

Свернуть Развернуть
Основные возможности и технические характеристики

Outline

The PCR-LE Series is a new line of advanced multifunctional AC power supply that has been developed from our PCR-L/LA Series (linear amplifier type). The PCR-LE Series provides high reliability and can be applied to various applications, by taking advantage of the features that can control broadband waveform freely. Moreover, the PCR-LE Series can be configured as a core device of a test system combined with E-loads and Power Analyzers for “Grid Connection Testing” in regard to dispersed power generation, such as Solar Power, Wind Power, Fuel Cell, and Gas Engine referred to as “New Energy Field”.
With various options, the low frequency immunity test and various power enviroment tests are supported. The options for parallel operation and three-phase operation enable you to expand a single-phase system up-to 27kVA, single-phase three wires up-to 54kVA, and a three-phase system up to 81kVA. The system can be applied to a large-scale EMC site for testing of industrial high-capacity air conditioners.

[Related Products] Multi-output model PCR-LE2 Series

The PCR-LE2 Series are designed based on the PCR-LE Series that supports single-phase output, single-phase 3-wire output, and three-phase output within the rated capacity by selecting the switch from the front panel operation.

Features

  • Wide-ranging specs DC output also supported
    • Output voltage rating (AC): 1 to 300V
    • Output frequency rating: 1 to 999.9Hz
    • Output voltage rating (DC): ± 1.4 to ± 424V
    In addition, the system supports a DC output mode and AC + DC output mode. The system can be useful in a wider range of fields such as chemistry- and physics-related areas.
  • Selectable response mode
    Allows select of a response mode for the internal amplifier system depending on the load condition and application.
    • High-speed response (FAST): *for requesting a rate of power rise/fall
    • Normal response (MEDIUM): for testing various power supply environments
    • Highly stable response (SLOW): for power supply for EMC testing sites
    *Excluding PCR6000LE and PCR9000LE
  • Power line abnormality simulation
    In AC mode, it is possible to simulate power line abnormalities by setting the output of the PCR-LE series system to the state of a power outage, voltage drop (dip), or voltage increase (pop). This allows the ability to test switching power supplies and electronic equipment.
  • Various measuring functions
    Output voltage/current RMS values, peak voltage/current, effective power/apparent power, and power factor can be measured. It is possible to analyze harmonics (up to 40th order) of the output current.
  • Sequence function
    The output voltage, frequency, and waveform can be changed along the way, thus, power supply environment testing can be automated. In addition to AC output, DC output and AC + DC output in sequence are also available. With the resolution setting by increments of 0.1 ms, the system provides functions to set the starting phase, sudden phase shift, as well as a jump and pause function.
  • Sensing, Regulation adjustment
    Even in cases in which load units are installed remotely, the voltage (RMS value) at the end of the load can be stabilized through correction of voltage drops. Hardware sensing and software sensing are provided as sensing function, allowing you to selectively use either one accordingly with the load condition and application.
  • Output current control
    The current limiting function enables you to control the output current (RMS) at a certain level for continuous operation by a selectable time setting (time/continuous) for a trip operation. Continuity tests for electric facilities (distribution panels, circuit breakers, devices for wiring, etc.) can be performed under stable conditions.
  • Eco-friendly function (Power-conservation function)
    • Sleep function
      The power unit goes into the sleep mode when no output is detected for a certain time to cut down on the power consumption.
    • Energy-saving operation function*
      You can utilize the energy-saving function to operate only the necessary power unit(s) depending on the required supply load.
      *Excluding PCR500LE and PCR1000LE

  • External communication
    RS232C (equipped as a standard). Remote control available with GPIB, USB, and LAN as options. Using LAN makes it possible to configure highly cost-effective systems, as LXI standard is supported.
  • Memory function
    It is possible to store up to 99 data sets of the output frequency, voltage (AC/DC), and a cyclic waveform under the waveform bank number on the memory of the main unit.
    In addition, you can use USB memory devices to store the data contained on the main unit memory, panel settings, power line abnormality simulations, and sequence data.
  • Standard supported
    Usable for systems to test conformance to the IEC61000-3 and 4 Series standards. Optional applications software also offered. Please refer to the end of the brochure for details.
  • Front panel serving as a remote control
    The front panel is detachable. With the optional extension cable, the panel functions as a remote control.
    You can operate the PCR-LE unit installed under your work desk/work bench remotely from the front panel connected with the optional extension cable (EC05-PCR).
  • Downsizing
    Comparison with the existing PCR-LA (4 kVA)
  • For "system interconnection tests" with reverse load flow
    Conforming to the guideline for requirements of system interconnection technologies
    *All the simulated reverse load flow power is consumed internally, thus, there will be no reverse load flow to the system.
  • Specifications for large capacity
    It is possible to expand to 27 kVA (single phase), 54 kVA (single phase 3-wire), and 81 kVA (three phase) by using the parallel, single phase 3-wire, and three phase operation options (expansion operation drivers). This allows the system to be used for large-scale EMC site power or as test power for large-capacity industrial air conditioners.
    • Parallel operation
      2 kVA or higher model / Max. connectable units: 5 / Max. expansion capacity: Single phase 27 kVA
      (Can be expanded to 54 kVA (single phase 3-wire) or 81 kVA (three phase) when used in combination with the single phase 3-wire option or three phase option.)
      *The separately-sold expansion operation driver is required.
    • Single phase 3-wire, three phase operation
      All models / Max. expanded capacity: 54 kVA (single phase 3-wire), 81 kVA (three phase)
      (When used in combination with the parallel operation option)
      * The separately-sold expansion operation driver is required.

  • Excellent maintenance ability due to the unit configuration
    The PCR-LE series (excluding PCR500LE) are a unit type configuration.The power unit can be serviced (replaced) by the unit of 1 kVA.
  • Other functions
    • Setting output impedance
    • Measuring harmonics current
    • Soft start (Rise time control)
    • Internally fixed Vcc

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

  • PCR LE AC Noise simulation test
  • PCR LE How to Perform Sequence Operation
  • Glossary of SPEC SHEET Vol.4
Характеристики
Загрузить технические характеристики

Model Specification
PCR500LE Single phase 500VA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
PCR1000LE Single phase 1kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
PCR2000LE Single phase 2kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
PCR3000LE Single phase 3kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
PCR4000LE Single phase 4kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
PCR6000LE Single phase 6kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
PCR9000LE Single phase 9kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing

Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
PCR500LE
Однофазный 500 ВА, переменный ток от 1 до 300 В (от 1 до 999,9 Гц), постоянный ток от +/-1,4 до +/-424 В, линейный усилитель
По запросу
- шт +
PCR1000LE
Однофазный 1 кВА, переменный ток от 1 до 300 В (от 1 до 999,9 Гц), постоянный ток от +/-1,4 до +/-424 В, линейный усилитель
По запросу
- шт +
PCR2000LE
Однофазный 2 кВА, переменный ток от 1 до 300 В (от 1 до 999,9 Гц), постоянный ток от +/-1,4 до +/-424 В, линейный усилитель
По запросу
- шт +
PCR3000LE
Однофазный 3 кВА, переменный ток от 1 до 300 В (от 1 до 999,9 Гц), постоянный ток от +/-1,4 до +/-424 В, линейный усилитель
По запросу
- шт +
PCR4000LE
Однофазный 4 кВА, переменный ток от 1 до 300 В (от 1 до 999,9 Гц), постоянный ток от +/-1,4 до +/-424 В, линейный усилитель
По запросу
- шт +
PCR6000LE
Однофазный 6 кВА, переменный ток от 1 до 300 В (от 1 до 999,9 Гц), постоянный ток от +/-1,4 до +/-424 В, линейный усилитель
По запросу
- шт +
PCR9000LE
Однофазный 9 кВА, переменный ток от 1 до 300 В (от 1 до 999,9 Гц), постоянный ток от +/-1,4 до +/-424 В, линейный усилитель
По запросу
- шт +
Опции
LN05-PCR-LE
Интрефейс LAN
По запросу
- шт +
EX05-PCR-LE
Усиление формы входного сигнала (Плата ввода внешнего сигнала)
По запросу
- шт +
EX06-PCR-LE
Изменение напряжения выходного сигнала переменного тока с использованием сигналов постоянного тока) (Плата ввода внешнего сигнала)
По запросу
- шт +
PD05M-PCR-LE
Драйвер параллельной работы (для главного устройства)
По запросу
- шт +
PD05S-PCR-LE
Драйвер параллельной работы (для управляемого устройства) Аксессуары: Соединительный кабель (70 см), кабель питания (30 см)
По запросу
- шт +
PC01-PCR-LE
Удлинительный кабель (130 см) для параллельной работы (PD05M-PCR-LE / PD05S-PCR-LE).
По запросу
- шт +
CC11-PCR-L
Кабель питания (100 см) для параллельной работы (PD05M-PCR-LE / PD05S-PCR-LE).
По запросу
- шт +
3P05-PCR-LE
Драйвер 3-фазного выхода: Аксессуары: Соединительный кабель (75 см) X2, кабель синхронизации питания (LC01-PCR-LE, 100 см) X2
По запросу
- шт +
2P05-PCR-LE
Однофазный трехпроводной выходной драйвер: Аксессуары: Соединительный кабель (75 см), кабель синхронизации питания (LC01-PCR-LE, 100 см)
По запросу
- шт +
CC01-PCR-LE
Удлинительный кабель для 2P05/3P05-PCR-LE: Кабели (150 см) для однофазных трехпроводных выходных плат (2P05-PCR-LE) и трехфазных выходных плат (3P05-PCR-LE).
По запросу
- шт +
CC02-PCR-LE
Удлинительный кабель для 2P05/3P05-PCR-LE: Кабели (280 см) для однофазных трехпроводных выходных плат (2P05-PCR-LE) и трехфазных выходных плат (3P05-PCR-LE).
По запросу
- шт +
SD009-PCR-LE/WE
Программное обеспечение для тестирования помехозащищенности линии электропередачи: SD009-PCR-LE (Quick Immunity Sequencer 2)-это прикладное программное обеспечение для тестирования помехозащищенности с помощью источника питания переменного тока, серии PCR-LE для стандарта тестирования на помехозащищенность (серия IEC61000-4) стандарта EMC, который соответствует тестированию на помехозащищенность линии электропередачи, набору международных спецификаций, касающихся помех линии электропередачи. *Примечание: Для использования этого программного обеспечения версия прошивки PCR-файла должна быть 2.0 или более поздней версии.
По запросу
- шт +
Wavy for PCR-LE (SD011-PCR-LE)
Программное Обеспечение Для создания Последовательности
По запросу
- шт +
SD012-PCR-LE/WE
Программное обеспечение для тестирования авионики [SD012-PCR-LE] представляет собой программное приложение, поддерживающее стандарты испытаний самолетов, и используется для управления серией PCR-LE/LE2, которая позволяет проводить стандарты испытаний для стандартов MIL-STD-704, RTCA/D0-160 и JIS W0812. Тестовые шаблоны основаны на библиотеке, что позволяет легко выполнять тесты, просто выбирая конфигурацию проводки и тип теста. *Примечание: Для использования этого программного обеспечения версия встроенного ПО PCR-LE/LE2 должна быть 4.2 или более поздней версии.
По запросу
- шт +
SD021-PCR-LE/WE
Программное обеспечение для удаленного управления планшетом на Windows для PCR-серии WE/WE2
По запросу
- шт +
IB05-PCR-LE
Интерфейс GPIB
По запросу
- шт +
US05-PCR-LE
Интерфейс USB
По запросу
- шт +
Аксессуары
LIN1020JF
Сеть с линейным сопротивлением для однофазной 2-проводной сети (20A)
По запросу
- шт +
LIN3020JF
Сеть линейного сопротивления для однофазной 2-проводной/3-проводной, трехфазной 3-проводной/4-проводной (20A)
По запросу
- шт +
LIN3060J
Сеть линейного сопротивления для однофазной 2-проводной/3-проводной, трехфазной 3-проводной/4-проводной (60A)
По запросу
- шт +
OP01-LIN1020JF
LIN1020JF (Сеть с Линейным сопротивлением) Трехфазный расширительный блок
По запросу
- шт +
DSI1020
Имитатор просадки IEC, применяемый к однофазной двухпроводной системе, Быстрое время нарастания/спада напряжения (от 1 до 5 мкс), применяемый к просадкам напряжения (0 %, 40 %, 70 % и 80 %)
По запросу
- шт +
DSI3020
Имитатор просадки IEC: Однофазная трехпроводная, трехфазная трехпроводная и трехфазная четырехпроводная система, быстрое время нарастания/спада напряжения (от 1 до 5 сша), применяемое к просадкам напряжения (0 %, 40 %, 70 %, и 80 %), Приложенное к линейному напряжению-dip* и фазному напряжению-dip, Максимальное входное напряжение линии 500 В
По запросу
- шт +
AC5.5-3P3M-M4C
Входной кабель питания: 3 одножильных кабеля 5.5 мм2 длина: 3 м M4 (для PCR1000LE)
По запросу
- шт +
AC8-1P3M-M5C-3S
Входной кабель питания: 3 одножильных кабеля 8 мм2 длина: 3 м M5 (для PCR2000LE)
По запросу
- шт +
AC14-1P3M-M8C-3S
Входной кабель питания: 3 одножильных кабеля 14 мм2 длина: 3 м M8 (для PCR3000LE, 6000LE(одна фаза), 6000LE2(одна фаза))
По запросу
- шт +
AC22-1P3M-M8C-3S
Входной кабель питания: 3 одножильных кабеля 22 мм2 длина: 3 м M8 (для PCR4000LE)
По запросу
- шт +
AC14-1P3M-M5C-4S
Входной кабель питания: 4 одножильных кабеля 14 мм2 длина: 3 м M5 (для PCR6000LE(три фазы 3-провода), 6000LE2 (три фазы 3-провода)), 9000LE, 9000LE2, PCR12000WE2R (три фазы 3-провода))
По запросу
- шт +
AC5.5-1P3M-M5C-5S
Входной кабель питания: 5 одножильных кабеля 5.5мм2 длина: 3 м M5 (для PCR6000LE (три фазы 3-провода), 6000LE2 (три фазы 3-провода)), 9000LE, 9000LE2, PCR6000WE2 (три фазы 4-провода)), PCR12000WE2 (три фазы 4-провода))
По запросу
- шт +
LC01-PCR-LE
Кабель для синхронизации переключателей питания PCR-LE, PCR-WE/WE2.
По запросу
- шт +
EC05-PCR
Удлинительный кабель для панели управления, длина: 2 м
По запросу
- шт +
KRB9
Кронштейн (дюймовые размеры) для PCR2000LE, PLZ12005WH, PCR12000WE2(R)
По запросу
- шт +
KRB400-PCR-LE
Кронштейн (метрические размеры) для PCR2000LE,PLZ12005WH, PCR12000WE2(R)
По запросу
- шт +
KRB4
Кронштейн (дюймовые размеры) для KHA1000 / PLZ6000R / PCR500LE
По запросу
- шт +
KRB200
Кронштейн (метрические размеры) для KHA1000 / PLZ6000R / PCR500LE
По запросу
- шт +
KRB6
Кронштейн (дюймовые размеры) для PCR1000LE, PCR4000M(MA), PCR6000WE2(R)
По запросу
- шт +
KRB300
Кронштейн (метрические размеры) для PCR1000LE, PCR4000M(MA), PCR6000WE2(R)
По запросу
- шт +
Библиотека

Основные сведения о продукте

Посмотреть более подробную информацию о возможностях этого продукта.

Технические характеристики

Отзывы
Добавить отзыв
Оцените товар:
Ваше имя
Достоинства

Недостатки

Комментарий

Символы на картинке


Тут еще никто ничего не писал, стань первым!
Список просмотренных товаров пуст
Список избранного пуст
Ваша корзина пуста
Помощь
Ошибка на сайте? Выдели её и нажми Ctrl+Enter
