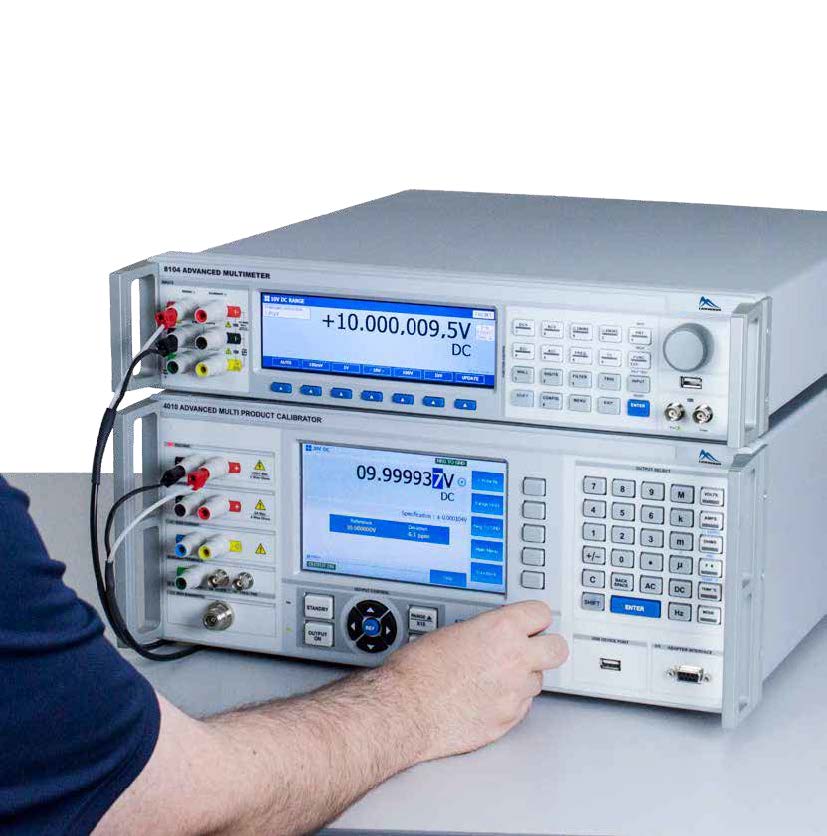

The 8100 Series is aimed at laboratories, manufacturers and design facilities requiring a wide range of measurement parameters with specifications as low as 4ppm.
The 8100 is designed with metrologists in mind, with great care taken in the design of sensitive input electronics. Ultra low input bias current on DC Voltage inputs minimise errors when utilised as a null meter with Resistive Dividers, and High Input Impedance on AC Voltage up to 10V reduces errors when measuring current through use of current shunts to enable the 8100 Series ensuring reliable measurements across multiple functions.
Dynamic display of accuracy, measurement uncertainty, standard deviation and more provide metrologists with immediate feedback of their measurement and enable users to maximise performance while improving confidence in measurements.
KEY FEATURES
- Large full colour screen
- USB, GPIB (IEEE 488), RS232 and Ethernet Interfaces as standard
- 30A DC/AC Current Ranges without the need for external shunts
- Enhanced Maths functionality
- Dynamic display of Accuracy & Measurement Uncertainty
- Programmable Front / Rear Terminals with Ratio Functionality (8104 Only)
- Electrometer input for currents ranges down to 10nA (8104 Only)
The 8100 Series is aimed at laboratories, manufacturers and design facilities requiring a wide range of measurement parameters with specifications as low as 4ppm.
The 8100 is designed with metrologists in mind, with great care taken in the design of sensitive input electronics. Ultra low input bias current on DC Voltage inputs minimise errors when utilised as a null meter with Resistive Dividers, and High Input Impedance on AC Voltage up to 10V reduces errors when measuring current through use of current shunts to enable the 8100 Series ensuring reliable measurements across multiple functions.
Dynamic display of accuracy, measurement uncertainty, standard deviation and more provide metrologists with immediate feedback of their measurement and enable users to maximise performance while improving confidence in measurements.
KEY FEATURES
- Large full colour screen
- USB, GPIB (IEEE 488), RS232 and Ethernet Interfaces as standard
- 30A DC/AC Current Ranges without the need for external shunts
- Enhanced Maths functionality
- Dynamic display of Accuracy & Measurement Uncertainty
- Programmable Front / Rear Terminals with Ratio Functionality (8104 Only)
- Electrometer input for currents ranges down to 10nA (8104 Only)
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
| 8104 | 8109 | |
|
DC VOLTAGE Best 1 Year Total Accuracy |
0 - ±1025V | 0 - ±1025V |
| ± 4 ppm | ± 9 ppm | |
|
DC CURRENT Best 1 Year Total Accuracy |
0 - 30A | 0 - 30A |
| ± 7 ppm | ± 25 ppm | |
|
DC CURRENT (Electrometer Input) Best 1 Year Total Accuracy |
10nA - 10uA Range, 0.01pA Resl | N/A |
| ± 30 ppm | ||
|
AC VOLTAGE Best 1 Year Total Accuracy |
20mV - 1000V, 10Hz - 1MHz | 20mV - 1000V, 10Hz - 100kHz |
| ± 0.015 % | ± 0.05 % | |
|
AC CURRENT Best 1 Year Total Accuracy |
20uA - 30A, 10Hz - 10kHz | 20uA - 30A, 10Hz - 10kHz |
| ± 0.03 % | ± 0.08 % | |
|
RESISTANCE (2 & 4 Wire) Best 1 Year Total Accuracy |
0 Ohms - 1 GOhm | 0 Ohms - 1 GOhm |
| ± 8 ppm | ± 20 ppm | |
|
RESISTANCE (Electrometer) Best 1 Year Total Accuracy |
10 MOhms - 1T Ohm, 10V - 300V | N/A |
| 140 ppm | ||
| FREQUENCY | 10Hz - 1MHz | 10Hz - 1MHz |
| Best 1 Year Total Accuracy | 5 ppm | 5 ppm |
| TEMPERATURE (PRT / RTD) | 2, 3 & 4 Wire | N/A |
| Support for IEC 751 & ITS 90 | ||
| Coefficients | ||
|
TEMPERATURE (THERMOCOUPLE) Best 1 Year Total Accuracy |
Support for over 8 Types | N/A |
| ±0.05°C | ||
| REAR PANEL TERMINALS | Fitted as standard | N/A |
| Line Voltage | 110V / 230V Selectable | |
| 100V Option Available | ||
| Line Frequency | 50 to 60 Hz | |
| Operating Temperature | 0°C to +50°C | |
| 32°F to 122°F | ||
| Dimensions(LxWxH) | 52 x 42 x 11 cm | |
| 20.5 x 16.6 x 4.4 inches | ||
| Weight | Multimeter : 9.5 kg / 21 lbs | |
| In Shipping Box : 15 kg / 33 lbs | ||
| In Transit Case : 30 kg / 66 lbs | ||
| Recommended Calibration Interval | 12 Months | |
| Warm-up Time | 4 Hours to specification | |
| Warranty Period | 1 Year / Extended Warranties Available | |
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
8104
|
Прецизионный цифровой мультиметр 8104, погрешность 4ppm 8 ½ разряда. Включены функции: AC/DCV, AC/DCI, сопротивление (1 Ом - 1 ГОм), частотомер, электрометр, терминалы на тыльной стороне, термопара, PRT, функция отношений, калибровка, гарантия 1 год
|
По запросу | ||
|
8109
|
Прецизионный цифровой мультиметр 8109, погрешность 9ppm 7 ½ разряда. Включены функции: AC/DCV • AC/DCI, сопротивление (1 Ом - 1 ГОм), частотомер, калибровка, гарантия 1 год
|
По запросу |
2
| Опции |
|
Опция PRESINT
|
Интерфейс адаптера модуля давления (для внешних модулей давления)
|
По запросу | ||
|
Опция TCLEAD
|
Провод термопары со встроенным датчиком температурной компенсации CJC
|
По запросу | ||
|
Опция 8100LEAD
|
Комплект аналоговых проводов серии 8000
|
По запросу | ||
|
Опция 8100SCASE
|
Мягкий транспортировочный кейс
|
По запросу | ||
|
Опция 8100TCASE
|
Жесткий транспортировочный кейс
|
По запросу | ||
|
Опция 8000PRT
|
Платиновый термометр сопротивления [диапазон от -80° до 670°C]
|
По запросу |
