Безэховая камера, предварительное соотв. ГОСТ Р 51318.16/ГОСТ Р 51317.4.3

HERA 1F
Для увеличения картинки наведите мышкой
HERA 1FHERA 1F
HERA 1FHERA 1F
Артикул: ЭК100001

Наличие: По запросу

По запросу
По запросу
По запросу



Французская компания SIEPEL, была созданна в 1986 году. Штаб-квартира и производство компании находится в La Trinité-Sur-Mer в Британи.

Компания SIEPEL разрабатывает и производит электромагнитные поглотители и экранированные помещения для различных областей электромагнитной совместимости (ЭМС), для измерений микроволновых / антенных систем, а также кибербезопасности различных областей применения: ПЭМИН (TEMPEST), EMP, HEMP, HIRF.

SIEPEL – известный европейский производитель безэховых камер, предназначенных для тестирования на… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

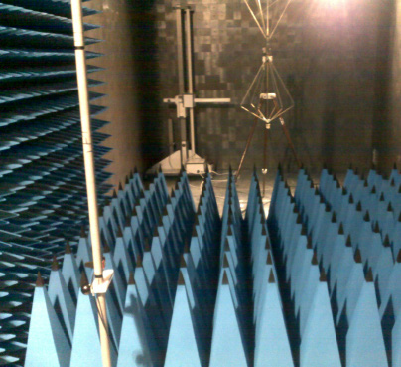

The Hera 3F is designed to perform pre-compliance emission and full compliance immunity tests at 3m distance on commercial equipment. The design of the structure is optimised for maximum performances, in minimum space. The shielding and its pyramidal absorbers are manufactured by SIEPEL.

OUR STRENGTHS
⊕ High-quality components & parts
⊕ Guarantee of 20 years for the RF performances of our absorbers
⊕ Guaranteed performances
⊕ Control of performances before shipment
⊕ Measurement departement accredited ISO/IEC 17025:2005 (accreditation n° 1-6220)
⊕ Fast delivery: permanent stock available off the shelves
⊕ Setting-up of the chambers by our dedicated installation team


MODULAR SHIELDING
Self-standing structure up to 18 (40) GHz
Steele stiffeners
OPTIMISED ABSORBER LINING
Ferrite absorbers (walls and ceiling)
Hybrid pyramidal absorbers (partial lining walls and ceiling)
Removable pyramidal absorbers for immunity (floor)
DOOR
Manual single leaf swing door
Clearance 1.2 x 2.1 m / 3.9 x 6.8 ft with interlock switch

       RAISED FLOOR
With ground plane
  WALL PANELS
Penetration panel including coaxial feedthroughs and waveguides
      TURNTABLE
Diameter 1.2 m / 3.9 ft
Max payload 500 kg / 1102,3 lbs
VENTILATION
Honeycomb air vents 300 x 300 mm / 1 ft x 1 ft up to 18 (40) GHz
      PROJECT REALISATION
Project management
Technical design & study
On-site installation
POWER DISTRIBUTION
Power filter single-phase 32 A - 50/60 Hz
Power filter three-phase 32 A - 50/60 Hz
Electrical package: power distribution, lighting
  PERFORMANCE VERIFICATION
Shielding effectiveness at 900 MHz at critical locations

AVAILABLE OPTIONS

›  Extended shielding performances up to 40 GHz
›  Shielded control and amplifier rooms
›  Plastic paint for pyramidal absorbers with wide range of colors
›  Other types and dimensions of doors
›  Electrically-assisted door latching/unlatching
›  Antenna positioners
›  Floor hatches with connection points
›  Additional power filters, data filters and special feedthroughs
›  CCTV / Audio monitoring systems
›  Fire detection systems
›  On request, some measurements can be accredited ISO 17025 (accreditation number 1-6220).
›  Military / Automotive / RadioCom standards compliance
›  Many other options on demand
Свернуть Развернуть
Основные возможности и технические характеристики
The Hera 3F is designed to perform pre-compliance emission and full compliance immunity tests at 3m distance on commercial equipment. The design of the structure is optimised for maximum performances, in minimum space. The shielding and its pyramidal absorbers are manufactured by SIEPEL.

OUR STRENGTHS
⊕ High-quality components & parts
⊕ Guarantee of 20 years for the RF performances of our absorbers
⊕ Guaranteed performances
⊕ Control of performances before shipment
⊕ Measurement departement accredited ISO/IEC 17025:2005 (accreditation n° 1-6220)
⊕ Fast delivery: permanent stock available off the shelves
⊕ Setting-up of the chambers by our dedicated installation team


MODULAR SHIELDING
Self-standing structure up to 18 (40) GHz
Steele stiffeners
OPTIMISED ABSORBER LINING
Ferrite absorbers (walls and ceiling)
Hybrid pyramidal absorbers (partial lining walls and ceiling)
Removable pyramidal absorbers for immunity (floor)
DOOR
Manual single leaf swing door
Clearance 1.2 x 2.1 m / 3.9 x 6.8 ft with interlock switch

       RAISED FLOOR
With ground plane
  WALL PANELS
Penetration panel including coaxial feedthroughs and waveguides
      TURNTABLE
Diameter 1.2 m / 3.9 ft
Max payload 500 kg / 1102,3 lbs
VENTILATION
Honeycomb air vents 300 x 300 mm / 1 ft x 1 ft up to 18 (40) GHz
      PROJECT REALISATION
Project management
Technical design & study
On-site installation
POWER DISTRIBUTION
Power filter single-phase 32 A - 50/60 Hz
Power filter three-phase 32 A - 50/60 Hz
Electrical package: power distribution, lighting
  PERFORMANCE VERIFICATION
Shielding effectiveness at 900 MHz at critical locations

AVAILABLE OPTIONS

›  Extended shielding performances up to 40 GHz
›  Shielded control and amplifier rooms
›  Plastic paint for pyramidal absorbers with wide range of colors
›  Other types and dimensions of doors
›  Electrically-assisted door latching/unlatching
›  Antenna positioners
›  Floor hatches with connection points
›  Additional power filters, data filters and special feedthroughs
›  CCTV / Audio monitoring systems
›  Fire detection systems
›  On request, some measurements can be accredited ISO 17025 (accreditation number 1-6220).
›  Military / Automotive / RadioCom standards compliance
›  Many other options on demand
Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Свернуть Развернуть
Сведения о реестре СИ

Номер в Госреестре

Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Не в реестре
Свернуть Развернуть
Сведения о реестре СИ

Номер в Госреестре

Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Не в реестре
Характеристики
Загрузить технические характеристики

Compliance & Performances
Normalised site attenuation (NSA) CISPR 16-1-4 Site VSWR CISPR 16-1-4 Field uniformity IEC/EN 61000-4-3
Measurement distance 3 m 3 m 1 m 3 m
Frequency range 30 MHz - 200 MHz 200 MHz - 1 GHz 1 GHz - 18 GHz 80 MHz - 18 GHz
Guaranteed performances ±8 dB ±4 dB < 6 dB 0 / +6 dB
Compliance Pre-compliant Pre-compliant Compliant Compliant

SHIELDING EFFECTIVENESS COMPLIES WITH EN 50147-1 (10 kHz - 40 GHz)

Radiated emission (EMI) testing: Fully compliant with the following standards from 30 MHz to 18 (40) GHz

  • CISPR 11
  • CISPR 16-1-4
  • CISPR 22 / EN 55022
  • CISPR 32
  • EN 50147-2
  • EN 55011
  • ANSI C63.4
  • Radiated immunity (EMS) testing: Fully compliant with EN/IEC 61000-4-3.
    Radio standards: All ETSI standards referring to CISPR 16 and EN/IEC 61000-4-3.

    Dimensions

    Total overall including metallic frame Internal usable
    8.0 x 3.4 x 3.4 m 7.2 x 2.5 x 2.7 m
    26 x 11 x 11 ft 24 x 8 x 9 ft

    Quality

  • All absorbers batches are tested by SIEPEL for reflectivity performances between 30 MHz – 1000 MHz.
  • Our raw materials are compliant to RoHS / REACH and free of substances in the current list of Substances of Very High Concern (SVHC) published by the European Chemicals Agency (ECHA).

  • About our absorbers
  • HY absorbers power handling: 2 kW/m² (CW).
  • Both absorbers coated with either aqueous or plastic paint are classified ISO class 4 (ISO 14644-1:2015) clean room conditions.

  • Производитель
    Модели и опции
    Товар
    Модели и Опции
    Описание
    Цена Заказать
    Модели
    HERA 1F
    Siepel HERA 1F 30 МГц - 18 ГГц t = 1 м, ДхШхВ 5000х3150х2600 мм
