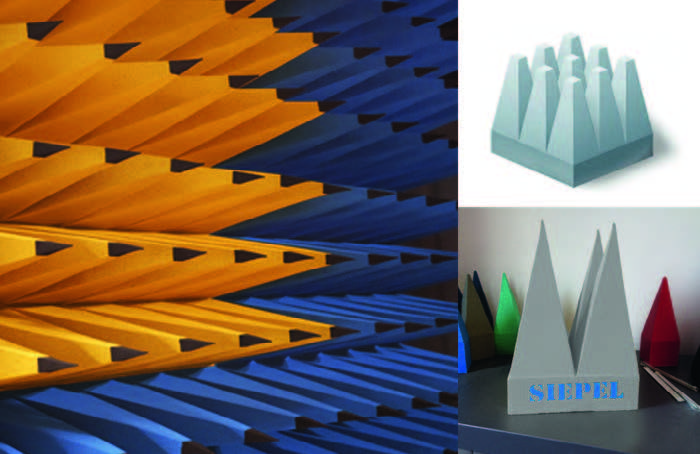

SEA-PM / TM is a premium series of broadband high-end pyramidal absorbers.
This new generation is used for the lining of anechoic chambers for EMC & antenna measurements (compact ranges, Radar Cross Section (RCS), Over-The-Air (OTA), IoT, 5G...)

CUSTOMER’S BENEFITS

• Long-lasting investment
• High performance at optimal cost
• Easy personnalisation with a wide color palette
• Fast delivery, commercially available off-the-shelf

CHARACTERISTICS

• Extended reflectivity values up to 110 GHz
• High-quality polyurethane foam
• Maximum power handling: 2 kW/m² (CW)
• Maximum temperature: +160°C (320°F)
• Indoor use

LIV COATING CHARACTERISTICS & ADVANTAGES

• This technological breakthrough in absorbers coating provides
• Softness and memory shape: no need to replace your absorbers on high trafi areas
• Sturdiness: improved mechanical strength, no premature breakdown
• Aesthetic: Brighter working environment
• A wide range of colors is available for a customized design

COMPLIANCE TO STANDARDS & DIRECTIVES

• Fire retardancy: compliant to NRL 8093 (tests 1, 2, 3), DIN 4102-B2, ISO 11925-2 Euroclass E, UL-94/HBF
• Environmental: RoHS compliant according to 2011/65/EU / REACH compliant according to EC 1907/2006 ; environmental tests compliant to standards (ISO/EN60068-2-1 & ISO/EN60068-2-78)
• Cleanroom conditions: ISO class 4 according to ISO 14644-1

REFLECTIVITY PERFORMANCES

• Values in dB at normal incidence
• These reflectivity performances are guaranteed for 25 years
• They are the result of an extensive experience in the manufacturing of electromagnetic absorbers.

SIEPEL BY YOUR SIDE

• In-house full design & manufacturing exclusively in France since 1986, on a single site
• 60+ employees allocated to value-added business units: R&D, design, scheduling, drawing, manufacturing, testing, crating, logistics, installation, service…
• Engineering capabilities for the design of anechoic chambers according to your inputs (standard, building constraints), size of EUT…
• Commitment on quality cuttings for an easy installation and good looking
• Installation performed by our in-house technicians or detailed instructions provided to third-party
• Significant number of unique projects for demanding and prestigious customers worldwide
• Project management capabilities and customer proximity during the product’s lifetime

QUALITY

• Siepel aims to deliver to its customers a high-level of quality for all products and services
• Thanks to an ISO 9001/ISO 17025 quality management system, our company continuously focuses on customer satisfaction and excellence
• Siepel fulfills its environmental obligations as REACH and RoHS directives, as well as other current regulations

IN-HOUSE TESTING

• Quality controls performed as per IEEE standard 1128
• SEA-PM absorbers tested in Siepel’s internal fire test lab as well as in independent test laboratories
• Reflectivity performances factory controlled, using cutting edge broadband equipment
• Factory Acceptance Tests (FAT): Reflectivity measurements from 30 MHz to 50 GHz
