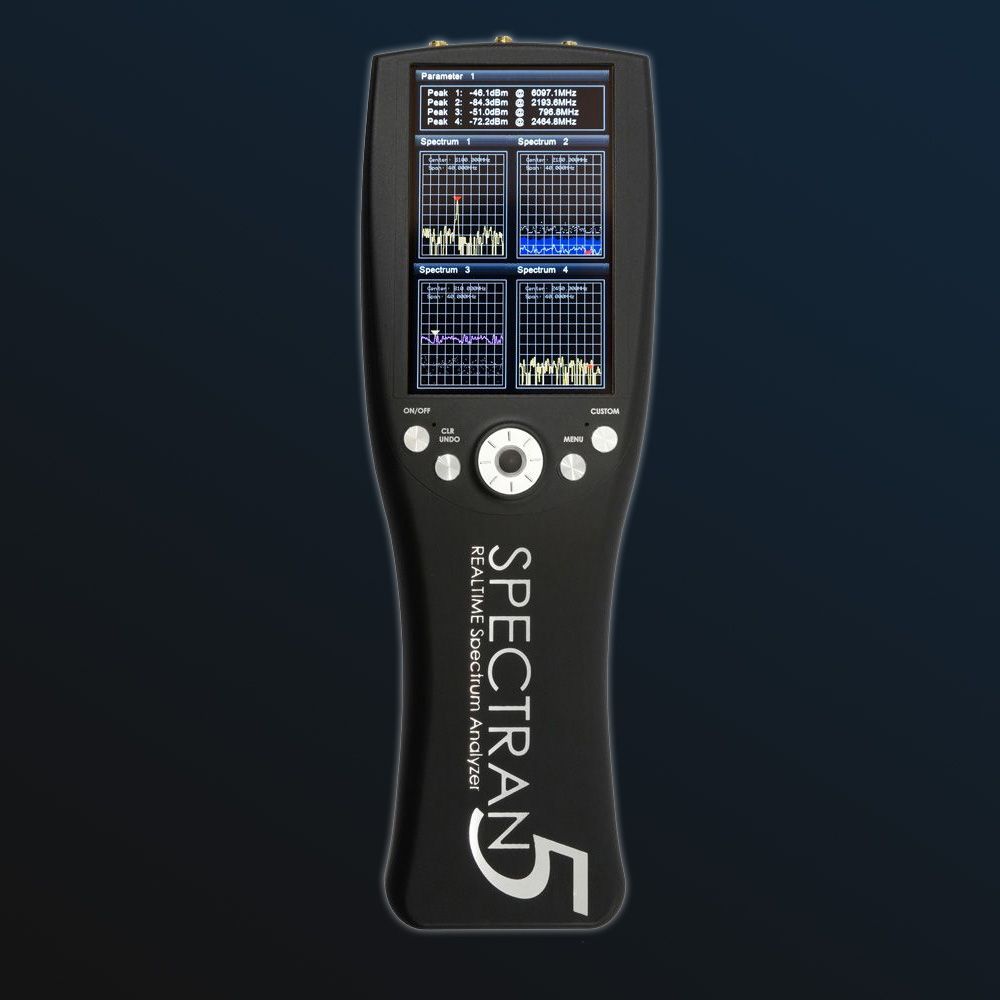

Spectran HF-80200 V5
Real-Time Handheld Spectrum Analyzer
- Frequency range: 9kHz to 20GHz
- Up to 175MHz Real-Time bandwidth
- POI below 1μS
- Real-time I/Q streaming via USB
- Sweep speed: up to 14THz/s
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Compact and lightweightOptional I/Q Generator (6GHz) and Power Meter (40GHz) available soon
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)
With this Spectrum Analyzer you can master all the challenges. Wether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 is the ideal Spectrum Analyzer for making reliable and fast measurements.
The included PC analysis software RTSA Suite transforms the V5 into a fully-featured Benchtop Spectrum Analyzer . Available in 4 different versions the V5 offers a solution for almost every application.More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz - 20GHz |
| Weight | 850g |
| Guarantee | 2 years |
| Included with delivery | SPECTRAN HF-80200 V5 incl. Option 020 (internal 20dB preamp), OmniLOG 70600 omnidirectional antenna (700MHz to 6GHz), Watertight & shock-proof transport case, Spectrum Analysis Software RTSA Suite (on USB stick), International Power Supply with adapters |
Real-Time OEM Spectrum Analyzer
- Up to 175MHz Real-Time bandwidth
- POI below 1μS
- Real-time I/Q streaming via USB (in preparation)
- Sweep speed: up to 14THz/s
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Compact and lightweight
- Optional I/Q Generator (6GHz) and Power Meter (40GHz)
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)pectran HF-80200 V5 OEM
Aaronia presents the SPECTRAN V5, an OEM Real-Time Spectrum Analyzer designed to capture even shortest signal transmissions. With this Spectrum Analyzer you can master all the challenges. Whether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 is the ideal Spectrum Analyzer for making reliable and fast measurements.
The included PC analysis software RTSA Suite transforms the V5 into a fully-featured Benchtop Spectrum Analyzer . Available in 4 different versions the V5 offers a solution for almost every application.
More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz - 20GHz |
| Weight | 2,1kg |
| Guarantee | 2 Jahre |
| Filter bandwidth (min/max) | 1Hz bis 40MHz (in preparation) |
| Typ. precision base unit | typ. +/- 1.5dB |
| Included with delivery | SPECTRAN HF-80200 V5 OEM incl. Option 020 (internal 20dB preamp), Spectrum Analysis Software RTSA Suite (on USB stick), International Power Supply with adapte |
Spectran HF-80200 V5 X
Real-Time USB Spectrum Analyzer
- Up to 175MHz Real-Time bandwidth
- POI below 1μS
- Real-time I/Q streaming via USB (in preparation)
- Sweep speed: up to 14THz/s
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Compact and lightweight
- Optional I/Q Generator (6GHz) and Power Meter (40GHz)
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)
Aaronia presents the SPECTRAN V5 X, a USB Real-Time Spectrum Analyzer and RF-recorder designed to capture even shortest signal transmissions. With this Spectrum Analyzer you can master all the challenges. Wether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 X is the ideal Spectrum Analyzer for making reliable and fast measurements.
The included PC analysis software RTSA Suite transforms the V5 X into a fully-featured Benchtop Spectrum Analyzer . Available in 4 different versions the V5 X offers a solution for almost every application.
More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz - 20GHz |
| Weight | 2,1kg |
| Guarantee | 2 years |
| Filter bandwidth (min/max) | 1Hz to 40MHz (in preparation) |
| Typ. precision base unit | typ. +/- 1.5dB |
| Included with delivery | SPECTRAN HF-80200 V5 X incl. Option 020 (internal 20dB preamp), OmniLOG 70600 omnidirectional antenna (700MHz to 6GHz), Watertight & shock-proof transport case, Spectrum Analysis Software RTSA Suite (on USB stick), International Power Supply with adapters |
Spectran HF-80200 V5 RSA
Remote controlled real-time Spectrum Analyzer
- Up to 175MHz Real-Time bandwidth
- Frequency range 9kHz to 20GHz
- Fully remote-controlled via LAN/Ethernet/Internet
- POI below 1μS
- Real-time I/Q streaming via USB (in preparation)
- Sweep speed: up to 14THz/s
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Compact and lightweight
- Optional I/Q Generator (6GHz) and Power Meter (40GHz)
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)
Aaronia presents the SPECTRAN V5 RSA, a real-time remote controlled Spectrum Analyzer designed to capture even shortest signal transmissions. The SPECTRAN RSA Spectrum Analyzer Series offers an incredible performance at an unbeatable price-performance. Each RSA unit can be mounted into a common 19“ instrument rack and requires one height unit (1U) only. Thus the RSA is perfectly suitable for stationary use in laboratories as well as, thanks to the low power consumption, for mobile use in measuring vehicles or satellite broadcasting vans.
The Analyzer is remote controllable through the USB interface or Lan/Ethernet, allowing a continuous logging and streaming of any frequency range and direct access to the Analyzer through each PC connected to the Internet.
More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz - 20GHz |
| Weight | 2,1kg |
| Guarantee | 2 years |
| AVG Noise Level (1Hz) with PreAmp | -150dBm/Hz |
| Filter bandwidth (min/max) | 10Hz - 40MHz (in preparation) |
| Typ. precision base unit | typ. +/- 1.5dB |
| Included with delivery | SPECTRAN HF-80200 V5 RSA incl. Option 020 (internal 20dB preamp), Spectrum Analysis Software RTSA Suite (on USB stick), International Power Supply with adapte |
Real-Time Outdoor Spectrum Analyzer Spectran XFR V5 PRO
Fastest Counter-surveillance Receiver in the World
- Up to 175MHz Real-Time bandwidth
- POI below 1μS
- Unlimited recording time (needs 1GB / min.)
- Up to 4TB ultra-fast SSD recording storage
- Real-time I/Q streaming via USB (in preparation)
- Very fast sweep mode, scans 20GHz in less than 20mS
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Compact and lightweight
- Optional I/Q Generator (6GHz) and Power Meter (40GHz)
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)
Aaronia presents the SPECTRAN XFR V5 PRO, a Real-Time Spectrum Analyzer designed to capture even shortest signal transmissions.
With this Spectrum Analyzer you can master all the challenges. Whether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 is the ideal Spectrum Analyzer for making reliable and fast measurements. It provides a powerful, extremely impact resistant Outdoor notebook and a high-end spectrum analyzer in one compact device. The XFR V5 PRO has been independently tested in accordance with MIL-STD-810G, IP65 and MIL-STD-461F.
The easy to use software is suited for detecting unknown or illegal transmissions across a wide frequency range. With an unlimited recording time (needs approx. 1GB hard disk space per minute) the XFR V5 PRO allows to store several hours of real-time data. Once recorded the entire measurement data can be re-loaded into the software. The optional I/Q Generator allows to generate the recorded signals 1:1 up to 6GHz. Several helpful features allow a deep investigation of the Real-Time measurement or recorded data, e.g. a 3D Spectrogram view which displays a signal like newer seen before.
The extreme speed predestines the unit as counter-surveillance measurement receiver, as it is able to capture any kind of bug / hidden camera / RF transmitter etc.
More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz (1Hz) - 20GHz, GPS |
| Weight | 7,5 kg |
| Guarantee | 2 years |
| AVG Noise Level (1Hz) with PreAmp | -150dBm/Hz |
| Filter bandwidth (min/max) | 1Hz to 40MHz (in preparation) |
| Typ. precision base unit | typ. +/- 1.5dB |
| Included with delivery | Spectran XFR V5 PRO incl. Option 020 (internal 20dB preamp), OmniLOG 70600 omnidirectional antenna (700MHz to 6GHz), Spectrum Analysis Software RTSA Suite (pre-installed), International Power Supply with adapter |
Spectran V5 Command Center
Fastest Counter-surveillance Receiver in the World
- Up to 350MHz Real-Time bandwidth
- Fully customizable, cascadable system (up to 2 independent Analyzers)
- POI below 1μS
- Unlimited recording time (needs 1GB / min.)
- Up to 40TB ultra-fast SSD recording storage
- Real-time I/Q streaming (in preparation)
- Very fast sweep mode, scans 20GHz in less than 20mS
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Powerful, but still mobile
- 3x Widescreen Displays (Full HD), creates a resolution of 5760 x 1080
- Optional I/Q Generator (6GHz) and Power Meter (40GHz)
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)
The SPECTRAN V5 RF Command Center is the culmination of Aaronia's efforts in building it´s Spectrum Analyzer Battleship:
It scans 20GHz in less than 20 milliseconds, which is an astonishing speed of 1000GHz per second.
This high-end spectrum analyzer offers the RF performance you need with all measurement details available at the same time.
The setup is completely customizable and thanks to it's cascadable system docks up to 2 independent analyzers.
The three large full HD widescreen monitors display and capture the bandwith of up to 175MHz in real time (or 350MHz with two internal analyzers), with an POI
below 1uS! And with up to 40TB ultra-fast SSD drives you basically have an „unlimited“ recording time, as only 1GB is needed per minute.
The command center has a wide measuring range of up to 20GHz, with over five million samples per second. A 14 bit dual 256 MSPS I/Q generates 500 MSPS,
and an optional I/Q generator enlarges the range to 6GHz. The optional power meter will help you reach 40GHz.
The hardware side of the computer also features the best available setup, as the SPECTRAN V5 RF Command Center runs on an Intel i7 with 16 Gigabyte RAM and an nVidia GeForce GTX graphic card, which enables gapless streaming and playback.
Last but not least, the Command Center is made in Germany, ensuring quality on the highest level.
More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz (1Hz) - 20GHz |
| Weight | 30 kg |
| Guarantee | 2 years |
| AVG Noise Level (1Hz) with PreAmp | -150dBm/Hz |
| Filter bandwidth (min/max) | 1Hz to 3MHz |
| Typ. precision base unit | typ. +/- 1.5dB |
| Included with delivery | Spectran V5 Command Center incl. Option 020 (internal 20dB preamp), OmniLOG 70600 omnidirectional antenna (700MHz to 6GHz), Spectrum Analysis Software RTSA Suite (pre-installed), International Power Supply with adapter, Padded Carrying case with wheels to |
Spectran HF-80200 V5
Real-Time Handheld Spectrum Analyzer
- Frequency range: 9kHz to 20GHz
- Up to 175MHz Real-Time bandwidth
- POI below 1μS
- Real-time I/Q streaming via USB
- Sweep speed: up to 14THz/s
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Compact and lightweightOptional I/Q Generator (6GHz) and Power Meter (40GHz) available soon
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)
With this Spectrum Analyzer you can master all the challenges. Wether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 is the ideal Spectrum Analyzer for making reliable and fast measurements.
The included PC analysis software RTSA Suite transforms the V5 into a fully-featured Benchtop Spectrum Analyzer . Available in 4 different versions the V5 offers a solution for almost every application.More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz - 20GHz |
| Weight | 850g |
| Guarantee | 2 years |
| Included with delivery | SPECTRAN HF-80200 V5 incl. Option 020 (internal 20dB preamp), OmniLOG 70600 omnidirectional antenna (700MHz to 6GHz), Watertight & shock-proof transport case, Spectrum Analysis Software RTSA Suite (on USB stick), International Power Supply with adapters |
Real-Time OEM Spectrum Analyzer
- Up to 175MHz Real-Time bandwidth
- POI below 1μS
- Real-time I/Q streaming via USB (in preparation)
- Sweep speed: up to 14THz/s
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Compact and lightweight
- Optional I/Q Generator (6GHz) and Power Meter (40GHz)
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)pectran HF-80200 V5 OEM
Aaronia presents the SPECTRAN V5, an OEM Real-Time Spectrum Analyzer designed to capture even shortest signal transmissions. With this Spectrum Analyzer you can master all the challenges. Whether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 is the ideal Spectrum Analyzer for making reliable and fast measurements.
The included PC analysis software RTSA Suite transforms the V5 into a fully-featured Benchtop Spectrum Analyzer . Available in 4 different versions the V5 offers a solution for almost every application.
More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz - 20GHz |
| Weight | 2,1kg |
| Guarantee | 2 Jahre |
| Filter bandwidth (min/max) | 1Hz bis 40MHz (in preparation) |
| Typ. precision base unit | typ. +/- 1.5dB |
| Included with delivery | SPECTRAN HF-80200 V5 OEM incl. Option 020 (internal 20dB preamp), Spectrum Analysis Software RTSA Suite (on USB stick), International Power Supply with adapte |
Spectran HF-80200 V5 X
Real-Time USB Spectrum Analyzer
- Up to 175MHz Real-Time bandwidth
- POI below 1μS
- Real-time I/Q streaming via USB (in preparation)
- Sweep speed: up to 14THz/s
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Compact and lightweight
- Optional I/Q Generator (6GHz) and Power Meter (40GHz)
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)
Aaronia presents the SPECTRAN V5 X, a USB Real-Time Spectrum Analyzer and RF-recorder designed to capture even shortest signal transmissions. With this Spectrum Analyzer you can master all the challenges. Wether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 X is the ideal Spectrum Analyzer for making reliable and fast measurements.
The included PC analysis software RTSA Suite transforms the V5 X into a fully-featured Benchtop Spectrum Analyzer . Available in 4 different versions the V5 X offers a solution for almost every application.
More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz - 20GHz |
| Weight | 2,1kg |
| Guarantee | 2 years |
| Filter bandwidth (min/max) | 1Hz to 40MHz (in preparation) |
| Typ. precision base unit | typ. +/- 1.5dB |
| Included with delivery | SPECTRAN HF-80200 V5 X incl. Option 020 (internal 20dB preamp), OmniLOG 70600 omnidirectional antenna (700MHz to 6GHz), Watertight & shock-proof transport case, Spectrum Analysis Software RTSA Suite (on USB stick), International Power Supply with adapters |
Spectran HF-80200 V5 RSA
Remote controlled real-time Spectrum Analyzer
- Up to 175MHz Real-Time bandwidth
- Frequency range 9kHz to 20GHz
- Fully remote-controlled via LAN/Ethernet/Internet
- POI below 1μS
- Real-time I/Q streaming via USB (in preparation)
- Sweep speed: up to 14THz/s
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Compact and lightweight
- Optional I/Q Generator (6GHz) and Power Meter (40GHz)
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)
Aaronia presents the SPECTRAN V5 RSA, a real-time remote controlled Spectrum Analyzer designed to capture even shortest signal transmissions. The SPECTRAN RSA Spectrum Analyzer Series offers an incredible performance at an unbeatable price-performance. Each RSA unit can be mounted into a common 19“ instrument rack and requires one height unit (1U) only. Thus the RSA is perfectly suitable for stationary use in laboratories as well as, thanks to the low power consumption, for mobile use in measuring vehicles or satellite broadcasting vans.
The Analyzer is remote controllable through the USB interface or Lan/Ethernet, allowing a continuous logging and streaming of any frequency range and direct access to the Analyzer through each PC connected to the Internet.
More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz - 20GHz |
| Weight | 2,1kg |
| Guarantee | 2 years |
| AVG Noise Level (1Hz) with PreAmp | -150dBm/Hz |
| Filter bandwidth (min/max) | 10Hz - 40MHz (in preparation) |
| Typ. precision base unit | typ. +/- 1.5dB |
| Included with delivery | SPECTRAN HF-80200 V5 RSA incl. Option 020 (internal 20dB preamp), Spectrum Analysis Software RTSA Suite (on USB stick), International Power Supply with adapte |
Real-Time Outdoor Spectrum Analyzer Spectran XFR V5 PRO
Fastest Counter-surveillance Receiver in the World
- Up to 175MHz Real-Time bandwidth
- POI below 1μS
- Unlimited recording time (needs 1GB / min.)
- Up to 4TB ultra-fast SSD recording storage
- Real-time I/Q streaming via USB (in preparation)
- Very fast sweep mode, scans 20GHz in less than 20mS
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Compact and lightweight
- Optional I/Q Generator (6GHz) and Power Meter (40GHz)
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)
Aaronia presents the SPECTRAN XFR V5 PRO, a Real-Time Spectrum Analyzer designed to capture even shortest signal transmissions.
With this Spectrum Analyzer you can master all the challenges. Whether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 is the ideal Spectrum Analyzer for making reliable and fast measurements. It provides a powerful, extremely impact resistant Outdoor notebook and a high-end spectrum analyzer in one compact device. The XFR V5 PRO has been independently tested in accordance with MIL-STD-810G, IP65 and MIL-STD-461F.
The easy to use software is suited for detecting unknown or illegal transmissions across a wide frequency range. With an unlimited recording time (needs approx. 1GB hard disk space per minute) the XFR V5 PRO allows to store several hours of real-time data. Once recorded the entire measurement data can be re-loaded into the software. The optional I/Q Generator allows to generate the recorded signals 1:1 up to 6GHz. Several helpful features allow a deep investigation of the Real-Time measurement or recorded data, e.g. a 3D Spectrogram view which displays a signal like newer seen before.
The extreme speed predestines the unit as counter-surveillance measurement receiver, as it is able to capture any kind of bug / hidden camera / RF transmitter etc.
More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz (1Hz) - 20GHz, GPS |
| Weight | 7,5 kg |
| Guarantee | 2 years |
| AVG Noise Level (1Hz) with PreAmp | -150dBm/Hz |
| Filter bandwidth (min/max) | 1Hz to 40MHz (in preparation) |
| Typ. precision base unit | typ. +/- 1.5dB |
| Included with delivery | Spectran XFR V5 PRO incl. Option 020 (internal 20dB preamp), OmniLOG 70600 omnidirectional antenna (700MHz to 6GHz), Spectrum Analysis Software RTSA Suite (pre-installed), International Power Supply with adapter |
Spectran V5 Command Center
Fastest Counter-surveillance Receiver in the World
- Up to 350MHz Real-Time bandwidth
- Fully customizable, cascadable system (up to 2 independent Analyzers)
- POI below 1μS
- Unlimited recording time (needs 1GB / min.)
- Up to 40TB ultra-fast SSD recording storage
- Real-time I/Q streaming (in preparation)
- Very fast sweep mode, scans 20GHz in less than 20mS
- Patented polyphase filter technology
- Patented spectrum analysis (modulated LO)
- First analyzer with ultra fast LO sweeps (μS DDS sweep)
- Powerful, but still mobile
- 3x Widescreen Displays (Full HD), creates a resolution of 5760 x 1080
- Optional I/Q Generator (6GHz) and Power Meter (40GHz)
- Includes World´s first 3D Real-Time Spectrum monitoring and recording Software „RTSA Suite“ (gapless streaming and playback)
The SPECTRAN V5 RF Command Center is the culmination of Aaronia's efforts in building it´s Spectrum Analyzer Battleship:
It scans 20GHz in less than 20 milliseconds, which is an astonishing speed of 1000GHz per second.
This high-end spectrum analyzer offers the RF performance you need with all measurement details available at the same time.
The setup is completely customizable and thanks to it's cascadable system docks up to 2 independent analyzers.
The three large full HD widescreen monitors display and capture the bandwith of up to 175MHz in real time (or 350MHz with two internal analyzers), with an POI
below 1uS! And with up to 40TB ultra-fast SSD drives you basically have an „unlimited“ recording time, as only 1GB is needed per minute.
The command center has a wide measuring range of up to 20GHz, with over five million samples per second. A 14 bit dual 256 MSPS I/Q generates 500 MSPS,
and an optional I/Q generator enlarges the range to 6GHz. The optional power meter will help you reach 40GHz.
The hardware side of the computer also features the best available setup, as the SPECTRAN V5 RF Command Center runs on an Intel i7 with 16 Gigabyte RAM and an nVidia GeForce GTX graphic card, which enables gapless streaming and playback.
Last but not least, the Command Center is made in Germany, ensuring quality on the highest level.
More information
| Country of Manufacture | Germany |
|---|---|
| Frequency range | 9kHz (1Hz) - 20GHz |
| Weight | 30 kg |
| Guarantee | 2 years |
| AVG Noise Level (1Hz) with PreAmp | -150dBm/Hz |
| Filter bandwidth (min/max) | 1Hz to 3MHz |
| Typ. precision base unit | typ. +/- 1.5dB |
| Included with delivery | Spectran V5 Command Center incl. Option 020 (internal 20dB preamp), OmniLOG 70600 omnidirectional antenna (700MHz to 6GHz), Spectrum Analysis Software RTSA Suite (pre-installed), International Power Supply with adapter, Padded Carrying case with wheels to |
- Small and compact design and construction (significantly fewer and much smaller components are required)
- Implementation of cost-effective hardware for a reasonable price (only “standardized” RF-components are needed)
- Extremely low noise signal processing up to -170dBm/Hz (achieved by eliminating noisy components in the RF path)
- Analysis of even highest frequencies up to 20GHz (achieved by the elimination of upper lying LO)
- Small and compact design and construction (significantly fewer and much smaller components are required)
- Implementation of cost-effective hardware for a reasonable price (only “standardized” RF-components are needed)
- Extremely low noise signal processing up to -170dBm/Hz (achieved by eliminating noisy components in the RF path)
- Analysis of even highest frequencies up to 20GHz (achieved by the elimination of upper lying LO)
| Specifications | V5 80200 |
| Frequency Range | 9kHz to 20GHz |
| Real-Time Bandwidth | 88MHz (Optional: 160/175MHz) |
| Min. Event Duration | <1µS |
| Max. Power at RF input | +20dBm (+33dBm*) |
| Displayed Average Noise Level (internal pre-amp on) | typ. -150dBm/Hz |
| Displayed Average Noise Level (with external pre-amp) | max. -170dBm/Hz |
| Amplitude accuracy (typ.) | typ. +/- 1,5dB |
| RF Input | 50 Ohm (SMA-connector) |
| Frequency reference accuracy | 0,5ppm (optional 5ppb with Option 002) |
| RBW (resolution bandwidth) | 1Hz to 3MHz |
| VBW (video bandwidth) | 1Hz to 3MHz |
| Demodulator | AM, FM |
| Measurement Units | dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm² |
| Detector | 45dB (0,5dB steps) |
| Traces | ACT, AVG, MAX, MIN |
| Reference range | -200dBm to 100dBm |
| Measurement modes | I/Q, Power/Frequency Data |
| ADC | 500MSPS 14Bit |
| GPS | Support via external GPS Logger |
| FPGA | 240K ECP3 |
| DSP | 600MHz |
| Temperature Range (Operation) | 0 °C to +40 °C |
| Temperature Range (Storage) | -20 °C to +60 °C |
| Dimensions | 255 x 85 x 29mm |
| Weight | 850g |
| Power Supply | AC Input: 100-240V, 50-60Hz - DC Output: 5,6V, 5A max. |
| Power Consumption | <35W |
| Country of Origin | Germany |
| Recommended Calibration Interval | 2 years |
| Specifications | V5 OEM 80200 |
| Frequency Range | 9kHz to 20GHz |
| Real-Time Bandwidth | 88MHz (Optional: 160/175MHz) |
| Min. Event Duration | <1µS |
| Max. Power at RF input | +20dBm (+33dBm*) |
| Displayed Average Noise Level (internal pre-amp on) | typ. -150dBm/Hz |
| Displayed Average Noise Level (with external pre-amp) | max. -170dBm/Hz |
| Amplitude accuracy (typ.) | typ. +/- 1,5dB |
| RF Input | 50 Ohm (SMA-connector) |
| Frequency reference accuracy | 0,5ppm (optional 5ppb with Option 002) |
| RBW (resolution bandwidth) | 1Hz to 3MHz |
| VBW (video bandwidth) | 1Hz to 3MHz |
| Demodulator | AM, FM |
| Measurement Units | dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm² |
| Detector | 45dB (0,5dB steps) |
| Traces | ACT, AVG, MAX, MIN |
| Reference range | -200dBm to 100dBm |
| Measurement modes | I/Q, Power/Frequency Data |
| ADC | 500MSPS 14Bit |
| GPS | Support via external GPS Logger |
| FPGA | 240K ECP3 |
| DSP | 600MHz |
| Temperature Range (Operation) | 0 °C to +50 °C |
| Temperature Range (Storage) | -20 °C to +60 °C |
| Dimensions | 255 x 82 x 32mm |
| Weight | 860g |
| Power Supply | AC Input: 100-240V, 50-60Hz - DC Output: 5,6V, 5A max. |
| Power Consumption | <35W |
| Country of Origin | Germany |
| Recommended Calibration Interval | 2 years |
| Specifications | V5 RSA 80200 |
| Frequency Range | 9kHz to 20GHz |
| Real-Time Bandwidth | 88MHz (Optional: 160/175MHz) |
| Min. Event Duration | <1µS |
| Max. Power at RF input | +20dBm (+33dBm*) |
| Displayed Average Noise Level (internal pre-amp on) | typ. -150dBm/Hz |
| Displayed Average Noise Level (with external pre-amp) | max. -170dBm/Hz |
| Amplitude accuracy (typ.) | typ. +/- 1,5dB |
| RF Input | N female |
| Frequency reference accuracy | 0,5ppm (optional 5ppb with Option 002) |
| RBW (resolution bandwidth) | 1Hz to 3MHz |
| VBW (video bandwidth) | 1Hz to 3MHz |
| Demodulator | AM, FM |
| Measurement Units | dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm² |
| Detector | 45dB (0,5dB steps) |
| Traces | ACT, AVG, MAX, MIN |
| Reference range | -200dBm to 100dBm |
| Measurement modes | I/Q, Power/Frequency Data |
| ADC | 500MSPS 14Bit |
| GPS | Support via external GPS Logger |
| FPGA | 240K ECP3 |
| DSP | 600MHz |
| Temperature Range (Operation) | 0 °C to +50 °C |
| Temperature Range (Storage) | -20 °C to +60 °C |
| Dimensions | 480 x 370 x 44mm |
| Weight | 4,8kg |
| Power Supply | AC Input: 100-240V, 50-60Hz - DC Output: 5,6V, 5A max. |
| Power Consumption | <35W |
| Country of Origin | Germany |
| Recommended Calibration Interval | 2 years |
| Specifications | V5 X 80200 |
| Frequency Range | 9kHz to 20GHz |
| Real-Time Bandwidth | 88MHz (Optional: 160/175MHz) |
| Min. Event Duration | <1µS |
| Max. Power at RF input | +20dBm (+33dBm*) |
| Displayed Average Noise Level (internal pre-amp on) | typ. -150dBm/Hz |
| Displayed Average Noise Level (with external pre-amp) | max. -170dBm/Hz |
| Amplitude accuracy (typ.) | typ. +/- 1,5dB |
| RF Input | 50 Ohm (SMA-connector) |
| Frequency reference accuracy | 0,5ppm (optional 5ppb with Option 002) |
| RBW (resolution bandwidth) | 1Hz to 3MHz |
| VBW (video bandwidth) | 1Hz to 3MHz |
| Demodulator | AM, FM |
| Measurement Units | dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm² |
| Detector | 45dB (0,5dB steps) |
| Traces | ACT, AVG, MAX, MIN |
| Reference range | -200dBm to 100dBm |
| Measurement modes | I/Q, Power/Frequency Data |
| ADC | 500MSPS 14Bit |
| GPS | Support via external GPS Logger |
| FPGA | 240K ECP3 |
| DSP | 600MHz |
| Temperature Range (Operation) | 0 °C to +50 °C |
| Temperature Range (Storage) | -20 °C to +60 °C |
| Dimensions | 255 x 137 x 41mm |
| Weight | 2,1kg |
| Power Supply | AC Input: 100-240V, 50-60Hz - DC Output: 5,6V, 5A max. |
| Power Consumption | <35W |
| Country of Origin | Germany |
| Recommended Calibration Interval | 2 years |
| Specifications (V5 XFR Pro) | |
| Frequency Range | 9 kHz to 20 GHz |
| Real-time Bandwidth | 88 MHz (Optional: 160 / 175 MHz) Up to 700 MHz with up to 4 receivers |
| Min. Event Duration | < 1 µS |
| Max. Power at RF Input | +20 dBm (+33 dBm) |
| Displayed Average Noise Level (Internal Pre-Amp On) | typ. -150 dBm / Hz |
| Displayed Average Noise Level (With External Pre-Amp) | max. -170 dBm / Hz |
| Amplitude Accuracy | typ. +/- 1,5 dB |
| RF Input | 50 Ohm (SMA connector) |
| Frequency Reference Accuracy | 0,5 ppm (optional 5 ppb with Option 002) |
| RBW (Resolution Bandwidth) | 1 Hz to 3 MHz |
| VBW (Video Bandwidth) | 1 Hz to 3 MHz |
| Demodulator | AM, FM |
| Measurement Units | dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm² |
| Detector | 45 dB (0,5 dB steps) |
| Traces | ACT, AVG, MAX, MIN |
| Reference range | -200 dBm to 100 dBm |
| Measurement Modes | IQ, Power / Frequency Data |
| ADC | 500 MSPS 14-bit |
| GPS | Built-in |
| FPGA | 240 K ECP3 |
| DSP | 600 MHz |
| CPU | Newest Gen. Intel i7 |
| RAM | 16 GB DDR4 |
| HDD | 120 GB SSD (OS), 2 TB HDD (storage), optional expandable |
| Operating System | Windows 10 PRO |
| Display | 2x 4K (2x 3840 x 2160 px) sunlight readable, anti reflec- tion tempered strengthen glass |
| Graphics Card | Nvidia 1060 GTX |
| Speaker | Built-in, 2x 3 W speakers |
| Keypad | 104-key industrial keyboard with integrated numeric keypad and touchpad |
| Connectors | 2x USB 3.0, 2x USB 2.0, Mouse, Keypad, DVI, VGA, HDMI, Power socket |
| Mainboard | Name-Brand ATX Mainboard |
| Case | Padded Carrying case with wheels |
| Case Weight | 7 kg |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to +60 °C |
| Dimensions | 620 x 270 x 400 mm |
| Weight | 22 kg |
| Relative Humidity | 10% - 90% |
| Power Supply | 850 W, 100 - 240 V, 50 - 60 Hz |
| Power Consumption | typ. < 110 W |
| Country of Origin | Germany |
| Specifications (V5 XFR Pro) | |
| Frequency Range | 9 kHz to 20 GHz |
| Real-time Bandwidth |
88 MHz (optional: 160 / 175 MHz) |
| Min. Event Duration | <1 µs |
| Max. Power at RF Input | +20 dBm (+33 dBm) |
| Displayed Average Noise Level (Internal Pre-Amp On) | typ. -150 dBm / Hz |
| Displayed Average Noise Level (With External Pre-Amp) | max. -170 dBm / Hz |
| Amplitude Accuracy | typ. +/- 1,5 dB |
| RF Input | 50 Ohm (SMA Connector) |
| Frequency Reference Accuracy | 50 Ohm (SMA Connector) |
| RBW (Resolution Bandwidth) | 1 Hz to 3 MHz |
| VBW (Video Bandwidth) | 1 Hz to 3 MHz |
| Demodulator | AM, FM, PM, IQ |
| Measurement Units | dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm² |
| Detector | 45 dB (0,5 dB steps) |
| Traces | ACT, AVG, MAX, MIN |
| Reference Range | -200 dBm to 100 dBm |
| Measurement Modes | IQ, Power / Frequency Data |
| ADC | 500 MSPS 14-bit |
| GPS | Built-In GPS |
| FPGA | 240 K ECP3 |
| DSP | 600 MHz |
| CPU | Intel® Haswell i7-4600M |
| RAM | 8 GB RAM |
| HDD | 500 GB, 7200 RPM (expandable by option to max. 8 TB SSD) |
| Operation System | Windows 10 PRO |
| Display | 15,6“ Full HD 1920 x 1080 with multi-touchscreen, sun- light readable (800 cd/m2 QuadraClear®) |
| Graphics Card | nVidia GeForce GT 745M 4 GB DDR3 |
| Battery | Intelligent lithium-ion battery with 8700 mAh (second battery optional, hot-swap system) |
| Keypad | Membrane keyboard with integrated numeric keypad and LED backlight |
| Connectors |
2x PCMCIA Type II, 1x ExpressCard / 54, 1 x Smart Card reader I/O interface: 2x serial port (9-pin, D-Sub), 1x external VGA port (15-pin, D-Sub), 1x microphone, 1x audio output (mini-jack), 1x DC input, 2x USB 3.0, 2x USB 2.0, 1x USB 2.0 / eSATA combo, 2x LAN (RJ45), 1x HDMI, 1x docking connector (80-pin) |
| Interfaces |
10 / 100 / 1000 BASE-T Ethernet Intel Centrino Advanced-N 6200, 802.11 a / b / g / n, GPS module + Tri-Pass-Through |
| Safety Features | Fingerprint scanner, Smart Card reader, Kensington Lock |
| Certification | MIL-STD-810G, IP65, MIL-STD-461F |
| Operating Temperature | -20° to +60° C |
| Storage Temperature | -40° to +71° C |
| Dimensions | 410 x 315 x 120 mm |
| Weight | 7,5 kg |
| Relative Humidity | 95% relative humidity, non-condensing |
| Power Supply |
AC input: 100 - 240 V, 50 - 60 Hz DC output: 19 V, 4,74 A max. |
| Power Consumption | typ. < 90 W |
| Country of Origin | Germany |
| Recommended Calibration Interval | 2 years |
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
SPECTRAN HF-80200 V5
|
Портативный анализатор спектра реального времени
|
По запросу | ||
|
SPECTRAN HF-80200 V5 X
|
Портативный USB анализатор спектра реального времени
|
По запросу | ||
|
SPECTRAN HF-XFR PRO
|
Портативный анализатор спектра реального времени (ноутбук)
|
По запросу | ||
|
SPECTRAN HF-80200 V5 OEM
|
OEM анализатор спектра реального времени
|
По запросу | ||
|
SPECTRAN HF-80200 V5 RSA
|
Анализатор спектра реального времени стоечного исполнения
|
По запросу | ||
|
RF COMMAND CENTER
|
Анализатор спектра реального времени (командный центр)
|
По запросу | ||
|
SPECTRAN V5 XFR PRO
|
Портативный анализатор спектра реального времени (ноутбук)
|
По запросу |
7
| Опции |
|
Option 002
|
Стабилизаци OCXO 5ppb (0,005ppm)
|
По запросу | ||
|
Option 004
|
Ультра низкий фазовый шум
|
По запросу |
9
| Аксессуары |
|
Option 243
|
Жесткий пластиковый кейс
|
По запросу | ||
|
Option 254
|
Литиево полимерная батарея 3000mAh (больше стандартной на 400%)
|
По запросу | ||
|
Option 260
|
Адаптер в прикуриватель авто 12В
|
По запросу | ||
|
Option 262
|
Адаптер в прикуриватель авто 12В XFR V5 PRO
|
По запросу | ||
|
Option 263
|
Аккумулятор для XFR V5 PRO
|
По запросу | ||
|
Option 264
|
Рюкзак для XFR V5 PRO
|
По запросу | ||
|
option 280
|
Пистолетная Рукоятка / Миниатюрный Штатив
|
По запросу | ||
|
Option 281
|
Большая аллминиевая тренога
|
По запросу | ||
|
option 282
|
Тяжелая многофункциональная пистолетная рукоятка с множеством регулировок. 1/4” и 3/8 " штатив
|
По запросу | ||
|
option 289
|
Док-станция (Силовой кабель, кабель USB, управляющий кабель USB)
|
По запросу | ||
|
Option 290
|
Защитный чехол
|
По запросу | ||
|
Option 320
|
UBBV1 Широкополосный предусилитель 40 дБ
|
По запросу | ||
|
Option 321
|
UBBV2 Широкополосный предусилитель РЧ 40 дБ
|
По запросу | ||
|
Option 322
|
UBBV-NF-25 Низкочастотный усилитель 25 дб
|
По запросу | ||
|
Option 323
|
UBBV-NF-35 Широкополосный предусилитель 35 дБ
|
По запросу | ||
|
Option 324
|
UBBV DC25 - Малошумящий предусилитель 14 дБ
|
По запросу | ||
|
Option 325
|
UBBV 0530 - Малошумящий предусилитель 22 дБ
|
По запросу | ||
|
Option 326
|
UBBV 0910 - Малошумящий предусилитель 25 дБ
|
По запросу | ||
|
Option 327
|
UBBV 1060 BPA Полосовой предусилитль 20 дБ
|
По запросу | ||
|
Option 330
|
GPS логер
|
По запросу | ||
|
Option 771X
|
Кабель SMA 1 м
|
По запросу | ||
|
Option 772X
|
Кабель SMA 5 м
|
По запросу | ||
|
Option 773X
|
Кабель SMA 10 м
|
По запросу |
32
| Опция |
|
Option 160
|
Полоса анализа в реальном времении 160 МГц
|
По запросу |
