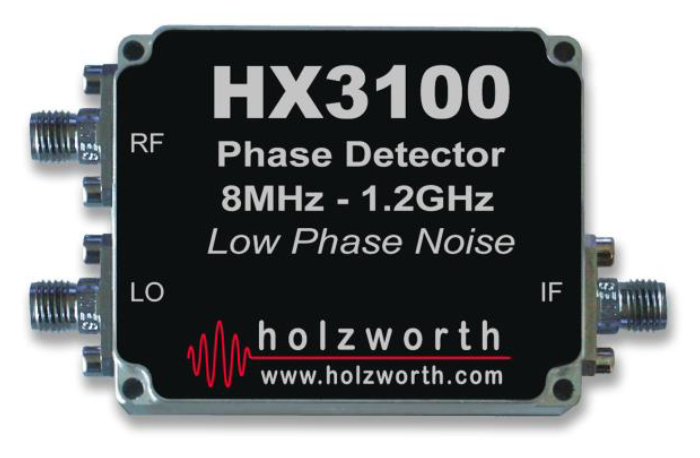

The Holzworth HX3100 Phase Detector was designed with for making phase noise measurements and to be used in analog phase locked loops where performance is a priority. The HX3100 uses a proprietary IF circuit that maintains optimal signal to noise ratio, improving the performance over standard phase detectors typically by 3dB to 6dB.
The HX3100 Phase Detector helps to take the guess work out of phase noise measurements with fully characterized and guaranteed performance. Holzworth products are 100% final performance tested for phase noise verification1
Key Specifications and Features:
- Operation from 8MHz to 1.2GHz
- Phase Noise of -175 dBc/Hz
- LO Power +13dBm
- Proprietary IF Circuitry
- High Carrier Suppression
The Holzworth HX3100 Phase Detector was designed with for making phase noise measurements and to be used in analog phase locked loops where performance is a priority. The HX3100 uses a proprietary IF circuit that maintains optimal signal to noise ratio, improving the performance over standard phase detectors typically by 3dB to 6dB.
The HX3100 Phase Detector helps to take the guess work out of phase noise measurements with fully characterized and guaranteed performance. Holzworth products are 100% final performance tested for phase noise verification1
Key Specifications and Features:
- Operation from 8MHz to 1.2GHz
- Phase Noise of -175 dBc/Hz
- LO Power +13dBm
- Proprietary IF Circuitry
- High Carrier Suppression
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
| PARAMETER | MIN | TYP | MAX | UNITS | COMMENTS |
|---|---|---|---|---|---|
| LO/RF Frequency Range | 8 M | 1.2 G | Hz | 50 ohms | |
| IF Frequency Range | DC | 1M | Hz | 50 ohms or High Impedance | |
| LO Power | 10 | 13 | 16 | dBm | |
| RF Power | 16 | dB | Not to exceed LO Power Level | ||
| Phase Noise | |||||
| 100MHz, 10kHz Offset | -175 | -170 | dBc/Hz | ||
| 100MHz, 1Hz intercept | -144 | -140 | dBc/Hz | ||
| Phase Detector Constant (KD) | |||||
| RF = +14dBm, LO = +14dBm | 0.43 | V/rad | IF into 500 ohms | ||
| LO/RF Rejection | 60 | dB | |||
| LO / RF / IF Connectors | SMA Jack (female) | ||||
| Housing Dimensions (LxWxH) | 1.75” x 1.5” x 0.5” (44.5mm x 38.1mm x 12.7mm) | ||||
| 1Final performance verification at LO=100MHz, LOPWR=+14dBm, RFPWR=+14dBm | |||||
| 2Specifications are subject to change per the discretion of Holzworth Instrumentation, Inc. | |||||
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
HX3100
|
Фазовый детектор, диапазон частот 8 МГц - 1,2 ГГц, фазовый шум -175 дБн/Гц
|
По запросу |
