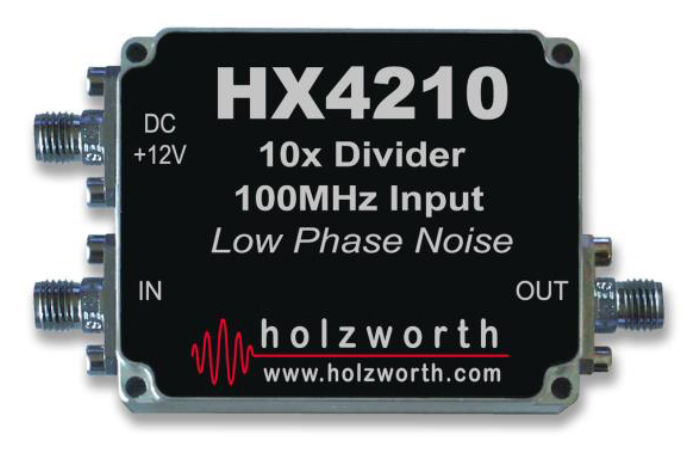

The Holzworth HX4210 100MHz 10x Frequency Divider is a high grade laboratory accessory. An emphasis was placed on maintaining the low jitter and phase noise of an external reference or frequency source to maintain the integrity of system timing and noise.
The HX4210 Frequency Divider is a laboratory grade reference divider that has a high output power and will operate with a broad range of power supplies. Holzworth products are 100% final performance tested for phase noise verification1.
Key Specifications and Features:
- 100MHz Input, 10MHz Output
- +10dBm Input / Output
- -170 dBc/Hz Additive Phase Noise
- DC Supply: 8VDC to 12VDC (100mA)
- Integrated Low Noise Bias Network
The Holzworth HX4210 100MHz 10x Frequency Divider is a high grade laboratory accessory. An emphasis was placed on maintaining the low jitter and phase noise of an external reference or frequency source to maintain the integrity of system timing and noise.
The HX4210 Frequency Divider is a laboratory grade reference divider that has a high output power and will operate with a broad range of power supplies. Holzworth products are 100% final performance tested for phase noise verification1.
Key Specifications and Features:
- 100MHz Input, 10MHz Output
- +10dBm Input / Output
- -170 dBc/Hz Additive Phase Noise
- DC Supply: 8VDC to 12VDC (100mA)
- Integrated Low Noise Bias Network
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
| PARAMETER | MIN | TYP | MAX | UNITS | COMMENTS |
|---|---|---|---|---|---|
| Input Frequency | 90 | 100 | 110 | MHz | 50 ohms |
| Output Frequency | 9 | 10 | 11 | MHz | 50 ohms |
| Input Power | 5 | 10 | 15 | dBm | 50 ohms |
| Output Power | 9 | 11 | 13 | dBm | 50 ohms |
| Phase Noise (Additive) | -170 | dBc/Hz | Output Referred (100MHz Input) | ||
| Output Harmonics | |||||
| 2nd Harmonic | -40 | -30 | dBc | 10MHz ±2MHz | |
| 3rd Harmonic | -60 | -30 | dBc | 10MHz ±2MHz | |
| Spurious Output | -70 | dBc | |||
| DC Supply | 8 | 12 | VDC | ±10%, 50mA | |
| RF Connectors | SMA Jack (female) | ||||
| DC Connector | SMA Jack (female) | ||||
| Housing Dimensions (LxWxH) | 1.75” x 1.5” x 0.5” (44.5mm x 38.1mm x 12.7mm) | ||||
| 1Final performance verification at RFINPUT= 100MHz / +10dBm, RFOUTPUT= 10MHz, Residual Setup | |||||
| 2Specifications are subject to change per the discretion of Holzworth Instrumentation, Inc. | |||||
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
HX4210
|
Делитель частоты, входная частота 90 - 110 МГц, выходная частота 9 - 11 МГц
|
По запросу |
