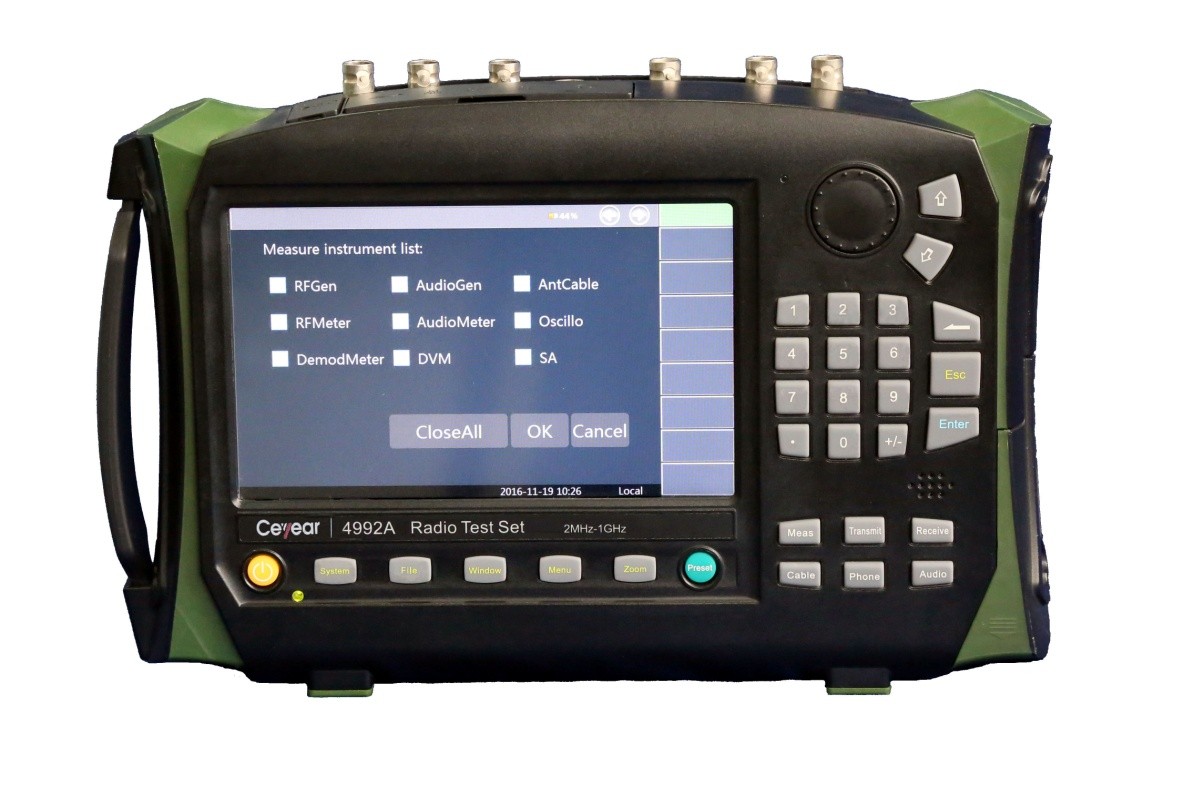

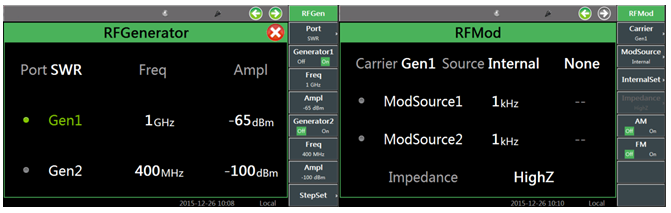

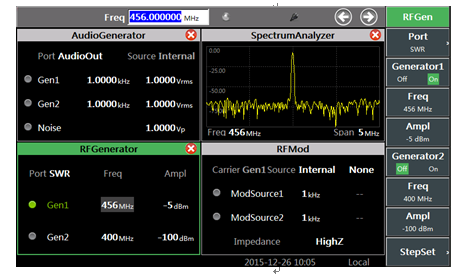

Double independent RF Signal Sources
Double RF sources (you can choose one signal source for independent output, or combine the double sources inside then output them)
|
Frequency
characteristics
|
|
Option 001 (default)
|
Option 002
|
|
Frequency Range
|
2MHz～1000MHz (Source 1)
|
2MHz～2700MHz (Source 1)
|
|
2MHz～400MHz (Source 2，ANT output)
|
2MHz～400MHz (Source 2, ANT
Output)
|
|
Frequency Resolution
|
1Hz
|
|
Precision
|
Identical frequency standard
Identical Frequency standard
|
|
Amplitude
characteristics
|
Output Level Range
|
-5dBm～-55dBm (SWR，Source 1)
|
-5dBm～-65dBm (SWR，Source 1，
2MHz～2.2GHz)
|
|
-10dBm～-65dBm (SWR，Source 1，
2.2GHz～2.7GHz)
|
|
-5dBm～-100dBm (ANT，Source 1)
|
-5dBm～-100dBm (ANT，Source 1，
2MHz～1.8GHz)
|
|
-15dBm～-100dBm (ANT，Source 1，
1.8GHz～2.7GHz)
|
|
-50dBm～-125dBm (T/R，Source 1)
|
-50dBm～-120dBm (T/R，Source 1，
2MHz～2.2GHz)
|
|
-55dBm～-120dBm (T/R，Source 1，
2.2GHz～2.7GHz)
|
|
0dBm～-100dBm (ANT，Source 2)
|
-5dBm～-100dBm (ANT，Source 2)
|
|
Spectrum purity
|
Sideband Phase Noise
|
≤-95dBc/Hz (Frequency offset 20kHz)
|
≤-90dBc/Hz (1GHz@20KHz)
|
|
≤-80dBc/Hz (2.7GHz@20KHz)
|
|
Harmonic Spurious
|
≤-30dBc
|
|

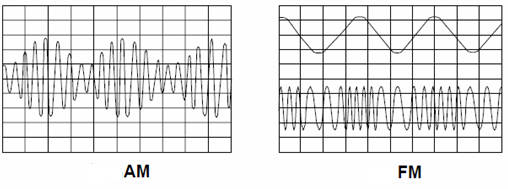

Internal AM
characteristics
|
Frequency Range
|
30Hz～5kHz (20Hz～20kHz is available)
|
|
AM Range
|
0～100%
0～100%
|
|
Modulation Accuracy
|
±（5%×modulation depth+2%）
(150Hz～5kHz modulation rate, 10%～90% modulation depth）
|
|
External AM
characteristics
|
Audio Input
|
Switching Load
|
150Ω，600Ω，1kΩ，High Z
|
|
Input Level
|
0.05Vp～3Vp
|
|
Frequency Range
|
300Hz～5kHz
|
|
Microphone Input
|
Level Range
|
20mVrms～350mVrms
|
|
Frequency Range
|
300Hz～3kHz
|
|
AM Range
|
0～80%
|
|
Internal FM
characteristics
|
Frequency Range
|
30Hz～5kHz（20Hz～20kHz is available）
|
|
Frequency Offset Range
|
Max. 100kHz
|
|
Precision
|
±5%（100kHz Frequency offset，150Hz～5kHz modulation rate ）
|
|
External FM
characteristics
|
Audio Input
|
Switching Load
|
150Ω，600Ω，1kΩ，High Z
|
|
Input Level
|
0.05Vp～3Vp
|
|
Frequency Range
|
300Hz～5kHz
|
|
Gradient
|
Positive voltage generates positive
Frequency offset
|
|
Microphone Input
|
Level Range
|
20mVrms～350mVrms
|
|
Frequency Range
|
300Hz～3kHz
|
|
Frequency Offset Range
|
0Hz～80kHz
|
|
Gradient
|
Positive voltage generates positive
Frequency offset
|
Double audio sources（Audio 1and Audio 2）
|
Frequency range
|
20Hz～20kHz
|
|
Frequency resolution
|
0.1Hz
|
|
Frequency precision
|
Frequency standard ±2Hz
|
|
Output level
|
20mVrms～1.57Vrms
|
|
Output level resolution
|
0.01Vrms
|
|
Output level precision
|
± (5%+5mV)
|
|
Harmonic distortion
|
＜3% (1kHz，1Vrms)
|
|
Output current
|
＜15mA
|
|
Output
|
Single-tone, dual-tone, noise, single-tone + noise
|

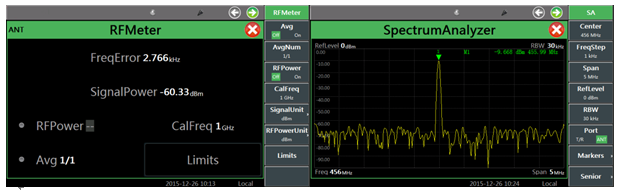

RF meter
|
RF Power Meter
|
(T/R broadband input RF power)
|
|
Measurement Range
|
10dBm～43dBm (0.01～20W)
|
|
Max. Input Level
|
At +25℃ and 20W/43dBm, continues for 10 min., or sends out alarm when overheat
|
|
Precision
|
±1dB(20～43dBm)(Built-in attenuator)
|
|
RF Frequency Error Meter
|
|
|
Capture Range
|
±200kHz
|
|
Resolution
|
1Hz
|
|
Accuracy
|
Time base ±2Hz
|
|
Intensity Meter Of Signals Received
|
|
|
Measurement Range
|
dBm
|
-110dBm～+43dBm
|
|
Available RF Level Range
|
T/R port
|
-50dBm～+43dBm
|
|
ANT port
|
Option 001
|
Option 002
|
|
-110dBm～-10dBm
|
-110dBm～-10dBm（2MHz～1GHz）
|
|
-100dBm～-10dBm（1GHz～2.7GHz）
|
|
Precision
|
±3dB
|

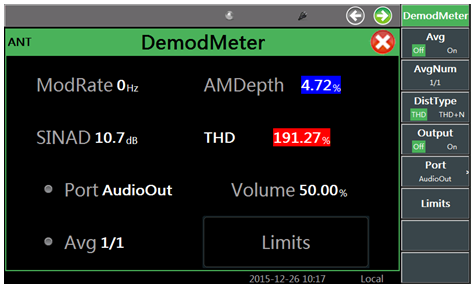

Demodulation meter
|
AM Modulation Depth Meter
|
|
|
Range
|
5%～100%
|
|
Resolution
|
1%
|
|
Precision
|
±5%，1kHzmodulaiton rate,30%～90% modulation, 3kHz LPF
|
|
FM Frequency offset meter
|
|
|
Frequency offset range
|
500Hz～100kHz
|
|
Resolution
|
1Hz
|
|
Precision
|
±5%，1kHz～10kHz Frequency offset，150Hz～1kHz modulation rate
|
Spectrum analyzer（options）
|
|
Option 001 (Default)
|
Option 002
|
|
Frequency Range
|
2MHz～1GHz
|
2MHz～2.7GHz
|
|
Sweep Width
|
10kHz～998MHz
|
10kHz～2698MHz
|
|
Reference Level Range
|
-80dBm～+50dBm
-80dBm～+50dBm
|
|
Resolution Bandwidth Range
|
10Hz～30kHz (1, 3, 10 steps)
10Hz～30kHz（with 1, 3, 10 step）
|
|
Average Noise Level Displayed
|
-120dBm (typical value, 10kHz Frequency width)
-120dBm（typical value，10kHz Frequency width）
|

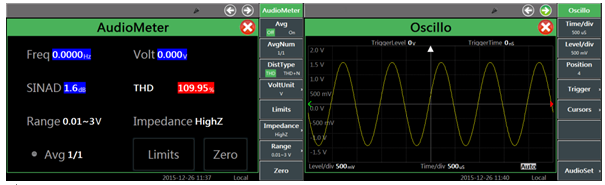

Audio meter
|
Signal source under measurement
|
Audio input, demodulation signals
|
|
Audio Frequency
|
|
|
Resolution
|
0.1Hz
|
|
Precision
|
±1Hz
|
|
Audio voltage
|
|
|
Audio input level
|
20mVp～3Vp（Measurement range 1）
|
|
2Vp～30Vp（Measurement range 2）
|
|
Precision
|
±（5%´measurement value+5mV）（Measurement range 1）
|
|
Distortion（THD）
|
|
|
Display range
|
0～100%
|
|
Resolution
|
0.1%
|
|
Precision
|
±（5%´ measurement value +0.1%）,（within 1%～20%）
|
|
SINAD
|
|
|
Display Range
|
0～40dB
|
|
Resolution
|
0.1dB
|
|
Precision
|
±1.5dB, (within 8dB～35dB)
|
DVM meter
|
Input Frequency Range
|
DC～20kHz
|
|
Input Impedance
|
1MΩ
|
|
Coupling
|
AC, DC
|
|
Input Level
|
20mVp～3Vp（Measurement range 1）
|
|
2Vp～30Vp（Measurement range 2）
|
|
Precision
|
±10%（Measurement range 1）
|
Audio oscilloscope（option）
|
Signal source
|
External audio, DVM input, demodulation signals
|
|
Sweep line
|
1
|
|
Marker
|
2
|
|
Trigger
|
Type
|
Auto, standard, single
|
|
Pulse edge
|
Rising edge, falling edge
|
|
Level can be triggered
|
-60V～+60V（setting depends on measurement range）
|
|
Horizontal
|
Range
|
0.2ms/lattice to 50ms/lattice, in the sequence of 1/2/5
|
|
Precision
|
±3%
|
|
Vertical
|
Range
|
10mV～20V/lattice，in the sequence of 1/2/5
|
|
Precision
|
±10%, within the whole range
|
|
Coupling
|
Audio input
|
AC
|
|
DVM input
|
AC, DC
|
|
Input Impedance
|
Audio input
|
150Ω, 600Ω, 1kΩ, high impedance
|
|
DVM input
|
1MΩ
|
|
Bandwidth
|
20kHz
|
Cable test
|
Frequency resolution
|
0.1MHz
|
|
Marker
|
3
|
|
Test Type
|
Measurement on standing-wave ratio (SWR), return loss (RL), cable loss (LOSS), Distance-To-Fault (DTF)
|
|

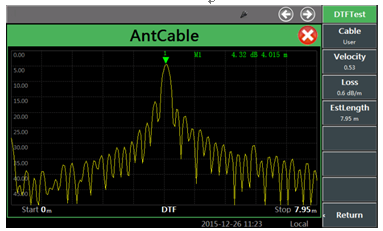

DTF Measurement
|
Range: 1m～100m
Resolution: 0.01m
Speed rate: 0.00～1.00, auto choice or manual input based on cable types
Measurement accuracy: ±10%
|
Internal time base
|
Aging Rate
|
1´10-6/year
|
|
Temperature Stability
|
1´10-6
|
Universal characteristics Working characteristics
Working characteristics
|
Operating Temperature
|
-10℃～+50℃
|
|
Storage Temperature
|
-40℃~+70℃
|
|

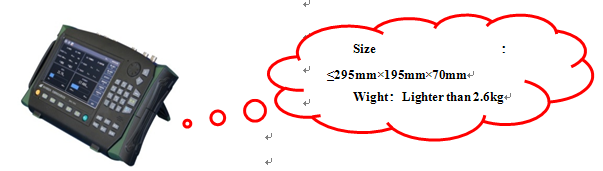

Size
|
295mm (W)×195mm (H)×70mm (D)
|
|
Weight
|
≤2.6kg
|
|
Power Consumption
|
≤25W（exclude battery recharging）
|
|
Type of Power Input
|
AC, Standard Adapter
|
Input of the adapter:100～240V, DC of 50/60Hz
|
|
DC
|
Voltage：12V～18V（without the battery）
15V～18V（with the battery）
Current：4A（min.）
|
|
Built-In Battery(Standard)
|
Nominal voltage：10.8V
Nominal capacity：≥7000mAh
|

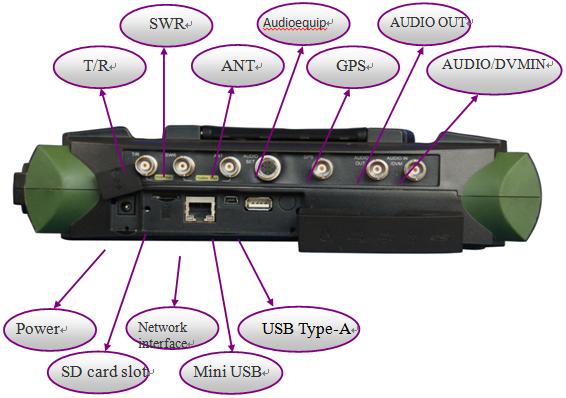

Input and output ports
|
D Description
|
Sign
|
Interface type
|
|

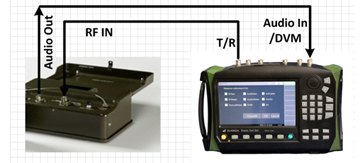

RF Input /Output Interface
|
ANT
|
BNC
|
|
T/R
|
BNC
|
|
RF Output Interface
|
SWR
|
BNC
|
|
Audio Output Interface
|
Audio Out
|
BNC
|
|
Audio/DVM Input Interface
|
Audio In/DVM
|
BNC
|
|
GPS Signal Input Interface
|
GPS
|
BNC
|
|
Audio Cassette Interface
|
Audio set
|
Special 10-core interface
|
