Comtech EF Data
Comtech EF Data Corp. is a leading supplier of satellite bandwidth and link optimization. Our high-performance satellite communications infrastructure solutions feature groundbreaking efficiency, robust intelligence and unparalleled horsepower. Commercial and government users around the world utilize our solution suite to reduce OPEX/CAPEX and to increase throughput for the most demanding fixed and mobile… подробнее

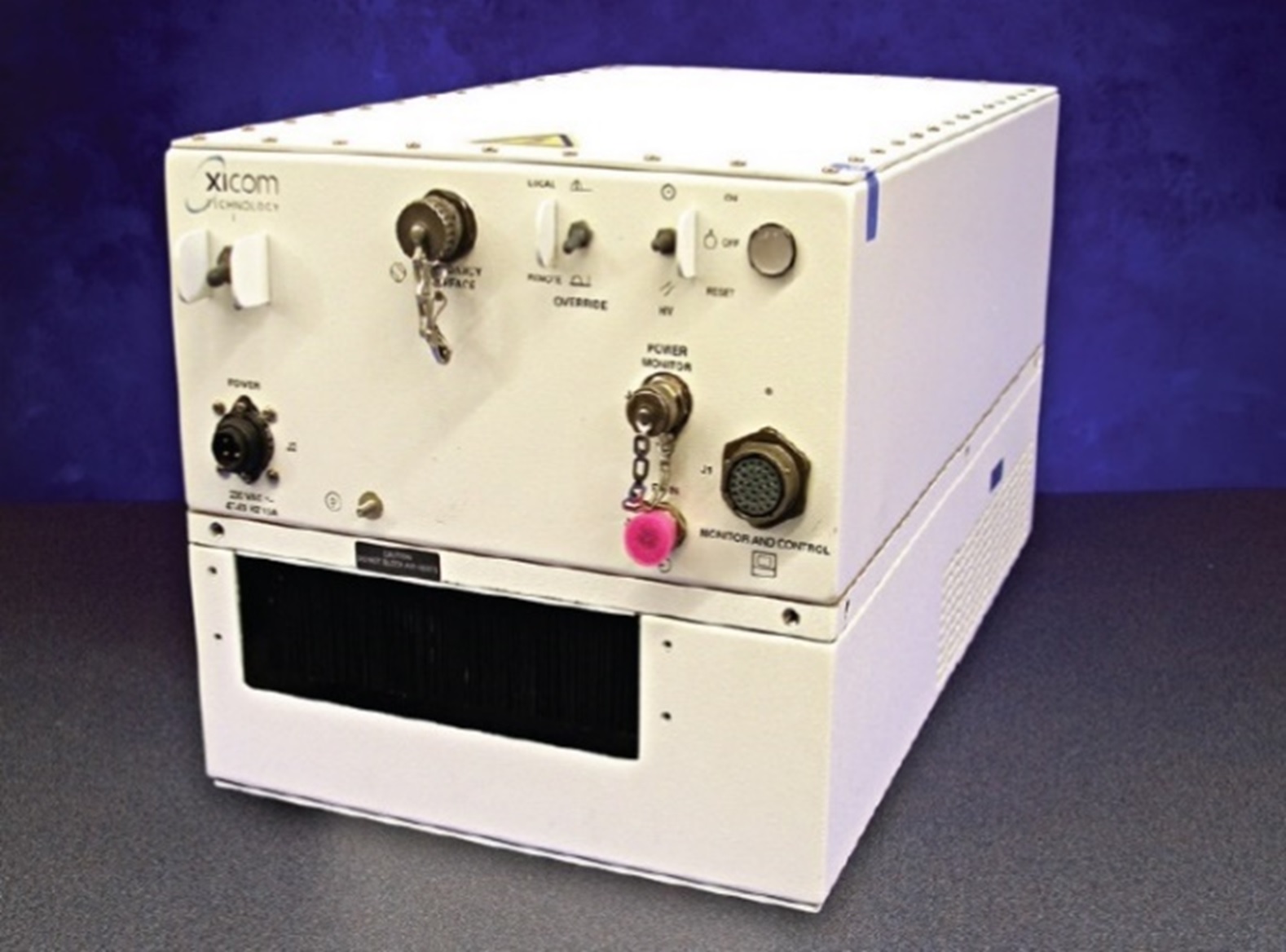

The XTD-750 is a compact, self-contained, antenna mountable power amplifier designed for low cost installation and long life. The XTD-750 design eliminates the need for an amplifier shelter as well as a long waveguide run between the amplifier and antenna feed horn. RF filters, cooling, and moni-toring & control (M&C) systems are all self-contained within the High Power Amplifier (HPA). These features provide high reliability, low maintenance costs, and low replacement costs.
The XTD-750 uses high efficiency, dual-stage collector Traveling Wave Tubes (TWT). Some benefits of this type of tube are: reduced prime power consumption, lower internal operating temperatures, reliability enhance-ment.
The XTD-750 incorporates power factor correction circuitry, which mini-mizes line current distortion and reduces the required Volt-Amps. The combination of power factor correction and high efficiency TWTs reduces input Volt-Amps by 45% when compared to equivalent amplifiers. A high frequency resonant conversion power supply is used that accepts a wide range of prime power (180 to 260 VAC). The automatic features of the power supply include quick recovery from prime power outages and multiple helix arc fault resets (three fault cycles).
A complete serial M&C system is built into the unit.
The XTD-750 may be configured for single thread, redundant, phase-com-bined, or linearized operation.
The XTD-750 is a compact, self-contained, antenna mountable power amplifier designed for low cost installation and long life. The XTD-750 design eliminates the need for an amplifier shelter as well as a long waveguide run between the amplifier and antenna feed horn. RF filters, cooling, and moni-toring & control (M&C) systems are all self-contained within the High Power Amplifier (HPA). These features provide high reliability, low maintenance costs, and low replacement costs.
The XTD-750 uses high efficiency, dual-stage collector Traveling Wave Tubes (TWT). Some benefits of this type of tube are: reduced prime power consumption, lower internal operating temperatures, reliability enhance-ment.
The XTD-750 incorporates power factor correction circuitry, which mini-mizes line current distortion and reduces the required Volt-Amps. The combination of power factor correction and high efficiency TWTs reduces input Volt-Amps by 45% when compared to equivalent amplifiers. A high frequency resonant conversion power supply is used that accepts a wide range of prime power (180 to 260 VAC). The automatic features of the power supply include quick recovery from prime power outages and multiple helix arc fault resets (three fault cycles).
A complete serial M&C system is built into the unit.
The XTD-750 may be configured for single thread, redundant, phase-com-bined, or linearized operation.
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Реестр СИ не требуется
- Реестр СИ не требуется
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Производитель | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
XTD-750C до 6.425 ГГц
|
Усилитель мощности C-Band, 5.850 to 6.425 GHz
|
По запросу | ||
|
XTD-750C до 6.650 ГГц
|
Усилитель мощности C-Band, 5.850 to 6.650 GHz
|
По запросу | ||
|
XTD-750C до 6.725 ГГц
|
Усилитель мощности C-Band, 5.850 to 6.725 GHz
|
По запросу | ||
|
XTD-750C до 7.025 ГГц
|
Усилитель мощности C-Band, 6.725 to 7.025 GHz
|
По запросу |
