Усилитель мощности Ku-диапазон

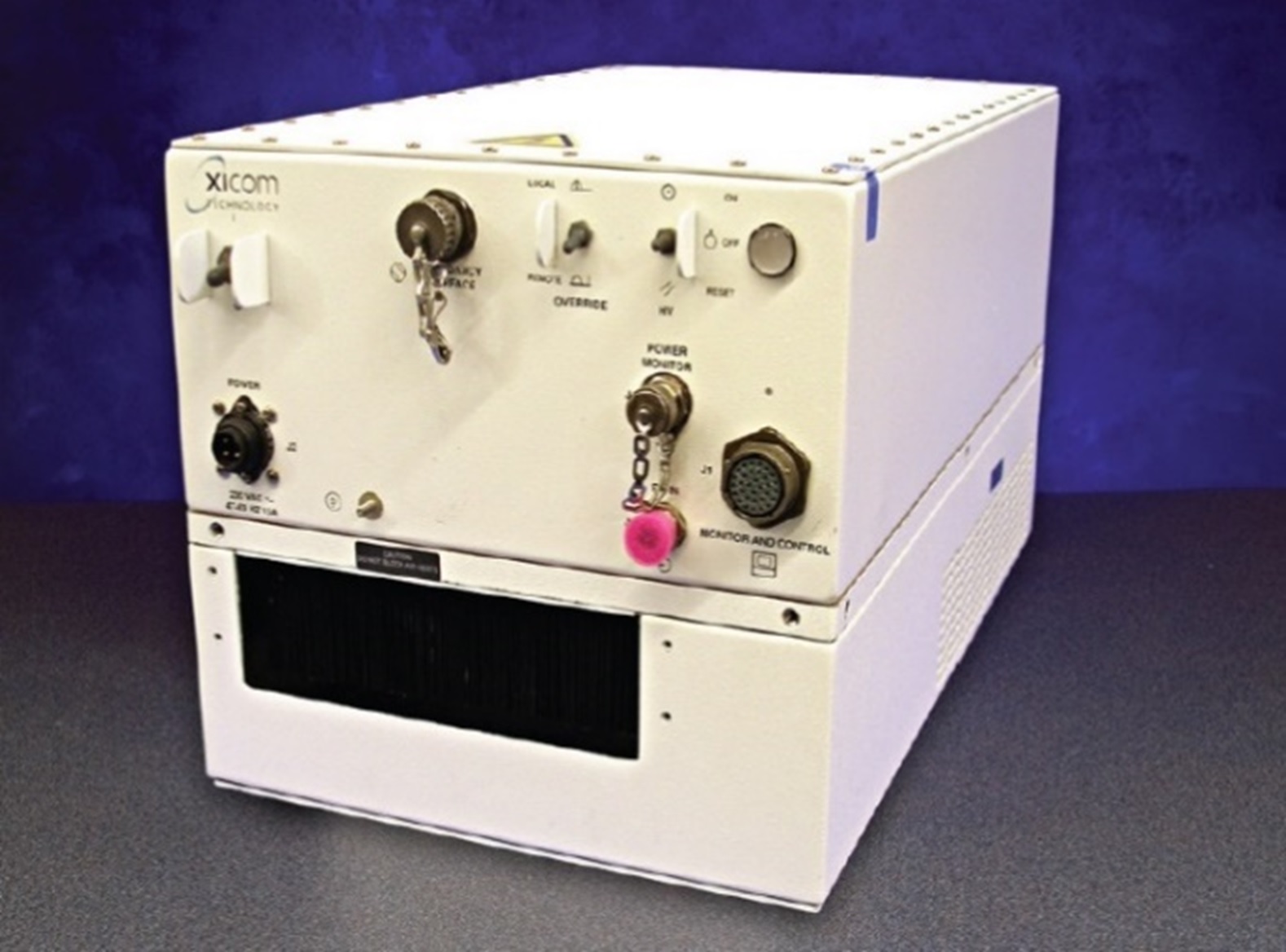

Серия XTD Ku-диапазон
Для увеличения картинки наведите мышкой
Серия XTD Ku-диапазон
Серия XTD Ku-диапазон

Наличие: По запросу

По запросу
По запросу
По запросу



Comtech EF Data

Comtech EF Data Corp. is a leading supplier of satellite bandwidth and link optimization. Our high-performance satellite communications infrastructure solutions feature groundbreaking efficiency, robust intelligence and unparalleled horsepower. Commercial and government users around the world utilize our solution suite to reduce OPEX/CAPEX and to increase throughput for the most demanding fixed and mobile… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

The XTD-750 is a compact, self-contained, antenna mountable power amplifier designed for low cost installation and long life. The XTD-750 design eliminates the need for an amplifier shelter as well as a long waveguide run between the amplifier and antenna feed horn. RF filters, cooling, and moni-toring & control (M&C) systems are all self-contained within the High Power Amplifier (HPA). These features provide high reliability, low maintenance costs, and low replacement costs.
The XTD-750 uses high efficiency, dual-stage collector Traveling Wave Tubes (TWT). Some benefits of this type of tube are: reduced prime power consumption, lower internal operating temperatures, reliability enhance-ment.

The XTD-750 incorporates power factor correction circuitry, which mini-mizes line current distortion and reduces the required Volt-Amps. The combination of power factor correction and high efficiency TWTs reduces input Volt-Amps by 45% when compared to equivalent amplifiers. A high frequency resonant conversion power supply is used that accepts a wide range of prime power (180 to 260 VAC). The automatic features of the power supply include quick recovery from prime power outages and multiple helix arc fault resets (three fault cycles).

A complete serial M&C system is built into the unit.

The XTD-750 may be configured for single thread, redundant, phase-com-bined, or linearized operation.

Свернуть Развернуть
Основные возможности и технические характеристики

The XTD-750 is a compact, self-contained, antenna mountable power amplifier designed for low cost installation and long life. The XTD-750 design eliminates the need for an amplifier shelter as well as a long waveguide run between the amplifier and antenna feed horn. RF filters, cooling, and moni-toring & control (M&C) systems are all self-contained within the High Power Amplifier (HPA). These features provide high reliability, low maintenance costs, and low replacement costs.
The XTD-750 uses high efficiency, dual-stage collector Traveling Wave Tubes (TWT). Some benefits of this type of tube are: reduced prime power consumption, lower internal operating temperatures, reliability enhance-ment.

The XTD-750 incorporates power factor correction circuitry, which mini-mizes line current distortion and reduces the required Volt-Amps. The combination of power factor correction and high efficiency TWTs reduces input Volt-Amps by 45% when compared to equivalent amplifiers. A high frequency resonant conversion power supply is used that accepts a wide range of prime power (180 to 260 VAC). The automatic features of the power supply include quick recovery from prime power outages and multiple helix arc fault resets (three fault cycles).

A complete serial M&C system is built into the unit.

The XTD-750 may be configured for single thread, redundant, phase-com-bined, or linearized operation.

Свернуть Развернуть
Сведения о реестре СИ
  • Реестр СИ не требуется
Свернуть Развернуть
Сведения о реестре СИ
  • Реестр СИ не требуется
Характеристики
PERFORMANCE SPECIFICATION
XTD-750K
Parameters Ku-Band
FREQUENCY RANGE (optional extended frequency) 13.75 to 14.5 GHz
(12.75 to 14.5 GHz)
OUTPUT POWER
TraveIing WaveTube 750 Watts
Rated Power @ Amplifier Flange 650 Watts
GAIN
Large Signal (minimum) 70 dB
SmaII SignaI (minimum) 75 dB
Attenuator Range (continuous) 25 dB
Maximum SSG Variation Over
Any Narrow Band 1.0 dB per 80 MHz
Full Band 2.5 dB per 500 MHz
Slope (maximum) ± 0.02 dB/MHz
Stability, 24 hr. (maximum) ±0.25dB
StabiIity, Temperature (maximum) ± 1.0 dB over temperature range at any frequency
INTERMODULATION (maximum) -18 dBc
with two equal carriers @ 4 dB total power backoff from rated output
HARMONIC OUTPUT (maximum) -60 dBc
AM/PM CONVERSION (maximum) 2.5 deg/dB at 6 dB below rated output power
NOISE POWER (maximum)
Transmit Band -70 dBW/4 kHz
Receive Band -150dBW/4 kHz
10.95 to 1275 GHz
GROUP DELAY (maximum)
Bandwidth Any 80 MHz
Linear 0.01 nSZMHz
Parabolic 0.005 nS∕MHz2
Ripple RESIDUAL AM NOISE (maximum) 0.05 nS/Pk-Pk -50 dBc to 10kHz
-20 (1.5 + Iogf) dBc 10 to 500 kHz
-85 dBc above 500 kHz
PHASE NOISE (maximum) 12 dB below IESS phase noise profile
AC fundamental -50 dBc
Sum ofall spurs -47 dBc
VSWR
Input (maximum) 1.3:1
Output (maximum) 1.3:1
Производитель
Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
XTD-750K от 13.75 ГГц
Усилитель мощности Ku-Band, 13.75 to 14.5 GHz
По запросу
- шт +
XTD-750K от 12.75 ГГц
Усилитель мощности Ku-Band, 12.75 to 14.5 GHz
По запросу
- шт +
