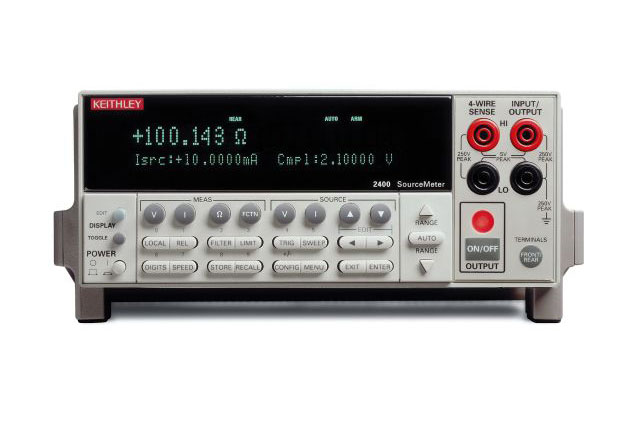

Прецизионный четырёхквадрантный источник-измеритель для тестирования полупроводниковых устройств 200 В/10 А имп., 100 Вт/1000 Вт имп., разрешение 10 фА/100 нВ, 0,02% Keithley 2400

2400
Для увеличения картинки наведите мышкой
2400240024002400
2400240024002400
НаличиеПо запросу
По запросу
По запросу
По запросу
Анализаторы полупроводников 2400 Подробнее
Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

Keithley 2400 SourceMeter SMU Instruments

Keithley 2400 Series SMU instruments offer four-quadrant precision voltage and current source/load coupled with measurement now on a touchscreen user interface. These instruments can simultaneously source and measure current from 10 fA to 10 A pulse and/or voltage from 100nV to 200V, for 1000W pulse and 100W DC total power.

Make measurements at a whole new level.

SMU instruments capture more-detailed device behavior and can characterize the device in extended ranges, so you can understand your device better, enhance its quality and improve its performance.

Highlights

  • 6½-digit resolution precision source and measure
  • 1 MSamples/s digitized measurement speed
  • Current: 10nA to 7A DC, 10A Pulse
  • Voltage: 200mV to 200V
  • Power: Up to 100W DC to 1000W Pulse

  • Intuitive UI. Smart and fast.


    Measure, see and discover more on the intuitive, multi-touch user interface – from raw readings to histograms to time-based and voltage/current-based waveforms—and get to your answers more quickly.

    Highlights

  • Five-inch touchscreen with carefully-designed color combination and screen layout
  • Easy navigation and one-level-deep menu and settings
  • 27.5 million data memory with time stamps all viewable on the instrument
  • Unmatched versatility and return on investment.


    SMU instruments bring versatility to a new level, for today’s applications and tomorrow’s innovation. Configure yours as a precision power supply, 6½-digit DMM, current source, voltage source, picoammeter, electronic load and more.

    Learn more. Gain more.

    Source Measure Unit Tutorial Learning Center brings together a wealth of information on Keithley SMUs and other products in an all-in-one, convenient location. We provide links to a wide variety of content related to the applications and industries we serve.

    Cut Costs and Protect Your Investment


    Keithley Care plans provide fast, high-quality services at a fraction of the cost of on-demand service events. You are one click or phone call away from obtaining repair coverage - no quotes, purchase orders, or approval delays.

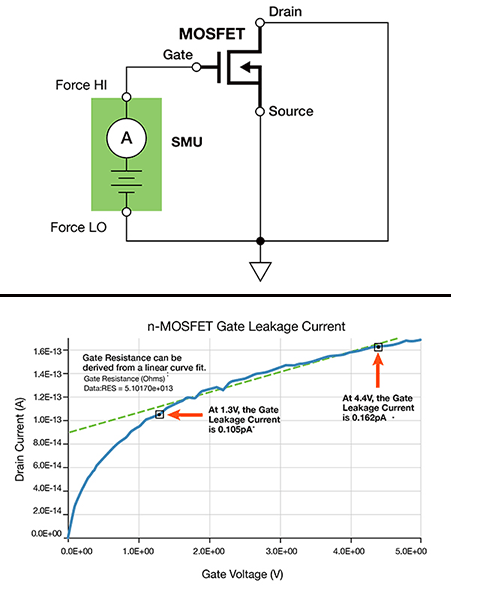

    MOSFET Device Characterization

    With its integrated source and measure, voltage or current, precision and accuracy on an intuitive, graphical touchscreen display, a Series 2400 Graphical SMU instrument is ideal for capturing drain family of curves, threshold voltage, gate leakage and transconductance.

    Highlights

  • I-V curve display on a touchscreen interface
  • Source and sink voltage and current
  • Best accuracy 0.012% with 6½-digit resolution

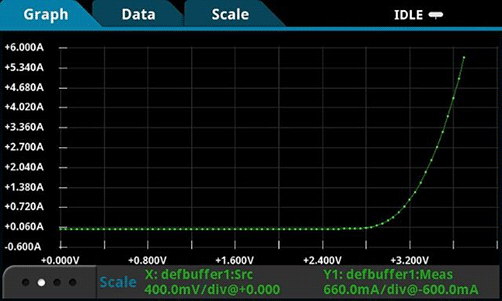

  • High Speed Testing of High Brightness LEDs

    Use a SMU instrument's unique pulsing, voltage, or current capabilities to minimize self-heating on HBLEDs and reduce the negative impact on measurement accuracy, as well as to eliminate the worries about damaging the device under test.

    Highlights

  • Minimum programmage voltage and current pulse: 150 µs
  • Maximum pulse current 10 A
  • Maximum pulse power 1000 W

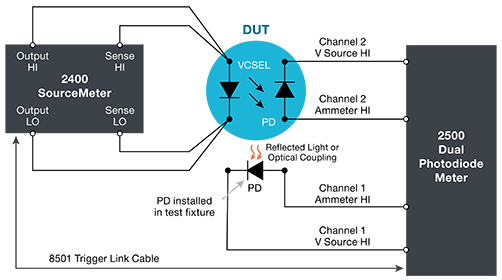

  • VCSEL Testing

    The industry's best DC test system for laser diode (LD) production test, SMU instruments offer high speed and high accuracy for both current sourcing and voltage-current monitoring of laser diode modules, photodiode current. SMUs are the most cost-effective LIV instrumentation with high system synchronization and throughput.

    Highlights

  • Programmable current source up to 10 A and 150 µs
  • Voltage and current measure resolution at 10 nV and 10 fA
  • TSP-Link® Technology for up to 32 instruments at <1 µs synchronization

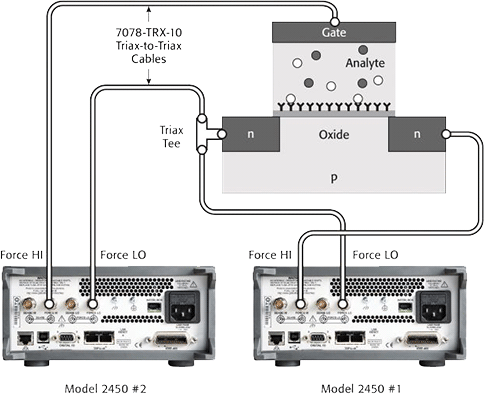

  • Characterizing and Validating Sensor Performance



    SMU instruments are the most accurate, reliable, and convenient way to characterize and validate sensors and transducers that can generate and measure ultra-low and low voltage or current signal during sleep and active states of operation. SMUs offer the widest operating range, sensivity, speed and accuracy to minimize false readings and test with confidence.

    Highlights

  • Voltage and current measure resolution at 10 nV and 10 fA
  • Best voltage and current measure accuracy at 0.012% and 0.02%
  • Maximum sample rate at 1 MSamples/s
  • Свернуть Развернуть
    Основные возможности и технические характеристики

    Keithley 2400 SourceMeter SMU Instruments

    Keithley 2400 Series SMU instruments offer four-quadrant precision voltage and current source/load coupled with measurement now on a touchscreen user interface. These instruments can simultaneously source and measure current from 10 fA to 10 A pulse and/or voltage from 100nV to 200V, for 1000W pulse and 100W DC total power.

    Make measurements at a whole new level.

    SMU instruments capture more-detailed device behavior and can characterize the device in extended ranges, so you can understand your device better, enhance its quality and improve its performance.

    Highlights

  • 6½-digit resolution precision source and measure
  • 1 MSamples/s digitized measurement speed
  • Current: 10nA to 7A DC, 10A Pulse
  • Voltage: 200mV to 200V
  • Power: Up to 100W DC to 1000W Pulse

  • Intuitive UI. Smart and fast.


    Measure, see and discover more on the intuitive, multi-touch user interface – from raw readings to histograms to time-based and voltage/current-based waveforms—and get to your answers more quickly.

    Highlights

  • Five-inch touchscreen with carefully-designed color combination and screen layout
  • Easy navigation and one-level-deep menu and settings
  • 27.5 million data memory with time stamps all viewable on the instrument
  • Unmatched versatility and return on investment.


    SMU instruments bring versatility to a new level, for today’s applications and tomorrow’s innovation. Configure yours as a precision power supply, 6½-digit DMM, current source, voltage source, picoammeter, electronic load and more.

    Learn more. Gain more.

    Source Measure Unit Tutorial Learning Center brings together a wealth of information on Keithley SMUs and other products in an all-in-one, convenient location. We provide links to a wide variety of content related to the applications and industries we serve.

    Cut Costs and Protect Your Investment


    Keithley Care plans provide fast, high-quality services at a fraction of the cost of on-demand service events. You are one click or phone call away from obtaining repair coverage - no quotes, purchase orders, or approval delays.

    MOSFET Device Characterization

    With its integrated source and measure, voltage or current, precision and accuracy on an intuitive, graphical touchscreen display, a Series 2400 Graphical SMU instrument is ideal for capturing drain family of curves, threshold voltage, gate leakage and transconductance.

    Highlights

  • I-V curve display on a touchscreen interface
  • Source and sink voltage and current
  • Best accuracy 0.012% with 6½-digit resolution
  • High Speed Testing of High Brightness LEDs

    Use a SMU instrument's unique pulsing, voltage, or current capabilities to minimize self-heating on HBLEDs and reduce the negative impact on measurement accuracy, as well as to eliminate the worries about damaging the device under test.

    Highlights

  • Minimum programmage voltage and current pulse: 150 µs
  • Maximum pulse current 10 A
  • Maximum pulse power 1000 W
  • VCSEL Testing

    The industry's best DC test system for laser diode (LD) production test, SMU instruments offer high speed and high accuracy for both current sourcing and voltage-current monitoring of laser diode modules, photodiode current. SMUs are the most cost-effective LIV instrumentation with high system synchronization and throughput.

    Highlights

  • Programmable current source up to 10 A and 150 µs
  • Voltage and current measure resolution at 10 nV and 10 fA
  • TSP-Link® Technology for up to 32 instruments at <1 µs synchronization
  • Characterizing and Validating Sensor Performance



    SMU instruments are the most accurate, reliable, and convenient way to characterize and validate sensors and transducers that can generate and measure ultra-low and low voltage or current signal during sleep and active states of operation. SMUs offer the widest operating range, sensivity, speed and accuracy to minimize false readings and test with confidence.

    Highlights

  • Voltage and current measure resolution at 10 nV and 10 fA
  • Best voltage and current measure accuracy at 0.012% and 0.02%
  • Maximum sample rate at 1 MSamples/s
  • Комплектацию Вы можете узнать:
    По тел.: +7 (495) 105 96 88 или
    Написать нам письмо: info@micro-electronics.ru
    Комплектацию Вы можете узнать:
    По тел.: +7 (495) 105 96 88 или
    Написать нам письмо: info@micro-electronics.ru
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре

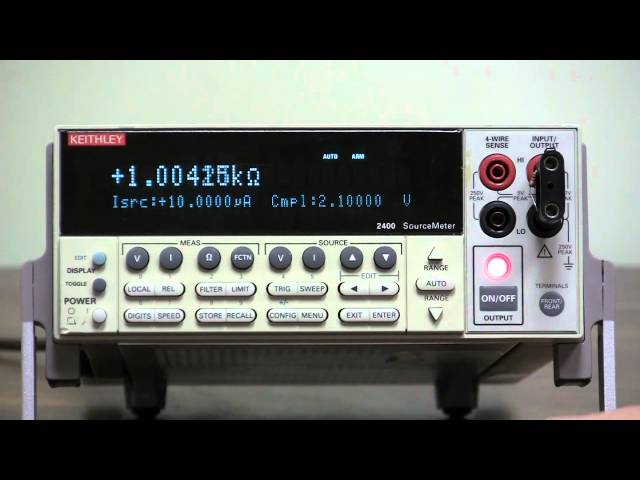

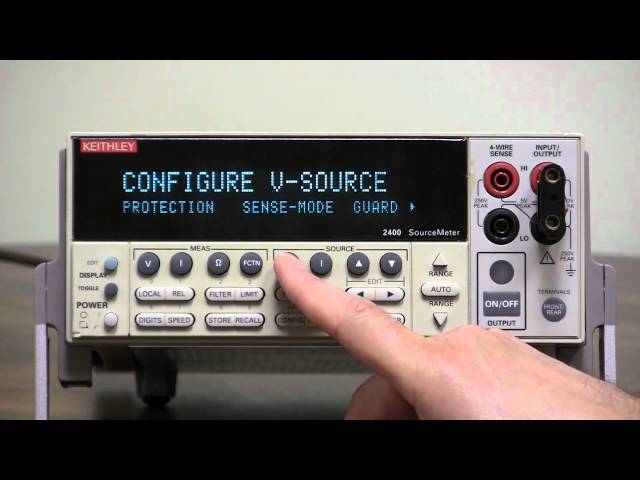

    • Keithley Instruments Model 2400 SourceMeter: How-To Source 10V with 10mA Compliance
    • How To Setup a Fast Voltage Pulse - Keithley Instruments Model 2400
    • Keithley Instruments 2400 Series - Difference Between Real & Range Compliance
    • Keithley Instruments Model 2400 SourceMeter: How-To Configure a Linear Voltage Sweep
    • Keithley Instruments Model 2400 SourceMeter: How-To Source 10mA
    Характеристики
    Загрузить технические характеристики

    Voltage Accuracy (Local or Remote Sense)

    Model

    Range

    Programming Resolution

    Source 1

    Accuracy (1 Year)23°C ±5°C±(% rdg. + volts)

    Default Measurement Resolution

    Measurement 2, 3, 4Accuracy (1 Year)23°C ±5°C±(% rdg. + volts)

    Output Slew Rate (±30%)

    Source/Sink Limit

    2400, 2401

    200.000 mV

    5 µV

    0.02% + 600 µV

    1 µV

    0.012% + 300 µV



    ±21 V @ ±1.05 A

    ±210 V @ ±105 mA*

    2.00000 V

    50 µV

    0.02% + 600 µV

    10 µV

    0.012% + 300 µV

    20.0000 V

    500 µV

    0.02% + 2.4 mV

    100 µV

    0.015% + 1.5 mV

    0.08 V/µs

    200.000 V*

    5 mV

    0.02% + 24 mV

    1 mV

    0.015% + 10 mV

    0.5 V/µs

    2410

    200.000 mV

    5 µV

    0.02% + 600 µV

    1 µV

    0.012% + 300 µV



    ±21 V @ ±1.05 A

    ±1100 V @ ±21 mA

    2.00000 V

    50 µV

    0.02% + 600 µV

    10 µV

    0.012% + 300 µV

    20.0000 V

    500 µV

    0.02% + 2.4 mV

    100 µV

    0.015% + 1 mV

    0.15 V/µs

    1000.00 V

    50 mV

    0.02% + 100 mV

    10 mV

    0.015% + 50 mV

    0.5 V/µs

    2420

    200.000 mV

    5 µV

    0.02% + 600 µV

    1 µV

    0.012% + 300 µV



    ±21 V @ ±3.15 A

    ±63 V @ ±1.05 A

    2.00000 V

    50 µV

    0.02% + 600 µV

    10 µV

    0.012% + 300 µV

    20.0000 V

    500 µV

    0.02% + 2.4 mV

    100 µV

    0.015% + 1 mV

    0.08 V/µs

    60.0000 V

    1.5 mV

    0.02% + 7.2 mV

    1 mV

    0.015% + 3 mV

    0.14 V/µs

    2440

    200.000 mV

    5 µV

    0.02% + 600 µV

    1 µV

    0.012% + 300 µV



    ±10.5 V @ ±5.25 A

    ±42 V @ ±1.05 A

    2.00000 V

    50 µV

    0.02% + 600 µV

    10 µV

    0.012% + 300 µV

    10.0000 V

    500 µV

    0.02% + 1.2 mV

    100 µV

    0.015% + 750 µV

    0.08 V/µs

    40.0000 V

    5 mV

    0.02% + 4.8 mV

    1 mV

    0.015% + 3 mV

    0.25 V/µs

    *Not available on 2401.

    NOTES

    1. 2400, 2401, 2410 Only: Specifications valid for continuous output currents below 105 mA. For operation above 105 mA continuous for >1 minute, derate accuracy 10%/35 mA above 105 mA.
    2. Speed = Normal (1 PLC). For 0.1 PLC, add 0.005% of range to offset specifications, except 200 mV, 1 A, 10 A ranges, add 0.05%. For 0.01 PLC, add 0.05% of range to offset specifications, except 200 mV, 1 A, 10 A ranges, add 0.5%.
    3. Accuracies apply to 2- or 4-wire mode when properly zeroed.
    4. In pulse mode, limited to 0.1 PLC measurement.

      Temperature Coefficient (0°–18°C and 28°–50°C) — ±(0.15 × accuracy specification)/°C.


      Voltage Regulation — Line: 0.01% of range. Load: 0.01% of range + 100 µV.


      Over Voltage Protection — User selectable values, 5% tolerance. Factory default = none.


      Current Limit — Bipolar current limit (compliance) set with single value. Min. 0.1% of range.


      Overshoot — <0.1% typical (full scale step, resistive load, 10 mA range).

    Additional Source Specifications (All Models)

    Transient Response Time — 30 µs minimum for the output to recover to its spec. following a step change in load.


    Command Processing Time — Maximum time required for the output to begin to change following the receipt of :SOURce:VOLTage|CURRent <nrf> command. Autorange On: 10 ms. Autorange Off: 7 ms.


    Output Settling Time — Time required to reach 0.1% of final value after command is processed. 100 µs typical. Resistive load. 10 µA to 100 mA range.


    DC Floating Voltage — Output can be floated up to ±250 VDC (2440 ±40 VDC) from chassis ground.


    Remote Sense — Up to 1 V drop per load lead.


    Compliance Accuracy — Add 0.3% of range and ±0.02% of reading to base specification.


    Over Temperature Protection — Internally sensed temperature overload puts unit in standby mode.


    Range Change Overshoot — Overshoot into a fully resistive 100 kΩ load, 10 Hz to 1 MHz BW, adjacent ranges: 100 mV typical, except 20 V/200 V (20 V/60 V on 2420), range boundary, and 2440.


    Minimum Compliance Value — 0.1% of range.

    Current Accuracy (Local or Remote Sense)

    Model

    Range

    Programming Resolution

    Source 1, 3Accuracy(1 Year)23°C ±5°C±(% rdg. + amps)

    Default Measurement Resolution

    Measurement 5, 6, 7Accuracy (1 Year)23°C ±5°C±(% rdg. + amps)

    Source/Sink Limit

    2400, 2401

    1.00000 µA

    50 pA

    0.035% + 600 pA

    10 pA

    0.029% + 300 pA

    ±1.05A @ ±21 V

    ±105 mA @ ±210 V8

    10.0000 µA

    500 pA

    0.033% + 2 nA

    100 pA

    0.027% + 700 pA

    100.000 µA

    5 nA

    0.031% + 20 nA

    1 nA

    0.025% + 6 nA

    1.00000 mA

    50 nA

    0.034% + 200 nA

    10 nA

    0.027% + 60 nA

    10.0000 mA

    500 nA

    0.045% + 2 µA

    100 nA

    0.035% + 600 nA

    100.000 mA

    5 µA

    0.066% + 20 µA

    1 µA

    0.055% + 6 µA

    1.00000 A2

    50 µA

    0.27 % + 900 µA

    10 µA

    0.22 % + 570 µA

    2410

    1.00000 µA

    50 pA

    0.035% + 600 pA

    10 pA

    0.029% + 300 pA

    ±1.05A @ ±21 V

    ±21 mA @ ±1100 V

    10.0000 µA

    500 pA

    0.033% + 2 nA

    100 pA

    0.027% + 700 pA

    100.000 µA

    5 nA

    0.031% + 20 nA

    1 nA

    0.025% + 6 nA

    1.00000 mA

    50 nA

    0.034% + 200 nA

    10 nA

    0.027% + 60 nA

    20.0000 mA

    500 nA

    0.045% + 4 µA

    100 nA

    0.035% + 1.2 µA

    100.000 mA

    5 µA

    0.066% + 20 µA

    1 µA

    0.055% + 6 µA

    1.00000 A2

    50 µA

    0.27 % + 900 µA

    10 µA

    0.22 % + 570 µA

    2420

    10.0000 µA

    500 pA

    0.033% + 2 nA

    100 pA

    0.027% + 700 pA

    ±3.15A @ ±21 V

    ±1.05 A @ ±63 V

    100.000 µA

    5 nA

    0.031% + 20 nA

    1 nA

    0.025% + 6 nA

    1.00000 mA

    50 nA

    0.034% + 200 nA

    10 nA

    0.027% + 60 nA

    10.0000 mA

    500 nA

    0.045% + 2 µA

    100 nA

    0.035% + 600 nA

    100.000 mA

    5 µA

    0.066% + 20 µA

    1 µA

    0.055% + 6 µA

    1.00000 A2

    50 µA

    0.067% + 900 µA

    10 µA

    0.066% + 570 µA

    3.00000 A2

    50 µA

    0.059% + 2.7 mA

    10 µA

    0.052% + 1.71 mA

    2440

    10.0000 µA

    500 pA

    0.033% + 2 nA

    100 pA

    0.027% + 700 pA

    ±5.25A @ ±10.5 V

    ±1.05 A @ ±42 V

    100.000 µA

    5 nA

    0.031% + 20 nA

    1 nA

    0.025% + 6 nA

    1.00000 mA

    50 nA

    0.034% + 200 nA

    10 nA

    0.027% + 60 nA

    10.0000 mA

    500 nA

    0.045% + 2 µA

    100 nA

    0.035% + 600 nA

    100.000 mA

    5 µA

    0.066% + 20 µA

    1 µA

    0.055% + 6 µA

    1.00000 A

    50 µA

    0.067% + 900 µA

    10 µA

    0.060% + 570 µA

    5.00000 A

    50 µA

    0.10 % + 5.4 mA

    10 µA

    0.10 % + 3.42 mA

    NOTES

    1. 2400, 2401, 2410 Only: Specifications valid for continuous output currents below 105 mA. For operation above 105 mA continuous for >1 minute, derate accuracy 10%/35 mA above 105 mA.
    2. Full operation (1 A) regardless of load to 30°C (50°C for 2420 and 2440). Above 30°C (50°C for 2420 and 2440) ambient, derate 35 mA/°C and prorate 35 mA/Ω load. 4-wire mode. For current sink operation on 1 A, 3 A, or 5 A ranges, maximum continuous power is limited to approximately 1/2 rated power or less, depending on current, up to 30°C ambient. See power equations in the User’s Manual to calculate allowable duty cycle for specific conditions.
    3. For sink mode, 1 µA to 100 mA range, accuracy is: 2400, 2401: ±(0.15% + offset*4). 2410, 2420, 2440: ±(0.5% + offset*3).For 1A range, accuracy is: 2400, 2401: ±(1.5% + offset*8). 2410, 2420, 2440: ±(1.5% + offset*3).
    4. 10 A range only in pulse mode. Limited to 2.5 ms pulse width maximum. 10% duty cycle maximum.
    5. Speed = Normal (1 PLC). For 0.1 PLC, add 0.005% of range to offset specifications, except 200 mV, 1 A, 10 A ranges, add 0.05%. For 0.01 PLC, add 0.05% of range to offset specifications, except 200 mV, 1 A, 10 A ranges, add 0.5%.
    6. Accuracies apply to 2- or 4-wire mode when properly zeroed.
    7. In pulse mode, limited to 0.1 PLC measurement.
    8. 2400 only.

      Temperature Coefficient (0°–18°C and 28°–50°C) — ±(0.15 × accuracy specification)/°C.


      Current Regulation — Line: 0.01% of range. Load: 0.01% of range (except 2440 5 A range 0.05%) + 100 pA.


      Voltage Limit — Bipolar voltage limit (compliance) set with single value. Min. 0.1% of range.


      Overshoot — <0.1% typical (1 mA step, RL = 10 kΩ, 20 V range for 2400, 2401, 2410, 2420), (10 V range for 2440).

    Resistance Measurement Accuracy (Local or Remote Sense) 1, 2, 5

    Range

    Default Resolution

    Default Test Current

    2400, 2401, 2410

    Default Test Current

    2420, 2440

    Normal Accuracy (23°C ±5°C)1 Year, ±(% rdg. + ohms)

    Enhanced Accuracy(23°C ±5°C)41 Year, ±(% rdg. + ohms)

    2400, 2401

    2410

    2420, 2440

    2400, 2401

    <0.20000 W3

    Source IACC + Meas. VACC

    Source IACC + Meas. VACC

    Source IACC + Meas. VACC

    Source IACC + Meas. VACC

    2.00000 W3

    10 µW

    1 A

    Source IACC + Meas. VACC

    Source IACC + Meas. VACC

    0.17% + 0.0003 W

    Source IACC + Meas. VACC

    20.0000 W

    100 µW

    100 mA

    100 mA

    0.10% + 0.003 W

    0.11% + 0.006 W

    0.10% + 0.003 W

    0.07% + 0.001 W

    200.000 W

    1 mW

    10 mA

    10 mA

    0.08% + 0.03 W

    0.09% + 0.1 W

    0.08% + 0.03 W

    0.05% + 0.01 W

    2.00000 kW

    10 mW

    1 mA

    1 mA

    0.07% + 0.3 W

    0.08% + 0.6 W

    0.07% + 0.3 W

    0.05% + 0.1 W

    20.0000 kW

    100 mW

    100 µA

    100 µA

    0.06% + 3 W

    0.07% + 6 W

    0.06% + 3 W

    0.04% + 1 W

    200.000 kW

    1 W

    10 µA

    10 µA

    0.07% + 30 W

    0.07% + 60 W

    0.07% + 30 W

    0.05% + 10 W

    2.00000 MW6

    10 W

    1 µA

    1 µA

    0.11% + 300 W

    0.12% + 600 W

    0.11% + 300 W

    0.05% + 100 W

    20.0000 MW7

    100 W

    1 µA

    1 µA

    0.11% + 1 kW

    0.12% + 2.4 kW

    0.11% + 1 kW

    0.05% + 500 W

    200.000 MW3

    1 kW

    100 nA

    0.66% + 10 kW

    0.66% + 24 kW

    Source IACC + Meas. VACC

    0.35% + 5 kW

    >200.000 MW3

    Source IACC + Meas. VACC

    Source IACC + Meas. VACC

    Source IACC + Meas. VACC

    Source IACC + Meas. VACC


    Temperature Coefficient (0°–18°C and 28°–50°C) — ±(0.15 × accuracy specification)/°C.


    Source I Mode, Manual Ohms — Total uncertainty = I source accuracy + V measure accuracy (4-wire remote sense).


    Source V Mode, Manual Ohms — Total uncertainty = V source ­accuracy + I measure accuracy (4-wire remote sense).


    6-wire Ohms Mode — Available using active ohms guard and guard sense. Max. Guard Output Current: 50 mA (except 1 A range). Accuracy is load dependent. Refer to White Paper below for calculation ­formula: “Obtaining More Accurate Resistance Measurements Using the 6-wire Ohms Measurement Technique.”


    Guard Output Impedance — <0.1Ω in ohms mode.


    NOTES

    1. Speed = Normal (1 PLC). For 0.1 PLC, add 0.005% of range to offset specifications, except 200 mV, 1 A, 10 A ranges, add 0.05%. For 0.01 PLC, add 0.05% of range to offset specifications, except 200 mV, 1 A, 10 A ranges, add 0.5%.
    2. Accuracies apply to 2- or 4-wire mode when properly zeroed.
    3. Manual ohms only – except 2420, 2440 for 2 Ω range and 2400, 2401, or 2410 for 200 MΩ range.
    4. Source readback enabled, offset compensation ON. Also available on 2410, 2420, and 2440 with similar ­accuracy enhancement.
    5. In pulse mode, limited to 0.1 PLC measurement.
    6. Except 2440; default test current is 5 µA.
    7. Except 2440; default test current is 0.5 µA.

    System Speeds

    Measurement 1

    Maximum Range Change Rate — 75/second.


    Maximum Measure Autorange Time40 ms (fixed source).2

    Sweep Operation3 Reading Rates (rdg./second) for 60 Hz (50 Hz)

    Speed

    NPLC/Trigger Origin

    Measure

    Source-Measure

    Source-Measure5Pass/Fail Test4, 5

    Source-Memory4

    To Mem.

    To GPIB

    To Mem.

    To GPIB

    To Mem.

    To GPIB

    To Mem.

    To GPIB

    Fast

    0.01 / internal

    2081

    (2030)

    1754



    1551

    (1515)

    1369



    902

    (900)

    981



    165

    (162)

    165



    IEEE-488.1 Mode

    0.01 / external

    1239

    (1200)

    1254



    1018

    (990)

    1035



    830

    (830)

    886



    163

    (160)

    163



    Fast

    0.01 / internal

    2081

    (2030)

    1198

    (1210)

    1551

    (1515)

    1000

    (900)

    902

    (900)

    809

    (840)

    165

    (162)

    164

    (162)

    IEEE-488.2 Mode

    0.01 / external

    1239

    (1200)

    1079

    (1050)

    1018

    (990)

    916

    (835)

    830

    (830)

    756

    (780)

    163

    (160)

    162

    (160)

    Medium

    0.10 / internal

    510

    (433)

    509

    (433)

    470

    (405)

    470

    (410)

    389

    (343)

    388

    (343)

    133

    (126)

    132

    (126)

    IEEE-488.2 Mode

    0.10 / external

    438

    (380)

    438

    (380)

    409

    (360)

    409

    (365)

    374

    (333)

    374

    (333)

    131

    (125)

    131

    (125)

    Normal

    1.00 / internal

    59

    (49)

    59

    (49)

    58

    (48)

    58

    (48)

    56

    (47)

    56

    (47)

    44

    (38)

    44

    (38)

    IEEE-488.2 Mode

    1.00 / external

    57

    (48)

    57

    (48)

    57

    (48)

    57

    (47)

    56

    (47)

    56

    (47)

    44

    (38)

    44

    (38)

    Single Reading Operation Reading Rates (rdg./second) for 60 Hz (50 Hz)

    Speed

    NPLC/Trigger Origin

    Measure To GPIB

    Source-Measure5 To GPIB

    Source-Measure Pass/Fail Test4, 5To GPIB

    Fast (488.1)

    0.01 / internal

    537



    140



    135



    Fast (488.2)

    0.01 / internal

    256

    (256)

    79

    (83)

    79

    (83)

    Medium (488.2)

    0.10 / internal

    167

    (166)

    72

    (70)

    69

    (70)

    Normal (488.2)

    1.00 / internal

    49

    (42)

    34

    (31)

    35

    (30)

    Component for 60 Hz (50 Hz) 4, 6

    Speed

    NPLC/Trigger Origin

    Measure To GPIB

    Source Pass/Fail Test

    Source-Measure Pass/Fail Test5, 7To GPIB

    Fast

    0.01 / external

    1.04 ms

    (1.08 ms)

    0.5 ms

    (0.5 ms)

    4.82 ms

    (5.3 ms)

    Medium

    0.10 / external

    2.55 ms

    (2.9 ms)

    0.5 ms

    (0.5 ms)

    6.27 ms

    (7.1 ms)

    Normal

    1.00 / external

    17.53 ms

    (20.9 ms)

    0.5 ms

    (0.5 ms)

    21.31 ms

    (25.0 ms)

    NOTES

    1. Reading rates applicable for voltage or current measurements. Auto zero off, autorange off, filter off, display off, trigger delay = 0, and binary reading format.
    2. Purely resistive lead. 1 µA and 10 µA ranges <65 ms.
    3. 1000 point sweep was characterized with the source on a fixed range.
    4. Pass/Fail test performed using one high limit and one low math limit.
    5. Includes time to re-program source to a new level before making ­measurement.
    6. Time from falling edge of START OF TEST signal to falling edge of end of test signal.
    7. Command processing time of :SOURce:VOLTage|CURRent:TRIGgered <nrf> command not included.

    General Specifications


    Noise Rejection —



    NPLC

    NMRR

    CMRR

    Fast

    0.01

    80 dB

    Medium

    0.1

    80 dB

    Slow

    1

    60 dB

    100 dB1

    1 Except lowest 2 current ranges = 90dB.


    Load Impedance — Stable into 20,000 pF typical.


    Common Mode Voltage — 250 V DC (40V DC for 2440).


    Common Mode Isolation — >109Ω, <1000pF.


    Overrange — 105% of range, source and measure.


    Max. Voltage Drop Between Input/Output and Sense Terminals — 5 V.


    Max. Sense Lead Resistance — 1 MΩ for rated accuracy.


    Sense Input Impedance — >1010Ω.


    Guard Offset Voltage — <150 µV, typical (300 µV for 2440).


    Source Output Modes — Fixed DC levelMemory List (mixed function)Stair (linear and log)


    Memory Buffer — 5,000 readings @ 5 digits (two 2,500 point buffers). Includes selected measured value(s) and time stamp. Lithium battery ­backup (3 yr+ battery life).


    Source Memory List — 100 points max.


    Programmability — IEEE-488 (SCPI-1995.0), RS-232, 5 user-definable power-up states plus factory default and *RST.


    Digital Interface

    Output Enable — Active low input.

    Handler Interface — Start of test, end of test, 3 category bits. +5 V @ 300 mA supply. Not available on 2401.

    Digital I/O — 1 trigger input, 4 TTL/Relay Drive outputs (33 V @ 500 mA, diode clamped). Not available on 2401.


    Power Supply — 100 V to 240 V rms, 50–60 Hz (automatically detected at power up). 2400, 2401: 190 VA. 2410: 210 VA. 2420: 220 VA. 2440: 240VA.


    Cooling — 2401: Convection. 2410, 2420, 2440: Forced air, variable speed.


    EMC — Conforms to European Union Directive 89/336/EEC, EN 61326-1.


    Safety — Conforms to European Union Low Voltage Directive. 2400 and 2401 UL listed to UL 61010-1:2012 and UL 61010-2-30:2012.


    Vibration — MIL-PRF-28800F Class 3 Random.


    Warm-Up — 1 hour to rated accuracies.


    Dimensions — 89 mm high × 213 mm wide × 370 mm deep (3½ in × 83⁄8 in × 149⁄16 in). Bench Configuration (with handle and feet): 104 mm high × 238 mm wide × 370 mm deep (41⁄8 in × 93⁄8 in × 149⁄16 in).


    Weight — 3.21 kg (7.08 lbs.) (2440: 4.1kg, 9.0 lbs).


    Environment — Operating: 0°–50°C, 70% R.H. up to 35°C. Derate 3% R.H./°C, 35°–50°C. Storage: –25°C to 65°C.

    Модели и опции
    Товар
    Модели и Опции
    Описание
    Цена Заказать
    Модели
    2401
    Сенсорный экран- Нет, Число каналов 1, Максимальный диапазон тока источника-измерителя 1 A, Максимальный диапазон напряжения источника-измерителя 20 В, Разрешение измерения (ток / напряжение) 1 пА / 100 нВ, Электропитание 20 Вт
    По запросу
    - шт +
    2450
    Сенсорный экран- Да, Число каналов 1, Максимальный диапазон тока источника-измерителя 1 A, Максимальный диапазон напряжения источника-измерителя 200 В, Разрешение измерения (ток / напряжение) 10 фА / 10 нВ, Электропитание 20 Вт
    По запросу
    - шт +
    2400
    Сенсорный экран- Нет, Число каналов 1, Максимальный диапазон тока источника-измерителя 1 A, Максимальный диапазон напряжения источника-измерителя 200 В, Разрешение измерения (ток / напряжение) 1 пА / 100 нВ, Электропитание 20 Вт
    По запросу
    - шт +
    2460
    Сенсорный экран- Да, Число каналов 1, Максимальный диапазон тока источника-измерителя 7A, Максимальный диапазон напряжения источника-измерителя 100 В, Разрешение измерения (ток / напряжение) 1 пА / 100 нВ, Электропитание 100 Вт
    По запросу
    - шт +
    2410
    Сенсорный экран- Нет, Число каналов 1, Максимальный диапазон тока источника-измерителя 1 A, Максимальный диапазон напряжения источника-измерителя 1100 В, Разрешение измерения (ток / напряжение) 1 пА / 100 нВ, Электропитание 20 Вт
    По запросу
    - шт +
    2420
    Сенсорный экран- Нет, Число каналов 1, Максимальный диапазон тока источника-измерителя 3 А, Максимальный диапазон напряжения источника-измерителя 60 В, Разрешение измерения (ток / напряжение) 10 пА / 100 нВ, Электропитание 60 Вт
    По запросу
    - шт +
    2461
    Сенсорный экран- Да, Число каналов 1, Максимальный диапазон тока источника-измерителя 10 А, Максимальный диапазон напряжения источника-измерителя 100 В, Разрешение измерения (ток / напряжение) 1 пА / 100 нВ, Электропитание 1000 Вт
    По запросу
    - шт +
    2440
    Сенсорный экран- Нет, Число каналов 1, Максимальный диапазон тока источника-измерителя 5 А, Максимальный диапазон напряжения источника-измерителя 40 В, Разрешение измерения (ток / напряжение) 10 пА / 100 нВ, Электропитание 50 Вт
    По запросу
    - шт +
    Библиотека

    Основные сведения о продукте

    Посмотреть более подробную информацию о возможностях этого продукта.

    Технические характеристики

    Отзывы
    Добавить отзыв
    Оцените товар:
    Ваше имя
    Достоинства

    Недостатки

    Комментарий

    Символы на картинке


    Тут еще никто ничего не писал, стань первым!
    Список просмотренных товаров пуст
    Список избранного пуст
    Ваша корзина пуста
    Помощь
    Ошибка на сайте? Выдели её и нажми Ctrl+Enter
