Калибратор тестеров электробезопасности

5322A
Для увеличения картинки наведите мышкой

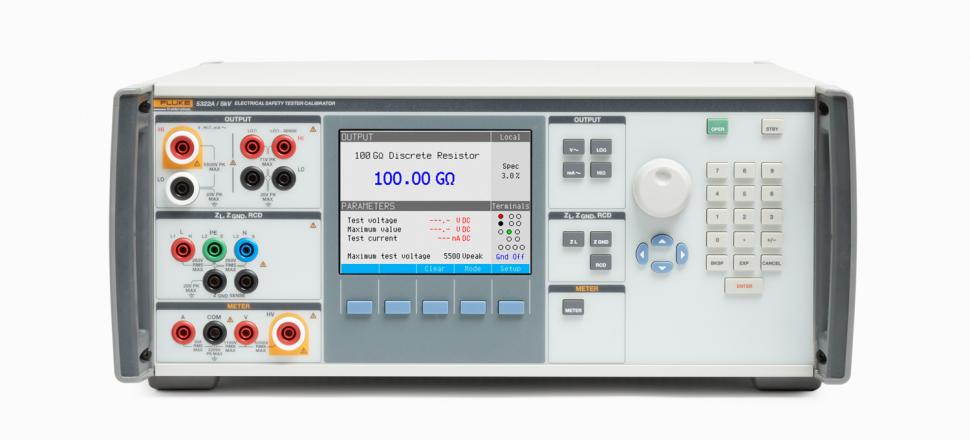

5322A5322A5322A5322A
5322A5322A5322A5322A
НаличиеПо запросу
По запросу
По запросу
По запросу
Электрические калибраторы 5322A Подробнее
Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

The 5322A Electrical Tester Calibrator helps calibration technicians comply with new regulatory standards up to four times faster than with traditional manual, multiple-product methods.The 5322A replaces the 5320A Electrical Tester Calibrator.

The 5322A calibrator facilitates compliance with exacting international standards such as the United Kingdom’s BS7671 17th Edition, IEC/EN Standards, Australia and New Zealand’s AS/NZS 3000 and Chinese verification/calibration regulations for various electrical testers.

The 5322A combines many functions into a single instrument, replacing discrete resistors, decade boxes and other custom solutions commonly used to calibrate electrical testers. This single-box solution speeds and simplifies calibration because users only need to learn, operate and maintain one calibrator rather than multiple instruments. And while it’s difficult to automate multiple instruments, the 5322A can be automated with MET/CAL® Calibration Software—further increasing speed and throughput.

Calibrate all major types of electrical safety testers with just one calibrator. The 5322A calibrates all major categories of electrical safety testers. The benefits of this calibrator are best described by the key functionality it brings to calibrating the individual workloads.

Broad workload coverage

The 5322A calibrates a broad range of equipment, including:

  • Hipot testers
  • Insulation resistance testers (megohm-meters) including older analog testers
  • Loop/line impedance testers
  • Continuity testers
  • Earth resistance testers
  • Ground bond testers
  • Leakage current testers
  • Circuit breaker testers (RCD/GFCI)
  • Multifunction installation testers
  • Portable appliance testers (PATs)
  • Key features and benefits

    Continuously variable high voltage resistance outputs source high-ohms, high voltage resistors to enable calibration of insulation resistance testers/megohmmeters up to 5 kV.  The continuously variable feature lets the user set any resistance value to match the device under test (DUT) requirement and adjust the 5322A output to a nominal value, which aids in calibrating older-style hand-cranked testers.

    Active Loop Compensation makes it easier to calibrate the loop/line impedance function of an installation tester by canceling residual line impedance during calibrations.

    600 V source (VLC option) allows calibration of ac voltage measurements on workloads with measurement capabilities. This feature is also useful for powering many types of PAT testers.

    4-wire low resistance sources enable precision low current measurements and high current ground bond measurements, providing accuracy for testing newer 4-wire testers.

    Optional 5322A-LOAD 5 kV high voltage load resistors include paralleling capability for precision hipot testing.

    RCD simulation enables testing of installation and PAT testers with excellent time and current level accuracy. 5322A trip times provide better than 4:1 test uncertainty ratios with 1 % trip current uncertainty.

    Ripple coefficient and THD measurements display hipot testers' signal purity measurements to 5 kV as required by many regulations.

    Multiple models give you the flexibility to select the capabilities best suited to your workload and budget.

    MET/CAL software compatibility automates the 5322A in 5320A emulation mode for improved throughput and greater consistency.

    Maximize workload coverage in a quarter of the time

    The Fluke Calibration 5322A Multifunction Electrical Tester Calibrator combines many functions into a single instrument, replacing discrete resistors, decade boxes and other custom solutions commonly used to calibrate electrical safety testers. It’s flexible and precise enough to calibrate a wide range of instrumentation, and fast enough to handle the job in a quarter of the time you spend on manual multi-product methods.

    Insulation resistance testers

    The 5322A calibrator sources high-value, high-voltage resistors and measures the high voltage output of megohm meters and other portable and bench insulation testers. When calibrating insulation resistance testers up to 5 kV, you can select a wide range of continuously variable resistance values, from 10 kΩ to 100 GΩ with 4.5-digit resolution. When calibrating 10 kV insulation testers, the included R-multiplier extends these ranges to 10 TΩ and 10 kV. The included 10 kV divider measures testers to 10 kV with greater precision than the 40 kV probe, insuring you get the TUR you need for these tests.

    Leakage current testers

    Simulate leakage current for direct/touch, differential and substitute leakage current methods with 10 µA resolution from 0.1 mA to 30 mA. The 5322A lets you choose the leakage current test method that works best for your situation, unlike other calibrators that only offer a single method.

    Multifunction installation testers

    The 5322A makes quick work of these multifunction installation testers with the flexibility to calibrate insulation resistance, continuity, loop impedance, RCD and earth resistance tester capabilities. This means that calibrations are completed with one instrument.

    Portable appliance testers (PATs)

    The 5322A has all the functionality needed to calibrate PATs, with insulation resistance, ground bond, leakage current RCD, flash voltage and load test capabilities.

    Continuity testers and earth (ground) resistance testers

    To calibrate these low ohms testers, a calibrator must be able to source precision low ohms. From its low ohms precision resistors, the 5322A calibrator sources resistance values ranging from 100 mΩ to 10 kΩ, with 3.5 digits of resolution. Choose 2-wire or 4-wire modes for maximum flexibility or a discrete 4-wire 10 mΩ resistor to cover even more workload.

    Loop/line impedance testers and ground bond testers

    The 5322A calibrator has 16 high-power, high-current resistors it can source to increase the resistance of a loop or line by a known amount. Use Scan mode to automatically determine the resistance of the loop, and use Active Loop Compensation mode (5322A/VLC) to compensate for any residual impedance in the loop or line. Ground bond resistance outputs are either 2-wire or 4-wire. The lowest 4-wire output is 1 mΩ.

    Residual-current device (RCD) or ground fault current interrupter (GFCI) testers

    The 5322A simulates a circuit breaker (an RCD/GFCI) to verify and calibrate trip current and trip time, without tripping the installation’s current breakers. For most RCD testers, trip times are calculated to an uncertainty of 0.25 ms, to provide better than 4:1 test uncertainty ratios (TUR). Trip current uncertainty is 1 %, which also provides better than 4:1 TURs in most applications. The 5322A also has a special PAT RCD mode to calibrate the RCD function of those testers.

    Hipot testers

    Electrical safety testing with hipots is an integral part of development and manufacturing of electronic and electrical products, ranging from refrigerators to power supplies. Such testing is often required by government regulations to ensure product safety. The 5322A provides best-in-class hipot calibration of ac and dc voltage. The built-in meter measures voltage and current for voltages up to 5 kV. The 5 kV range also measures hipot ripple coefficient and distortion (THD).

    For measurement of hipot current up to 100 mA, Fluke Calibration offers a load adapter accessory. Use the load adapter in conjunction with the 5322A built-in current meter for full calibration of hipots. For voltages over 5 kV the included 10 kV divider accessory or optional characterized 40 kV probe can be used. The 10 kV divider measures voltages to 10 kV with 0.5 % uncertainty.

    5322A front and rear panel details

    5322A Electrical Tester Calibrator Front Panel with Callouts

    A. Large, bright full-color display
    Large readouts enable you to easily read the primary sourced or measured values. Sourced values are in blue and measured values are in red.

    B. Active Terminal Display
    Always know which calibrator terminals are active. When a function has been selected, the graphical display shows the active terminals.

    C. Soft menu keys
    Soft menu keys adapt to the active function, so the menu structure is intuitive and easy to learn.

    D. Output jog wheel, numeric keyboard
    To select an output value or measurement range, use the numeric keypad or rotary jog wheel.

    E. Graphical help guide
    Find out what connections to make in an easy-to-understand graphical format. The help guide is available through Mode softkey.

    F. Spec readout
    The spec readout lets you view the uncertainty of the sourced or measured primary value.

    Fluke 5322A Electrical Calibrator Rear View with Callouts

    G. IEEE 488 and USB communication

    The MET/CAL® Calibration Management Software advantage

    The 5322A calibrator works with Fluke Calibration MET/CAL Calibration Software, in 5320A emulation mode, allowing you to increase throughput up to four times that of traditional manual and multi-product methods while ensuring calibrations are performed consistently every time. This powerful software documents calibration procedures, processes and results for ease in complying with ISO 17025 and similar quality standards.

    The support you need, when you need it

    Fluke calibrators are known for their accuracy and reliability. Fluke operates global calibration and repair facilities to keep your equipment in top working order. Reduce your calibrator downtime and control your cost of ownership with a Priority Gold service package. Fluke Calibration CarePlans feature an annual standard or accredited calibration of your 5322A calibrator with guaranteed turnaround and no cost for repairs. (CarePlans are not available in all countries. Please check with your local Fluke Calibration sales representative for calibration services in your area).

    Flexible choices to calibrate your electrical tester workload

    Multiple model choices for the 5322A give you the flexibility to select the features best suited to your lab’s workload. The base 5322A model offers 1.5 kV high resistance sourcing. The 5322A/5 offers 5 kV high voltage resistor sourcing to handle the growing population of high voltage based safety testers.

    To either model, add active loop compensation and a 600 V precision ac/dc output source for calibrating the voltage measurement function of DUTs. You can also add a characterized 40 kV probe accessory for making precision measurements of very high voltages to 0.5% accuracy.

    Included accessories offer additional flexibility

    Each 5322A comes with an external R-Multiplier to source resistances of up to 10 TΩ for testing insulation testers to 10 kV. A RCD PAT adapter is also included for safe secure connections to the 5322A for your specific regional electrical appliance plug and socket type. Also included is an external 10 kV divider to measure testers with 10 kV outputs, to meet more stringent test accuracy ratios required by some regulations. This broad range of model options put you in control of selecting the right model to match your workload and your budget.

    Optional 5322A-LOAD

    An optional 5322A-LOAD 5 kV high resistance load option is available with 5 kV high voltage resistors to allow direct connection to hipots for leakage tests. This 5322A-LOAD is unique in that it supports 5 kV testing and has nine high voltage resistors, ranging from 10 kΩ to 10 Ω, that can be combined in parallel, within voltage limits, to obtain more precise results.

    Свернуть Развернуть
    Основные возможности и технические характеристики

    The 5322A Electrical Tester Calibrator helps calibration technicians comply with new regulatory standards up to four times faster than with traditional manual, multiple-product methods.The 5322A replaces the 5320A Electrical Tester Calibrator.

    The 5322A calibrator facilitates compliance with exacting international standards such as the United Kingdom’s BS7671 17th Edition, IEC/EN Standards, Australia and New Zealand’s AS/NZS 3000 and Chinese verification/calibration regulations for various electrical testers.

    The 5322A combines many functions into a single instrument, replacing discrete resistors, decade boxes and other custom solutions commonly used to calibrate electrical testers. This single-box solution speeds and simplifies calibration because users only need to learn, operate and maintain one calibrator rather than multiple instruments. And while it’s difficult to automate multiple instruments, the 5322A can be automated with MET/CAL® Calibration Software—further increasing speed and throughput.

    Calibrate all major types of electrical safety testers with just one calibrator. The 5322A calibrates all major categories of electrical safety testers. The benefits of this calibrator are best described by the key functionality it brings to calibrating the individual workloads.

    Broad workload coverage

    The 5322A calibrates a broad range of equipment, including:

  • Hipot testers
  • Insulation resistance testers (megohm-meters) including older analog testers
  • Loop/line impedance testers
  • Continuity testers
  • Earth resistance testers
  • Ground bond testers
  • Leakage current testers
  • Circuit breaker testers (RCD/GFCI)
  • Multifunction installation testers
  • Portable appliance testers (PATs)
  • Key features and benefits

    Continuously variable high voltage resistance outputs source high-ohms, high voltage resistors to enable calibration of insulation resistance testers/megohmmeters up to 5 kV.  The continuously variable feature lets the user set any resistance value to match the device under test (DUT) requirement and adjust the 5322A output to a nominal value, which aids in calibrating older-style hand-cranked testers.

    Active Loop Compensation makes it easier to calibrate the loop/line impedance function of an installation tester by canceling residual line impedance during calibrations.

    600 V source (VLC option) allows calibration of ac voltage measurements on workloads with measurement capabilities. This feature is also useful for powering many types of PAT testers.

    4-wire low resistance sources enable precision low current measurements and high current ground bond measurements, providing accuracy for testing newer 4-wire testers.

    Optional 5322A-LOAD 5 kV high voltage load resistors include paralleling capability for precision hipot testing.

    RCD simulation enables testing of installation and PAT testers with excellent time and current level accuracy. 5322A trip times provide better than 4:1 test uncertainty ratios with 1 % trip current uncertainty.

    Ripple coefficient and THD measurements display hipot testers' signal purity measurements to 5 kV as required by many regulations.

    Multiple models give you the flexibility to select the capabilities best suited to your workload and budget.

    MET/CAL software compatibility automates the 5322A in 5320A emulation mode for improved throughput and greater consistency.

    Maximize workload coverage in a quarter of the time

    The Fluke Calibration 5322A Multifunction Electrical Tester Calibrator combines many functions into a single instrument, replacing discrete resistors, decade boxes and other custom solutions commonly used to calibrate electrical safety testers. It’s flexible and precise enough to calibrate a wide range of instrumentation, and fast enough to handle the job in a quarter of the time you spend on manual multi-product methods.

    Insulation resistance testers

    The 5322A calibrator sources high-value, high-voltage resistors and measures the high voltage output of megohm meters and other portable and bench insulation testers. When calibrating insulation resistance testers up to 5 kV, you can select a wide range of continuously variable resistance values, from 10 kΩ to 100 GΩ with 4.5-digit resolution. When calibrating 10 kV insulation testers, the included R-multiplier extends these ranges to 10 TΩ and 10 kV. The included 10 kV divider measures testers to 10 kV with greater precision than the 40 kV probe, insuring you get the TUR you need for these tests.

    Leakage current testers

    Simulate leakage current for direct/touch, differential and substitute leakage current methods with 10 µA resolution from 0.1 mA to 30 mA. The 5322A lets you choose the leakage current test method that works best for your situation, unlike other calibrators that only offer a single method.

    Multifunction installation testers

    The 5322A makes quick work of these multifunction installation testers with the flexibility to calibrate insulation resistance, continuity, loop impedance, RCD and earth resistance tester capabilities. This means that calibrations are completed with one instrument.

    Portable appliance testers (PATs)

    The 5322A has all the functionality needed to calibrate PATs, with insulation resistance, ground bond, leakage current RCD, flash voltage and load test capabilities.

    Continuity testers and earth (ground) resistance testers

    To calibrate these low ohms testers, a calibrator must be able to source precision low ohms. From its low ohms precision resistors, the 5322A calibrator sources resistance values ranging from 100 mΩ to 10 kΩ, with 3.5 digits of resolution. Choose 2-wire or 4-wire modes for maximum flexibility or a discrete 4-wire 10 mΩ resistor to cover even more workload.

    Loop/line impedance testers and ground bond testers

    The 5322A calibrator has 16 high-power, high-current resistors it can source to increase the resistance of a loop or line by a known amount. Use Scan mode to automatically determine the resistance of the loop, and use Active Loop Compensation mode (5322A/VLC) to compensate for any residual impedance in the loop or line. Ground bond resistance outputs are either 2-wire or 4-wire. The lowest 4-wire output is 1 mΩ.

    Residual-current device (RCD) or ground fault current interrupter (GFCI) testers

    The 5322A simulates a circuit breaker (an RCD/GFCI) to verify and calibrate trip current and trip time, without tripping the installation’s current breakers. For most RCD testers, trip times are calculated to an uncertainty of 0.25 ms, to provide better than 4:1 test uncertainty ratios (TUR). Trip current uncertainty is 1 %, which also provides better than 4:1 TURs in most applications. The 5322A also has a special PAT RCD mode to calibrate the RCD function of those testers.

    Hipot testers

    Electrical safety testing with hipots is an integral part of development and manufacturing of electronic and electrical products, ranging from refrigerators to power supplies. Such testing is often required by government regulations to ensure product safety. The 5322A provides best-in-class hipot calibration of ac and dc voltage. The built-in meter measures voltage and current for voltages up to 5 kV. The 5 kV range also measures hipot ripple coefficient and distortion (THD).

    For measurement of hipot current up to 100 mA, Fluke Calibration offers a load adapter accessory. Use the load adapter in conjunction with the 5322A built-in current meter for full calibration of hipots. For voltages over 5 kV the included 10 kV divider accessory or optional characterized 40 kV probe can be used. The 10 kV divider measures voltages to 10 kV with 0.5 % uncertainty.

    5322A front and rear panel details

    5322A Electrical Tester Calibrator Front Panel with Callouts

    A. Large, bright full-color display
    Large readouts enable you to easily read the primary sourced or measured values. Sourced values are in blue and measured values are in red.

    B. Active Terminal Display
    Always know which calibrator terminals are active. When a function has been selected, the graphical display shows the active terminals.

    C. Soft menu keys
    Soft menu keys adapt to the active function, so the menu structure is intuitive and easy to learn.

    D. Output jog wheel, numeric keyboard
    To select an output value or measurement range, use the numeric keypad or rotary jog wheel.

    E. Graphical help guide
    Find out what connections to make in an easy-to-understand graphical format. The help guide is available through Mode softkey.

    F. Spec readout
    The spec readout lets you view the uncertainty of the sourced or measured primary value.

    Fluke 5322A Electrical Calibrator Rear View with Callouts

    G. IEEE 488 and USB communication

    The MET/CAL® Calibration Management Software advantage

    The 5322A calibrator works with Fluke Calibration MET/CAL Calibration Software, in 5320A emulation mode, allowing you to increase throughput up to four times that of traditional manual and multi-product methods while ensuring calibrations are performed consistently every time. This powerful software documents calibration procedures, processes and results for ease in complying with ISO 17025 and similar quality standards.

    The support you need, when you need it

    Fluke calibrators are known for their accuracy and reliability. Fluke operates global calibration and repair facilities to keep your equipment in top working order. Reduce your calibrator downtime and control your cost of ownership with a Priority Gold service package. Fluke Calibration CarePlans feature an annual standard or accredited calibration of your 5322A calibrator with guaranteed turnaround and no cost for repairs. (CarePlans are not available in all countries. Please check with your local Fluke Calibration sales representative for calibration services in your area).

    Flexible choices to calibrate your electrical tester workload

    Multiple model choices for the 5322A give you the flexibility to select the features best suited to your lab’s workload. The base 5322A model offers 1.5 kV high resistance sourcing. The 5322A/5 offers 5 kV high voltage resistor sourcing to handle the growing population of high voltage based safety testers.

    To either model, add active loop compensation and a 600 V precision ac/dc output source for calibrating the voltage measurement function of DUTs. You can also add a characterized 40 kV probe accessory for making precision measurements of very high voltages to 0.5% accuracy.

    Included accessories offer additional flexibility

    Each 5322A comes with an external R-Multiplier to source resistances of up to 10 TΩ for testing insulation testers to 10 kV. A RCD PAT adapter is also included for safe secure connections to the 5322A for your specific regional electrical appliance plug and socket type. Also included is an external 10 kV divider to measure testers with 10 kV outputs, to meet more stringent test accuracy ratios required by some regulations. This broad range of model options put you in control of selecting the right model to match your workload and your budget.

    Optional 5322A-LOAD

    An optional 5322A-LOAD 5 kV high resistance load option is available with 5 kV high voltage resistors to allow direct connection to hipots for leakage tests. This 5322A-LOAD is unique in that it supports 5 kV testing and has nine high voltage resistors, ranging from 10 kΩ to 10 Ω, that can be combined in parallel, within voltage limits, to obtain more precise results.

    Комплектацию Вы можете узнать:
    По тел.: +7 (495) 105 96 88 или
    Написать нам письмо: info@micro-electronics.ru
    Комплектацию Вы можете узнать:
    По тел.: +7 (495) 105 96 88 или
    Написать нам письмо: info@micro-electronics.ru
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    Характеристики
    Загрузить технические характеристики

    General specifications

    Specifications confidence level 99%
    Specifications interval 1 year
    Power line

    115/230 V ac (50/60 Hz) +10 % / -14 %, with the maximum voltage difference between neutral and protective earth not exceeding 15 V. Operation with power line between -10 % and -14 % has limitations in burden current for voltage outputs. See AC/DC Voltage Calibrator (VLC option) below.

    Power consumption 1250 VA maximum
    Fuse protection

    AC mains input: 2 A, 250 V for 230 V, time delay (T2L250 V – 5 mm x 20 mm) 4 A, 250 V for 115 V, time delay (T4L250 V – 5 mm x 20 mm)

    RCD input: 3.15 A, 250 V, fast (F3.15H250 V – 5 mm x 20 mm)

    Meter amps (A) input: 20 A, 500 V, time delay (F20H500 V – 6.3 mm x 32 mm)

    Loop/Line impedance input: 4 A, 500 V, time delay (T4H500 V – 6.3 mm x 32 mm)

    Leakage current input: 100 mA, 250 V, fast (F100 mL250 V – 5 mm x 20 mm)

    Environment
    Warm-up time 15 minutes
    Temperature performance

    Operating temperature: 18 °C to 28 °C

    Calibration temperature (tcal): 23 °C

    Temperature coefficient for temperatures outside of tcal ± 5 °C is 0.1 / °C of the specification, for temperatures between 5 °C to 40 °C.

    Storage temperature : -10 °C to 50 °C

    Storage recovery time: Typically <24 hours at operating temperature

    Relative humidity (operating) <80 % to 28 °C (resistance outputs >10 GΩ specified for <70 % to 28 °C)
    Relative humidity (storage) 90 % non-condensing 0 °C to 50 °C
    Altitude

    Operating: 3050 m (10 000 ft)

    Storage: 12 200 m (40 000 ft)

    Dimensions and weight
    Dimensions 430 mm x 555 mm x 170 mm (16.9 in x 21.8 in x 6.7 in)
    Weight 20 kg (44.1 lb)
    Compliance
    Safety

    Mains: IEC 61010-1: Overvoltage category II, pollution degree 2

    Measurement: IEC 61010-2-030: 5000 V (not category rated)

    Electromagnetic compatibility (EMC)

    International:

    • IEC 61326-1: Basic electromagnetic environment
    • CISPR 11: Group 1, Class A
      • Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
      • Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.

        Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.

    Korea (KCC):

    • Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.

    USA (FCC):

    • 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

    Electrical specifications

    Low resistance source
    Range 100 mΩ to 10 kΩ + 10 mΩ single value selection, dc and line frequency (50/60 Hz)

    1.5 kV high resistance source (DC only)
    Range 10 kΩ to 10 GΩ + 100 GΩ single value selection
    5.5 kV high resistance source (DC only) (5322A with /5 option)
    Range 10 kΩ to 100 GΩ
    Test voltage measurement
    Range 0 V dc to 5500 V dc
    Ground bond resistance source
    Resistance mode
    Range 1 mΩ to 1700 Ω, dc and line frequency (50/60 Hz)
    Line/loop impedance source
    Range 25 mΩ to 1700 Ω
    Correction manual/scan mode
    Residual impedance range 0 Ω to 10 Ω
    Resolution 1 mΩ
    Correction COMP mode (active loop compensation) (5322AVLC Option)
    Maximum compensated impedance 0 Ω to 2 Ω
    Leakage current source
    Range 0.1 to 30 mA
    Test voltage

    Passive mode: 60 V ac to 250 V ac rms

    Differential mode: 60 V ac to 250 V ac rms

    Substitute mode:10 V ac to 250 V ac rms

    Active mode (5322A/VLC only)[1]: 50 V ac to 100 V ac rms

    Uncertainty

    Passive mode: ± (0.3% setting + 2 μA)

    Differential mode: ± (0.3% setting + 2 μA)

    Test uncertainty can be influenced by power line voltage instability

    Substitute mode: ± (0.3% setting + 2 μA)

    Active mode (5322A/VLC only)[1]: ± (0.3% setting + 1 μA)



    [1] The Active Mode outputs are synchronized with the ac mains frequency to suppress interference between the calibrator and external noise sources.

    Human body simulation (for substitute leakage currently only

    Resistance range: 0 Ω to 10 000 Ω

    Resolution: 1 Ω

    RCD (residual current device) (for installation testers)
    Trip current range

    0.5 X I and 1 X I Mode: 5 to 30 mA in 1 mA steps

    1.4 X I and 2 X I Mode: 14 to 60 mA in 1 mA steps

    5 X I Mode: 50 to 150 mA in 1 mA steps

    Trip current measurement resolution

    1 μA below 30 mA

    10 μA in range from 30 mA to 150 mA

    100 μA in range from 300 mA to 3 A

    Trip current measurement uncertainty
    Trip current ± 1 % of nominal current (I) setting
    Trip time range 10 to 5000 ms
    Trip time uncertainty (0.02 % setting + 0.25 ms)
    Touch/line voltage

    Touch voltage range: 50 V

    Touch voltage setting: in discrete points depending on setup trip current value

    Touch series resistance: 0.02 Ω, 0.05 Ω, 0.10 Ω, 0.35 Ω, 0.50 Ω, 0.96 Ω, 1.7 Ω, 4.7 Ω, 9 Ω, 17 Ω, 47 Ω, 90 Ω, 170 Ω, 470 Ω, 900 Ω, 1700 Ω

    Line voltage range: 250 V

    Line voltage uncertainty: ± (5 % reading + 3 V)

    User selectable nominal line voltage: 100 V/115 V/120 V/220 V/230 V/240 V/250 V or real

    Post-trip delayed power restore mode: user selectable

    RCD (Residual current device (for PATs)
    Trip current range 0.5 X I to 5 X I Mode: 5 to 150 mA in 1 mA steps
    Trip current measurement resolution 1 μA
    Trip current measurement uncertainty Trip current: ± 1 % of nominal current (I) setting
    Trip time range 10 to 5000 ms
    Trip time uncertainty (0.02 % setting + 0.25 ms)
    Line voltage Reconnection delay: 2.5 s
    AC/DC voltage calibrator (5322A with VLC Option)
    Range 0.03 V to 600 V, ac or dc (.5 - 1%)
    Internal ranges

    AC mode: 0.3 V to 600 V

    DC mode: 0.3 V to 600 V

    Multimeter
    Maximum withstand voltage

    HV terminal to COM terminal: 5000 V rms

    V terminal to COM terminal:  1100 V rms

    COM terminal to Protective Earth: 2200 V pk

    AC/DC voltage range

    V (1100 V) Input:  0 V dc to ±1100 V dc 10 mV to 1100 V ac rms

    HV (5000 V) Input: 0 Vdc to ±5000 Vdc 5 V to 5000 V ac rms

    AC/DC current
    Range 0 A to 20 A continuous, 20 A to 30 A for up to 5 minutes, ac rms or dc
    AC power
    Range 0 kVA ac to 33 kVA ac
    Type Apparent, active, reactive
    Phase indication Phase angle (φ), Power Factor (PF)
    Phase uncertainty (dφ) ± 0.1 °
    DC power
    Range 0 to 33 kVA dc
    Hipot ac voltage distortion measurement
    Frequency range 45 Hz to 65 Hz
    Number of harmonics 25
    Hipot dc voltage ripple coefficient measurement
    Voltage range 100 V dc to 5000 V dc
    Ripple coefficient range 10 %
    Flash test voltage measurement (using flash LC or flash V mode)
    Class I Voltage range 2000 V ac rms
    Uncertainty ± (0.3 % of reading + 6 V)
    Class II Voltage range 3000 V ac rms
    Uncertainty ± (1 % of reading value + 6 V)
    Flash leakage current measurement (using flash LC mode)
    Range 0 mA ac rms or dc to 300 mA ac rms or dc
    Resolution 4.5 digits


    Модели и опции
    Товар
    Модели и Опции
    Описание
    Цена Заказать
    Модели
    5322A
    Многофункциональный калибратор электрических тестеров с сопротивлением 1 кВ, 1,5 кВ
    По запросу
    - шт +
    5322A/5
    Многофункциональный калибратор электрических тестеров с выходами сопротивления высокого напряжения 5 кВ
    По запросу
    - шт +
    5322A/VLC
    Калибратор с сопротивлением 5 кВ, источником 600 В и компенсацией напряжения контура
    По запросу
    - шт +
    5322A/40
    Калибратор с сопротивлением 1,5 кВ и датчиком 40 кВ
    По запросу
    - шт +
    5322A/5/VLC
    Калибратор с сопротивлением 5 кВ, источником 600 В и компенсацией напряжения контура
    По запросу
    - шт +
    5322A/VLC/40
    Калибратор с сопротивлением 1,5 кВ, источником 600 В, компенсацией напряжения контура и датчиком 40 кВ
    По запросу
    - шт +
    5322A/5/40
    Калибратор с сопротивлением 5 кВ и датчиком 40 кВ
    По запросу
    - шт +
    5322A/5/VLC/40
    Калибратор с сопротивлением 5 кВ, источником 600 В, компенсацией напряжения контура и датчиком 40 кВ
    По запросу
    - шт +
    Опции
    Y5320A
    Набор для монтажа в стойку с направляющими
    По запросу
    - шт +
    5322A/CASE
    Транспортировочный кейс для 5322A (без 5322A-LOAD)
    По запросу
    - шт +
    5322A-LOAD
    Высоковольтный резистор для 5322A
    По запросу
    - шт +
    Библиотека

    Основные сведения о продукте

    Посмотреть более подробную информацию о возможностях этого продукта.

    Технические характеристики

    Отзывы
    Добавить отзыв
    Оцените товар:
    Ваше имя
    Достоинства

    Недостатки

    Комментарий

    Символы на картинке


    Тут еще никто ничего не писал, стань первым!
    Список просмотренных товаров пуст
    Список избранного пуст
    Ваша корзина пуста
    Помощь
    Ошибка на сайте? Выдели её и нажми Ctrl+Enter
