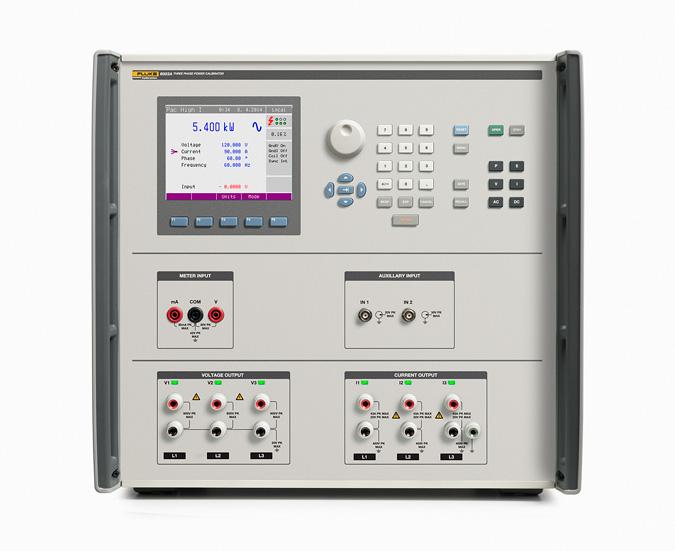

Трехфазный калибратор электрической мощности

6003A
Для увеличения картинки наведите мышкой
6003A6003A6003A6003A
6003A6003A6003A6003A
НаличиеПо запросу
По запросу
По запросу
По запросу
Электрические калибраторы 6003A Подробнее
Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

Three power phases in a single easy-to-use instrument

The Fluke Calibration 6003A Three Phase Electrical Power Calibrator is the most cost-effective way to get the superior accuracy and performance of three independent phases in one instrument. It is an ideal solution for calibration laboratories, electronics manufacturers, electric utility meter shops, and other organizations that manufacture and maintain energy meters, power quality analyzers, and similar tools.

Features at a glance

  • Three phases in a single instrument
  • Cost effective
  • Easy to use
  • Simulates dc or ac electrical power and energy in voltage range to 600 ac V or 280 dc V and current range to 30 A per phase or 90 A combined
  • Phase shift between voltage and current channels can be set from 0° to 359.99°
  • Specifications of ± 375 ppm for power and  0.01° for phase
  • Current outputs can be isolated from ground by up to 450 V peak
  • Optional energy and power quality  capabilities
  • Built-in dc multimeter for transducer output measurement
  • Offers a high current adapter for applications needing from 30 A to  90 A of current

    Accurate performance for the calibration laboratory

    Until now, many  engineers and technicians have been testing three-phase devices with a single-phase series-parallel technique, because the cost of available three-phase sources with acceptable accuracies has put true polyphase testing out of reach. With the 6003A, these professionals can now afford three-phase performance, accuracy, and ease of use. More importantly, they can now test multi-phase meters in conditions that reflect their actual usage.

    Along with providing three independent phases of precise voltage and current, the 6003A also sources power quality phenomena, including harmonics, interharmonics, flicker (modulation) and dip/swell variations.

    The 6003A includes measurement capabilities for dc voltage, dc current and frequency for measuring outputs from power and energy transducers.

    As a single instrument, the 6003A is easier to transport and takes up less space on the bench or cart than multi-piece units. The 6003A delivers all of this functionality with a graphical user interface that makes it remarkably easy to learn and use.

    Versatile and convenient functionality for the manufacturing floor

    The 6003A is a single-instrument solution for single or multi-phase sourcing applications, making it ideal for many applications within electronics manufacturing companies and electric utility meter shops.

    Now you can efficiently conduct final verification of power transducers, current transformers, energy meters, and revenue meters using true multi-phase testing methods. Test and calibrate single and multi-phase power meters, power quality analyzers and energy meters.

    Put the 6003A on a cart and wheel it easily around the factory floor to test workload in situ. The graphical user interface makes setup a snap; all three phases are readily available for verification testing.

    Add capabilities with options and accessories

    The energy option adds an energy pulse counter and pulse output to the 6003A to calibrate and test energy measurement devices. With this option, you can use the 6003A as the energy reference standard. Generated energy is compared with the pulses received from the unit under test (UUT) and a percentage error is reported for the UUT being tested. The generated energy can be expressed as a set amount (packet or dose mode), or for a given amount of pulses or time, along with a user determined warm-up period (timer and counter modes).  It also has a free run mode for troubleshooting setups. A “Maintain Voltage Signal” feature provides power continuously to the UUT during different test sequences, useful when testing energy meters that take power from the voltage source.

    The power quality option enables the 6003A to calibrate power quality instrumentation by generating a variety of power output phenomena on any or all of the voltage and current outputs. The types of phenomena include up to 63 simultaneous harmonics, a single interharmonic, apply modulation (flicker) and impose dips and swells on any or all of the six outputs of the three channels.

    The 90 A adapter and high current leads accessory allows you to conveniently generate up to 90 A from a single current phase, which can help you handle your high current workload. You can also use Fluke Calibration coil accessories to support testing of current clamps making measurements up to 4,500 A. The Fluke Calibration 52120A Transconductance Amplifier can provide additional boosted current phases up to 120 A ac per phase. Multiple 52120As can be used to increase current on multiple phases.

    Automate to increase throughput and efficiency

    Quality standards impose stringent requirements for documenting, reporting, and controlling calibration processes and results. The GPIB and USB interfaces permit such automated control of the testing process. Users can create their custom programs to do unique and special tests. Using off-the-shelf commercial products, such as MET/CAL® Plus Calibration Management Software, can help you meet these requirements easily while also enabling you to increase throughput and streamline your meter calibration processes.

    The MET/CAL Plus application is a powerful tool for creating, editing and testing calibration procedures and collecting and reporting results on a wide variety of instruments. It includes MET/CAL® software– the industry-leading software for automated calibration and MET/TEAM® software– a flexible system to manage your test and measurement assets. It is the most complete software solution available to calibration professionals.

    Priority software support helps you stay productive

    MET/SUPPORTSM Gold is an annual membership program offering premium support and services to help you stay as productive as possible with MET/CAL Calibration Management Software. Services include free software updates and upgrades, free access to the MET/CAL Warranted Procedures Library, plus discounts on training and custom procedure development. Members also receive invitations to regular calibration software web seminars and user group meetings. Use only a few of the Gold services and you can easily recover more than the cost of your membership fee.

    Metrology training increases skill levels

    Calibration and metrology training from Fluke Calibration can help you and your staff become more knowledgeable in a wide variety of disciplines. Instructor-led classroom training is available for general topics in metrology, as well as for calibration software. On-site training can also be scheduled if you have a number of people in your organization who would benefit.

    Fluke Calibration also offers other educational events such as web seminars and road shows on a wide variety of topics. The best way to stay informed about these events is to register to receive email and direct mail from Fluke Calibration. You can register online at subscribe to e-news bulletins, web seminar invitations, and more.

    Calibration and repair service

    Fluke Calibration offers extensive calibration support and service to ensure your long-term satisfaction and return on investment in resistance calibrators, dc calibrators, current calibrators, voltage calibrators, and other calibration equipment. Our worldwide network of calibration centers offers accredited calibrations traceable to national standards. We also offer fast, quality repair and calibration services including a module exchange program and full support in setting up your lab.

  • Свернуть Развернуть
    Основные возможности и технические характеристики

    Three power phases in a single easy-to-use instrument

    The Fluke Calibration 6003A Three Phase Electrical Power Calibrator is the most cost-effective way to get the superior accuracy and performance of three independent phases in one instrument. It is an ideal solution for calibration laboratories, electronics manufacturers, electric utility meter shops, and other organizations that manufacture and maintain energy meters, power quality analyzers, and similar tools.

    Features at a glance

  • Three phases in a single instrument
  • Cost effective
  • Easy to use
  • Simulates dc or ac electrical power and energy in voltage range to 600 ac V or 280 dc V and current range to 30 A per phase or 90 A combined
  • Phase shift between voltage and current channels can be set from 0° to 359.99°
  • Specifications of ± 375 ppm for power and  0.01° for phase
  • Current outputs can be isolated from ground by up to 450 V peak
  • Optional energy and power quality  capabilities
  • Built-in dc multimeter for transducer output measurement
  • Offers a high current adapter for applications needing from 30 A to  90 A of current

    Accurate performance for the calibration laboratory

    Until now, many  engineers and technicians have been testing three-phase devices with a single-phase series-parallel technique, because the cost of available three-phase sources with acceptable accuracies has put true polyphase testing out of reach. With the 6003A, these professionals can now afford three-phase performance, accuracy, and ease of use. More importantly, they can now test multi-phase meters in conditions that reflect their actual usage.

    Along with providing three independent phases of precise voltage and current, the 6003A also sources power quality phenomena, including harmonics, interharmonics, flicker (modulation) and dip/swell variations.

    The 6003A includes measurement capabilities for dc voltage, dc current and frequency for measuring outputs from power and energy transducers.

    As a single instrument, the 6003A is easier to transport and takes up less space on the bench or cart than multi-piece units. The 6003A delivers all of this functionality with a graphical user interface that makes it remarkably easy to learn and use.

    Versatile and convenient functionality for the manufacturing floor

    The 6003A is a single-instrument solution for single or multi-phase sourcing applications, making it ideal for many applications within electronics manufacturing companies and electric utility meter shops.

    Now you can efficiently conduct final verification of power transducers, current transformers, energy meters, and revenue meters using true multi-phase testing methods. Test and calibrate single and multi-phase power meters, power quality analyzers and energy meters.

    Put the 6003A on a cart and wheel it easily around the factory floor to test workload in situ. The graphical user interface makes setup a snap; all three phases are readily available for verification testing.

    Add capabilities with options and accessories

    The energy option adds an energy pulse counter and pulse output to the 6003A to calibrate and test energy measurement devices. With this option, you can use the 6003A as the energy reference standard. Generated energy is compared with the pulses received from the unit under test (UUT) and a percentage error is reported for the UUT being tested. The generated energy can be expressed as a set amount (packet or dose mode), or for a given amount of pulses or time, along with a user determined warm-up period (timer and counter modes).  It also has a free run mode for troubleshooting setups. A “Maintain Voltage Signal” feature provides power continuously to the UUT during different test sequences, useful when testing energy meters that take power from the voltage source.

    The power quality option enables the 6003A to calibrate power quality instrumentation by generating a variety of power output phenomena on any or all of the voltage and current outputs. The types of phenomena include up to 63 simultaneous harmonics, a single interharmonic, apply modulation (flicker) and impose dips and swells on any or all of the six outputs of the three channels.

    The 90 A adapter and high current leads accessory allows you to conveniently generate up to 90 A from a single current phase, which can help you handle your high current workload. You can also use Fluke Calibration coil accessories to support testing of current clamps making measurements up to 4,500 A. The Fluke Calibration 52120A Transconductance Amplifier can provide additional boosted current phases up to 120 A ac per phase. Multiple 52120As can be used to increase current on multiple phases.

    Automate to increase throughput and efficiency

    Quality standards impose stringent requirements for documenting, reporting, and controlling calibration processes and results. The GPIB and USB interfaces permit such automated control of the testing process. Users can create their custom programs to do unique and special tests. Using off-the-shelf commercial products, such as MET/CAL® Plus Calibration Management Software, can help you meet these requirements easily while also enabling you to increase throughput and streamline your meter calibration processes.

    The MET/CAL Plus application is a powerful tool for creating, editing and testing calibration procedures and collecting and reporting results on a wide variety of instruments. It includes MET/CAL® software– the industry-leading software for automated calibration and MET/TEAM® software– a flexible system to manage your test and measurement assets. It is the most complete software solution available to calibration professionals.

    Priority software support helps you stay productive

    MET/SUPPORTSM Gold is an annual membership program offering premium support and services to help you stay as productive as possible with MET/CAL Calibration Management Software. Services include free software updates and upgrades, free access to the MET/CAL Warranted Procedures Library, plus discounts on training and custom procedure development. Members also receive invitations to regular calibration software web seminars and user group meetings. Use only a few of the Gold services and you can easily recover more than the cost of your membership fee.

    Metrology training increases skill levels

    Calibration and metrology training from Fluke Calibration can help you and your staff become more knowledgeable in a wide variety of disciplines. Instructor-led classroom training is available for general topics in metrology, as well as for calibration software. On-site training can also be scheduled if you have a number of people in your organization who would benefit.

    Fluke Calibration also offers other educational events such as web seminars and road shows on a wide variety of topics. The best way to stay informed about these events is to register to receive email and direct mail from Fluke Calibration. You can register online at subscribe to e-news bulletins, web seminar invitations, and more.

    Calibration and repair service

    Fluke Calibration offers extensive calibration support and service to ensure your long-term satisfaction and return on investment in resistance calibrators, dc calibrators, current calibrators, voltage calibrators, and other calibration equipment. Our worldwide network of calibration centers offers accredited calibrations traceable to national standards. We also offer fast, quality repair and calibration services including a module exchange program and full support in setting up your lab.

  • Комплектацию Вы можете узнать:
    По тел.: +7 (495) 105 96 88 или
    Написать нам письмо: info@micro-electronics.ru
    Комплектацию Вы можете узнать:
    По тел.: +7 (495) 105 96 88 или
    Написать нам письмо: info@micro-electronics.ru
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    • 6003A Three Phase Electrical Power Calibrator Introduction

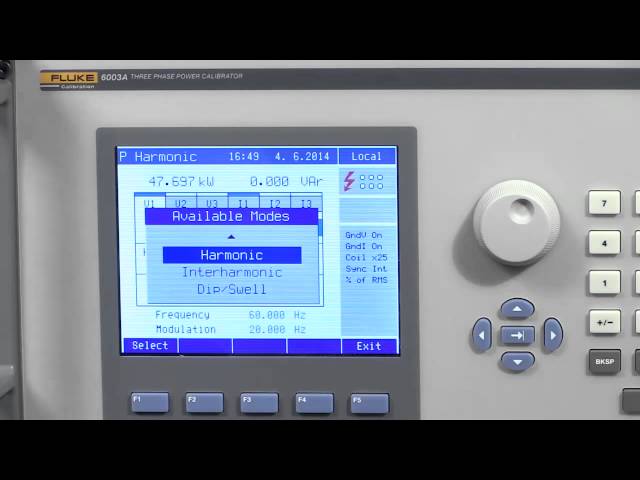

    • 6003A Demo Basic functionality

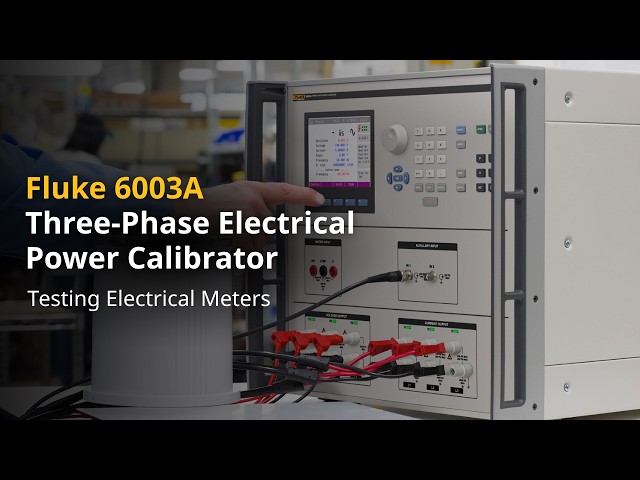

    • 6003A Three Phase Electrical Power Calibrator: Testing electrical meters
    Характеристики
    Загрузить технические характеристики

    Summary of Standard Capabilities
    AC power 0.008 VA to 18 kVA (each channel); 1, 2 or 3 channels
    Fundamental ac frequency range 15 Hz to 1 k Hz
    DC power 0.008 VA to 18 kVA (1 channel)
    AC voltage AC to 600 V, 3 channels
    DC voltage 1 to 280 V
    AC current 0.008 to 30 A, 3 channels
    DC current 0.008 to 30 A
    High current up to 90 A max, dc or ac, 1 channel
    Voltage from current terminals DC and sine wave only
    1 mV to 5 V
    AC 15 Hz to 400 Hz
    Multimeter capabilities Voltage – dc voltage up to ± 12 V
    Current – dc current up to ± 25 mA
    Frequency – up to 15 kHz
    Interfaces GPIB and USB
    Optional power quality functions Harmonics
    Interharmonics
    Flicker modulation
    Dip/swell
    Optional electrical energy
    Pulse input to 1 MHz
    Energy pulse output
    Trigger, synchronization input
    Test duration up to 1,000 hours
    Key Performance Details
    Output parameter Output Range Best 1 Year Spec Other
    AC voltage per phase 1 V to 600 V 0.012% 300 mA max burden
    AC current per phase 0.008 A to 30 A 0.0175% 5.5 V max compliance
    Fundamental frequency range 15 Hz to 1 KHz 0.005%
    High current range (dc or ac) 90 mA to 90 A 0.0245% 5 V max compliance
    DC voltage 1 V to 280 V 0.015% 200 mA max burden
    DC current 0 to 30 A 0.0175% 8 V peak compliance
    Voltage from current terminals 1mV to 5V 0.05% 15 Hz to 400 Hz
    Phase range 0.0 to 359.99 ° 0.01 ° 0.01 ° resolution
    Power factor range  -1 to +1 (lead, lag)   0.001 resolution
    Selected Power Specifications
    Sinusiodal AC Power
    3 phases, PF 1 150 W, 10 V, 5 A, 40-75 Hz 0.037%
    3 phases, PF 0.8 120 W, 10 V, 5 A, 40-75 Hz 0.045%
    3 phases, PF 0.5 75 W, 10 V, 5 A, 40-75 Hz 0.071%
    DC Power
    Single phase 50 W, 10 V, 5 A 0.038%
    Multimeter Capabilities
    DC voltage 0 V to ± 12 V 0.01%
    DC current 0 mA to ± 25 mAV 0.01%
    Frequency 1 Hz to 15 kHz 0.005%
    Energy Option
    Pulse input 1 MHz max frequency
    500 ns min pulse width
    5 x 109 max counts
    Pulse output 0.02 Hz to 1 MHz
    Time range 1 to 1 x 108 seconds
    Time resolution 0.1 seconds
    Time interval spec 0.01%
    Test duration 1,000 hours
    Power Quality Option
    Voltage and Current Modulation (Flicker)
    Modulation depth 0 to 30 %
    Modulation depth specification 0.2 % of modulation depth
    Modulation depth setting resolution 0.001%
    Shape of modulation envelope Rectangular or siunusoidal
    Duty cycle for rectangular modulation 1 % to 99 %
    Modulating frequency specification 50 ppm of output
    Modulation frequency range 0.001 Hz to 50 Hz
    RMS amplitude specifrication 0.2% of range
    Fundamental frequency range 15 Hz to 1 kHz
    Harmonics and Interharmonics
    Applicable outputs Voltage and/or current, all channels
    Fundamental frequency range 15 Hz to 1 k Hz
    Amplitude specification 0.20%
    Harmonic frequency range 30 Hz to 5 kHz
    Maximum number of voltage harmonics 63 including the 1st (fundamental frequency), per output, up to 3 outputs
    Maximum number of current harmonics 63 including the 1st (fundamental frequency), per output, up to 3 outputs
    Interharmonic frequency range 15 Hz to 1 KHz
    Number of independent interharmonic products 1 per output, up to 6 outputs
    Maximum amplitude of harmonics 30% of RMS output value
    Harmonic (2 to 63) phase specification 5 µs
    Dip/swell
    AC voltage range 0.1 to 280 V
    AC current range 1 mA to 30 A
    Amplitude accuracy 0.20%
    Frequency range 15 Hz to 1 kHz
    Timing
    Trigger to start of dip/swell 0 to 60 s
    Dip/swell starting transition 0.1 ms to 60 s
    Dip/swell time 2 ms to 60 s
    Dip/swell ending transition 0.1 ms to 60 s
    Stable time following dip/swell 0 to 60 s
    General Specifications
    Input Power
    Voltage Selectable 115 V or 230 V, ± 10%
    Frequency 47 Hz to 63 Hz
    Maximum consumption 1875 VA max
     Dimensions
    Height 415 mm (61.3 in)
    Height (without feet) 402 mm (15.8 in)
    Width 430 mm (16.9 in)
    Depth 640 mm (25.2 in)
    Weight 62 kg (136 lb)
    Environment
    Operating temperature 5 °C to 40 °C
    Calibration temparature (Tcal) range 21 °C to 25 °C
    Storage temperature -10 °C to 55 °C
    Transit temperature -15 °C to 60 °C
    Warm up time 1 hour
    Safe operating max. relative humidity (non-condensing) <80 % 5 °C to 31 °C ramping linearly down to 50 % at 35 °C
    Storage max. relative humidity (non-condensing)  <90%, –10 °C to 55 °C
    Operating altitude 2,000 m max
    Storage altitude 12,000 m max
    Shock MIL-PRF-2880F class 3
    Vibration MIL-PRF-2880F class 3
    Enclosure MIL-PRF-2880F class 3

    Модели и опции
    Товар
    Модели и Опции
    Описание
    Цена Заказать
    Модели
    6003A 230 T
    Трехфазный калибратор электрической мощности
    5 962 368 руб.
    - шт +
    6003A/E 230 T
    Трехфазный калибратор электрической мощности с опцией энергии
    6 678 312 руб.
    - шт +
    6003A/PQ 230 T
    Трехфазный калибратор электрической мощности с опцией качества питания
    6 678 312 руб.
    - шт +
    6003A/PQ/E 230 T
    Трехфазный калибратор электрической мощности с опциями энергии и качества питания
    7 393 752 руб.
    - шт +
    Опции
    6003A-90A
    Адаптер 90 А и кабели сильного тока
    345 360 руб.
    - шт +
    52120A/COIL3KA
    Катушка, 25 витков, 3 000 А
    324 036 руб.
    - шт +
    52120A/COIL6KA
    Катушка, 50 витков, 6 000 А
    324 036 руб.
    - шт +
    5500A/COIL
    Токовая катушка на 50 витков
    82 020 руб.
    - шт +
    6003A/CASE
    Large Transit Case for the 6003A
    145 992 руб.
    - шт +
    Библиотека

    Основные сведения о продукте

    Посмотреть более подробную информацию о возможностях этого продукта.

    Технические характеристики

    Отзывы
    Добавить отзыв
    Оцените товар:
    Ваше имя
    Достоинства

    Недостатки

    Комментарий

    Символы на картинке


    Тут еще никто ничего не писал, стань первым!
    Список просмотренных товаров пуст
    Список избранного пуст
    Ваша корзина пуста
    Помощь
