Многофункциональные электронные нагрузки DC до 9 кВт

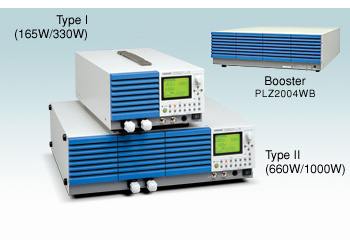

PLZ-4W Series
Для увеличения картинки наведите мышкой
PLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W Series
PLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W SeriesPLZ-4W Series

Наличие: По запросу

По запросу
По запросу
По запросу

Электронные нагрузки постоянного тока PLZ-4W Series Подробнее




Японская компания Kikusui Electronics Corporation - производитель электронных измерительных приборов и оборудования для электропитания с 1951 года.

В 1983 году группа Kikusui основала фабрику Fuji Katsuyama Factory (FKF) в качестве внутреннего производственного центра. В течение 1990-х… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

Outline

The PLZ-4W Series Electronic Load unit is a multifunctional system designed to offer the highest levels of reliability and safety with operation function of constant voltage, constant current, constant power and constant resistance mode. And its control unit comes with GPIB, RS232C and USB as standard equipment, available in 5 models.

A 0(Zero)V input operating voltage is available in 2 models (PLZ164WA, PLZ664WA) which are suitable to meet the testing demands for the Fuel Cell, DC/DC converter, SW Power Supply, and any other devices required for the lower operating voltage application. Model PLZ664WA offers the 132A at 0V input as a largest current rating in its class. ( 33A for model PLZ164WA)

Furthermore, the PLZ-4W features high speed slew rate when switching, it can be used as simulating load for the characteristic, performance, life cycle, aging test in the field of application in Automobile electronics, SW Power Supply manufacturer, Secondary Battery.

To achieve large capacity for testing application at low cost, PLZ1004W can be expanded up to 9kW by using its 2kW booster unit (PLZ2004WB).

 Features

  • High-speed response and variable slew-rate
    With PLZ-4W series, a faster response of rise/fall time as calculated conversion value with 10 µs is made possible, enabling a transient response test for the direct current and accurate reproduction of a simulation waveform as a dummy load. In addition, it also can be set with a slew rate (A/µs ). As for the setting value, it can be varied continuously, and be possible to optimize transient control for voltage drops due to wiring inductance, constant-voltage power supply, etc., when the load current is switched on.
  • 0(Zero)V input
    The 164WA and 664WA of PLZ-4W series permit a load input up to the rated current even when the Input Voltage is set for 0(Zero)V.
  • Sequence function
    Sequence patterns set as you requested can be saved in the built-in memory. In the sequence program, 10 normal sequences and 1 first sequence can be saved. 256 steps of normal sequences, and 1024 steps of the first sequence can be saved in each program.
  • Convenient function for discharging test of cells
    The PLZ4W can measure the time from load-on to load-off. When combined with under voltage protection (UVP) function, the time from when the battery discharge is started until the battery voltage falls to the cutoff voltage can be measured. Also, you can set the timer so it will load-off automatically after a specified time elapses from load-on mode. Once this timer is set, the input voltage value immediately before load-off is displayed, so it is possible to measure the closed circuit voltage after a specified time elapses from the start of discharging battery.
  • Booster unit PLZ2004WB
    To achieve a large capacity system at low cost, the PLZ1004W has an expandable option PLZ2004WB as a booster unit. Using 1 PLZ1004W as a master unit, a maximum of 4 booster units can be parallel connected. (Max. 9kW, 1800A) Note: PLZ2004WB(Booster unit) can be used for the PLZ1004W only. It cannot be connected and used with any other model.
  • Parallel operation
    Under parallel operation, the same model can be parallel connected to a maximum of 5 units when booster unit is not used. (Max. 5kW, 1000A)
  • Various Functions
    The PLZ-4W Series has equipped with all the same functions of its former type of the PLZ-3W Series, such as the Soft-start Function, Lock Function, Short Function, ABC Memory Function, Set-up Memory Function, Switching Functions, etc.
  • GPIB, RS-232C, USB as standard equipment
  • Large-Capacity DC Electronic Load System
    The PLZ-4W SR/LP Series offers wide range of the "Large-Capacity DC Electronic Load System" that consists of the conventional electronic load model PLZ1004W and PLZ2004WB applying to the large current (maximum 2600 A) installed in the exclusive rack mount system.
    *Refer to data sheet(pdf) for details
Свернуть Развернуть
Основные возможности и технические характеристики

Outline

The PLZ-4W Series Electronic Load unit is a multifunctional system designed to offer the highest levels of reliability and safety with operation function of constant voltage, constant current, constant power and constant resistance mode. And its control unit comes with GPIB, RS232C and USB as standard equipment, available in 5 models.

A 0(Zero)V input operating voltage is available in 2 models (PLZ164WA, PLZ664WA) which are suitable to meet the testing demands for the Fuel Cell, DC/DC converter, SW Power Supply, and any other devices required for the lower operating voltage application. Model PLZ664WA offers the 132A at 0V input as a largest current rating in its class. ( 33A for model PLZ164WA)

Furthermore, the PLZ-4W features high speed slew rate when switching, it can be used as simulating load for the characteristic, performance, life cycle, aging test in the field of application in Automobile electronics, SW Power Supply manufacturer, Secondary Battery.

To achieve large capacity for testing application at low cost, PLZ1004W can be expanded up to 9kW by using its 2kW booster unit (PLZ2004WB).

 Features

  • High-speed response and variable slew-rate
    With PLZ-4W series, a faster response of rise/fall time as calculated conversion value with 10 µs is made possible, enabling a transient response test for the direct current and accurate reproduction of a simulation waveform as a dummy load. In addition, it also can be set with a slew rate (A/µs ). As for the setting value, it can be varied continuously, and be possible to optimize transient control for voltage drops due to wiring inductance, constant-voltage power supply, etc., when the load current is switched on.
  • 0(Zero)V input
    The 164WA and 664WA of PLZ-4W series permit a load input up to the rated current even when the Input Voltage is set for 0(Zero)V.
  • Sequence function
    Sequence patterns set as you requested can be saved in the built-in memory. In the sequence program, 10 normal sequences and 1 first sequence can be saved. 256 steps of normal sequences, and 1024 steps of the first sequence can be saved in each program.
  • Convenient function for discharging test of cells
    The PLZ4W can measure the time from load-on to load-off. When combined with under voltage protection (UVP) function, the time from when the battery discharge is started until the battery voltage falls to the cutoff voltage can be measured. Also, you can set the timer so it will load-off automatically after a specified time elapses from load-on mode. Once this timer is set, the input voltage value immediately before load-off is displayed, so it is possible to measure the closed circuit voltage after a specified time elapses from the start of discharging battery.
  • Booster unit PLZ2004WB
    To achieve a large capacity system at low cost, the PLZ1004W has an expandable option PLZ2004WB as a booster unit. Using 1 PLZ1004W as a master unit, a maximum of 4 booster units can be parallel connected. (Max. 9kW, 1800A) Note: PLZ2004WB(Booster unit) can be used for the PLZ1004W only. It cannot be connected and used with any other model.
  • Parallel operation
    Under parallel operation, the same model can be parallel connected to a maximum of 5 units when booster unit is not used. (Max. 5kW, 1000A)
  • Various Functions
    The PLZ-4W Series has equipped with all the same functions of its former type of the PLZ-3W Series, such as the Soft-start Function, Lock Function, Short Function, ABC Memory Function, Set-up Memory Function, Switching Functions, etc.
  • GPIB, RS-232C, USB as standard equipment
  • Large-Capacity DC Electronic Load System
    The PLZ-4W SR/LP Series offers wide range of the "Large-Capacity DC Electronic Load System" that consists of the conventional electronic load model PLZ1004W and PLZ2004WB applying to the large current (maximum 2600 A) installed in the exclusive rack mount system.
    *Refer to data sheet(pdf) for details
Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Характеристики
Загрузить технические характеристики

Model Specification
PLZ164W DC Electronic Load (E-Load), 1.5 to 150V, 33A, 165W , Rise time: 10 µ second(which converts to rise and fall times) high-speed response, Possible to perform actual Load simulation by sequence control function, Equipped with USB (Supplied as standard)
PLZ164WA Scheduled to be Discontinued.
DC Electronic Load (E-Load), 0 to 150V, 33A, 165W , Rise time: 10 µs (which converts to rise and fall times) high-speed response, Possible to perform actual Load simulation by sequence control function, Equipped with USB (Supplied as standard)
PLZ334W DC Electronic Load (E-Load), 1.5 to 150V, 66A, 330W , Rise time: 10 µ s (which converts to rise and fall times) high-speed response, Possible to perform actual Load simulation by sequence control function, Equipped with USB (Supplied as standard)
PLZ664WA Scheduled to be Discontinued.
DC Electronic Load (E-Load), 0 to 150V, 132A, 660W , Rise time: 10 µ s (which converts to rise and fall times) high-speed response, Possible to perform actual Load simulation by sequence control function, Equipped with USB (Supplied as standard)
PLZ1004W DC Electronic Load (E-Load), 1.5 to 150V, 200A, 1000W , Rise time: 10 µs (which converts to rise and fall times) high-speed response, Possible to perform actual Load simulation by sequence control function, Equipped with USB (Supplied as standard)
PLZ2004WB 2000W booster unit for model PLZ1004W dc electronic load (E-Load). Using 1 PLZ1004W as a master unit, a maximum of 4 booster units can be parallel connected. (Max. 9kW, 1800A) *PLZ2004WB can be used for the PLZ1004W only. It cannot be connected and used with any other model.

Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
PLZ164W
Электронная нагрузка DC 1.5 - 150 В, 33 А, 165 Вт
По запросу
- шт +
PLZ164WA
Электронная нагрузка DC 0 - 150 В, 33 А, 165 Вт
По запросу
- шт +
PLZ334W
Электронная нагрузка DC 1.5 - 150 В, 66 А, 330 Вт
По запросу
- шт +
PLZ664WA
Электронная нагрузка DC 0 - 150 В, 132 А, 660 Вт
По запросу
- шт +
PLZ1004W
Электронная нагрузка DC 1.5 - 150 В, 200 А, 1000 Вт
По запросу
- шт +
PLZ2004WB
2000 Вт усилительный блок для модели PLZ1004W электронная нагрузка DC (макс. 9 кВт, 1800 А)
По запросу
- шт +
Опции
Wavy for PLZ-4W
ПО создание/управление тестовыми последовательностями для PLZ-4W/4WL/4WH серий
По запросу
- шт +
408J-101
GPIB кабель, длина: 1 м
По запросу
- шт +
408J-102
GPIB кабель, длина: 2 м
По запросу
- шт +
408J-104
GPIB кабель, длина: 4 м
По запросу
- шт +
KRA3
Rack adapter (Inch size) *Applicable series name: PWR(01), PAS, PMR, PMP, PAK-A, PMC, PMC-A, PMX-A, PMX-Multi, PCR500M(MA), PLZ-205/405W, PLZ-4W/4WL/4WH, PLZ-3W/3WH, PIA4800
По запросу
- шт +
KRA150
Rack adapter (Metric size) *Applicable series name: PWR(01), PAS, PMR, PMP, PAK-A, PMC, PMC-A, PMX-A, PMX-Multi, PCR500M(MA), PLZ-205/405W, PLZ-4W/4WL/4WH, PLZ-3W/3WH, PIA4800
По запросу
- шт +
KBP3-2
Blank panel for KRA3 or150, width:1/2
По запросу
- шт +
KBP3-3
Blank panel for KRA3 or150, width:1/3
По запросу
- шт +
KRB3-TOS
Bracket (Inch size) for TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M(MA), PLZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ, PCR1000WE, PCR2000WE, PCR3000WE2, TOS9300, TOS9301, TOS9302, TOS9303, TOS9303LC
По запросу
- шт +
KRB150-TOS
Bracket (Metric size) for TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M(MA), PLZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ, PCR1000WE, PCR2000WE, PCR3000WE2, TOS9300, TOS9301, TOS9302, TOS9303, TOS9303LC
По запросу
- шт +
OP01-PLZ-4W
Accessory Kit for PLZ-4W/4WH series. Used for the connection of J1 Connector on the rear panel when operating by external control. Contents: Connector, Semi-cover, Pin(20 sets)
По запросу
- шт +
PC01-PLZ-4W
The control signal cable for parallel operation (30cm) *Applicable products: PLZ-4W series<-->PLZ-4W series, PLZ-4WH series<-->PLZ-4WH series, PLZ2004WB <-->PLZ2004WB, PLZ2004WHB<-->PLZ2004WHB
По запросу
- шт +
PC02-PLZ-4W
The control signal cable for parallel operation(55cm) *Applicable products: PLZ1004W <-->PLZ2004WB, PLZ1004WH<-->PLZ2004WHB
По запросу
- шт +
