Многофункциональные высоковольтные электронные нагрузки до 330 Вт

PLZ-4WH Series
Для увеличения картинки наведите мышкой
PLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH Series
PLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH SeriesPLZ-4WH Series

Наличие: По запросу

По запросу
По запросу
По запросу

Электронные нагрузки постоянного тока PLZ-4WH Series Подробнее




Японская компания Kikusui Electronics Corporation - производитель электронных измерительных приборов и оборудования для электропитания с 1951 года.

В 1983 году группа Kikusui основала фабрику Fuji Katsuyama Factory (FKF) в качестве внутреннего производственного центра. В течение 1990-х… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

Outline

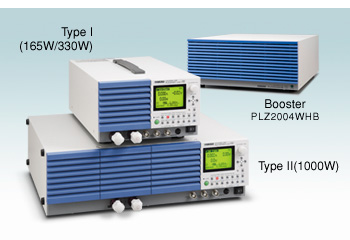

The PLZ-4WH Series Electronic Load is a multifunctional system designed to offer the highest levels of reliability and safety. The electronic load contains a stable and high performance current-control circuit that enables high-speed load simulations with maximum operating voltage of 650V. In addition, its CPU control feature works to improve operability and multifunctional capability. The high-precision current settings provide you with sufficient resolution. The PLZ4WH comes standard with GPIB, RS232C, and USB communication functions, that can be easily incorporated into a wide range of test and inspection systems.

 Features

  • Extended operating range !
  • Expandable system up to 9 kW / 450A by connecting booster units (exclusively used for Model PLZ1004WH)
  • 3 ranges of setting resolution equipped with L range (1/100)
  • Voltage Monitor terminal for monitoring high-voltage
  • In addition to CC, CR mode 5 levels of response setting for CV mode
  • Sequence function
    Capable of program up to 1024 steps
  • Optional software Wavy makes your operation easier
    The application software supporting the sequence operation (option)
  • Other features
    -Over-Voltage Protection (OVP)
    -Over-Current Protection (OCP)
    -Over-Power Protection (OPP)
    -Over-Heat Protection (OHP)
    -Under-Voltage Protection (UVP)
    -Reverse Connection Protection (REV)
    -Adjustable Slew Rate
    -Switching Operation
    -Soft Start function
    -Elapsed Time Display
    -Auto load-off timer
    -Remote sensing
    -External load on/off control input
    -External range switching input
    -External trigger input
    -External alarm input
    -Alarm status output
    -Load-on status output
    -Range status output
    -Short signal
    -External voltage control (CC,CR,CV,CP mode)
    -External resistance control (CC,CR,CV,CP mode)
    -Current monitor output
    -Voltage monitor output

 The Large scale system can be achieved at low cost and saving space.(Booster unit model PLZ2004WHB)

To achieve the large scale test system at low cost, the booster unit Model PLZ2004WHB is available to combine with Model PLZ1004WH*. The configuration of the system consists of Model PLZ1004WH as a master unit and up to 4units of the booster unit (PLZ2004WHB) as slave units connected in parallel operation. (Max. 9kW, 450A)

[Specifications]
  • Operating Voltage: 5V to 650V
  • Current: 100A
  • Power: 2000W
  • Input Voltage: AC100V to 240V (AC90V to 250V) single phase, continuous
  • Power Consumption: 200VA(max)
  • Dimensions: 430W×173(190)H×550(590)Dmm
  • Weight: approx.24kg
*Exclusively used for Model PLZ1004WH. It can not be used to connect any other model.

 Large-Capacity DC Electronic Load System

The PLZ-4WH SR/LP Series offers wide range of the "Large-Capacity DC Electronic Load System" that consists of the conventional electronic load model PLZ1004WH and PLZ2004WHB applying to the high voltage (maximum 650 V) installed in the exclusive rack mount system.
*Refer to data sheet(pdf) for details
Свернуть Развернуть
Основные возможности и технические характеристики

Outline

The PLZ-4WH Series Electronic Load is a multifunctional system designed to offer the highest levels of reliability and safety. The electronic load contains a stable and high performance current-control circuit that enables high-speed load simulations with maximum operating voltage of 650V. In addition, its CPU control feature works to improve operability and multifunctional capability. The high-precision current settings provide you with sufficient resolution. The PLZ4WH comes standard with GPIB, RS232C, and USB communication functions, that can be easily incorporated into a wide range of test and inspection systems.

 Features

  • Extended operating range !
  • Expandable system up to 9 kW / 450A by connecting booster units (exclusively used for Model PLZ1004WH)
  • 3 ranges of setting resolution equipped with L range (1/100)
  • Voltage Monitor terminal for monitoring high-voltage
  • In addition to CC, CR mode 5 levels of response setting for CV mode
  • Sequence function
    Capable of program up to 1024 steps
  • Optional software Wavy makes your operation easier
    The application software supporting the sequence operation (option)
  • Other features
    -Over-Voltage Protection (OVP)
    -Over-Current Protection (OCP)
    -Over-Power Protection (OPP)
    -Over-Heat Protection (OHP)
    -Under-Voltage Protection (UVP)
    -Reverse Connection Protection (REV)
    -Adjustable Slew Rate
    -Switching Operation
    -Soft Start function
    -Elapsed Time Display
    -Auto load-off timer
    -Remote sensing
    -External load on/off control input
    -External range switching input
    -External trigger input
    -External alarm input
    -Alarm status output
    -Load-on status output
    -Range status output
    -Short signal
    -External voltage control (CC,CR,CV,CP mode)
    -External resistance control (CC,CR,CV,CP mode)
    -Current monitor output
    -Voltage monitor output

 The Large scale system can be achieved at low cost and saving space.(Booster unit model PLZ2004WHB)

To achieve the large scale test system at low cost, the booster unit Model PLZ2004WHB is available to combine with Model PLZ1004WH*. The configuration of the system consists of Model PLZ1004WH as a master unit and up to 4units of the booster unit (PLZ2004WHB) as slave units connected in parallel operation. (Max. 9kW, 450A)

[Specifications]
  • Operating Voltage: 5V to 650V
  • Current: 100A
  • Power: 2000W
  • Input Voltage: AC100V to 240V (AC90V to 250V) single phase, continuous
  • Power Consumption: 200VA(max)
  • Dimensions: 430W×173(190)H×550(590)Dmm
  • Weight: approx.24kg
*Exclusively used for Model PLZ1004WH. It can not be used to connect any other model.

 Large-Capacity DC Electronic Load System

The PLZ-4WH SR/LP Series offers wide range of the "Large-Capacity DC Electronic Load System" that consists of the conventional electronic load model PLZ1004WH and PLZ2004WHB applying to the high voltage (maximum 650 V) installed in the exclusive rack mount system.
*Refer to data sheet(pdf) for details
Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Характеристики
Загрузить технические характеристики

Model Specification
PLZ164WH Discontinued.
DC Electronic Load (E-Load), 5 to 650V, 8.25A, 165W , Possible to perform actual Load simulation by sequence control function, Equipped with RS-232C, GPIB, USB (Supplied as standard)
PLZ334WH Discontinued.
DC Electronic Load (E-Load), 5 to 650V, 16.5A, 330W , Possible to perform actual Load simulation by sequence control function, Equipped with RS-232C, GPIB, USB (Supplied as standard)

Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
PLZ164WH
Электронная нагрузка DC 5 - 650 В, 8.25 А, 165 Вт
По запросу
- шт +
PLZ334WH
Электронная нагрузка DC 5 - 650 В, 16.5 А, 330 Вт
По запросу
- шт +
Опции
KRA3
Rack adapter (Inch size) *Applicable series name: PWR(01), PAS, PMR, PMP, PAK-A, PMC, PMC-A, PMX-A, PMX-Multi, PCR500M(MA), PLZ-205/405W, PLZ-4W/4WL/4WH, PLZ-3W/3WH, PIA4800
По запросу
- шт +
KRA150
Rack adapter (Metric size) *Applicable series name: PWR(01), PAS, PMR, PMP, PAK-A, PMC, PMC-A, PMX-A, PMX-Multi, PCR500M(MA), PLZ-205/405W, PLZ-4W/4WL/4WH, PLZ-3W/3WH, PIA4800
По запросу
- шт +
KBP3-2
Blank panel for KRA3 or150, width:1/2
По запросу
- шт +
KBP3-3
Blank panel for KRA3 or150, width:1/3
По запросу
- шт +
KRB3-TOS
Bracket (Inch size) for TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M(MA), PLZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ, PCR1000WE, PCR2000WE, PCR3000WE2, TOS9300, TOS9301, TOS9302, TOS9303, TOS9303LC
По запросу
- шт +
KRB150-TOS
Bracket (Metric size) for TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M(MA), PLZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ, PCR1000WE, PCR2000WE, PCR3000WE2, TOS9300, TOS9301, TOS9302, TOS9303, TOS9303LC
По запросу
- шт +
OP01-PLZ-4W
Accessory Kit for PLZ-4W/4WH series. Used for the connection of J1 Connector on the rear panel when operating by external control. Contents: Connector, Semi-cover, Pin(20 sets)
По запросу
- шт +
PC01-PLZ-4W
The control signal cable for parallel operation (30cm) *Applicable products: PLZ-4W series<-->PLZ-4W series, PLZ-4WH series<-->PLZ-4WH series, PLZ2004WB <-->PLZ2004WB, PLZ2004WHB<-->PLZ2004WHB
По запросу
- шт +
PC02-PLZ-4W
The control signal cable for parallel operation(55cm) *Applicable products: PLZ1004W <-->PLZ2004WB, PLZ1004WH<-->PLZ2004WHB
По запросу
- шт +
Wavy for PLZ-4W
ПО создание/управление тестовыми последовательностями для PLZ-4W/4WL/4WH серий
По запросу
- шт +
408J-101
GPIB кабель, длина: 1 м
По запросу
- шт +
408J-102
GPIB кабель, длина: 2 м
По запросу
- шт +
408J-104
GPIB кабель, длина: 4 м
По запросу
- шт +
Библиотека

Основные сведения о продукте

Посмотреть более подробную информацию о возможностях этого продукта.

Технические характеристики

Отзывы
Добавить отзыв
Оцените товар:
Ваше имя
Достоинства

Недостатки

Комментарий
