Источник питания 100 Вт 1, 2 или 3 канала

HMC804x
Для увеличения картинки наведите мышкой
HMC804xHMC804xHMC804xHMC804xHMC804xHMC804xHMC804x
HMC804xHMC804xHMC804xHMC804xHMC804xHMC804xHMC804x

Наличие: По запросу

По запросу
По запросу
По запросу

Источники питания постоянного тока HMC804x Подробнее




Немецкая компания Rohde & Schwarz основана в 1933 году в Германии, в г. Мюнхен учеными Физико-технического Университета Лотаром Роде и Германом Шварцем.

В нашей стране оборудование Rohde & Schwarz появилось в 1957 году. С тех пор, благодаря собственным технологиям и новаторским идеям сотрудников, Rohde & Schwarz становится одним из технологических лидеров для российских заказчиков различных государственных и силовых структур.

На… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики
R&S®HMC804x DC Power supply

Key facts

  • Clear display of all measured parameters
  • Galvanically isolated, floating and short-circuit proof outputs
  • Protective functions adjustable for each channel
  • Ideal power supply for hardware developers and labs
  • Remote control

  • Compact and easy to use

    One, two or three channels – the R&S®HMC804x DC Power supplies with their specifications and wide range of functions are ideal for use in development labs and industrial environments. Thanks to their high energy efficiency, the linear power supplies remain cool and quiet, even at maximum load. Practical interfaces and connectors allow users to work quickly and conveniently with the R&S®HMC804x. Comfort functions enable the instruments to be used in special applications.

    Flexible channel configuration

    All channels are galvanically isolated and can be combined to drive balanced  ircuitries or for higher voltages/currents.

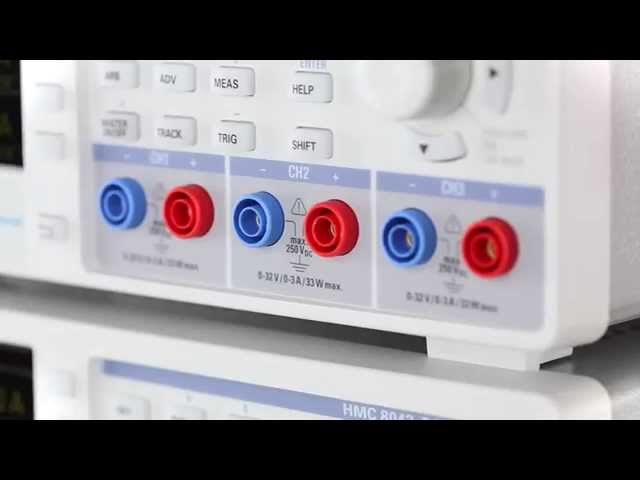

    Front panel: 4mm safety sockets (R&S®HMC8041 including SENSE)
    Rear panel: WAGO cage clamp for all channels including SENSE Convenient parallel and serial operation

    Flexible channel configuration

    All channels are galvanically isolated and can be combined to drive balanced  ircuitries or for higher voltages/currents.
    Front panel: 4mm safety sockets (R&S®HMC8041 including SENSE)
    Rear panel: WAGO cage clamp for all channels including SENSE Convenient parallel and serial operation

    Clear display of all measured parameters

    The brilliant color display shows voltage, current and power values in real time with a Brilliant QVGA color display (320 x 240 pixel), realtime voltage, current and power values, a high setting and readback resolution: 1mV and 0.1mA/1.0mA (depending on current and model). Also there is low residual ripple due to linear postregulation and high energy efficiency, low heat dissipation and quiet fan.

    Flexible overcurrent protection

    FuseLink allows you to freely combine the electronic fuses in each channel. A fuse delay can be set to prevent too early switch-off due to a short current spike. Overcurrent/overvoltage protection can be set for each channel individually. The electronic fuses can be linked to other channels. In this case, the channel exceeding the maximum current level and all linked channels will be switched off. Even the delay time can be set to prevent premature switch-off due to short current spikes.

    Programmable sequences

    Arbitrary waveforms can be generated for voltage and current. Function can be configured and executed via control panel or external interface.

    EasyRamp function

    Sometimes test sequences should avoid the abrupt rise of the supply voltage. The EasyRamp function allows users to run a linear startup curve within a defined time span.

    Remote control

    Remote control is possible via USB and LAN. The HMC804x-G models offer IEEE-488 (GPIB) interface additionally.

    Свернуть Развернуть
    Основные возможности и технические характеристики
    R&S®HMC804x DC Power supply

    Key facts

  • Clear display of all measured parameters
  • Galvanically isolated, floating and short-circuit proof outputs
  • Protective functions adjustable for each channel
  • Ideal power supply for hardware developers and labs
  • Remote control

  • Compact and easy to use

    One, two or three channels – the R&S®HMC804x DC Power supplies with their specifications and wide range of functions are ideal for use in development labs and industrial environments. Thanks to their high energy efficiency, the linear power supplies remain cool and quiet, even at maximum load. Practical interfaces and connectors allow users to work quickly and conveniently with the R&S®HMC804x. Comfort functions enable the instruments to be used in special applications.

    Flexible channel configuration

    All channels are galvanically isolated and can be combined to drive balanced  ircuitries or for higher voltages/currents.
    Front panel: 4mm safety sockets (R&S®HMC8041 including SENSE)
    Rear panel: WAGO cage clamp for all channels including SENSE Convenient parallel and serial operation

    Flexible channel configuration

    All channels are galvanically isolated and can be combined to drive balanced  ircuitries or for higher voltages/currents.
    Front panel: 4mm safety sockets (R&S®HMC8041 including SENSE)
    Rear panel: WAGO cage clamp for all channels including SENSE Convenient parallel and serial operation

    Clear display of all measured parameters

    The brilliant color display shows voltage, current and power values in real time with a Brilliant QVGA color display (320 x 240 pixel), realtime voltage, current and power values, a high setting and readback resolution: 1mV and 0.1mA/1.0mA (depending on current and model). Also there is low residual ripple due to linear postregulation and high energy efficiency, low heat dissipation and quiet fan.

    Flexible overcurrent protection

    FuseLink allows you to freely combine the electronic fuses in each channel. A fuse delay can be set to prevent too early switch-off due to a short current spike. Overcurrent/overvoltage protection can be set for each channel individually. The electronic fuses can be linked to other channels. In this case, the channel exceeding the maximum current level and all linked channels will be switched off. Even the delay time can be set to prevent premature switch-off due to short current spikes.

    Programmable sequences

    Arbitrary waveforms can be generated for voltage and current. Function can be configured and executed via control panel or external interface.

    EasyRamp function

    Sometimes test sequences should avoid the abrupt rise of the supply voltage. The EasyRamp function allows users to run a linear startup curve within a defined time span.

    Remote control

    Remote control is possible via USB and LAN. The HMC804x-G models offer IEEE-488 (GPIB) interface additionally.

    Комплектацию Вы можете узнать:
    По тел.: +7 (495) 105 96 88 или
    Написать нам письмо: info@micro-electronics.ru
    Комплектацию Вы можете узнать:
    По тел.: +7 (495) 105 96 88 или
    Написать нам письмо: info@micro-electronics.ru
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    62936-15
    Источники питания постоянного тока линейные
    HMC8041, HMC8042, HMC8043
    Фирма "Rohde & Schwarz GmbH & Co. KG", Германия
    25.12.2020
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    62936-15
    Источники питания постоянного тока линейные
    HMC8041, HMC8042, HMC8043
    Фирма "Rohde & Schwarz GmbH & Co. KG", Германия
    25.12.2020
    • R&S HMC804x Power Supply (Deutsch)
    Характеристики
    Загрузить технические характеристики

    Electrical specifications
    Number of output channels   1/2/3
    Total output power   max. 100 W
    Maximum output power per channel   100 W/50 W/33 W
    Output voltage per channel   0 V to 32 V
    Maximum output current per channel   10 A/5 A/3 A
    Voltage ripple and noise (20 Hz to 20 MHz)   R&S®HMC8041: < 1 mV (RMS); R&S®HMC8042/43: < 450 µV (RMS)
    Current ripple and noise (20 Hz to 20 MHz)   R&S®HMC8041: < 1.5 mA (RMS) (meas.); R&S®HMC8042/43: < 1 mA (RMS) (meas.)
    Load recovery time*1)   < 1 ms (meas.)
    Programming/readback resolution Voltage 1 mV
      Current < 1 A: 0.1 mA (R&S®HMC8041: 0.5 mA); ≥ 1 A: 1 mA
    Readback accuracy (± (% of output + offset)) Voltage < 0.05% + 2 mV
      Current typ. < 0.05% + 4 mA (R&S®HMC8041: typ. < 0.15% + 10 mA)
    Special functions
    Measurement functions   voltage, current, power, energy
    Protection functions   OVP, OCP, OPP, OTP
    FuseLink function
    Fuse delay at power-up
    Sense function
    Sink mode
    Output sequencing
    Trigger input/output
    Arbitrary function   ● (EasyArb)
    Analog/modulation interface
    Data logging
    Display and interfaces
    Display   3.5" QVGA
    Rear panel connections   connector block with 4 lines per channel
    Remote control interfaces   standard: USB, LAN; R&S®HMC804x-G models with IEEE-488 (GPIB)
    General data
    Dimensions (W × H × D)   222 × 97 × 291 mm
    Weight   2.6 kg
    Rack installation   R&S®HZC95 option
    *1) 10% to 90% load change within a band of ± 20 mV of set voltage.


    Модели и опции
    Товар
    Модели и Опции
    Описание
    Цена Заказать
    Модели
    R&S® HMC8043-G
    Источник питания 3 канала, 99 Вт (33 Вт/канал, 3 А (макс.)), с GPIB-интерфейсом
    €2 125
    - шт +
    R&S® HMC8043
    Источник питания 3 канал, 99 Вт (33 Вт/канал, 3 A (макс.))
    €1 875
    - шт +
    R&S® HMC8042-G
    Источник питания 2 канал, 100 Вт (50 Вт/канал, 5 A (макс.)), с GPIB-интерфейсом
    €1 875
    - шт +
    R&S® HMC8042
    Источник питания 2 канал, 100 Вт (50 Вт/канал, 5 A (макс.))
    €1 625
    - шт +
    R&S® HMC8041-G
    Источник питания 1 канал, 100 Вт (10 A (макс.)), с GPIB-интерфейсом
    €1 750
    - шт +
    R&S® HMC8041
    Источник питания 1 канал, 100 Вт (10 A (макс.))
    €1 500
    - шт +
    Аксессуары
    R&S® HZ10R
    Силиконовые тестовые провода banana - banana, 1 m (набор из 5, красные)
    €125
    - шт +
    R&S® HZ10S
    Силиконовые тестовые провода banana - banana, 1 m (набор из 5, черный)
    €125
    - шт +
    R&S® HZC95
    Набор для монтажа в стойку 19“, 2HE
    €500
    - шт +
    R&S® HZ72
    Кабель передачи данных через интерфейс IEEE-488 (GPIB)
    €250
    - шт +
    R&S®HZ10
    5x силиконовых тестовых кабеля R&S®HZ10S: черный, R&S®HZ10R: красный, R&S®HZ10B: синий
    По запросу
    - шт +
