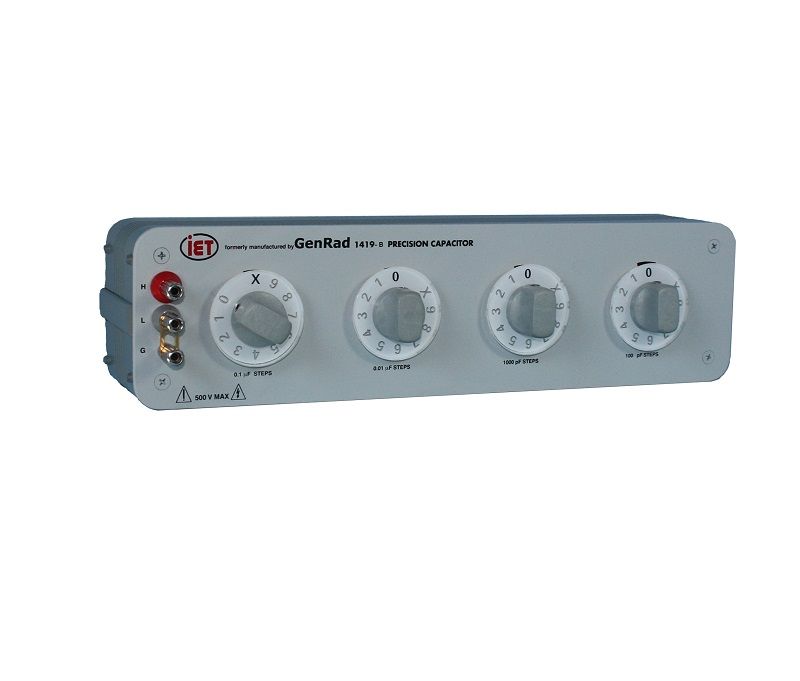

Декадный магазин емкостей с различным диэлектрическим материалом 100 пФ - 1,1 мкФ с частотной характеристикой до 1 МГц

1419
Для увеличения картинки наведите мышкой
14191419
14191419
НаличиеПо запросу
По запросу
По запросу
По запросу
Магазины емкости 1419 Подробнее
Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

The IET/GenRad 1419 Series Decade Capacitors, 100 pF to 1.1 uF, are offered in three models using two different dielectric materials,polystyrene and silvered-mica, to satisfy a variety of needs.

GenRad 1419-A and GenRad 1419-B (Polystyrene) Owing to its very low dielectric absorption, the GenRad 1419A 3 Decade 1000 pF/step & 1419B 4 Decade 100 pF/step Polystyrene Decade Capacitors are particularly useful in research and development work on computer and integrator circuits and on low-level amplifiers. Its constancy of capacitance and dissipation factor as a function of frequency also makes it extremely useful in measuring circuits and as a component in filters and tuned circuits. High insulation resistance and low dielectric absorption make it the 1419 Decade Capacitor a nearly ideal capacitor for dc work.

This decade capacitor is based on development work and manufacturing experience at General Radio since 1940. The individual capacitor units for designed to be essentially non-inductive and are heat-stabilized, so that their long-time stability approaches that of the best silvered-mica capacitors.

The 1419-A and B decade capacitors are wound in spool form from continuous interleaved tapes of polystyrene and metal foil. The foils projecting at each end of the roll are soldered together to minimize inductance and series resistance. The tape used for the dielectric is specially prepared of purified high-molecular-weight polystyrene, having very high resistance and freedom from polarization. Hermetic sealing with Teflon feed-through insulators assures high performance even under adverse humidity conditions

Terminals are provided for both 2-terminal and 3-terminal connections.

GenRad 1419-K (Silvered Mica) This high-quality decade capacitor finds uses in every laboratory: in tuned circuits, impedance bridges, filters, or in any circuit where an accurate and stable step adjustable capacitor is necessary. The 1419K has higher accuracy, low dissipation factor, and better stability than the 1419A/B. The 1419 has a temperature coefficient of +35 ±10 ppm/°C (10-50 °C) for use in higher ambient temperature applications.

The IET 1419 is ideal for customers wanting a direct replacement or have a system that has been qualified with the GenRad 1419 as the current design has not been changed from the original GenRad 1419.

The 1419 has a useful frequency response to 1 MHz for audio applications and testing LCR meters.

1419A / 1419-9701 Capacitor Decade GenRad NSN: 6625-00-953-7537
1419B / 1419-9702 Capacitor Decade GenRad NSN: 6625-00-124-9382
1419K / 1419-9711 Capacitor Decade GenRad NSN: 6625-00-585-1670

Свернуть Развернуть
Основные возможности и технические характеристики

The IET/GenRad 1419 Series Decade Capacitors, 100 pF to 1.1 uF, are offered in three models using two different dielectric materials,polystyrene and silvered-mica, to satisfy a variety of needs.

GenRad 1419-A and GenRad 1419-B (Polystyrene) Owing to its very low dielectric absorption, the GenRad 1419A 3 Decade 1000 pF/step & 1419B 4 Decade 100 pF/step Polystyrene Decade Capacitors are particularly useful in research and development work on computer and integrator circuits and on low-level amplifiers. Its constancy of capacitance and dissipation factor as a function of frequency also makes it extremely useful in measuring circuits and as a component in filters and tuned circuits. High insulation resistance and low dielectric absorption make it the 1419 Decade Capacitor a nearly ideal capacitor for dc work.

This decade capacitor is based on development work and manufacturing experience at General Radio since 1940. The individual capacitor units for designed to be essentially non-inductive and are heat-stabilized, so that their long-time stability approaches that of the best silvered-mica capacitors.

The 1419-A and B decade capacitors are wound in spool form from continuous interleaved tapes of polystyrene and metal foil. The foils projecting at each end of the roll are soldered together to minimize inductance and series resistance. The tape used for the dielectric is specially prepared of purified high-molecular-weight polystyrene, having very high resistance and freedom from polarization. Hermetic sealing with Teflon feed-through insulators assures high performance even under adverse humidity conditions

Terminals are provided for both 2-terminal and 3-terminal connections.

GenRad 1419-K (Silvered Mica) This high-quality decade capacitor finds uses in every laboratory: in tuned circuits, impedance bridges, filters, or in any circuit where an accurate and stable step adjustable capacitor is necessary. The 1419K has higher accuracy, low dissipation factor, and better stability than the 1419A/B. The 1419 has a temperature coefficient of +35 ±10 ppm/°C (10-50 °C) for use in higher ambient temperature applications.

The IET 1419 is ideal for customers wanting a direct replacement or have a system that has been qualified with the GenRad 1419 as the current design has not been changed from the original GenRad 1419.

The 1419 has a useful frequency response to 1 MHz for audio applications and testing LCR meters.

1419A / 1419-9701 Capacitor Decade GenRad NSN: 6625-00-953-7537
1419B / 1419-9702 Capacitor Decade GenRad NSN: 6625-00-124-9382
1419K / 1419-9711 Capacitor Decade GenRad NSN: 6625-00-585-1670

Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Свернуть Развернуть
Сведения о реестре СИ

Номер в Госреестре

Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Не в реестре
Свернуть Развернуть
Сведения о реестре СИ

Номер в Госреестре

Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Не в реестре
Характеристики
Загрузить технические характеристики

1419 Decade Capacitor Basic Specifications

(See Datasheet for Full Specifications)

Model 1419-A 1419-B 1419-K
Dielectric Polystyrene  Polystyrene  Silvered Mica
Maximum Capacitance of Box ( µF)  1.11 1.111 1.11
In Steps of (pF)  1000 100 1000
Dials  3 4 3
Accuracy 2 Terminal Connection  1% 1% + 2pF 0.50%
Max Voltage  500 V up to 35 kHz 500 V up to 35 kHz 500 V up to 10 kHz
Dissipation Factor at 1 kHz <0.0002 <0.0002 <0.0003
Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
1419-A
Декадный магазин емкостей, тип диэлектрика полистирол, макс. 1,11 мкФ, разрешение 1000 пФ, погрешность 1%
По запросу
- шт +
1419-B
Декадный магазин емкостей, тип диэлектрика полистирол, макс. 1,111 мкФ, разрешение 100 пФ, погрешность 1% + 2 пФ
По запросу
- шт +
1419-K
Декадный магазин емкостей, тип диэлектрика серебряаная слюда, макс. 1,11 мкФ, разрешение 1000 пФ, погрешность 0,5%
По запросу
- шт +
