IMPROVED SPECIFICATIONS AND DESIGN
IET has improved the specifications on esi/Tegam's DB62 decade resistor. These Decade Resistors are primarily intended for precision measurement applications where their excellent accuracy of ±0.01%, stability, and low zero resistance are important.

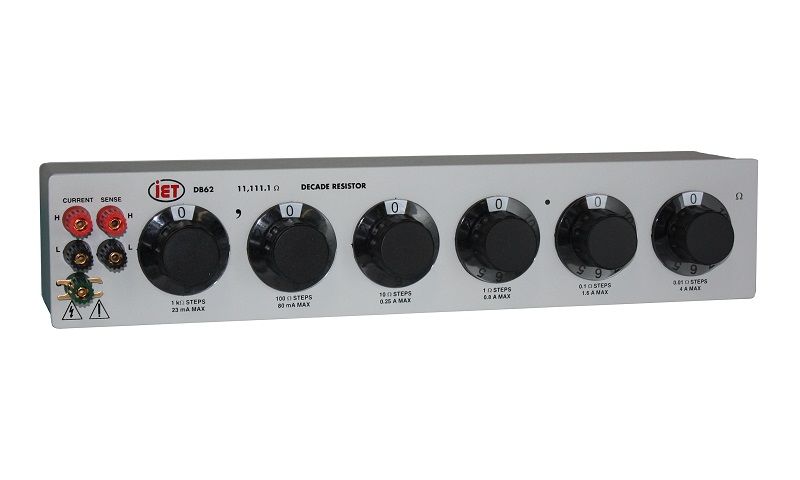

The esi DB62 Dekabox In-Line Decade Resistor provides dependable long-term service in precision DC through audio frequency applications. Six decades of non-inductive, precision, wire-wound fixed resistors are mounted in a low noise shielded aluminum housing.
The esi DB62 decade resistor is easy to use. The input terminals and a case connected ground terminal are conveniently located on the front panel. The dials rotate independently through 360 degrees to simplify and speed settings. This allows for a coarse approximation and then precise finer steps to provide an exact resistance value.
Accuracy over a wide range of ambient conditions is assured by the use of resistors with good temperature and power coefficients. Repeatability is assured by the use of switches that have multiple contacts of solid silver-alloy. The Dekabox resistance values are easily read from the large-numeral in-line presentation above the knobs. Resistance per step and current ratings of each decade are presented above the knobs for operator convenience and circuit safety.
If you require different ranges or less stringent tolerances, consider the IET HARS Series decade box line.
Models
esi DB62-11K: Range 0.01 Ω - 11.1111 kΩ
esi DB62-111K: Range 0.1 Ω - 111.111 kΩ
esi DB62-1M: Range 1 Ω - 1.11111 MΩ
esi DB62-11M: Range 10 Ω - 11.1111 MΩ
IMPROVED SPECIFICATIONS AND DESIGN
IET has improved the specifications on esi/Tegam's DB62 decade resistor. These Decade Resistors are primarily intended for precision measurement applications where their excellent accuracy of ±0.01%, stability, and low zero resistance are important.
The esi DB62 Dekabox In-Line Decade Resistor provides dependable long-term service in precision DC through audio frequency applications. Six decades of non-inductive, precision, wire-wound fixed resistors are mounted in a low noise shielded aluminum housing.
The esi DB62 decade resistor is easy to use. The input terminals and a case connected ground terminal are conveniently located on the front panel. The dials rotate independently through 360 degrees to simplify and speed settings. This allows for a coarse approximation and then precise finer steps to provide an exact resistance value.
Accuracy over a wide range of ambient conditions is assured by the use of resistors with good temperature and power coefficients. Repeatability is assured by the use of switches that have multiple contacts of solid silver-alloy. The Dekabox resistance values are easily read from the large-numeral in-line presentation above the knobs. Resistance per step and current ratings of each decade are presented above the knobs for operator convenience and circuit safety.
If you require different ranges or less stringent tolerances, consider the IET HARS Series decade box line.
Models
esi DB62-11K: Range 0.01 Ω - 11.1111 kΩ
esi DB62-111K: Range 0.1 Ω - 111.111 kΩ
esi DB62-1M: Range 1 Ω - 1.11111 MΩ
esi DB62-11M: Range 10 Ω - 11.1111 MΩ
