Магазин сопротивления и емоксти
Обзор
Свернуть
Развернуть
Основные возможности и технические характеристики

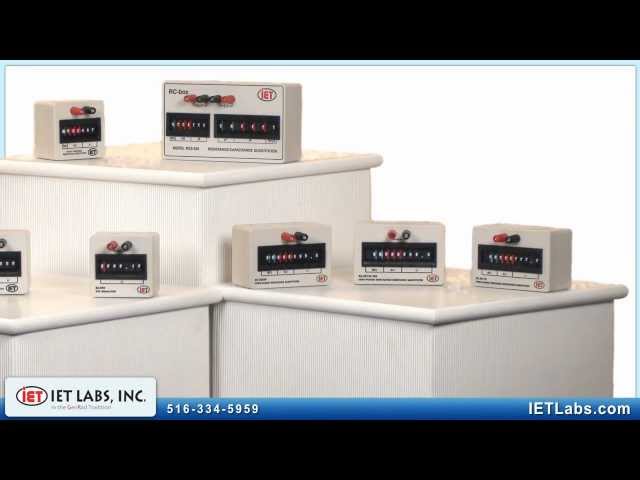

The RCS-box combines the features and specifications of both the R-box and the C-box in one convenient package. Ideal for trimming of timers, oscillators, and filters, the resistance and capacitance may be used independently, in series, or in parallel. A shorting link allows them to be coupled or separated.
One nice feature of the RCS Series is that it uses convenient side by side, color coded thumbwheel switches, that allow for direct reading — There is no fumbling with multiple slide or rotary switches. Simply dial in the desired values and use!
Made of high impact plastic and weighing less then a pound, these decade boxes are very portable and can reduce clutter on a busy lab bench.
Combination of resistance and capacitance decades
Accurate 0.1% to 4% (depending on model)
Capacitance range 100 pF - 100 µF
Resistance range 1 Ω - 10 MΩ
Compact, convenient, and rugged
Now includes a NIST traceable calibration certificate
Direct reading and easy to use
Color coded switches
Two models available RCS-500 and RCS-502, RCS-502 has improved accuracy
One nice feature of the RCS Series is that it uses convenient side by side, color coded thumbwheel switches, that allow for direct reading — There is no fumbling with multiple slide or rotary switches. Simply dial in the desired values and use!
Made of high impact plastic and weighing less then a pound, these decade boxes are very portable and can reduce clutter on a busy lab bench.
Свернуть
Развернуть
Основные возможности и технические характеристики
The RCS-box combines the features and specifications of both the R-box and the C-box in one convenient package. Ideal for trimming of timers, oscillators, and filters, the resistance and capacitance may be used independently, in series, or in parallel. A shorting link allows them to be coupled or separated.
One nice feature of the RCS Series is that it uses convenient side by side, color coded thumbwheel switches, that allow for direct reading — There is no fumbling with multiple slide or rotary switches. Simply dial in the desired values and use!
Made of high impact plastic and weighing less then a pound, these decade boxes are very portable and can reduce clutter on a busy lab bench.
Combination of resistance and capacitance decades
Accurate 0.1% to 4% (depending on model)
Capacitance range 100 pF - 100 µF
Resistance range 1 Ω - 10 MΩ
Compact, convenient, and rugged
Now includes a NIST traceable calibration certificate
Direct reading and easy to use
Color coded switches
Two models available RCS-500 and RCS-502, RCS-502 has improved accuracy
One nice feature of the RCS Series is that it uses convenient side by side, color coded thumbwheel switches, that allow for direct reading — There is no fumbling with multiple slide or rotary switches. Simply dial in the desired values and use!
Made of high impact plastic and weighing less then a pound, these decade boxes are very portable and can reduce clutter on a busy lab bench.
Свернуть
Развернуть
Комплектация
Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Свернуть
Развернуть
Комплектация
Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
Характеристики
Загрузить технические характеристики
RCS Series Decade Box Basic Specifications (See datasheet for full specifications)
| Model |
RCS-500 |
RCS-502 |
||
| Combines |
RS-200 |
CS-300 |
RS-201 |
CS-301 |
| Type |
Resistance |
Capacitance |
Precision Resistance |
Precision Capacitance |
| Resistance Accuracy |
±(1%+25 mΩ) |
±(4%+3 pF) |
±(0.1%+25 mΩ) |
±(1%+3 pF) |
| Decades |
7 |
6 |
7 |
6 |
| Range |
0 - 9,999,999 Ω |
0- 99.999 9 µF |
0 - 9,999,999 Ω |
0- 99.999 9 µF |
| Resolution |
1 Ω |
100 pF |
1 Ω |
100 pF |
| Ratings |
0.5 W (rising to 2.5 W at step 9) |
100 V (25 V for 10 - 100 μF) |
0.5 W (rising to 2.5 W at step 9) |
100 V (25 V for 10 - 100 μF) |
| Residual |
≤0.39 Ω (≤0.056 Ω/decade) |
≤42 pF (≤7 pF/decade) |
≤0.39 Ω (≤0.056 Ω/decade) |
≤42 pF (≤7 pF/decade) |
|
Physical |
18.8 x 8.4 x 6.4 cm, 410 g (7.4 x 3.3 x 2.5 in, 14 oz) |
|||
Модели и опции
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
RCS-500
|
Магазин сопротивления 0 - 9999999 Ом с погрешностью ±(1% + 25 мОм), магазин емкости 0 - 99,999 9 мкФ с погрешностью ±(4% + 3 пФ)
|
По запросу | ||
|
RCS-502
|
Магазин сопротивления 0 - 9999999 Ом с погрешностью ±(0,1% + 25 мОм), магазин емкости 0 - 99,999 9 мкФ с погрешностью <10 мкФ: ±(1% + 3 pF), ≥10 мкФ ±(4% + 3 пФ)
|
По запросу |
