Цифровой мультиметр СКЗ/тестер изоляции 20 ГОм/1000 В

MG320
Для увеличения картинки наведите мышкой
MG320
MG320

Наличие: По запросу

По запросу
По запросу
По запросу

Мегаомметры MG320 Подробнее




Частная корпорация Extech Instruments была образована в 1970 году в США в штате Массачусетс. Корпорация производит высококачественные портативные контрольно-измерительные приборы. Торговая марка Extech Instruments получила признание во многих отраслях промышленности, являясь предпочитаемой для использования торговой маркой.

Продукция, выпускаемая Extech подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

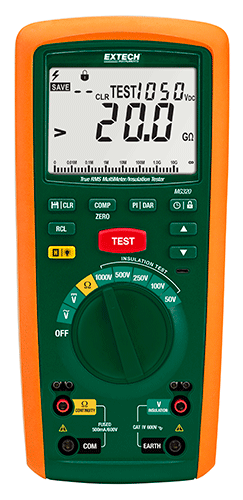

Extech MG320: CAT IV Insulation Tester/True RMS MultiMeter

20GΩ/1000V Insulation Tester with a True RMS MultiMeter

Combines a portable 20GΩ/1000V Insulation Tester with a True RMS MultiMeter. Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results. Multimeter functions include AC/DC Voltage, Resistance, and Continuity Test. Manually store/recall up to 99 readings. Designed with rugged housing and large backlit 6,000 count LCD display with analog bargraph. Complete with test leads, alligator clip, 6 x AA batteries, and soft case.

  • Measure Insulation Resistance to 20GΩ
  • 5 Test Voltage ranges
  • Polarization Index (PI) and Dielectric Absorption Ratio measurements (DAR)
  • Low Resistance measurement with Zero function
  • Programmable Timer feature sets the duration of test
  • Comparison Mode allows user to set the Pass/Fail values for insulation measurements
  • Step Voltage (10% steps at 50% to 120% of range)
  • Auto-discharge of voltage test signal
  • Lock Power On Function for hands-free operation
  • Manually store/recall up to 99 readings
  • Backlit 6,000 count display with analog bargraph
  • High voltage and overload indication
  • Data Hold to freeze displayed reading
  • Auto Power Off and Low battery indication
  • Complete with test leads, alligator clip, 6 x AA batteries, and soft case
  • Свернуть Развернуть
    Основные возможности и технические характеристики

    Extech MG320: CAT IV Insulation Tester/True RMS MultiMeter

    20GΩ/1000V Insulation Tester with a True RMS MultiMeter

    Combines a portable 20GΩ/1000V Insulation Tester with a True RMS MultiMeter. Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results. Multimeter functions include AC/DC Voltage, Resistance, and Continuity Test. Manually store/recall up to 99 readings. Designed with rugged housing and large backlit 6,000 count LCD display with analog bargraph. Complete with test leads, alligator clip, 6 x AA batteries, and soft case.

  • Measure Insulation Resistance to 20GΩ
  • 5 Test Voltage ranges
  • Polarization Index (PI) and Dielectric Absorption Ratio measurements (DAR)
  • Low Resistance measurement with Zero function
  • Programmable Timer feature sets the duration of test
  • Comparison Mode allows user to set the Pass/Fail values for insulation measurements
  • Step Voltage (10% steps at 50% to 120% of range)
  • Auto-discharge of voltage test signal
  • Lock Power On Function for hands-free operation
  • Manually store/recall up to 99 readings
  • Backlit 6,000 count display with analog bargraph
  • High voltage and overload indication
  • Data Hold to freeze displayed reading
  • Auto Power Off and Low battery indication
  • Complete with test leads, alligator clip, 6 x AA batteries, and soft case
  • Комплектацию Вы можете узнать:
    По тел.: +7 (495) 105 96 88 или
    Написать нам письмо: info@micro-electronics.ru
    Комплектацию Вы можете узнать:
    По тел.: +7 (495) 105 96 88 или
    Написать нам письмо: info@micro-electronics.ru
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    Не в реестре
    Характеристики
    Загрузить технические характеристики

    Specifications Range Resolution Basic Accuracy
    Insulation Resistance 50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ, 1GΩ, 10GΩ, 20GΩ 0.01MΩ ±3%
    Insulation Test Voltages 50V, 100V, 250V, 500V, 1000V   0 to 10%
    AC/DC Voltage 600V 0.1V ±2%
    Resistance 20kΩ 0.01Ω ±1.5%
    Continuity Yes
    Dimensions/ Weight 8.9 x 4.1 x 2.3" (225 x 103 x 59mm)/ 1.5lbs (0.7kg)
    Модели и опции
    Товар
    Модели и Опции
    Описание
    Цена Заказать
    Модели
    MG320
    Цифровой мультиметр СКЗ/тестер изоляции 20 ГОм/1000 В
    €553.23
