Частная корпорация Extech Instruments была образована в 1970 году в США в штате Массачусетс. Корпорация производит высококачественные портативные контрольно-измерительные приборы. Торговая марка Extech Instruments получила признание во многих отраслях промышленности, являясь предпочитаемой для использования торговой маркой.
Продукция, выпускаемая Extech подробнее

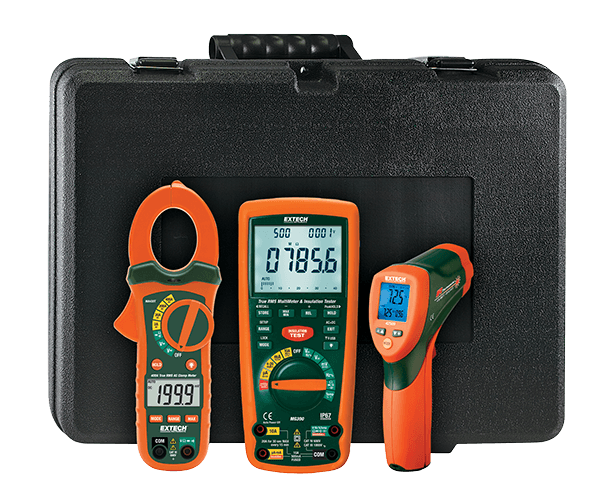

Extech MG300-ETK: Electrical Troubleshooting Kit
Test and measurement kit for electrical installation, troubleshooting, and repair
The Extech MG300-ETK Electrical Troubleshooting Kit includes three compact tools that are indispensable at a customer site for electrical installation, troubleshooting, and repair. The first tool in the kit is the MG300, a 13 Function Wireless True RMS MultiMeter/Insulation Tester featuring 125 Volt, 250 Volt, 500 Volt and 1000 Volt test voltages, insulation resistance from 0.001MOhm to 4000MOhm, auto discharge of capacitive voltage, lock power on function for hands-free operation, data hold, min/max, relative mode, auto power off and more at a CAT IV 600 Volt safety rating. The second tool is the 42509 Dual Laser IR Thermometer with Color Alert which measures IR temperature up to 950°F (510°C). The third tool in this kit is the MA430T 400 Amp True RMS AC/DC clamp meter with built-in non-contact voltage detector, 6 functions and a CAT III 600 Volt safety rating.
- MG300 - True RMS Multimeter/Insulation Tester with 13 Functions and Wireless PC Interface
- 42509 - 12:1 Infrared Thermometer with high/low alarm and fast 2-color display
- MA430T - 400A True RMS AC Clamp Meter with built-in non-contact voltage detector
Extech MG300-ETK: Electrical Troubleshooting Kit
Test and measurement kit for electrical installation, troubleshooting, and repair
The Extech MG300-ETK Electrical Troubleshooting Kit includes three compact tools that are indispensable at a customer site for electrical installation, troubleshooting, and repair. The first tool in the kit is the MG300, a 13 Function Wireless True RMS MultiMeter/Insulation Tester featuring 125 Volt, 250 Volt, 500 Volt and 1000 Volt test voltages, insulation resistance from 0.001MOhm to 4000MOhm, auto discharge of capacitive voltage, lock power on function for hands-free operation, data hold, min/max, relative mode, auto power off and more at a CAT IV 600 Volt safety rating. The second tool is the 42509 Dual Laser IR Thermometer with Color Alert which measures IR temperature up to 950°F (510°C). The third tool in this kit is the MA430T 400 Amp True RMS AC/DC clamp meter with built-in non-contact voltage detector, 6 functions and a CAT III 600 Volt safety rating.
- MG300 - True RMS Multimeter/Insulation Tester with 13 Functions and Wireless PC Interface
- 42509 - 12:1 Infrared Thermometer with high/low alarm and fast 2-color display
- MA430T - 400A True RMS AC Clamp Meter with built-in non-contact voltage detector
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
| MG300/MG302 | Range | Max Resolution | |
| Specifications | |||
| Wireless frequency | 915MHz (MG300); 433MHz (MG302) | ||
| Insulation Resistance | 4MΩ, 40MΩ, 400MΩ, 4000MΩ | 0.001MΩ | |
| Insulation Test Voltages | 125V, 250V 500V, 1000V | ||
| AC/DC Voltage | 1000V | 0.1mV AC/ 0.01mV DC | |
| AC/DC Current | 10A | 0.1μA AC/ 0.01μA DC | |
| Resistance | 40MΩ | 0.01Ω | |
| Capacitance | 40mF | 0.001nF | |
| Frequency | 100MHZ | 0.001HZ | |
| Duty Cycle | 0.1 to 99.9% | 0.01 | |
| Temperature | -58 to 2192°F (-50 to 1200°C) | 0.1° | |
| 4-20mA% | -25 to 125% | 0.01% | |
| Continuity/Diode | Yes | ||
| MA430T | Range (Max Resolution) | ||
| Specifications | |||
| AC Current | 400A (0.01A) True RMS | ||
| AC Voltage | 600V (0.1mV) True RMS | ||
| DC Voltage | 600V (0.1mV) | ||
| Resistance | 20MΩ (0.1Ω) | ||
| Continuity / Diode | Yes | ||
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Ordering information |
|
MG300
|
CAT IV Insulation Tester/True RMS MultiMeter w/Wireless PC Interface (915MHz)
|
$709.48 | ||
|
MG300-NIST
|
MG300 with Certificate of Calibration Traceable to NIST
|
$1 039.48 | ||
|
MG302
|
CAT IV Insulation Tester/True RMS MultiMeter w/Wireless PC Interface (433MHz)
|
$709.48 | ||
|
MG302-NIST
|
MG302 with Certificate of Calibration Traceable to NIST
|
$1 039.48 | ||
|
TL805
|
Double Injected Test Leads
|
€23.88 |
