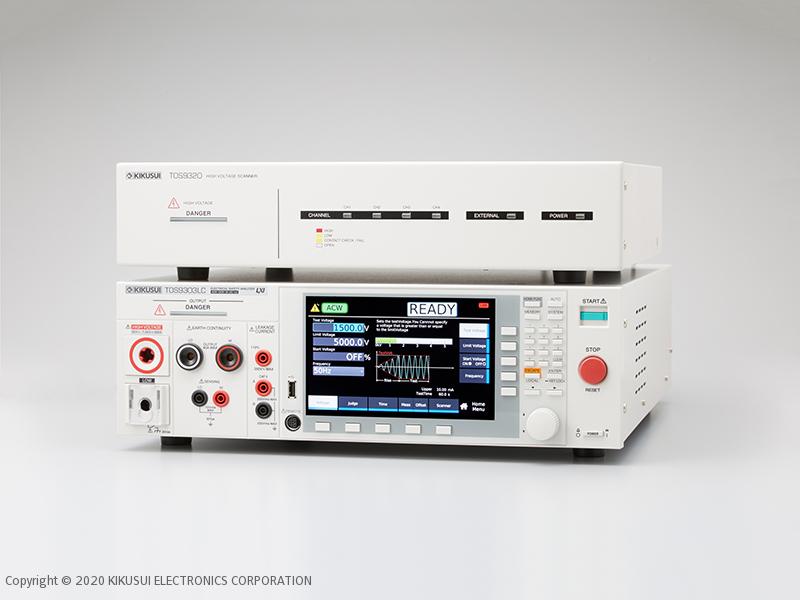

Многофункциональный анализатор электрической безопасности

TOS9300
Для увеличения картинки наведите мышкой
TOS9300TOS9300TOS9300TOS9300TOS9300TOS9300TOS9300TOS9300TOS9300
TOS9300TOS9300TOS9300TOS9300TOS9300TOS9300TOS9300TOS9300TOS9300

Наличие: По запросу

По запросу
По запросу
По запросу

Тестеры изоляции/высоковольтные тестеры/тестеры заземления и тока утечки TOS9300 Подробнее




Японская компания Kikusui Electronics Corporation - производитель электронных измерительных приборов и оборудования для электропитания с 1951 года.

В 1983 году группа Kikusui основала фабрику Fuji Katsuyama Factory (FKF) в качестве внутреннего производственного центра. В течение 1990-х… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

 Outline

The TOS9300 series is a high performance electrical safety analyzer that complies to a wide range of universal standards. Hipot, Insulation Resistance, Ground Bond, Leakage Current (touch current and protective conductor current) and partial discharge can all be tested. A total of 6 models are available for standard compliance tests in a wide variety of applications including R&D, quality assurance manufacturing lines and laboratory tests.

 Features

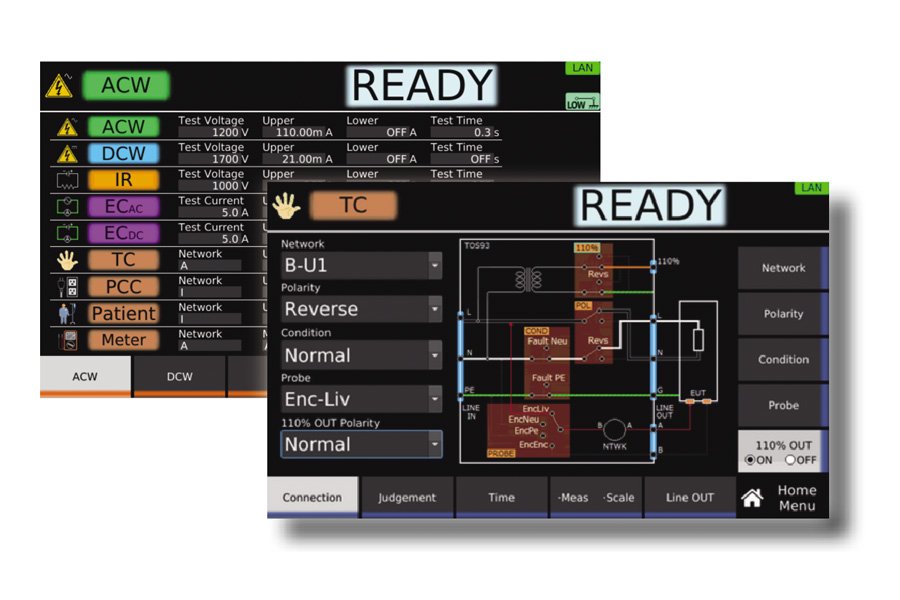

  • Color LCD Screen for Improved Visibility!
    A brand-new 7-inch LCD display allows for easy access to your custom settings, standard outlines and blueprints for easy operation.

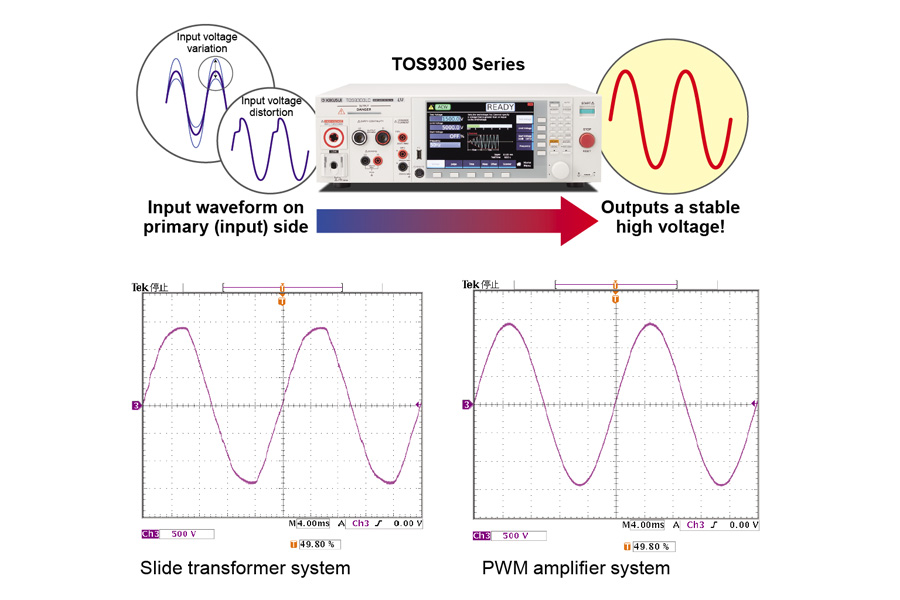

  • AC Hipot Testing with Stable Output [Input Voltage Variation: ±0.3%]
    Conventional hipot testers utilize a slide transformer to output AC line voltage. This design is susceptible to input voltage fluctuation, with outside electrical influence affecting the test results. This can result in distorted voltage being applied to the EUT which can cause product malfunctions down the line due to component malfunction. The TOS9300 series utilizes a highly efficient PWM amplifier capable of stable high-voltage output that is unaffected by changes in the AC power line. The TOS9300 series allows for safe, stable, and highly reliable tests regardless of AC power line instability.

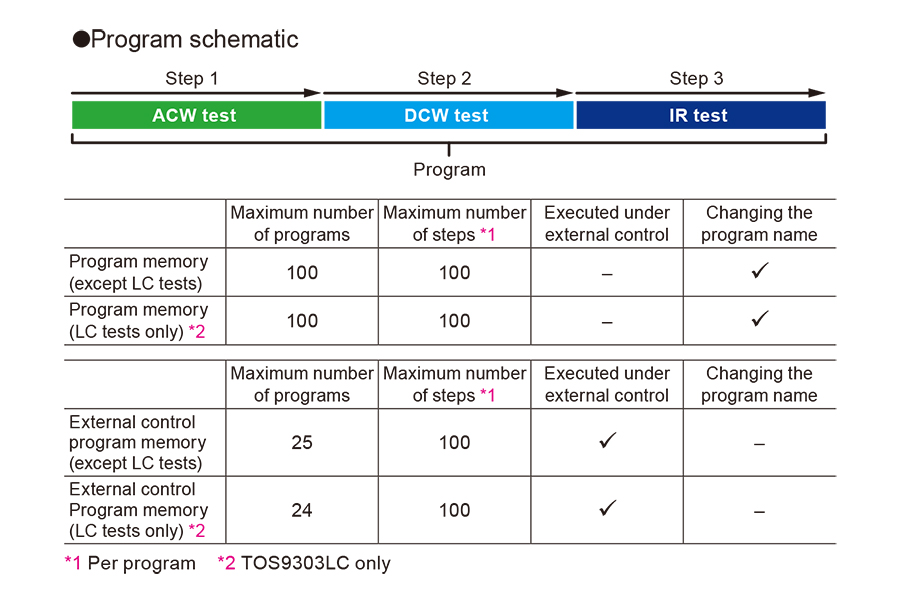

  • Automatic Testing Feature
    Tests can be combined and configured to execute automatically over long periods of time. Automotic tests are composed of programs and steps, which can be configured to initiate one after another.

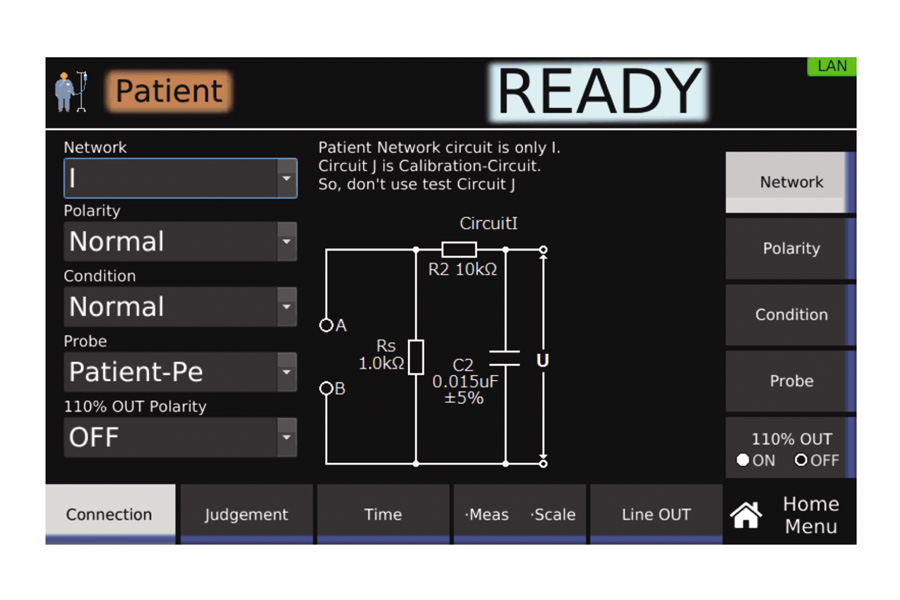

  • Contact/Protective Conductor/ Patient Leakage Current Test (TOS9303LC)
    The TOS9300 series can conduct leakage current (patient current) tests for highly sensitive medical devices. Measurement networks can be easily configured via the front panel.

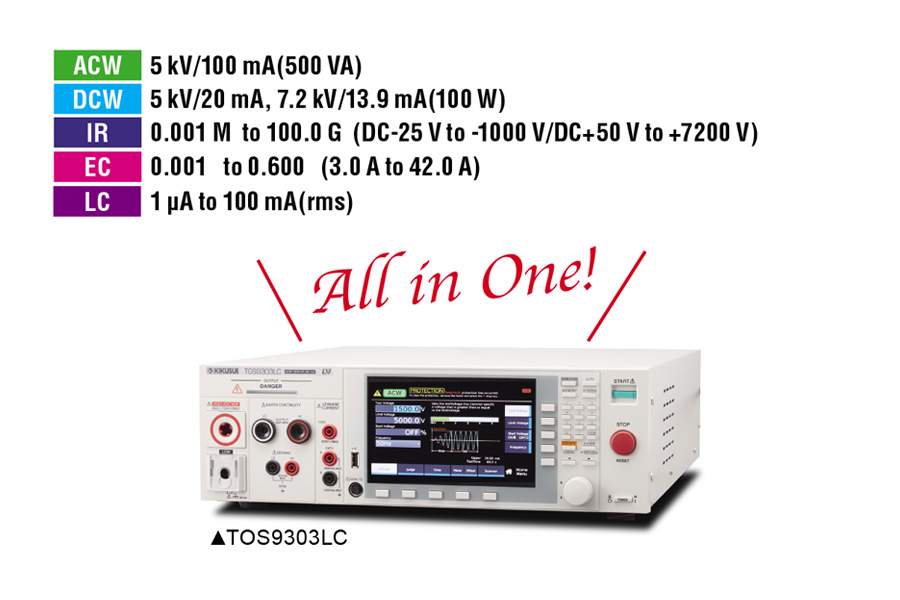

  • All Electrical Safety Standard Tests in One Device! (TOS9303LC)
    The TOS9303LC is the "all-rounder" model which supports AC/DC withstanding voltage, insulation resistance, AC/DC earth continuity and leakage currents tests in a single device. It can also be used for contact current, protective conductor current and patient leakage current tests.

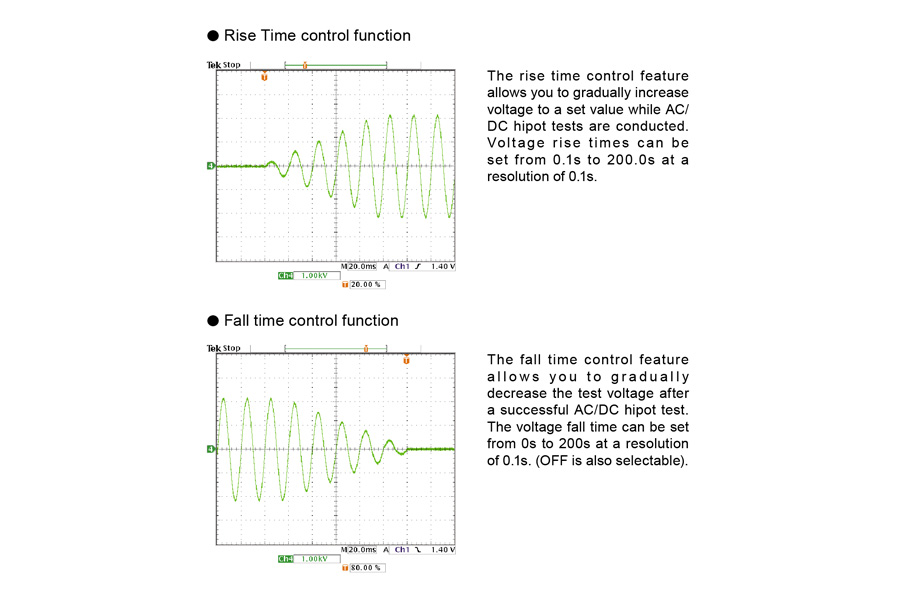

  • Rise Time/Fall Time Control Function
    The rise time control function prevents unnecessary stress from being applied to the EUT.

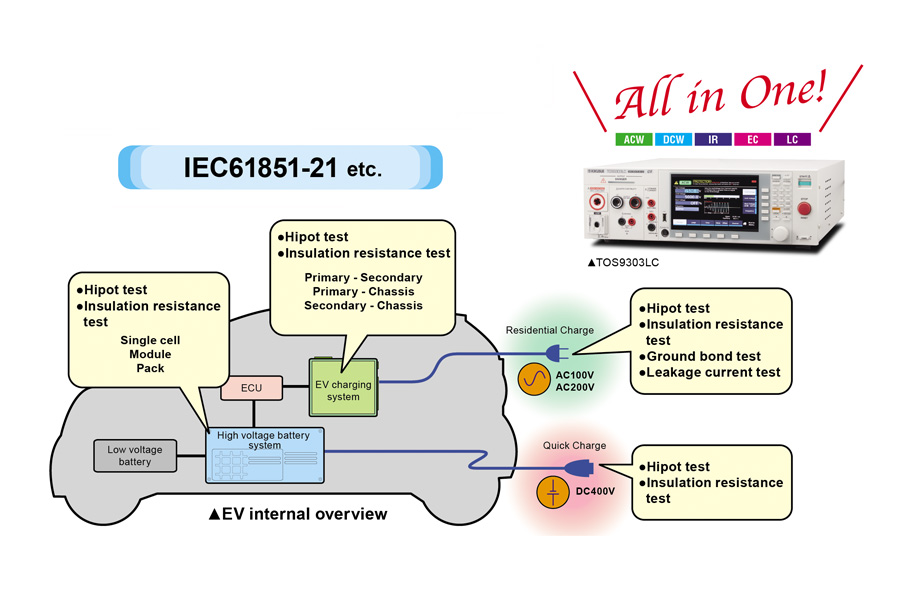

  • Electrical safety standard testing for automotive components
    Compatible with both AC and DC, the TOS9303LC complies with a wide varety of safety tests for EV batteries, automotive charging devices and charging connectors. This "all-in-one" safety analyzer can meet the needs of nearly all automotive electrical safety standards.
  • Other Feartures
    • User-Friendly 10Key Configuration
    • Easy Firmware Updates via USB
    • LAN/USB/RS232C Standard Digital Interface
    • I/V Monitor Terminal (Analog Monitor)
    • STATUS OUT Connector
    • SIGNAL I/O Connector
    • High Precision/High Resolution/High Speed
    • Programmable Detection Response Speed
    • 7.2 kV/100 W DC Hipot Test
    • Positive Electrode/Negative Electrode Insulation Resistance Testing
    • Electric Discharge Function
    • AC/DC Earth Continuity Testing up to 40 A
    • EARTH FAULT Protection
    • Offset Cancel
    • Basic Memory Function
    • Calibration Deadline Notification
    • High-voltage scanner (Option)

Свернуть Развернуть
Основные возможности и технические характеристики

 Outline

The TOS9300 series is a high performance electrical safety analyzer that complies to a wide range of universal standards. Hipot, Insulation Resistance, Ground Bond, Leakage Current (touch current and protective conductor current) and partial discharge can all be tested. A total of 6 models are available for standard compliance tests in a wide variety of applications including R&D, quality assurance manufacturing lines and laboratory tests.

 Features

  • Color LCD Screen for Improved Visibility!
    A brand-new 7-inch LCD display allows for easy access to your custom settings, standard outlines and blueprints for easy operation.
  • AC Hipot Testing with Stable Output [Input Voltage Variation: ±0.3%]
    Conventional hipot testers utilize a slide transformer to output AC line voltage. This design is susceptible to input voltage fluctuation, with outside electrical influence affecting the test results. This can result in distorted voltage being applied to the EUT which can cause product malfunctions down the line due to component malfunction. The TOS9300 series utilizes a highly efficient PWM amplifier capable of stable high-voltage output that is unaffected by changes in the AC power line. The TOS9300 series allows for safe, stable, and highly reliable tests regardless of AC power line instability.
  • Automatic Testing Feature
    Tests can be combined and configured to execute automatically over long periods of time. Automotic tests are composed of programs and steps, which can be configured to initiate one after another.
  • Contact/Protective Conductor/ Patient Leakage Current Test (TOS9303LC)
    The TOS9300 series can conduct leakage current (patient current) tests for highly sensitive medical devices. Measurement networks can be easily configured via the front panel.
  • All Electrical Safety Standard Tests in One Device! (TOS9303LC)
    The TOS9303LC is the "all-rounder" model which supports AC/DC withstanding voltage, insulation resistance, AC/DC earth continuity and leakage currents tests in a single device. It can also be used for contact current, protective conductor current and patient leakage current tests.
  • Rise Time/Fall Time Control Function
    The rise time control function prevents unnecessary stress from being applied to the EUT.
  • Electrical safety standard testing for automotive components
    Compatible with both AC and DC, the TOS9303LC complies with a wide varety of safety tests for EV batteries, automotive charging devices and charging connectors. This "all-in-one" safety analyzer can meet the needs of nearly all automotive electrical safety standards.
  • Other Feartures
    • User-Friendly 10Key Configuration
    • Easy Firmware Updates via USB
    • LAN/USB/RS232C Standard Digital Interface
    • I/V Monitor Terminal (Analog Monitor)
    • STATUS OUT Connector
    • SIGNAL I/O Connector
    • High Precision/High Resolution/High Speed
    • Programmable Detection Response Speed
    • 7.2 kV/100 W DC Hipot Test
    • Positive Electrode/Negative Electrode Insulation Resistance Testing
    • Electric Discharge Function
    • AC/DC Earth Continuity Testing up to 40 A
    • EARTH FAULT Protection
    • Offset Cancel
    • Basic Memory Function
    • Calibration Deadline Notification
    • High-voltage scanner (Option)

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

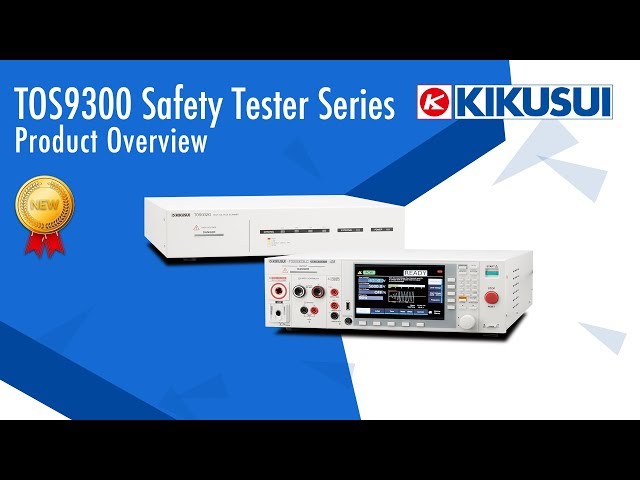

  • TOS9300|Обзор серии
Характеристики
Загрузить технические характеристики

Model Specification
TOS9300  Manual...Max output-voltage of AC hipot testing: 5kV / 100mA(500VA), Measurement range of insulation resistance testing: 0.001M Ω to 100.0G Ω(DC-25V to -1000V),Rise-time control / Fall-time control function provided, Output voltage and panel settings are controlled through LAN / USB / RS-232C.
TOS9301  Manual...Max output-voltage of AC hipot testing: 5kV / 100mA(500VA), Max output-voltage of DC hipot testing: 5kV /20mA,7.2kV / 13.9mA(100W), Measurement range of insulation resistance testing: 0.001M Ω to 100.0G Ω(DC-25V to -1000V / DC+50V to +7200V), Rise-time control / Fall-time control function provided, Output voltage and panel settings are controlled through LAN / USB / RS-232C.
TOS9301PD Under development
TOS9302  Manual...Max output-voltage of AC hipot testing: 5kV / 100mA(500VA), Measurement range of ground bond testing: 0.001M Ω to 0.600G Ω (3.0A to 42.0A), Rise-time control / Fall-time control function provided, Output voltage and panel settings are controlled through LAN / USB / RS-232C.
TOS9303  Manual...Max output-voltage of AC hipot testing: 5kV / 100mA(500VA), Max output-voltage of DC hipot testing: 5kV /20mA,7.2kV/13.9mA(100W), Measurement range of insulation resistance testing: 0.001M Ω to 100.0G Ω(DC-25V to -1000V / DC+50V to +7200V),Measurement range of ground bond testing:0.001 Ω to 0.600 Ω(3.0A to 42.0A), Rise-time control / Fall-time control function provided, Output voltage and panel settings are controlled through LAN / USB / RS-232C.
TOS9303LC  Manual...Max output-voltage of AC hipot testing: 5kV / 100mA(500VA), Max output-voltage of DC hipot testing: 5kV /20mA,7.2kV/13.9mA(100W), Measurement range of insulation resistance testing: 0.001M Ω to 100.0G Ω(DC-25V to -1000V / DC+50V to +7200V), Measurement range of ground bond testing: 0.001 Ω to 0.600 Ω(3.0A to 42.0A), Measurement range of leakage current testing: 1μA to 100mA(rms), Rise-time control / Fall-time control function provided, Output voltage and panel settings are controlled through LAN / USB / RS-232C.

Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
TOS9300
Высоковольтный AC тестер 5 кВ 100 мА/тестер изоляции 99.99 ГОм
По запросу
- шт +
TOS9301
Высоковольтный AC тестер 5 кВ 100 мА DC тестер 7,2 кВ 100 Вт/тестер изоляции 99.99 ГОм
По запросу
- шт +
TOS9301PD
НА СТАДИИ РАЗРАБОТКИ
По запросу
- шт +
TOS9302
Высоковольтный AC тестер 5 кВ 100 мА и тестер заземления
По запросу
- шт +
TOS9303
Высоковольтный AC тестер 5 кВ 100 мА, DC тестер 7.2 кВ / 100 Вт, тестер изоляции 99.99 ГОм, тестер заземления
По запросу
- шт +
TOS9303LC
Высоковольтный AC тестер 5 кВ 100 мА,тестер изоляции 99.99 ГОм, тестер заземления и тока утечки
По запросу
- шт +
Аксессуары
TL33-TOS
Высоковольтные тестовые провода для параллельного соединения TOS9320
По запросу
- шт +
RC01-TOS
Пульт дистанционнного управления одной рукой для серии TOS
По запросу
- шт +
RC02-TOS
Пульт дистанционнного управления двумя руками для серии TOS
По запросу
- шт +
HP01A-TOS
Высоковольтный пробник макс. AC 4 кВ, DC 5 кВ, длина 1,8 м
По запросу
- шт +
HP02A-TOS
Высоковольтный пробник макс. AC 4 кВ, DC 5 кВ, длина 3,5 м
По запросу
- шт +
PL02-TOS
Предупреждающая лампа высокого напряжения
По запросу
- шт +
TL13-TOS
Тестовые пробники для теста заземления (для TOS9302, TOS9303, TOS9303LC)
По запросу
- шт +
TL22-TOS
Тестовые пробники для теста тока утечки (для TOS9303LC)
По запросу
- шт +
Сканер
TOS9320
Высоковольтный сканер (4 канала) с проверкой контакта
По запросу
- шт +
