Французская компания SIEPEL, была созданна в 1986 году. Штаб-квартира и производство компании находится в La Trinité-Sur-Mer в Британи.
Компания SIEPEL разрабатывает и производит электромагнитные поглотители и экранированные помещения для различных областей электромагнитной совместимости (ЭМС), для измерений микроволновых / антенных систем, а также кибербезопасности различных областей применения: ПЭМИН (TEMPEST), EMP, HEMP, HIRF.
SIEPEL – известный европейский производитель безэховых камер, предназначенных для тестирования на… подробнее

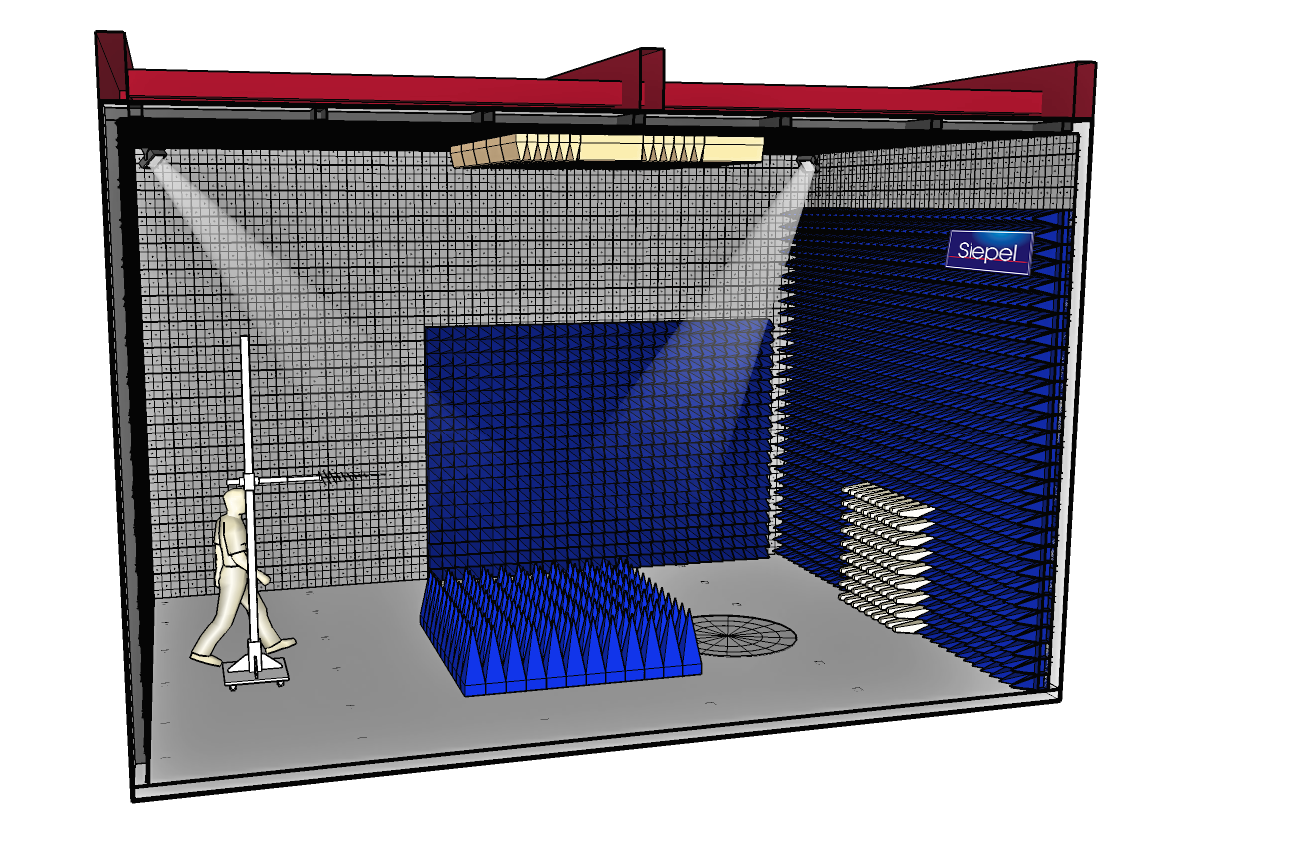

The Hermes 3 is designed to perform full-compliance emission and immunity tests at 3m distance on commercial equipment. The design of the structure is optimised for maximum performances, in minimum space. The shielding and its pyramidal absorbers are manufactured by SIEPEL.
|
OUR STRENGTHS |
|
|
MODULAR SHIELDING Self-standing structure up to 18 (40) GHz Metallic frame; |
|

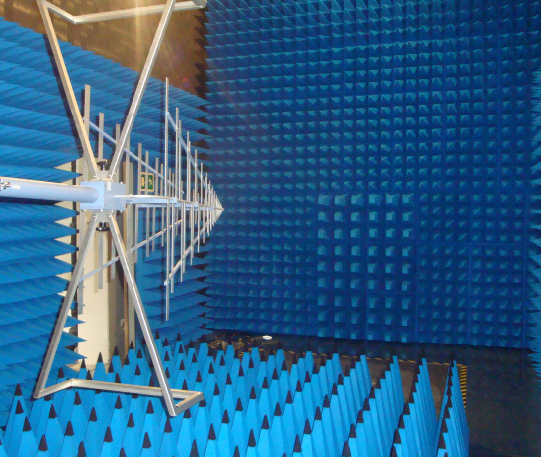

OPTIMISED ABSORBER LINING Ferrite absorbers (walls and ceiling) Hybrid pyramidal absorbers (partial lining walls and ceiling) Removable pyramidal absorbers for immunity (floor) |
|
DOOR Manual single leaf swing door Clearance 1.5 x 2.1 m & removable ramp Clearance 0.9 x 2.1 m |
|
RAISED FLOOR With ground plane |
|
CONNECTY PANELS Penetration panel including coaxial feedthroughs and waveguides |
|
POSITIONERS Turntable diameter 1.5 m - Max payload 1 ton Electrical antenna mast - 1 to 4 m |
|
VENTILATION Honeycomb air vents 300 x 300 mm / 1 ft x 1 ft up to 18 (40) GHz |
|
PROJECT REALISATION Project management Technical design & study On-site installation |
|
POWER DISTRIBUTION Power filter single-phase 32 A - 50/60 Hz Power filter three-phase 32 A - 50/60 Hz Electrical package: power distribution, lighting |
|
PERFORMANCE VERIFICATION Shielding effectiveness at 900 MHz at critical locations |
AVAILABLE OPTIONS
› Extended shielding performances up to 40 GHz
› Shielded control and amplifier rooms
› Plastic paint for pyramidal absorbers with wide range of colors
› Other types and dimensions of doors
› Electrically-assisted door latching/unlatching
› Floor hatches with connection points
› Additional power filters, data filters and special feedthroughs
› CCTV / Audio monitoring systems
› Fire detection systems
› On request, some measurements can be accredited ISO 17025 (accreditation number 1-6220, scope available on www.cofrac.fr).
› Military / Automotive / RadioCom standards compliance
› Many other options on demand
The Hermes 3 is designed to perform full-compliance emission and immunity tests at 3m distance on commercial equipment. The design of the structure is optimised for maximum performances, in minimum space. The shielding and its pyramidal absorbers are manufactured by SIEPEL.|
|
OUR STRENGTHS |
|
|
|
MODULAR SHIELDING Self-standing structure up to 18 (40) GHz Metallic frame; |
|
OPTIMISED ABSORBER LINING Ferrite absorbers (walls and ceiling) Hybrid pyramidal absorbers (partial lining walls and ceiling) Removable pyramidal absorbers for immunity (floor) |
|
|
DOOR Manual single leaf swing door Clearance 1.5 x 2.1 m & removable ramp Clearance 0.9 x 2.1 m |
|
RAISED FLOOR With ground plane |
|
|
CONNECTY PANELS Penetration panel including coaxial feedthroughs and waveguides |
|
POSITIONERS Turntable diameter 1.5 m - Max payload 1 ton Electrical antenna mast - 1 to 4 m |
|
|
VENTILATION Honeycomb air vents 300 x 300 mm / 1 ft x 1 ft up to 18 (40) GHz |
|
PROJECT REALISATION Project management Technical design & study On-site installation |
|
|
POWER DISTRIBUTION Power filter single-phase 32 A - 50/60 Hz Power filter three-phase 32 A - 50/60 Hz Electrical package: power distribution, lighting |
|
PERFORMANCE VERIFICATION Shielding effectiveness at 900 MHz at critical locations |
AVAILABLE OPTIONS
› Extended shielding performances up to 40 GHz
› Shielded control and amplifier rooms
› Plastic paint for pyramidal absorbers with wide range of colors
› Other types and dimensions of doors
› Electrically-assisted door latching/unlatching
› Floor hatches with connection points
› Additional power filters, data filters and special feedthroughs
› CCTV / Audio monitoring systems
› Fire detection systems
› On request, some measurements can be accredited ISO 17025 (accreditation number 1-6220, scope available on www.cofrac.fr).
› Military / Automotive / RadioCom standards compliance
› Many other options on demand
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
|
› Compliance & Performances
SHIELDING EFFECTIVENESS COMPLIES WITH EN 50147-1 (10 kHz - 40 GHz) Radiated emission (EMI) testing: Fully compliant with the following standards from 30 MHz to 18 (40) GHz
Radiated immunity (EMS) testing: Fully compliant with EN/IEC 61000-4-3.
› Dimensions (L x W x H)
› Quality › About our absorbers |
|||||||||||||||||||||||||||||
| Производитель | |||||||||||||||||||||||||||||
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
HERMES 3+
|
Siepel HERMES+ 3 26 МГц - 18 ГГц t = 3 м, объем тихой зоны 2х2 м, ДхШхВ 9150х7100х6000 мм
|
