Оптоволоконная аналоговая линия точка-точка 2-канальная 0 - 25 МГц 1 МОм, 1:1, АКБ

MOL25T
Для увеличения картинки наведите мышкой
MOL25T
MOL25T

Наличие: По запросу

По запросу
По запросу
По запросу



Швейцарская компания Montena Technology SA начала свою историю в 60-х годах с разработки и производства конденсаторов, осветительных ламп и высоковольтных устройств. С 80-х годов компания начинает развивать инженерную деятельность по электромагнитной совместимости (ЭМС).

В настоящее время основными направлениями деятельности компании являются проектирование, разработка, производство и установка продуктов и систем для испытания на электромагнитную совместимость (ЭМС) и имитации электромагнитного импульса от ядерного взрыва (NEMP).

Компания… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

Montena MOL25T optical link is designed for the transmission of electric signals from DC to 25 MHz in harsh electromagnetic environment.

Application is for instance the transmission/monitoring of various signals of an equipment under test during EMC immunity tests, such as supply voltages, logic states, digital signals, relay status. It also makes an ideal oscilloscope front-end for the remote measurement of floating potentials in industrial applications and ensures a total galvanic insulation of the operator, for safe operation in high voltage areas.


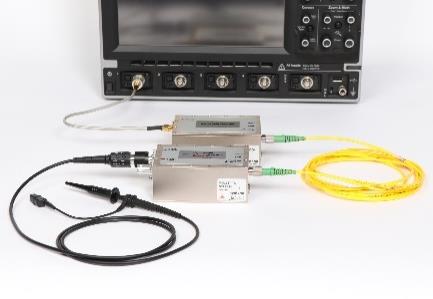

Each transmission link has two signal channels. The two 1 MΩ BNC inputs enable connecting standard oscilloscope probes, differential probes or any specific measurement means.

The two input electric signals are conditioned, digitalized and multiplexed into one optical signal in the transmitter module and sent to the receiver module through a single mode fibre. The receiver module converts back the optical signal in two electric signals.

The battery powered optical transmitter comprises a remote-controlled attenuator stage (1:1 / 10:1 / 100:1) to adjust the received signal level for an optimal use of the dynamic range. The transmitter can remotely be put in a low power standby mode to reduce energy consumption when not used. A LED indicator shows the operating state.

Configurable settings are remote controlled by a Windows-based software application.


The compact optical transmitter is battery powered and especially shielded for a very high immunity to electromagnetic fields.


The compact optical receiver for point-to-point application is battery powered and especially shielded for a very high immunity to electromagnetic fields. It has one USB interface for system configuration and supervision.


The compact optical receiver for multilink application is a plugin module. To be inserted in the MOL-MF-10 chassis.


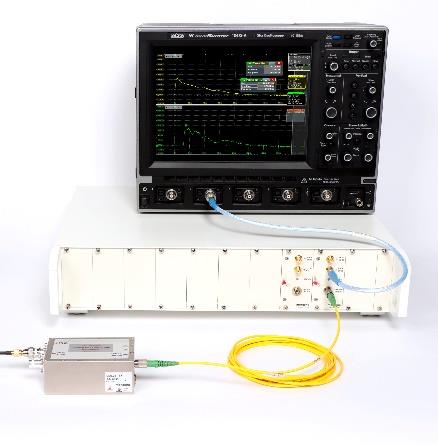

The multilink main frame is a 19", 2 HU chassis for up to ten RX modules. The receiver modules are powered and controlled from the chassis back plane.

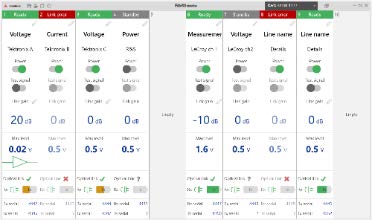

The system is delivered with the FibREmote software application, running on Windows PC.

The application allows simple configuration and monitoring of the MOL25T optical links.

The configuration can be stored and recalled at any time in order to ease the configuration of large test setup's.


The transmission link utilises single mode optical fibre with FC/APC connectors.

Свернуть Развернуть
Основные возможности и технические характеристики

Montena MOL25T optical link is designed for the transmission of electric signals from DC to 25 MHz in harsh electromagnetic environment.

Application is for instance the transmission/monitoring of various signals of an equipment under test during EMC immunity tests, such as supply voltages, logic states, digital signals, relay status. It also makes an ideal oscilloscope front-end for the remote measurement of floating potentials in industrial applications and ensures a total galvanic insulation of the operator, for safe operation in high voltage areas.


Each transmission link has two signal channels. The two 1 MΩ BNC inputs enable connecting standard oscilloscope probes, differential probes or any specific measurement means.

The two input electric signals are conditioned, digitalized and multiplexed into one optical signal in the transmitter module and sent to the receiver module through a single mode fibre. The receiver module converts back the optical signal in two electric signals.

The battery powered optical transmitter comprises a remote-controlled attenuator stage (1:1 / 10:1 / 100:1) to adjust the received signal level for an optimal use of the dynamic range. The transmitter can remotely be put in a low power standby mode to reduce energy consumption when not used. A LED indicator shows the operating state.

Configurable settings are remote controlled by a Windows-based software application.


The compact optical transmitter is battery powered and especially shielded for a very high immunity to electromagnetic fields.


The compact optical receiver for point-to-point application is battery powered and especially shielded for a very high immunity to electromagnetic fields. It has one USB interface for system configuration and supervision.


The compact optical receiver for multilink application is a plugin module. To be inserted in the MOL-MF-10 chassis.


The multilink main frame is a 19", 2 HU chassis for up to ten RX modules. The receiver modules are powered and controlled from the chassis back plane.


The system is delivered with the FibREmote software application, running on Windows PC.

The application allows simple configuration and monitoring of the MOL25T optical links.

The configuration can be stored and recalled at any time in order to ease the configuration of large test setup's.


The transmission link utilises single mode optical fibre with FC/APC connectors.

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Характеристики
Загрузить технические характеристики

SYSTEM SPECIFICATIONS
Type MOL25T
Bandwidth DC to 25 MHz
Flatness ± 1 dB (max)
Measurement ranges 1 / 10 / 100 Vp
Input impedance 1 MΩ
Output impedance 50 Ω
Instantaneous dynamic range 65 dB
A/D converters 12-bit
Sampling rate 75 MHz
Optical power in the fibre 1 mW  (laser Class 1)
Maximum link distance about 1 km
OPTICAL TRANSMITTER SPECIFICATIONS
Type MOL25T-TX
Number of channels per module 2
Input attenuator ratios 1:1 / 10:1 / 100:1, software selectable
Input impedance 1 MΩ//15 pF (max 20 pF)
Clamping voltage 1 Vp (1:1)
10 Vp (10:1)
100 Vp  (100:1)
Max input voltage 250 Vp
Power supply by internal LiPo batteries or by the power supply adapter
Battery autonomy > 20 hours. Standby: > 1 week
RF input connectors 2 x BNC (F)
Optical connector FC/APC
Operating temperature -10 °C to +55 °C
Dimensions 99 x 64 x 41 mm (L x W x H), excluding the connectors
Weight 380 gr
OPTICAL RECEIVER SPECIFICATIONS
Type MOL25T-RX  (stand-alone module)
Number of channels per module 2
RF output connectors 2 x SMA (F)
Optical connector FC/APC
Control connector Mini-USB
Output noise floor Typ. 300 µVrms
Maximum output dynamic ± 1.0 Vp  (on 50 Ω load)
Power supply by internal LiPo batteries or by the power supply adapter
Battery autonomy > 20 hours. Standby: > 1 week
Operating temperature -10 °C to +55 °C
Dimensions 99 x 64 x 41 mm (L x W x H), excluding the connectors
Weight 380 gr
OPTICAL RECEIVER SPECIFICATIONS
Type MOL25T-M-RX (plug-in module)
Number of channels per module 2
RF output connector SMA (F) / 50 Ω
Optical connector FC/APC
Control connector USB on main frame chassis
Operating temperature -10 °C to +55 °C
MAIN FRAME SPECIFICATIONS
Type MOL-MF-10
Number of slots 10 slots for RX modules
Control connector USB on main frame chassis
Operating temperature -10 °C to +55 °C
Dimensions 448 x 356 x 110 mm (W x D x H),
Power rating 85 - 264 V, 47 - 65 Hz
Weight About 5 kg
