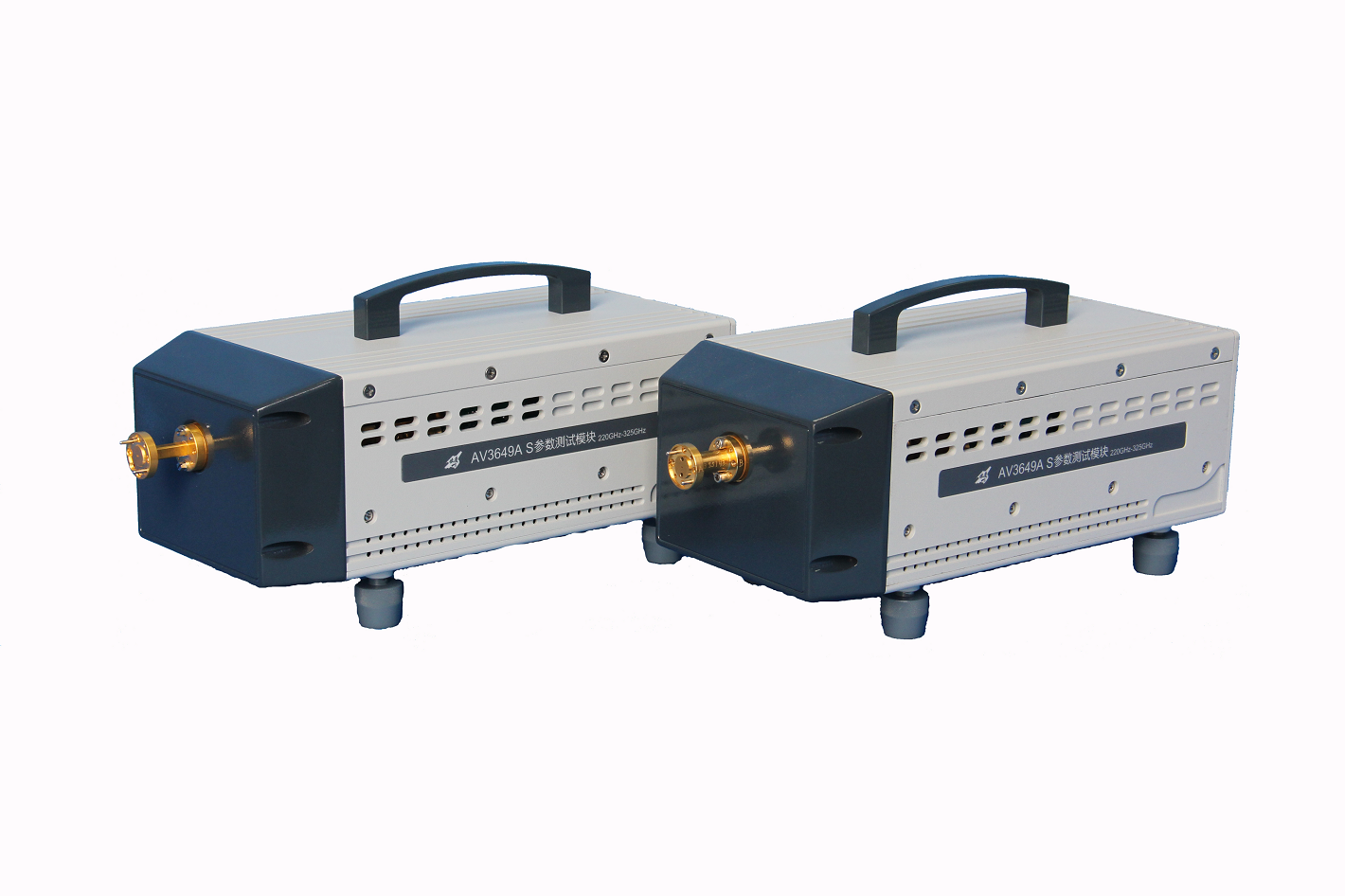

3644A/45A/43Q/49/49A/49B Millimeter-Wave VNA Extender Module, THz Test Solution

Серия 3644
Для увеличения картинки наведите мышкой
Серия 3644Серия 3644
Серия 3644Серия 3644

Наличие: По запросу

По запросу
По запросу
По запросу

Анализаторы электрических цепей Серия 3644 Подробнее




Китайская компания Ceyear Technologies Co., Ltd была… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

3644A/45A/43Q/49/49A/49B Millimeter-We VNA Extender has reached the international level in measurement speed, dynamic range and measurement stability. For hardware, it adopts new design concept and technical solution, which significantly enhance the key performance indexes of the instrument. As for the software, the frequency extending system is based on Windows OS, which greatly improves the interconnectivity and practicability of the instrument.

3644A/45A/43Q/49/49A/49B Millimeter-WavVNA Extender, 3640A millimeter-wavfrequency extending controller and vector network analyzer together constitute the millimeter-wavvector network analyzing system, which can realize flexible configuration of 5mm, 3mm, 2mm, 1mm frequency range and higher, the highest reaches 500GHz. With advantages of concise system configuration, user-friendly interface, high test precision etc., it can realize the full S-parameters measurement of the millimeter-wavnetwork under test. The system is widely used for the R&D, manufacture and test in the fields of millimeter wavcomponents, MMIC, antenna, RCS and materials.

FUNCTIONS & FEATURES

  • Frequency range: 50GHz~500GHz
  • Windows 7 operating system, Simplified Chinese menu (English menu is an option)
  • Various calibration types: frequency response, single port, response isolation, full dual port, TRL etc
  • Applicable to various models of vector network analyzer
  • Working with AV3640A to perform frequency extension measurement of dual-port vector network analyzer
  • Miniaturization of instruments with different frequency range,inclined panel design, general platform, convenient to operate, can enhance the test efficiency.

TYPICAL APPLICATIONS

3640A is a frequency extension controller and is compatible with AV3672X and PNA-X Series Vector Network Analyzers.

Свернуть Развернуть
Основные возможности и технические характеристики

3644A/45A/43Q/49/49A/49B Millimeter-We VNA Extender has reached the international level in measurement speed, dynamic range and measurement stability. For hardware, it adopts new design concept and technical solution, which significantly enhance the key performance indexes of the instrument. As for the software, the frequency extending system is based on Windows OS, which greatly improves the interconnectivity and practicability of the instrument.

3644A/45A/43Q/49/49A/49B Millimeter-WavVNA Extender, 3640A millimeter-wavfrequency extending controller and vector network analyzer together constitute the millimeter-wavvector network analyzing system, which can realize flexible configuration of 5mm, 3mm, 2mm, 1mm frequency range and higher, the highest reaches 500GHz. With advantages of concise system configuration, user-friendly interface, high test precision etc., it can realize the full S-parameters measurement of the millimeter-wavnetwork under test. The system is widely used for the R&D, manufacture and test in the fields of millimeter wavcomponents, MMIC, antenna, RCS and materials.

FUNCTIONS & FEATURES

  • Frequency range: 50GHz~500GHz
  • Windows 7 operating system, Simplified Chinese menu (English menu is an option)
  • Various calibration types: frequency response, single port, response isolation, full dual port, TRL etc
  • Applicable to various models of vector network analyzer
  • Working with AV3640A to perform frequency extension measurement of dual-port vector network analyzer
  • Miniaturization of instruments with different frequency range,inclined panel design, general platform, convenient to operate, can enhance the test efficiency.

TYPICAL APPLICATIONS

3640A is a frequency extension controller and is compatible with AV3672X and PNA-X Series Vector Network Analyzers.

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Характеристики
Загрузить технические характеристики

Model   Index




 3644A




3645A




3643Q




3649




3649A




3649B




Frequency range




50GHz~75GHz




75GHz~110GHz




110GHz~170GHz




170GHz~220GHz




220GHz~325GHz




325GHz~500GHz




Output power




+3dBm




+3dBm




-10dBm




-10dBm




-13dBm




-23dBm




Dynamic range (dB)




95




95




100




100




100




80




Reflection tracking  (dB)




±0.15




±0.15




±0.15




±0.2




±0.2




±0.3




Transmission  tracking (dB)




±0.15




±0.15




±0.15




±0.2




±0.2




±0.3




Effective  directivity (dB)




38




36




34




30




25




20




Effective source  match (dB)




36




36




34




30




25




25




Effective load  match (dB)




38




34




34




30




25




25




Connector type




WR15,system impedance 1Ω




WR10,system impedance 1Ω




WR06,system impedance 1Ω




WR05,system impedance 1Ω




WR03,system impedance 1Ω




WR02,system impedance 1Ω




Working voltage




12VDC@2A




12VDC@2A




12VDC@2A




12VDC@2A




12VDC@2A




12VDC@2A




Size  W×H×D  (mm)




120×90×240




120×90×240




120×90×240




120×90×240




120×90×240




120×90×240



Technical Specifications



Specification



Model




Frequency  range




Output power




Controlling  interface




Power supply  output




Power  supply




Size W×H×D(mm)




3640A




8GHz~20GHz




10±1dBm




Test  set interface




12VDC@2A




Adaptive  power supply:AC220/240V:50/60Hz;



100/115V:50/60/400Hz;




426×177×460  (without handle, pad foot, stand)



3640A is a frequency extension controller and is compatible with 3672X and PNA-X Series Vector Network Analyzers.



Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
3672B
10MHz~26.5GHz
По запросу
- шт +
3672C
10MHz~40GHz
По запросу
- шт +
3672D
10MHz~50GHz
По запросу
- шт +
3672E
10MHz~67GHz
По запросу
- шт +
3649A
Millimeter-Wave VNA Extender (220GHz~325GHz)
По запросу
- шт +
3649B
Millimeter-Wave VNA Extender (325GHz~500GHz)
По запросу
- шт +
3640A
Millimeter-Wave Frequency Extension Controller
По запросу
- шт +
3644A
Millimeter-Wave VNA Extender (50GHz~75GHz)
По запросу
- шт +
3645A
Millimeter-Wave VNA Extender (75GHz~110GHz)
По запросу
- шт +
3643Q
Millimeter-Wave VNA Extender (110GHz~170GHz)
По запросу
- шт +
Calibration kits
32156
5mm WG Calibration Kits (50GHz~75GHz)
По запросу
- шт +
32141
3mm WG Calibration Kits (75GHz~110GHz)
По запросу
- шт +
32155
2mm WG Calibration Kits (110GHz~170GHz)
По запросу
- шт +
20301
1mm WG Calibration Kits (170GHz~220GHz)
По запросу
- шт +
20302
1mm WG Calibration Kits (220GHz~325GHz)
По запросу
- шт +
20301T
0.5THz WG Calibration Kits (325GHz~500GHz)
По запросу
- шт +
