Векторный анализатор цепей 3672A/B/C/D/E

Серия 3672
Для увеличения картинки наведите мышкой
Серия 3672Серия 3672Серия 3672Серия 3672Серия 3672Серия 3672Серия 3672Серия 3672
Серия 3672Серия 3672Серия 3672Серия 3672Серия 3672Серия 3672Серия 3672Серия 3672

Наличие: По запросу

По запросу
По запросу
По запросу

Анализаторы электрических цепей Серия 3672 Подробнее




Китайская компания Ceyear Technologies Co., Ltd была основана в мае 2015 года.… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

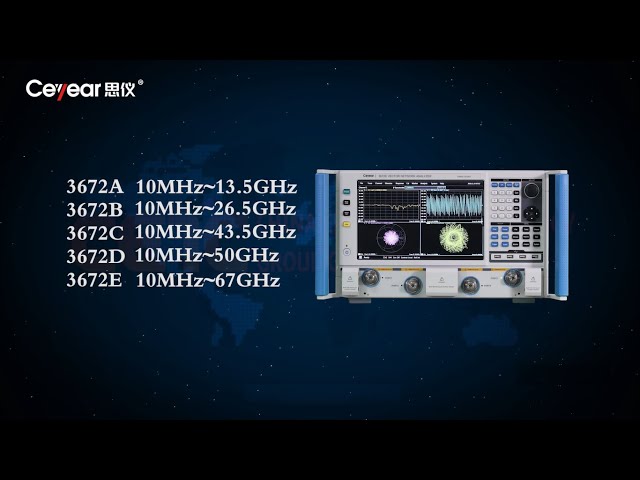

3672 Series Vector Network Analyzers include 3672A (10MHz~13.5GHz), 3672B (10MHz~26.5GHz), 3672C (10MHz~40GHz), 3672D (10MHz~50GHz) and 3672E (10MHz~67GHz). 3672 analyzers provide multiple calibration types including frequency response, single port, response isolation, enhanced response and full dual-port, electronic calibration etc., offer various display formats such as logarithmic amplitude, linear amplitude, standing-wave, phase, group delay, Smith chart and polar coordinates, etc. They are designed with several standard interfaces: USB, LAN, GPIB and VGA etc. Besides all measurement functions same as traditional vector network analyzer, through configuration of functional options, 3672 analyzers are also capable of multifunctional & comprehensive parameter test of mixer/converter, gain compression two-dimensional sweep and pulse S-parameters, as well as accuracy measurement of amplitude-frequency characteristics, phase-frequency characteristics and group delay used in the field of transmitting/receiving (T/R) module measurement, dielectric material properties measurement, microwave pulse characteristics measurement and optoelectronic properties measurement, which are indispensable instruments for scientific research and manufacturing process of radar, communication, and navigation systems.

FUNCTIONS & FEATURES

  • Available in multiple display formats such as logarithmic amplitude, linear amplitude, Standing-wave, phase, Smith chart
  • With USB, GPIB, LAN and VGA display interface
  • 12.1-inch-high resolution touch screen
  • Record/run, one-click operation greatly simplifies the measurement setting steps and improves the efficiency
  • Available in functions as pulse S parameter measurement, time-domain measurement, mixer measurement, gain compression two-dimensional sweep measurement, THz frequency extension, antenna & RCS measurement etc.

Simple and novel operation interface

Flexible and optional calibration types, compatible with multiple calibration kits

3672 Series of Vector Network Analyzers provide multiple calibration types, including smart Cal (guided calibration), unguided calibration (using mechanical calibration kit to conduct through response calibration, through response & isolation calibration and single port calibration, enhanced response calibration as well as full two-port SOLT calibration and TRL calibration) and electronic calibration (E-Cal) etc. Users can select calibration kits, such as coaxial 3.5mm calibration kit and electronic calibration kit based on test requirements, which greatly facilitates testing on devices with different interfaces.

Multiple windows to display all measuring channels

The analyzers possess functions of multi-channel and multi-window display, support up to 64 channels. Maximum 32 measuring windows can be simultaneously displayed, and each window can simultaneously display up to 16 test traces, which improves throughput and test productivity results.

Wide dynamic range

3672 Series of Vector Network Analyzers are designed with the concept of mixer receiving, which effectively extends the dynamic range of the complete machine and meets the test demand for wide dynamic range.

Abundant peripheral interfaces, flexible and practical

Adopting the software & hardware platform consisting of embedded computer module compatible with PC and Windows operation system, 3672 Series of Vector Network Analyzers realize the perfect combination of the instrument and PC. I/O interfaces (including GPIB, USB, and LAN, etc.) are the optimum selection  for data communication.

Low trace noise, high test accuracy

The excellent performance of 3672 Series Vector Network Analyzers in trace noise highly improves the accurate measurement of low insertion loss devices. (Take 3672B as an example)

Time-domain analysis

With the time-domain option, 3672 Series Vector Network Analyzers computes the inverse Fourier transform of the frequency-domain data to display reflection or transmission coefficients versus time, which can detect the discontinuous points of DUT and locate the DTF accurately.

TYPICAL APPLICATIONS

Automatic test

3672 Series Vector Network Analyzers can provide you integrated automatic test solutions to ensure high quality tests and decrease R&D costs of test significantly. Automatic test system is capable enough to help engineers accomplishing complicated tests under various complex environments.

Свернуть Развернуть
Основные возможности и технические характеристики

3672 Series Vector Network Analyzers include 3672A (10MHz~13.5GHz), 3672B (10MHz~26.5GHz), 3672C (10MHz~40GHz), 3672D (10MHz~50GHz) and 3672E (10MHz~67GHz). 3672 analyzers provide multiple calibration types including frequency response, single port, response isolation, enhanced response and full dual-port, electronic calibration etc., offer various display formats such as logarithmic amplitude, linear amplitude, standing-wave, phase, group delay, Smith chart and polar coordinates, etc. They are designed with several standard interfaces: USB, LAN, GPIB and VGA etc. Besides all measurement functions same as traditional vector network analyzer, through configuration of functional options, 3672 analyzers are also capable of multifunctional & comprehensive parameter test of mixer/converter, gain compression two-dimensional sweep and pulse S-parameters, as well as accuracy measurement of amplitude-frequency characteristics, phase-frequency characteristics and group delay used in the field of transmitting/receiving (T/R) module measurement, dielectric material properties measurement, microwave pulse characteristics measurement and optoelectronic properties measurement, which are indispensable instruments for scientific research and manufacturing process of radar, communication, and navigation systems.

FUNCTIONS & FEATURES

  • Available in multiple display formats such as logarithmic amplitude, linear amplitude, Standing-wave, phase, Smith chart
  • With USB, GPIB, LAN and VGA display interface
  • 12.1-inch-high resolution touch screen
  • Record/run, one-click operation greatly simplifies the measurement setting steps and improves the efficiency
  • Available in functions as pulse S parameter measurement, time-domain measurement, mixer measurement, gain compression two-dimensional sweep measurement, THz frequency extension, antenna & RCS measurement etc.

Simple and novel operation interface

Flexible and optional calibration types, compatible with multiple calibration kits

3672 Series of Vector Network Analyzers provide multiple calibration types, including smart Cal (guided calibration), unguided calibration (using mechanical calibration kit to conduct through response calibration, through response & isolation calibration and single port calibration, enhanced response calibration as well as full two-port SOLT calibration and TRL calibration) and electronic calibration (E-Cal) etc. Users can select calibration kits, such as coaxial 3.5mm calibration kit and electronic calibration kit based on test requirements, which greatly facilitates testing on devices with different interfaces.

Multiple windows to display all measuring channels

The analyzers possess functions of multi-channel and multi-window display, support up to 64 channels. Maximum 32 measuring windows can be simultaneously displayed, and each window can simultaneously display up to 16 test traces, which improves throughput and test productivity results.

Wide dynamic range

3672 Series of Vector Network Analyzers are designed with the concept of mixer receiving, which effectively extends the dynamic range of the complete machine and meets the test demand for wide dynamic range.

Abundant peripheral interfaces, flexible and practical

Adopting the software & hardware platform consisting of embedded computer module compatible with PC and Windows operation system, 3672 Series of Vector Network Analyzers realize the perfect combination of the instrument and PC. I/O interfaces (including GPIB, USB, and LAN, etc.) are the optimum selection  for data communication.

Low trace noise, high test accuracy

The excellent performance of 3672 Series Vector Network Analyzers in trace noise highly improves the accurate measurement of low insertion loss devices. (Take 3672B as an example)

Time-domain analysis

With the time-domain option, 3672 Series Vector Network Analyzers computes the inverse Fourier transform of the frequency-domain data to display reflection or transmission coefficients versus time, which can detect the discontinuous points of DUT and locate the DTF accurately.

TYPICAL APPLICATIONS

Automatic test

3672 Series Vector Network Analyzers can provide you integrated automatic test solutions to ensure high quality tests and decrease R&D costs of test significantly. Automatic test system is capable enough to help engineers accomplishing complicated tests under various complex environments.

  • 1. Power Cord Assembly | Standard three-prong power cord
  • 1. USB Keyboard/Mouse
  • 1. User Manual
  • 1. Certificate of Conformity
  • 1. Aluminum Alloy Box
  • 1. Power Cord Assembly | Standard three-prong power cord
  • 1. USB Keyboard/Mouse
  • 1. User Manual
  • 1. Certificate of Conformity
  • 1. Aluminum Alloy Box
Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
77566-20
66454-17
Наименование СИ
Анализаторы цепей векторные
Анализаторы цепей векторные
Обозначение типа СИ
3672, 3672-S
AV3672A/B/C/D
Изготовитель
Фирма "China Electronics Technology Instruments Co., Ltd.", Китай
Фирма "China Electronics Technology Instruments Co., Ltd.", Китай
Срок свидетельства или заводской номер
25.02.2025
26.01.2022

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
77566-20
66454-17
Наименование СИ
Анализаторы цепей векторные
Анализаторы цепей векторные
Обозначение типа СИ
3672, 3672-S
AV3672A/B/C/D
Изготовитель
Фирма "China Electronics Technology Instruments Co., Ltd.", Китай
Фирма "China Electronics Technology Instruments Co., Ltd.", Китай
Срок свидетельства или заводской номер
25.02.2025
26.01.2022

  • Обзор продукции|Ceyear 3672 серия ВАЦ
Характеристики
Загрузить технические характеристики

3672A/B Technical Specifications

Frequency Characteristic

Frequency Range

10MHz~13.5/26.5GHz

Frequency Resolution

1Hz

Frequency Accuracy

±1×10-7(23℃±3℃)

Port   Harmonic Suppression

Typical   Value

Harmonic Suppression on Port 1   And 3

-48dBc(0.01~4GHz)

-57dBc(4~13.5GHz)

-57dBc(13.5~26.5GHz)

-51dBc(0.01~4GHz)

-60dBc(4~13.5GHz)

-60dBc(13.5~26.5GHz)

Harmonic Suppression On Port 2   And 4

-13dBc(0.01~4GHz)

-18dBc(4~13.5GHz)

-18dBc(13.5~26.5GHz)

-13dBc(0.01~4GHz)

-21dBc(4~13.5GHz)

-21dBc(13.5~26.5GHz)

Port   Power Characteristic

Typical   Value

Power Sweep Range

33dB(10~500MHz)

30dB(0.5~4GHz)

34dB(4~7GHz)

31dB(7~13.5GHz)

29dB(13.5~20GHz)

25dB(20~26.5GHz)

42dB(10~500MHz)

37dB(0.5~4GHz)

42dB(4~7GHz)

41dB(7~13.5GHz)

38dB(13.5~20GHz)

35dB(20~26.5GHz)

Max. Output Power

(Standard Configuration, Option 400)

Port1, 3

0dBm(0.01~4GHz)(Filter   Mode)

+9dBm(10~50MHz)(High   Power Mode)

+6dBm(0.05~4GHz)(High   Power Mode)

+12dBm(4~7GHz)

+8dBm(7~13.5GHz)

+6dBm(13.5~20GHz)

+4dBm(20~26.5GHz)

+16dBm(10~50MHz)(High   Power Mode)

+11dBm(0.05~4GHz)(High   Power Mode)

+16dBm(4~7GHz)

+14dBm(7~13.5GHz)

+11dBm(13.5~20GHz)

+9dBm(20~26.5GHz)

Port2, 4

+13dBm(10~50MHz)

+13dBm(0.05~4GHz)

+10dBm(4~7GHz)

+9dBm(7~13.5GHz)

+6dBm(13.5~20GHz)

+2dBm(20~26.5GHz)

+16dBm(10~50MHz)

+16dBm(0.05~4GHz)

+16dBm(4~7GHz)

+15dBm(7~13.5GHz)

+13dBm(13.5~20GHz)

+8dBm(20~26.5GHz)

Max. Output Power

(Option 201, 401, 402)

Port1, 3

-1dBm(0.01~4GHz)(Filter   Mode)

+8dBm(10~50MHz)(High   Power Mode)

+5dBm(0.05~4GHz)(High   Power Mode)

+10dBm(4~7GHz)

+6dBm(7~13.5GHz)

+4dBm(13.5~20GHz)

+2dBm(20~26.5GHz)

+15dBm(10~50MHz)(High   Power Mode)

+10dBm(0.05~4GHz)(High   Power Mode)

+15dBm(4~7GHz)

+13dBm(7~13.5GHz)

+10dBm(13.5~20GHz)

+8dBm(20~26.5GHz)

Port2, 4

+12dBm(10~50MHz)

+12dBm(0.05~4GHz)

+9dBm(4~7GHz)

+8dBm(7~13.5GHz)

+5dBm(13.5~20GHz)

0dBm(20~26.5GHz)

+15dBm(10~50MHz)

+15dBm(0.05~4GHz)

+15dBm(4~7GHz)

+14dBm(7~13.5GHz)

+12dBm(13.5~20GHz)

+7dBm(20~26.5GHz)

1dB Compression Level

/

+13dBm

Pulse Characteristic

Typical Value

Pulse Width Setting Range

33ns~60s

20ns~60s

Pulse Transition Time

(10%-90%)

30ns

20ns

Pulse On/Off Ratio

64dB(0.01~4GHz)

80dB(4~26.5GHz)

Network   Parameter Characteristic

Typical   Value

System Dynamic Range

90dB(0.01~1GHz)

120dB(1~4GHz)

127dB(4~10GHz)

120dB(10~20GHz)

115dB(20~24GHz)

110dB(24~26.5GHz)

100dB(0.01~1GHz)

128dB(1~4GHz)

135dB(4~10GHz)

132dB(10~20GHz)

129dB(20~24GHz)

125dB(24~26.5GHz)

Effective Directivity

48dB(0.01~2GHz)

44dB(2~26.5GHz)

60dB(0.01~2GHz)

53dB(2~26.5GHz)

Effective Source Match

40dB(0.01~2GHz)

30dB(2~26.5GHz)

46dB(0.01~2GHz)

36dB(2~26.5GHz)

Effective Load Match

48dB(0.01~2GHz)

44dB(2~26.5GHz)

60dB(0.01~2GHz)

51dB(2~26.5GHz)

Reflection Tracking

±0.04dB(0.01~2GHz)

±0.05dB(2~26.5GHz)

±0.004dB(0.01~2GHz)

±0.010dB(2~26.5GHz)

Transmission Tracking

±0.10dB(0.01~2GHz)

±0.12dB(2~26.5GHz)

±0.005dB(0.01~2GHz)

±0.015dB(2~26.5GHz)

Others

Typical   Value

Amplitude Trace Noise

dB rms(1kHz If Bandwidth)

0.0500(10~50MHz)

0.0070(50~500MHz)

0.0020(0.5~13.5GHz)

0.0030(13.5~20GHz)

0.0050(20~26.5GHz)

0.0020(10~50MHz)

0.0008(50~500MHz)

0.0009(0.05~13.5GHz)

0.0008(13.5~20GHz)

0.0010(20~26.5GHz)

Phase Trace Noise

deg rms(1kHz IF  Bandwidth)

0.200(10~50MHz)

0.051(50~500MHz)

0.042(0.5~13.5GHz)

0.054(13.5~20GHz)

0.054(20~26.5GHz)

0.020(10~50MHz)

0.006(50~500MHz)

0.006(0.05~13.5GHz)

0.006(13.5~20GHz)

0.012(20~26.5GHz)

IF Bandwidth

1Hz~5MHz

Amplitude Display Resolution

0.001dB/div

Phase Display Resolution

0.01°/div

Setting   Requirement of Reference Level Amplitude

-500~+500dB

Setting   Requirement of Reference Level Phase

-500~+500°

General   Characteristic

Port Connectors

3.5mm (Male), 50 ohm system   impedance

Number of Measuring Ports

3672A/B Standard configuration:2   Ports;3672A/B-400 Option:4 Ports

Peripheral Interface

USB, GPIB, VGA, LAN

Operating System

Windows 7

Display

12.1-Inch High Resolution   Touch Screen

Size

W´H´D=426mm×266mm×550mm (excluding support and   handle)

W´H´D=516mm×280mm×640mm (including handle, support and back   foot)

Max. Power Consumption

400w

Max. Weight

42kg

3672C/D Technical Specifications

Frequency Characteristic

Frequency Range

10MHz~43.5/50GHz

Frequency Resolution

1Hz

Frequency Accuracy

±1×10-7(23℃±3℃)

Port Harmonic Suppression

Typical   Value

Harmonic Suppression on Port 1   And 3

-48dBc(0.01~4GHz)

-57dBc(4~13.5GHz)

-57dBc(13.5~50GHz)

-51dBc(0.01~4GHz)

-60dBc(4~13.5GHz)

-60dBc(13.5~50GHz)

Harmonic Suppression on Port 2   And 4

-13dBc(0.01~4GHz)

-18dBc(4~13.5GHz)

-57dBc(13.5~50GHz)

-13dBc(0.01~4GHz)

-21dBc(4~13.5GHz)

-60dBc(13.5~50GHz)

Port   Power Characteristic

Typical   Value

Power Sweep Range

32dB(10~50MHz)

29dB(0.05~4GHz)

28dB(4~13.5GHz)

30dB(13.5~40GHz)

27dB(40~47GHz)

15dB(47~50GHz)

41dB(10~500MHz)

40dB(0.5~4GHz)

36dB(4~13.5GHz)

38dB(13.5~40GHz)

36dB(40~47GHz)

23dB(47~50GHz)

Max. Output Power

(Standard Configuration, Option   400)

Port 1, 3

-1dBm(10~50MHz)(Filter   Mode)

0dBm(0.05~4GHz)(Filter   Mode)

+8dBm(10~50MHz)(High   Power Mode)

+5dBm(0.05~4GHz) (High Power   Mode)

+5dBm(4~13.5GHz)

+7dBm(13.5~40GHz)

+5dBm(40~47GHz)

-7dBm(47~50GHz)

+13dBm(10~50MHz)(High   Power Mode)

+9dBm(0.05~4GHz)(High   Power Mode)

+10dBm(4~13.5GHz)

+13dBm(13.5~40GHz)

+10dBm(40~47GHz)

0dBm(47~50GHz)

Port 2, 4

+11dBm(10~50MHz)

+9dBm(0.05~4GHz)

+6dBm(4~13.5GHz)

+7dBm(13.5~40GHz)

+5dBm(40~47GHz)

-7dBm(47~50GHz)

+16dBm(10~50MHz)

+15dBm(0.05~4GHz)

+13dBm(4~13.5GHz)

+12dBm(13.5~40GHz)

+9dBm(40~47GHz)

-1dBm(47~50GHz)

Max. Output Power

(Option 201, 401, 402)

Port 1, 3

-2dBm(10~50MHz)(Filter   Mode)

-1dBm(0.05~4GHz)(Filter   Mode)

+7dBm(10~50MHz)(High   Power Mode)

+4dBm(0.05~4GHz)(High Power Mode)

+3dBm(4~13.5GHz)

+5dBm(13.5~40GHz)

+2dBm(40~47GHz)

-10dBm(47~50GHz)

+12dBm(10~50MHz)(High   Power Mode)

+8dBm(0.05~4GHz)(High   Power Mode)

+9dBm(4~13.5GHz)

+12dBm(13.5~40GHz)

+9dBm(40~47GHz)

-1dBm(47~50GHz)

Port 2, 4

+10dBm(10~50MHz)

+8dBm(0.05~4GHz)

+4dBm(4~13.5GHz)

+5dBm(13.5~40GHz)

+2dBm(40~47GHz)

-10dBm(47~50GHz)

+15dBm(10~50MHz)

+14dBm(0.05~4GHz)

+12dBm(4~13.5GHz)

+11dBm(13.5~40GHz)

+8dBm(40~47GHz)

-2dBm(47~50GHz)

1dB Compression Level

/

+10dBm

Pulse   Characteristic

Typical   Value

Pulse Width Setting Range

33ns~60s

20ns~60s

Pulse Transition Time

(10%-90%)

30ns

20ns

Pulse On/Off Ratio

64dB(0.01~4GHz)

80dB(4~40GHz)

80dB(40~50GHz)

Network Parameter Characteristics

Typical   Value

System Dynamic Range

74dB(0.01~1GHz)

119dB(1~13.5GHz)

115dB(13.5~26.5GHz)

110dB(26.5~35GHz)

105dB(35~47GHz)

90dB(47~50GHz)

105dB(0.01~1GHz)

133dB(1~13.5GHz)

126dB(13.5~26.5GHz)

120dB(26.5~35GHz)

116dB(35~47GHz)

103dB(47~50GHz)

Effective Directivity

42dB(0.01~13.5GHz)

38dB(13.5~40GHz)

36dB(40~50GHz)

50dB(0.01~13.5GHz)

45dB(13.5~40GHz)

42dB(40~50GHz)

Effective Source Match

36dB(0.01~2GHz)

31dB(2~13.5GHz)

28dB(13.5~40GHz)

27dB(40~50GHz)

43dB(0.01~2GHz)

34dB(2~13.5GHz)

33dB(13.5~40GHz)

33dB(40~50GHz)

Effective Load Match

42dB(0.01~13.5GHz)

37dB(13.5~40GHz)

35dB(40~50GHz)

60dB(0.01~13.5GHz)

56dB(13.5~40GHz)

51dB(40~50GHz)

Reflection Tracking

±0.04dB(0.01~13.5GHz)

±0.03dB(13.5~40GHz)

±0.04dB(40~50GHz)

±0.010dB(0.01~13.5GHz)

±0.010dB(13.5~40GHz)

±0.020dB(40~50GHz)

Transmission Tracking

±0.1dB(0.01~13.5GHz)

±0.16dB(13.5~40GHz)

±0.20dB(40~50GHz)

±0.012dB(0.01~13.5GHz)

±0.015dB(13.5~40GHz)

±0.020dB(40~50GHz)

Others

Typical   Value

Amplitude Trace Noise

dB rms(1kHz IF Bandwidth)

0.050(10~50MHz)

0.020(50~500MHz)

0.005(0.5~13.5GHz)

0.004(13.5~26.5GHz)

0.008(26.5~50GHz)

0.0060(10~50MHz)

0.0020(50~500MHz)

0.0010(0.5~13.5GHz)

0.0009(13.5~26.5GHz)

0.0040(26.5~50GHz)

Phase Trace Noise

deg rms (1kHz IF Bandwidth)

0.900(10~50MHz)

0.700(50~500MHz)

0.040(0.5~13.5GHz)

0.050(13.5~26.5GHz)

0.060(26.5~50GHz)

0.040(10~50MHz)

0.010(50~500MHz)

0.005(0.5~13.5GHz)

0.020(13.5~26.5GHz)

0.030(26.5~50GHz)

IF Bandwidth

1Hz~5MHz

Amplitude Display Resolution

0.001dB/div

Phase Display Resolution

0.01°/div

Setting   Requirement of Reference Level Amplitude

-500~+500dB

Setting   Requirement of Reference Level Phase

-500~+500°

General Characteristic

Port Connectors

2.4mm (Male), 50 ohm system   impedance

Number of Measuring Ports

3672C/D Standard configuration:2   ports, 3672C/D-400 Option: 4 ports

Peripheral Interface

USB, GPIB, VGA, LAN

Operating System

Windows 7

Display

12.1-Inch High Resolution   Touch Screen

Size

W´H´D=426mm×266mm×600mm (excluding support and handle)

W´H´D=516mm×280mm×690mm (including handle, support and back   foot)

Max. Power Consumption

500w

Max. Weight

47kg

3672E Technical Specifications

Frequency Characteristics


Frequency Range

10MHz~67GHz

Frequency Resolution

1Hz

Frequency Accuracy

±1×10-7(23℃±3℃)

Port   Harmonic Suppression

Typical   Value

Harmonic Suppression on Port 1   and 3

-48dBc(0.01~4GHz)

-57dBc(4~67GHz)

-51dBc(0.01~4GHz)

-60dBc(4~67GHz)

Harmonic Suppression on Port 2   and 4

-13dBc(0.01~4GHz)

-18dBc(4~13.5GHz)

-57dBc(13.5~67GHz)

-13dBc(0.01~4GHz)

-21dBc(4~13.5GHz)

-60dBc(13.5~67GHz)

Port   Power Characteristics

Typical   Value

Power Sweep Range

32dB(10~50MHz)

29dB(0.05~4GHz)

28dB(4~26.5GHz)

29dB(26.5~35GHz)

26dB(35~40GHz)

25dB(40~67GHz)

42dB(10~500MHz)

38dB(0.5~4GHz)

36dB(4~26.5GHz)

35dB(26.5~35GHz)

34dB(35~40GHz)

32dB(40~67GHz)

Max. Output Power

(standard configuration, option   400)

Port 1, 3

-1dBm(10~50MHz)(Filter   mode)

0dBm(0.05~4GHz)(Filter   mode)

+8dBm(10~50MHz)(High   power mode)

+5dBm(0.05~4GHz)(High power mode)

+1dBm(4~13.5GHz)

+5dBm(13.5~26.5GHz)

+3dBm(26.5~40GHz)

+5dBm(40~67GHz)

+16dBm(10~50MHz)(High   power mode)

+10dBm(0.05~4GHz)(High   power mode)

+9dBm(4~13.5GHz)

+11dBm(13.5~26.5GHz)

+10dBm(26.5~40GHz)

+9dBm(40~67GHz)

Port 2, 4

+8dBm(10~50MHz)

+5dBm(0.05~4GHz)

+1dBm(4~13.5GHz)

+5dBm(13.5~26.5GHz)

+3dBm(26.5~40GHz)

+5dBm(40~67GHz)

+16dBm(10~50MHz)

+15dBm(0.05~4GHz)

+10dBm(4~13.5GHz)

+11dBm(13.5~26.5GHz)

+9dBm(26.5~40GHz)

+8dBm(40~67GHz)

Max. Output Power

(option   201, 401, 402)

Port 1, 3

-2dBm(10~50MHz)(Filter Mode)

-1dBm(0.05~4GHz)(Filter Mode)

+7dBm(10~50MHz)(High Power   Mode)

+4dBm(0.05~4GHz)(High Power Mode)

-2dBm(4~13.5GHz)

+3dBm(13.5~26.5GHz)

0dBm(26.5~67GHz)

+15dBm(10~50MHz)(High Power   Mode)

+9dBm(0.05~4GHz)(High Power   Mode)

+6dBm(4~13.5GHz)

+7dBm(13.5~26.5GHz)

+4dBm(26.5~67GHz)

Port 2, 4

+7dBm(10~50MHz)

+4dBm(0.05~4GHz)

-2dBm(4~13.5GHz)

+3dBm(13.5~26.5GHz)

0dBm(26.5~67GHz)

+15dBm(10~50MHz)

+14dBm(0.05~4GHz)

+9dBm(4~13.5GHz)

+10dBm(13.5~26.5GHz)

+5dBm(26.5~67GHz)

1dB Compression Level

/

+10dBm

Pulse Characteristics

Typical Value

Pulse Width Setting Range

33ns~60s

20ns~60s

Pulse Transition Time (10%-90%)

30ns

20ns

Pulse on/off Ratio

64dB(0.01~4GHz)

80dB(4~67GHz)

Network   Parameter Characteristic

Typical   Value

System Dynamic Range

74dB(0.01~1GHz)

100dB(1~4GHz)

120dB(4~10GHz)

112dB(10~26.5GHz)

108dB(26.5~35GHz)

105dB(35~50GHz)

100dB(50~67GHz)

100dB(0.01~1GHz)

125dB(1~4GHz)

125dB(4~10GHz)

120dB(10~26.5GHz)

115dB(26.5~35GHz)

112dB(35~50GHz)

105dB(50~67GHz)

Effective Directivity

35dB(0.01~2GHz)

41dB(2~13.5GHz)

34dB(13.5~40GHz)

32dB(40~67GHz)

50dB(0.01~2GHz)

50dB(2~13.5GHz)

50dB(13.5~40GHz)

42dB(40~67GHz)

Effective Load Match

35dB(0.01~2GHz)

41dB(2~13.5GHz)

33dB(13.5~40GHz)

30dB(40~67GHz)

60dB(0.01~2GHz)

50dB(2~13.5GHz)

50dB(13.5~40GHz)

45dB(40~67GHz)

Reflection Tracking

±0.05dB(0.01~2GHz)

±0.06dB(2~13.5GHz)

±0.08dB(13.5~40GHz)

±0.10dB(40~67GHz)

±0.005dB(0.01~2GHz)

±0.005dB(2~13.5GHz)

±0.008dB(13.5~40GHz)

±0.010dB(40~67GHz)

Transmission Tracking

±0.10dB(0.01~2GHz)

±0.11dB(2~13.5GHz)

±0.16dB(13.5~40GHz)

±0.20dB(40~67GHz)

±0.005dB(0.01~2GHz)

±0.006dB(2~13.5GHz)

±0.015dB(13.5~40GHz)

±0.020dB(40~67GHz)

Others

  Typical Value

Amplitude Trace Noise

dB rms(1kHz IF bandwidth)

0.050(10~50MHz)

0.020(50~500MHz)

0.005(0.5~13.5GHz)

0.004(13.5~26.5GHz)

0.020(26.5~67GHz)

0.0090(10~50MHz)

0.0020(50~500MHz)

0.0008(0.5~13.5GHz)

0.0008(13.5~26.5GHz)

0.0050(26.5~67GHz)

Phase Trace Noise

deg rms(1kHz IF bandwidth)

0.90(10~50MHz)

0.70(50~500MHz)

0.04(0.5~13.5GHz)

0.05(13.5~26.5GHz)

0.10(26.5~67GHz)

0.010(10~50MHz)

0.010(50~500MHz)

0.006(0.5~13.5GHz)

0.007(13.5~26.5GHz)

0.030(26.5~67GHz)

IF Bandwidth

1Hz~5MHz

Amplitude Display Resolution

0.001dB/div

Phase Display Resolution

0.01°/div

Setting   Requirement of Reference Level Amplitude

-500~+500dB

Setting   Requirement of Reference Level Phase

-500~+500°

General   Characteristics


Port Connectors

1.85mm (Male), 50 ohm system impedance

Number of measuring Ports

3672E Standard configuration:2   ports, 3672E-400 Option: 4 ports

Peripheral Interface

USB, GPIB, VGA, LAN

Operating System

Windows 7

Display

12.1-Inch High Resolution   Touch Screen

Size

W´H´D=426mm×266mm×600mm (excluding support and handle)

W´H´D=516mm×280mm×690mm (including handle, support and back   foot)

Max. Power Consumption

500W

Max. Weight

50 kg




Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
3672A
Vector Network Analyzer (10MHZ ~ 13.5GHZ)
По запросу
- шт +
3672B
Vector Network Analyzer (10MHZ ~ 26.5GHZ)
По запросу
- шт +
3672C
Vector Network Analyzer (10MHZ ~ 40GHZ)
По запросу
- шт +
3672D
Vector Network Analyzer (10MHZ ~ 50GHZ)
По запросу
- шт +
3672E
Vector Network Analyzer (10MHZ ~ 67GHZ)
По запросу
- шт +
Accessories
87232
USB Power Probe (For 402, S82, S86 Options in the process of power calibration(50MHZ-26.5GHZ))
По запросу
- шт +
87233
USB Power Probe (For 402, S82, S86 Options in the process of power calibration (50MHz-40GHz))
По запросу
- шт +
31121
3.5mm Calibration Kit (For calibration of the analyzer)
По запросу
- шт +
31123
2.4mm Calibration Kit (For calibration of the analyzer)
По запросу
- шт +
31123A
2.4mm Calibration Kit (For calibration of the analyzer)
По запросу
- шт +
20403
E-Cal Kit (For calibration of the analyzer (10MHz-26.5GHz, 2 ports))
По запросу
- шт +
20404
E-Cal Kit (For calibration of the analyzer (10MHz-50GHz 2 ports))
По запросу
- шт +
20405
E-Cal Kit (For calibration of the analyzer (10MHz-20GHZ, 4 ports))
По запросу
- шт +
FB0HA0HB025.0
3.5mm Test cable (For measurement of the analyzer)
По запросу
- шт +
FB0HA0HC025.0
3.5mm Test cable (For measurement of the analyzer)
По запросу
- шт +
FE0BN0BM025.0
2.4mm Test cable (For measurement of the analyzer)
По запросу
- шт +
FE0BN0BL025.0
2.4mm Test cable (For measurement of the analyzer)
По запросу
- шт +
31128
1.85mm Calibration Kit (For calibration of the analyzer)
По запросу
- шт +
20409
E-Cal Kit (For calibration of the analyzer (10MHZ-67GHZ, 2 ports))
По запросу
- шт +
N4697F/ FF0CN0CM025.0
1.85mm Test cable (For measurement of the analyzer)
По запросу
- шт +
hardware options
3672A-008
Pulse Measurement (For pulse S-parameter measurement)
По запросу
- шт +
3672A-401
4-Port Programmable Step Attenuator (Set four 70dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed))
По запросу
- шт +
3672B-201
2-Port Programmable Step Attenuator (Set Two 70dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path)
По запросу
- шт +
3672B-400
4-Port Measurement (Two-source stimulus four-port VNA configuration)
По запросу
- шт +
3672B-401
4-Port Programmable Step Attenuator (Set four 70dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed))
По запросу
- шт +
3672B-402
Active Inter-modulation Measurement (For inter-modulation signal measurement of amplifier (Option 400 is needed))
По запросу
- шт +
3672B-006
English Options (Key, Front Panel, Label, Operation System)
По запросу
- шт +
3672B-008
Pulse Measurement (For pulse S-parameter measurement)
По запросу
- шт +
3672C-201
2-Port Programmable Step Attenuator (Set two 60dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path)
По запросу
- шт +
3672C-400
4-Port Measurement (Two-source stimulus four-port VNA configuration)
По запросу
- шт +
3672C-401
4-Port Programmable Step Attenuator (Set four 60dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed))
По запросу
- шт +
3672C-402
Active Inter-modulation Measurement (For inter-modulation signal measurement of amplifier (Option 400 is needed))
По запросу
- шт +
3672C-006
English Options (Key, Front Panel, Label, Operation System)
По запросу
- шт +
3672C-008
Pulse Measurement (For pulse S-parameter measurement)
По запросу
- шт +
3672D-201
2-Port Programmable Step Attenuator (Set two 60dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path)
По запросу
- шт +
3672D-400
4-Port Measurement (Two-source stimulus four-port VNA configuration)
По запросу
- шт +
3672D-401
4-Port Programmable Step Attenuator (Set four 60dB programmable step attenuators for the source path, and four 35dB programmable step attenuators for the receiver path (Option 400 is needed))
По запросу
- шт +
3672D-006
English Options (Key, Front Panel, Label, Operation System)
По запросу
- шт +
3672D-008
Pulse Measurement (For pulse S-parameter measurement)
По запросу
- шт +
0,000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000003672
2-Port Programmable Step Attenuator (Set two 50dB programmable step attenuators for the source path, and two 50dB programmable step attenuators for the receiver path)
По запросу
- шт +
3672E-400
4-Port Measurement (Two-source stimulus four-port VNA configuration)
По запросу
- шт +
3672E-401
4-Port Programmable Step Attenuator (Set four 50dB programmable step attenuators for the source path, and four 50dB programmable step attenuators for the receiver path (Option 400 is needed))
По запросу
- шт +
3672E-402
Active Inter-modulation Measurement (For inter-modulation signal measurement of amplifier (Option 400 is needed))
По запросу
- шт +
0,003672
English Options (Key, Front Panel, Label, Operation System)
По запросу
- шт +
0,00003672
Pulse Measurement (For pulse S-parameter measurement)
По запросу
- шт +
3672A-201
2-Port Programmable Step Attenuator (Set two 70dB programmable step attenuators for the source path, and two 35dB programmable step attenuators for the receiver path)
По запросу
- шт +
3672A-400
4-Port Measurement (Two-source stimulus four-port VNA configuration)
По запросу
- шт +
3672A-402
Active Inter-modulation Measurement (For inter-modulation signal measurement of amplifier (Option 400 is needed))
По запросу
- шт +
3672A-006
English Options (Key, Front Panel, Label, Operation System)
По запросу
- шт +
Software options
3672A-S10
Time Domain Measurement (For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables.)
По запросу
- шт +
3672A-S80
Frequency Offset Measurement (For frequency offset measurement. millimeter-wave frequency extension main unit needs this option)
По запросу
- шт +
3672A-S82
Mixer Scalar Measurement (For the scalar parameter measurement of mixers (Option 400 is needed))
По запросу
- шт +
3672A-S83
Mixer Vector Measurement (For the vector parameter measurement of mixers (Option 400 is needed))
По запросу
- шт +
3672A-S84
Embedded LO Frequency Converter Measurement (For the measurement of embedded LO frequency converters (Option 400, S82 or S83 are needed))
По запросу
- шт +
3672A-S86
Gain Compression Two-Dimension Sweep Measurement (For the gain compression two-dimension sweep test of amplifier)
По запросу
- шт +
3672B-S10
Time Domain Measurement (For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables.)
По запросу
- шт +
3672B-S80
Frequency Offset Measurement (For frequency offset measurement. millimeter-wave frequency extension main unit needs this option)
По запросу
- шт +
3672B-S82
Mixer Scalar Measurement (For the scalar parameter measurement of mixers (Option 400 is needed))
По запросу
- шт +
3672B-S83
Mixer Vector Measurement (For the vector parameter measurement of mixers (Option 400 is needed))
По запросу
- шт +
3672B-S84
Embedded LO Frequency Converter Measurement (For the measurement of embedded LO frequency converters(Option 400, S82 or S83 are needed))
По запросу
- шт +
3672B-S86
Gain Compression Two-Dimension Sweep Measurement (For the gain compression two-dimension sweep test of amplifier)
По запросу
- шт +
3672C-S10
Time Domain Measurement (For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables.)
По запросу
- шт +
3672C-S80
Frequency Offset Measurement (For frequency offset measurement. millimeter-wave frequency extension main unit needs this option)
По запросу
- шт +
3672C-S82
Mixer Scalar Measurement (For the scalar parameter measurement of mixers (Option 400 is needed))
По запросу
- шт +
3672C-S83
Mixer Vector Measurement (For the vector parameter measurement of mixers (Option 400 is needed))
По запросу
- шт +
3672C-S84
Embedded LO Frequency Converter Measurement (For the measurement of embedded LO frequency converters (Option 400, S82 or S83 are needed))
По запросу
- шт +
3672C-S86
Gain Compression Two-Dimension Sweep Measurement (For the gain compression two-dimension sweep test of amplifier)
По запросу
- шт +
3672D-S10
Time Domain Measurement (For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables.)
По запросу
- шт +
3672D-S80
Frequency Offset Measurement (For frequency offset measurement. millimeter-wave frequency extension main unit needs this option)
По запросу
- шт +
3672D-S82
Mixer Scalar Measurement (For the scalar parameter measurement of mixers (Option 400 is needed))
По запросу
- шт +
3672D-S83
Mixer Vector Measurement (For the vector parameter measurement of mixers (Option 400 is needed))
По запросу
- шт +
3672D-S84
Embedded LO Frequency Converter Measurement (For the measurement of embedded LO frequency converters(Option 400, S82 or S83 are needed))
По запросу
- шт +
3672D-S86
Gain Compression Two-Dimension Sweep Measurement (For the gain compression two-dimension sweep test of amplifier)
По запросу
- шт +
3672E-S10
Time-Domain Measurement (For time-domain test, can locate and analyze the discontinuous positions in devices, fixtures or cables.)
По запросу
- шт +
3672E-S80
Frequency Offset Measurement (For frequency offset measurement. millimeter-wave frequency extension main unit needs this option)
По запросу
- шт +
3672E-S82
Mixer Scalar Measurement (For the scalar parameter measurement of mixers (Option 400 is needed))
По запросу
- шт +
3672E-S83
Mixer Vector Measurement (For the vector parameter measurement of mixers (Option 400 is needed))
По запросу
- шт +
3672E-S84
Embedded LO Frequency Converter Measurement (For the measurement of embedded LO frequency converters(Option 400, S82 or S83 are needed))
По запросу
- шт +
3672E-S86
Gain Compression Two-Dimension Sweep Measurement (For the gain compression two-dimension sweep test of amplifier)
По запросу
- шт +
Standard Package
1
Power Cord Assembly (Standard three-prong power cord)
По запросу
- шт +
2
USB Keyboard/Mouse ()
По запросу
- шт +
3
User Manual ()
По запросу
- шт +
4
Certificate of Conformity ()
По запросу
- шт +
5
Aluminum Alloy Box ()
По запросу
- шт +
Библиотека

Основные сведения о продукте

Посмотреть более подробную информацию о возможностях этого продукта.

Технические характеристики

Отзывы
Добавить отзыв
Оцените товар:
Ваше имя
Достоинства

Недостатки

Комментарий

Символы на картинке


Тут еще никто ничего не писал, стань первым!
Список просмотренных товаров пуст
Список избранного пуст
Ваша корзина пуста
Помощь
Ошибка на сайте? Выдели её и нажми Ctrl+Enter
