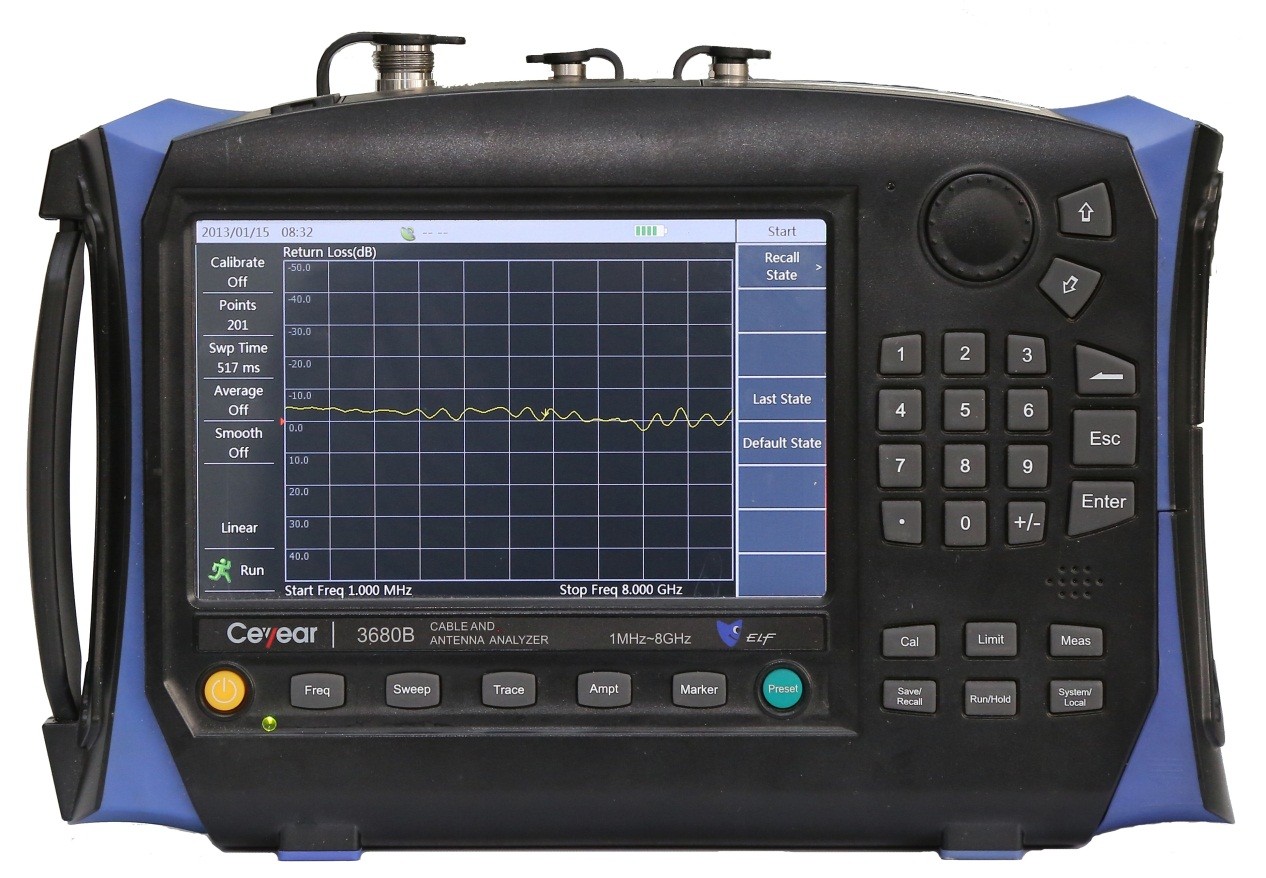

3680A/B Cable& Antenna Analyzer

Серия 3680
Для увеличения картинки наведите мышкой
Серия 3680Серия 3680Серия 3680
Серия 3680Серия 3680Серия 3680

Наличие: По запросу

По запросу
По запросу
По запросу

Анализаторы электрических цепей Серия 3680 Подробнее




Китайская компания Ceyear Technologies Co., Ltd была основана в мае 2015 года.… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

Adopting advanced techniques such as hybrid integration design of RF circuit and digital circuit, wideband fundamental-wave mixing, digital IF processing, intelligent power management, 3680A/B Cable & Antenna Analyzer has advantages of high-speed, high-accuracy, compact, lightweight, battery-powered, touch screen operation, automatic adjustment of backlight brightness. Besides testing VSWR, return loss, characteristic impedance, and phase, it can precisely locate the fault points as well.

3680A/B Cable & Antenna Analyzer is developed for on-site test, which is mainly used for the test of cable & antenna system in various communication base stations, including trunking, GSM, PCS/DCS, CDMA, GPRS, WCDMA, CDMA2000, TD-SCDMA, LTE and paging system.

During the installation, calibration and routine maintenance of cable & antenna system, the cable& antenna analyzer can help users to quickly estimate the status of the transmission line and antenna system, improve the maintenance efficiency of the running base stations and speed up the installation and calibration of new base stations. Besides, it can also be used for the reflection parameter test of RF devices and components in scientific research, teaching and manufacturing.

FUNCTIONS & FEATURES

Support multiple measurements

It supports 7 measurements: return loss, VSWR, cable loss, DTF return loss, DTF VSWR, Smith chart, phase. And it can conduct comprehensive measurement and fault diagnosis on cable and antenna system.

Touch screen operation

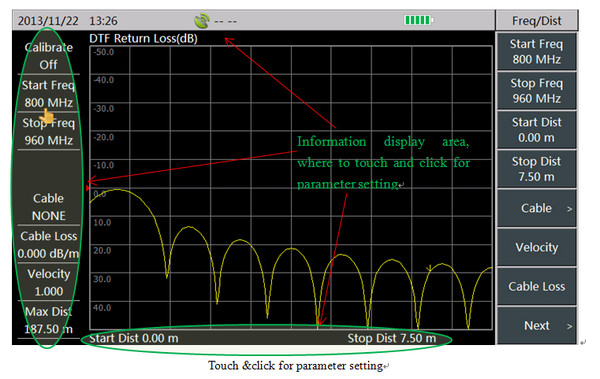

The instrument has a 7 inch LCD touch screen. Besides menu operation, users can also set the parameters by clicking all the displayed information on the touch screen.

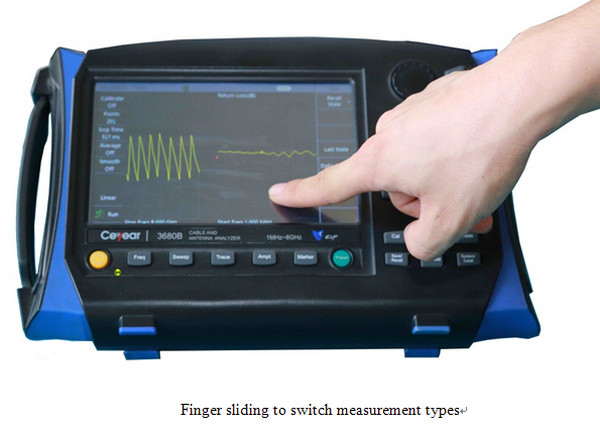

Finger sliding to switch measurement types

Double window display

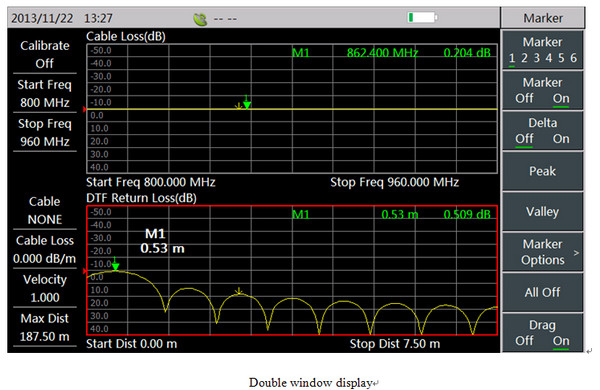

Each window can display different measurement types, with its independent maker function.

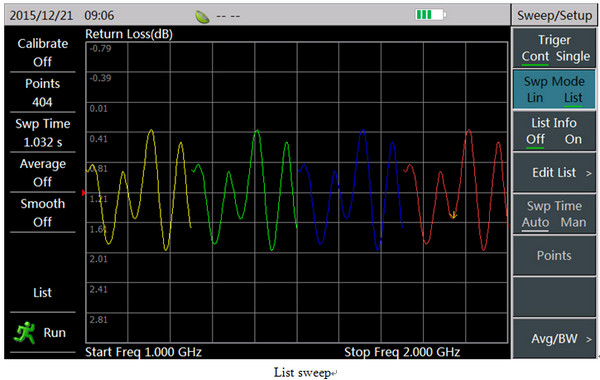

List sweep

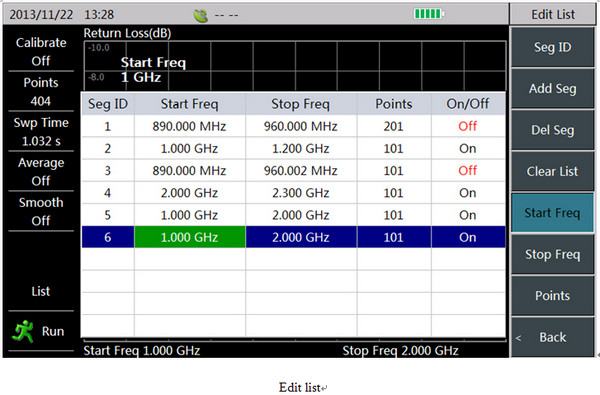

The instrument supports list sweep function. Multiple frequency segments can be simultaneously measured, and each sweep segment can be set with different points and frequency rang. The list edit is convenient: directly click the parameters to be edited. Each segment can be opened or closed through “On/Off” setting.

Measurement wizard

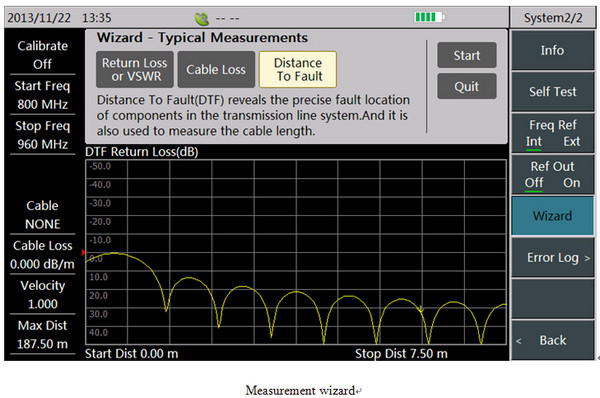

The measurement wizard illustrates the operation steps of typical measurements to guide users to finish the measurement and helps them to rapidly get familiar with the instrument operation.

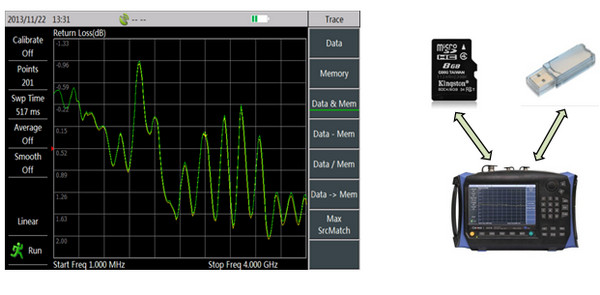

Data Se/Recall

To se measurement traces or state, FLASH memory inside the instrument, SD card, and USB device are all ailable to choose.

Embedded electronic calibration

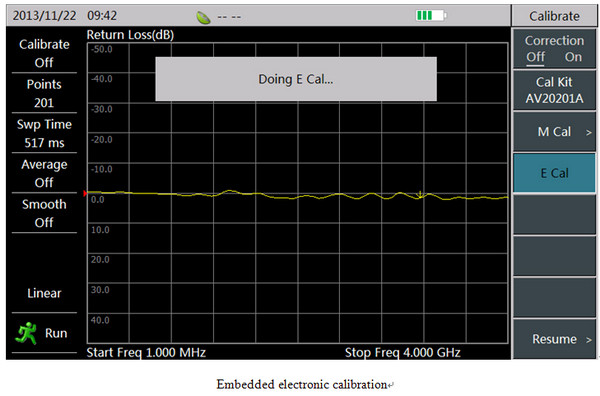

3680A has embedded electronic calibration kit to realize “one-click” operation, without any external connection.

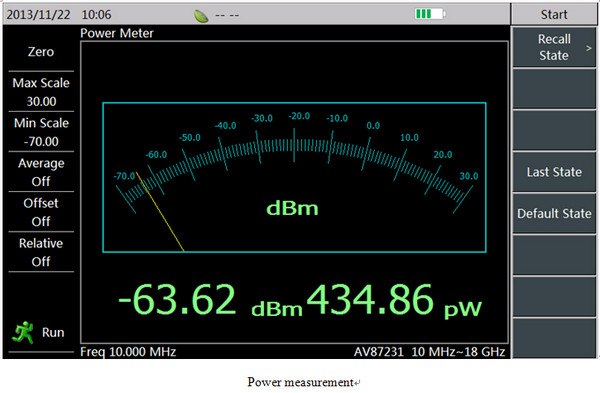

Power measurement

Power measurement option is provided, which can realize accurate power measurement along with external power sensor options.

Resistant to wind & sand

The instrument is suitable for field operation with its resistance to sand, dust, impact and vibration.

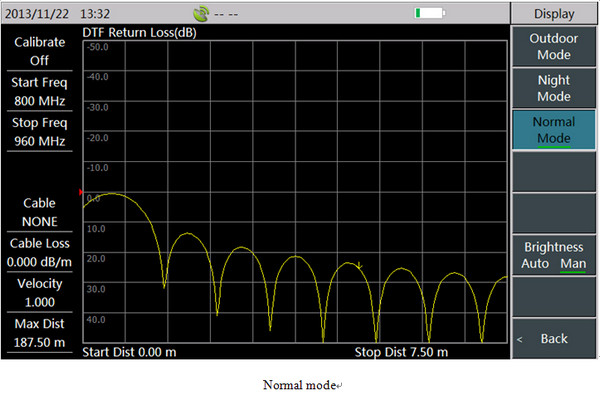

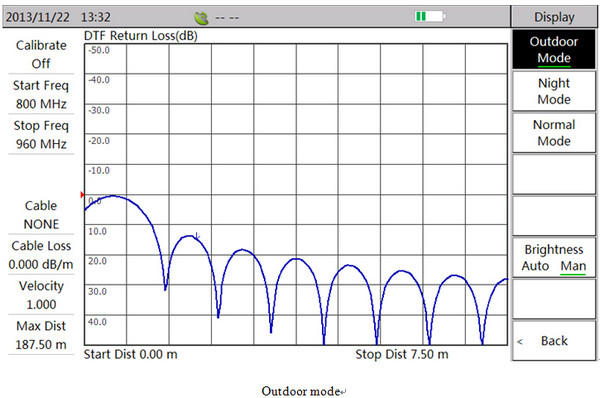

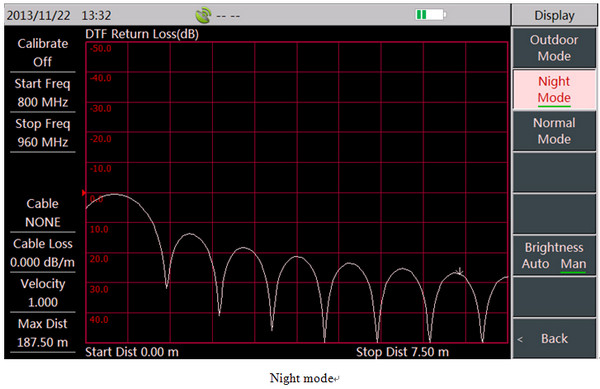

Multiple display modes

The instrument has multiple display modes and function of screen brightness adjustment, which can offer the best display result in different environments.

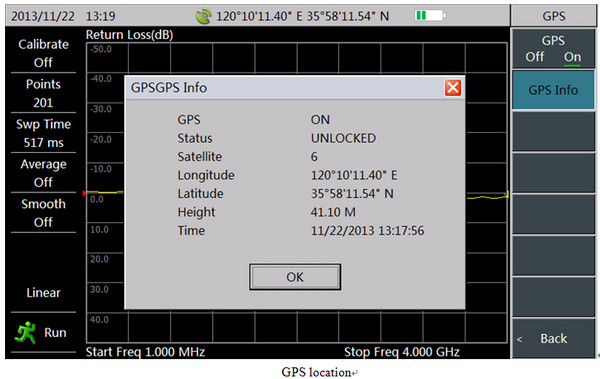

GPS location

The instrument has built-in GPS receiver, with which users can get the current location information through external-added GPS antenna.

High-capacity battery

The built-in high-capacity lithium-ion rechargeable battery can support 3680A to operate 8 hours and 3680B to operate 4 hours. The battery replacement is easy and convenient.

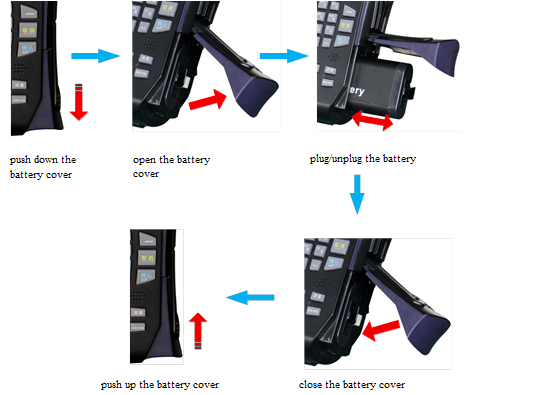

Battery replacement

Remote operation & tool software

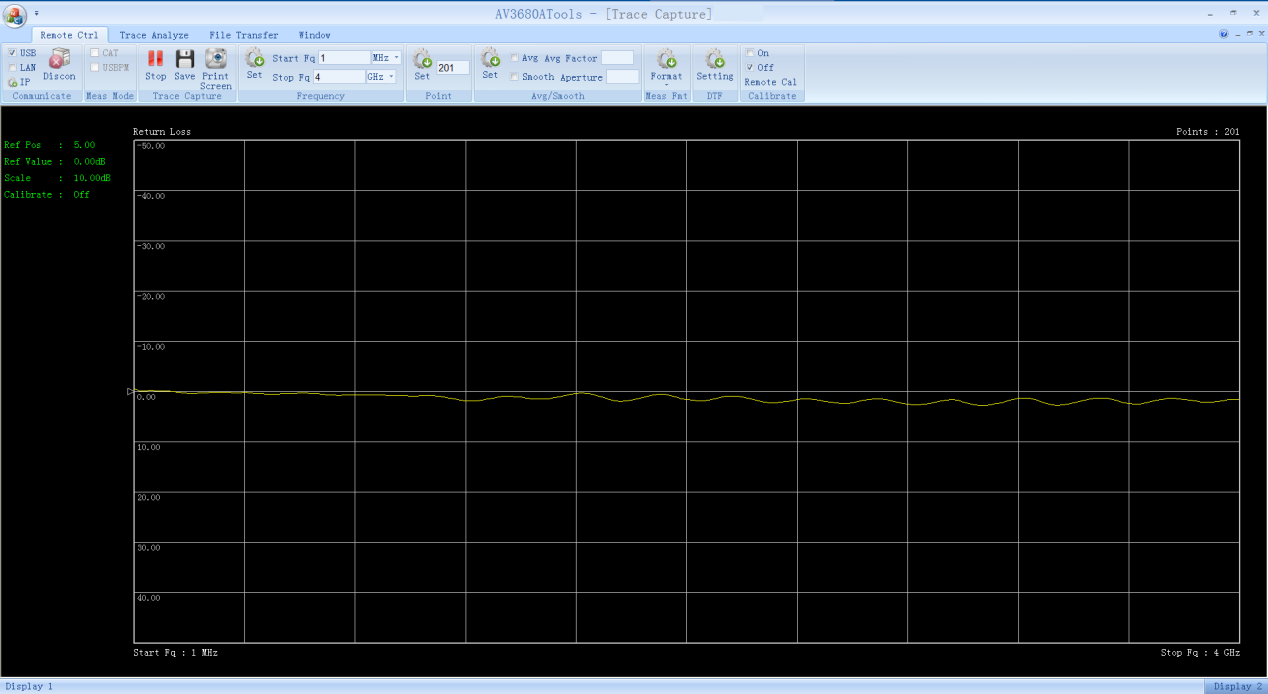

The instrument can be connected to PC via USB or network interface to realize remote operation. Tool software is also provided for data analysis, real-time data acquisition, and curve Se & Recall.

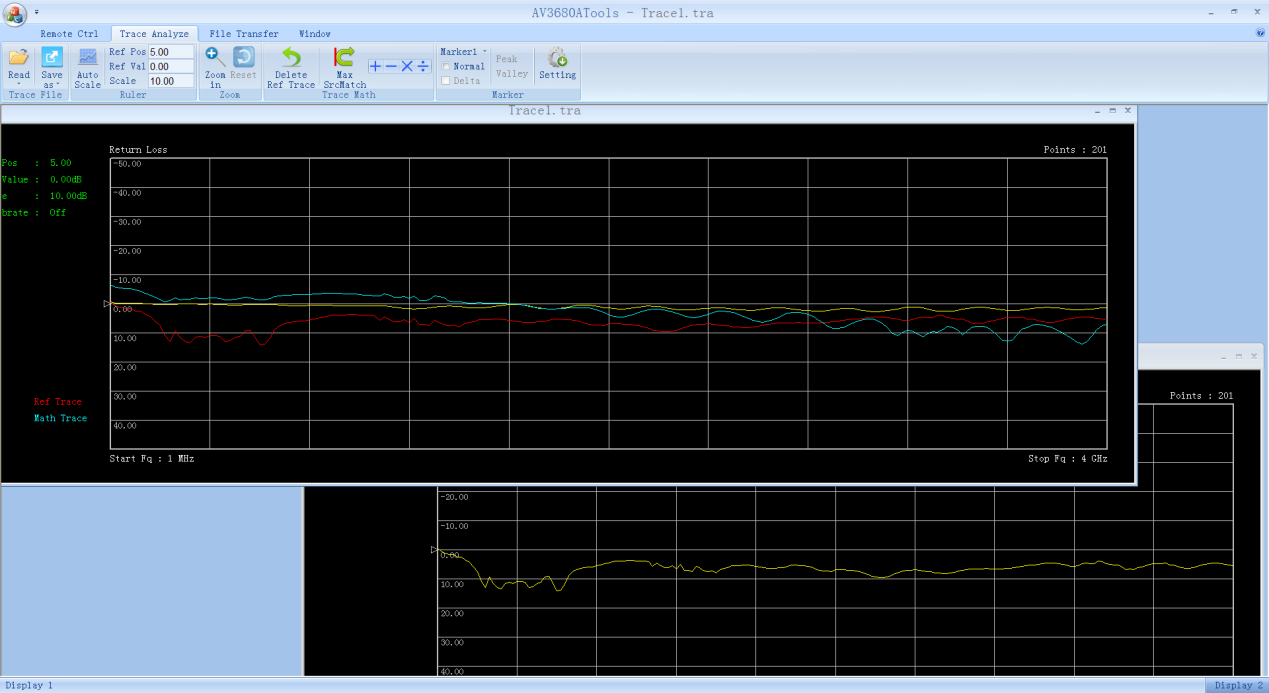

Bytrace dragging and comparison,traces from different windows can be moved to the same window for math operations.

Trace math operations

Data acquisition

TYPICAL APPLICATIONS

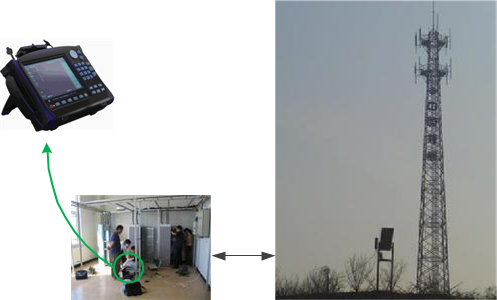

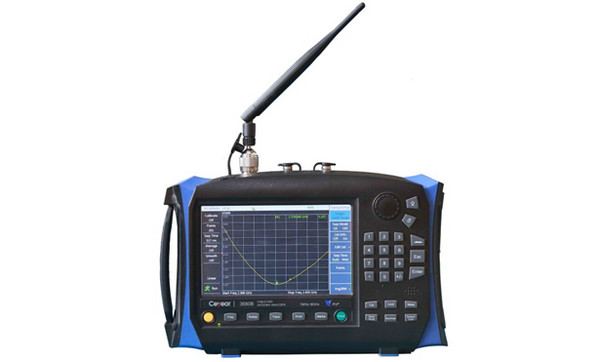

Performance measurement and maintenance of cable & antenna system

3680A/B Cable & Antenna Analyzer is developed for the daily measurement & maintenance of cable & antenna system, which can realize the measurement of VSWR, return loss, cable loss etc.. It has unique FDR technique, and with functions of Distance-to-Fault (DTF) VSWR and Distance-to-Fault (DTF) return loss, it can precisely locate even tiny problems, and thus eliminate potential risks. During the installation, calibration and routine maintenance of the cable & antenna system, 3680A/B Cable & Antenna Analyzer can help users to quickly estimate the status of the transmission and feed line system, which can improve the maintenance efficiency of running base stations and speed up the installation and calibration of new base stations.

3680A/B Cable & Antenna Analyzer offers multiple measurement modes to measure the cable loss, return loss, and VSWR of the cables.

Cable & antenna performance measurement



Cable & antenna performance measurement

3680A/B Cable & Antenna Analyzer offers multiple measurement modes to measure the cable loss, return loss, and VSWR of the cables.

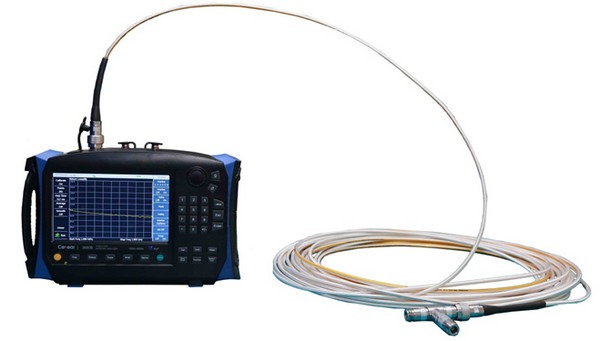

Cable loss measurement
