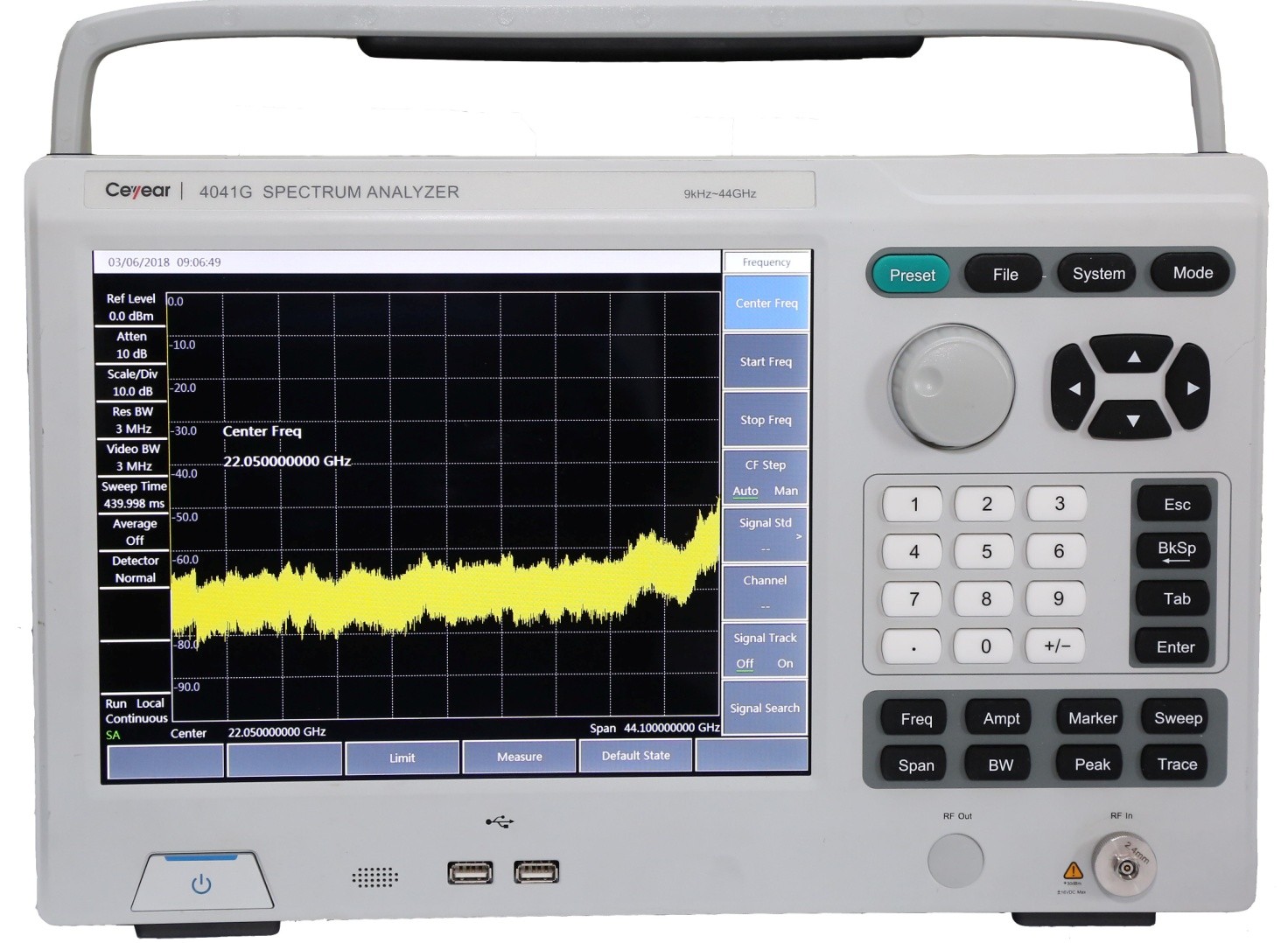

Анализатор спектра 4041D/E/F/G от 9 кГц до 44 ГГц

Серия 4041
Для увеличения картинки наведите мышкой
Серия 4041Серия 4041Серия 4041Серия 4041Серия 4041Серия 4041
Серия 4041Серия 4041Серия 4041Серия 4041Серия 4041Серия 4041

Наличие: По запросу

По запросу
По запросу
По запросу

Анализаторы спектра Серия 4041 Подробнее




Китайская компания Ceyear Technologies Co., Ltd была основана в мае 2015 года.… подробнее





Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

The 4041 spectrum analyzer is adopted with the compact portable box structure, which has advantages of small size, light weight, low power consumption and convenient carrying. The broadband millimeter-wave receiver miniaturization integrated design technology, whole phase locking technology based on the broadband VCO, full digital intermediate frequency design technology, and microwave composite multilayer circuit board design technology are adopted for this product, thus realizing high performance indicators and ensuring the economical efficiency of the product.

The 4041 spectrum analyzer series currently consists of four types of products. The frequency measurement range covers 9kHz~20GHz, 9kHz~26.5GHz, 9kHz~32GHz and 9kHz~44GHz respectively. The full spectrum of the product is equipped with a preamplifier, so that it has very high receiving sensitivity at any frequency point. In addition, with the 12.1-inch high brightness LCD and integrated design of capacitive touch screen, large button and virtual button combination design, its operation convenience is improved. For its performance indicators, it has excellent average noise level and phase noise indicator as well as the high scanning speed. For its measurement function, it has the option modes including the interference analyzer channel scanner, AM/FM/PM analyzer, and power meter, as well as a variety of measurement functions including the channel power, occupied bandwidth, adjacent channel power, audio demodulation, emission mask and carrier-to-noise ratio. This product can be used for the test and maintenance of the aviation, spaceflight, wireless communications and radar signals and devices, and it can also be used for the research, development and production of electronic products and the teaching experiment of scientific research institutes.

FUNCTIONS & FEATURES

  • A portable case characterized by thin thickness and light weight, which can be conveniently placed and carried

  • Wide frequency range covering 9kHz~20GHz/26.5GHz/32GHz/44GHz; with the full-band pre-amplifier as standard

  • Low displayed average noise level: -163dBm@1Hz RBW(typical)

  • Excellent phase noise performance: -106dBc/Hz@100kHz frequency offset@1GHz carrier

  • RBW: 1Hz~10MHz

  • Extremely high sweep speed: for 1GHz span, shortest sweep time <20ms

  • Various measurement functions, such as the channel power, occupied bandwidth, adjacent channel power, audio demodulation, carrier-to-noise ratio, and emission mask

  • Abundant test function mode options: interference analysis (spectrogram plot, RSSI), analog AM/FM/PM analyzer, channel scanner, and high-precision power meter, etc.

  • Easy to operate, equipped with 12.1-inch high brightness LCD screen featuring large font display and loose button layout, and supporting the capacitive touch screen operation and touch screen cursor dragging

  • Good Single-Sideband Phase Noise Indicators

  • As the multi-loop phase-locked frequency synthesis technology is adopted, the whole frequency band has good phase noise indicators.



High Receiving Sensitivity

The miniaturization integrated design technology of microwave & millimeter-wave frequency conversion modules and the use of the low noise preamplifier in the whole frequency band reduce the noise level and improve the receiving sensitivity.

10 MHz~20 GHz typical receiving sensitive value-160 dBm/Hz (preamplifier on)


Comprehensive Spectrum Measurement Functions

It has functions including the signal tracking, peak tracking and signal search.

It can provide 12 cursors, and it has both normal mode and differential mode for option, and supports the noise marker and frequency count functions.

The transmitter power kit has the one-button measurement functions, including the channel power, occupied bandwidth, adjacent channel power, carrier-to-noise ratio, emission mask, and audio demodulation.

3 display traces and 6 detection modes are available.

It supports to sweep, edit, store and call the list.



Various Measurement Functions





Convenient and Fast User Experience

One-button quick measurement

State and data storage and call functions

12.1-inch high brightness LCD display screen, less light transmittance, and clear display

Convenient capacitive touch screen

Supporting a number of auxiliary interfaces including the USB program control and storage, LAN program control, VGA video output, zero span IF output, and trigger input, convenient for the user’s operation

TYPICAL APPLICATIONS

Test of Components and Parts

It can be used for the test of parameters and indicators including the gain, frequency response, frequency conversion loss and insertion loss of the components and modules including the amplifier, filter, mixer, attenuator, cable and directional coupler.

Test and Diagnosis of the Transmitter and Receiver

The 4041 spectrum analyzer has a number of measurement function modes including the spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, and channel scanner, and it also has a number of measurement functions including the channel power, occupied bandwidth, adjacent channel power, carrier-to-noise ratio, field strength, and emission mask; therefore, it can provide the comprehensive spectrum analysis and diagnosis service for the test of the transmitter and receiver.



Свернуть Развернуть
Основные возможности и технические характеристики

The 4041 spectrum analyzer is adopted with the compact portable box structure, which has advantages of small size, light weight, low power consumption and convenient carrying. The broadband millimeter-wave receiver miniaturization integrated design technology, whole phase locking technology based on the broadband VCO, full digital intermediate frequency design technology, and microwave composite multilayer circuit board design technology are adopted for this product, thus realizing high performance indicators and ensuring the economical efficiency of the product.

The 4041 spectrum analyzer series currently consists of four types of products. The frequency measurement range covers 9kHz~20GHz, 9kHz~26.5GHz, 9kHz~32GHz and 9kHz~44GHz respectively. The full spectrum of the product is equipped with a preamplifier, so that it has very high receiving sensitivity at any frequency point. In addition, with the 12.1-inch high brightness LCD and integrated design of capacitive touch screen, large button and virtual button combination design, its operation convenience is improved. For its performance indicators, it has excellent average noise level and phase noise indicator as well as the high scanning speed. For its measurement function, it has the option modes including the interference analyzer channel scanner, AM/FM/PM analyzer, and power meter, as well as a variety of measurement functions including the channel power, occupied bandwidth, adjacent channel power, audio demodulation, emission mask and carrier-to-noise ratio. This product can be used for the test and maintenance of the aviation, spaceflight, wireless communications and radar signals and devices, and it can also be used for the research, development and production of electronic products and the teaching experiment of scientific research institutes.

FUNCTIONS & FEATURES

  • A portable case characterized by thin thickness and light weight, which can be conveniently placed and carried

  • Wide frequency range covering 9kHz~20GHz/26.5GHz/32GHz/44GHz; with the full-band pre-amplifier as standard

  • Low displayed average noise level: -163dBm@1Hz RBW(typical)

  • Excellent phase noise performance: -106dBc/Hz@100kHz frequency offset@1GHz carrier

  • RBW: 1Hz~10MHz

  • Extremely high sweep speed: for 1GHz span, shortest sweep time <20ms

  • Various measurement functions, such as the channel power, occupied bandwidth, adjacent channel power, audio demodulation, carrier-to-noise ratio, and emission mask

  • Abundant test function mode options: interference analysis (spectrogram plot, RSSI), analog AM/FM/PM analyzer, channel scanner, and high-precision power meter, etc.

  • Easy to operate, equipped with 12.1-inch high brightness LCD screen featuring large font display and loose button layout, and supporting the capacitive touch screen operation and touch screen cursor dragging

  • Good Single-Sideband Phase Noise Indicators

  • As the multi-loop phase-locked frequency synthesis technology is adopted, the whole frequency band has good phase noise indicators.



High Receiving Sensitivity

The miniaturization integrated design technology of microwave & millimeter-wave frequency conversion modules and the use of the low noise preamplifier in the whole frequency band reduce the noise level and improve the receiving sensitivity.

10 MHz~20 GHz typical receiving sensitive value-160 dBm/Hz (preamplifier on)


Comprehensive Spectrum Measurement Functions

It has functions including the signal tracking, peak tracking and signal search.

It can provide 12 cursors, and it has both normal mode and differential mode for option, and supports the noise marker and frequency count functions.

The transmitter power kit has the one-button measurement functions, including the channel power, occupied bandwidth, adjacent channel power, carrier-to-noise ratio, emission mask, and audio demodulation.

3 display traces and 6 detection modes are available.

It supports to sweep, edit, store and call the list.



Various Measurement Functions





Convenient and Fast User Experience

One-button quick measurement

State and data storage and call functions

12.1-inch high brightness LCD display screen, less light transmittance, and clear display

Convenient capacitive touch screen

Supporting a number of auxiliary interfaces including the USB program control and storage, LAN program control, VGA video output, zero span IF output, and trigger input, convenient for the user’s operation

TYPICAL APPLICATIONS

Test of Components and Parts

It can be used for the test of parameters and indicators including the gain, frequency response, frequency conversion loss and insertion loss of the components and modules including the amplifier, filter, mixer, attenuator, cable and directional coupler.

Test and Diagnosis of the Transmitter and Receiver

The 4041 spectrum analyzer has a number of measurement function modes including the spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, and channel scanner, and it also has a number of measurement functions including the channel power, occupied bandwidth, adjacent channel power, carrier-to-noise ratio, field strength, and emission mask; therefore, it can provide the comprehensive spectrum analysis and diagnosis service for the test of the transmitter and receiver.



  • 1. Standard three-core power line (Standard three-core power line)
  • 2. Quick start guide
  • 3. USB cable (USB programmable cable)
  • 4. Certificate of conformity
  • 1. Standard three-core power line (Standard three-core power line)
  • 2. Quick start guide
  • 3. USB cable (USB programmable cable)
  • 4. Certificate of conformity
Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Характеристики
Загрузить технические характеристики

Model 4041D/E/F/G
Frequency range 4041D: 9kHz~20GHz        4041E: 9kHz~26.5GHz
4041F: 9kHz~32GHz        4041G: 9kHz~44GHz
Tuning resolution: 1 Hz
Frequency reference Nominal frequency:         10MHz
Frequency reference error: ±   (Last calibration date × aging rate + temperature stability + calibration   accuracy)
Aging rate:             ±5´10-7/year
Temperature stability:    ±1´10-7(0°C   ~   50°C, relative to 25±5°C)
Initial calibration accuracy: ±3´10-7
Note: The default time elapsed since the last   calibration date is one year.
Frequency readout accuracy Frequency readout accuracy = ± (frequency reading   × frequency reference error +2% × sweep width +10% × resolution bandwidth)
Frequency span Range: 100Hz~upper   frequency limit of corresponding model or 0Hz
Accuracy: ±2.0%
Sweep time Range: 10μs~600s (zero span);
Accuracy: ±2.00% (zero span)
Resolution bandwidth Range: 1Hz~10MHz (step by 1-3)
Accuracy (3.0dB): ±10%       1kHz~3MHz
                 ±20%       10MHz
Resolution bandwidth change to uncertainty ±1.20dB      1Hz~10MHz (take 100kHz RBW as a reference)
Video bandwidth 1Hz~10MHz (1-3 times step)
Detection mode Normal, Peak, Neg Peak, Sample, Average, RMS
Single-sideband phase noise ≤-102dBc/Hz@10kHz frequency offset
(Carrier wave 1GHz, 20℃~30℃) ≤-106dBc/Hz@100kHz frequency offset
≤-111dBc/Hz@1MHz frequency offset
≤-123dBc/Hz@10MHz frequency offset
Average noise level display Preamplifier off
(50Ω load at the input end, 0dB input attenuation,   average detector mode, logarithmic Video Type, RBW normalization to 1Hz,   20-30°C) ≤-138dBm (10MHz~20GHz)  ≤-135dBm (20GHz~32GHz)
≤-127dBm (32GHz~40GHz)  ≤-120dBm (40GHz~44GHz)
Preamplifier on
≤-157dBm (10MHz~20GHz)  ≤-154dBm (20GHz~32GHz)
≤-148dBm (32GHz~40GHz)  ≤-140dBm (40GHz~44GHz)
Residual response (Exceptional frequency: 3200MHz)
(RF input match, 0dB attenuation) Preamplifier off
≤-90 dBm (10MHz~13GHz)   ≤-85 dBm (13GHz~20GHz)
≤-80 dBm (20GHz~44GHz)
Preamplifier on
≤-100 dBm (10MHz~32GHz)   ≤-95 dBm (32GHz~44GHz)
Second harmonic distortion <-60dBc (0dB attenuation, -30dBm input signal)
1dB gain compression ≥-2dBm    50MHz~4GHz
(Double-tone test, 10MHz signal spacing) ≥-3dBm  4GHz~13GHz
≥-3dBm    13GHz~44GHz
3-order intermodulation distortion ≥+7dBm    50MHz~4GHz
(-25dBm double-tone signal, 100kHz spacing, 0dB   attenuation, pre-amplifier off) ≥+6dBm    4GHz~13GHz
≥+6dBm    13GHz~44GHz
Total level uncertainty ±1.80dB(10MHz~13GHz)
(frequency range 10MHz~40GHz, input signal   -10~-50dBm, all settings are auto couple, 20°C ~30°C) ±2.30dB(10MHz~40GHz)
Input attenuator Scope of attenuation 0dB~50dB, 10dB step
Conversion uncertainty: ±1.20dB
Maximum safe input level +30dBm, typical value (≥10dB attenuation)
+23dBm, typical value (<10dB attenuation)
+13dBm, typical value (preamplifier ON)
Reference level Range: Logarithmic scale -120dBm~+30dBm, 1dB step
Linear scale: 22.36μV~7.07V, 0.1% step
Conversion error: ±1.20dB (reference level 0dBm   ~-60dBm)
Displayed scale Logarithmic scale: 0.1dB~10dB per scale, minimum   0.1dB step, 10-scale display
Linear scale: 10-scale display
Calibration unit: V, A, W, dBm, dBW, dBV, dBmV, dBuV,   dBA, dBmA, dBuA
Scale fidelity ±1.00 dB
Size 430mm(width) × 270mm (height) × 180mm (depth)   (excluding the handle and foot)
430mm(width) × 360mm (height) × 180mm (depth)   (including the handle and foot)
Weight ≤12 kg
Power supply AC 220/240V; 50/60Hz
Power consumption <60W (working state)
Operating temperature 0℃~+50℃
Storage temperature -40℃~+70℃
Electromagnetic compatibility Conforms to GJB3947A-2009 3.9.1 Requirements
Test port 4041D/E: Type-N (f)
4041F/G: 2.4 mm (m)
Auxiliary test interface 10 MHz reference input/output: BNC female   connector
External trigger input: BNC female connector
Intermediate frequency output: BNC female   connector
GPS antenna input: BNC female connector
Other interfaces LAN, USB, VGA output

Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
4041D
spectrum analyzer (9kHz-20GHz)
По запросу
- шт +
4041E
spectrum analyzer (9kHz-26.5GHz)
По запросу
- шт +
4041F
spectrum analyzer (9kHz-32GHz)
По запросу
- шт +
4041G
spectrum analyzer (9kHz-44GHz)
По запросу
- шт +
hardware options
4041-006
Purple Cat5e Cable (Point to point, 2 Meters)
По запросу
- шт +
4041-007
GPS antenna (GPS external antenna)
По запросу
- шт +
4041-008
Function option of the USB power meter (Provide USB Power meter Function (Requires USB Power Probe:009/010/011/012))
По запросу
- шт +
4041-009
87230 USB continuous wave power probe (9kHz~6GHz Power Probe)
По запросу
- шт +
4041-010
87231 USB continuous wave power probe (10MHz~18GHz Power Probe)
По запросу
- шт +
4041-011
87232 USB continuous wave power probe (50MHz~26.5GHz Power Probe)
По запросу
- шт +
4041-012
87233 USB continuous wave power probe (50MHz~40GHz Power Probe)
По запросу
- шт +
4041-013
Interference Analyzer Option (Provide Spectrogram, RSSI Measurement etc. Functions)
По запросу
- шт +
4041-014
AM/FM/PM Analyzer Option (To Realize Modulation Characteristics Analysis of AM/FM/PM Signals)
По запросу
- шт +
4041-015
Channel Scanner Option (To Realize Signal Power Measurement of Multiple Channels and Frequency)
По запросу
- шт +
4041-016
List Sweep Option (To Realize Continuous Sweep Measurement of Various Frequency Bands)
По запросу
- шт +
4041-017
Field strength Option (Realize the field strength of the dot frequency, frequency scan and list scan)
По запросу
- шт +
4041-018
Zero Span IF Output (Output the Third or Fourth IF Signal (Choose One of Two))
По запросу
- шт +
4041-019
89101A antenna (Frequency range: 10kHz-20MHz)
По запросу
- шт +
4041-020
89101B antenna (Frequency range: 20MHz-200MHz)
По запросу
- шт +
4041-021
89101C antenna (Frequency range: 200MHz-500MHz)
По запросу
- шт +
4041-022
89101D antenna (Frequency range: 500MHz-4GHz)
По запросу
- шт +
4041-023
89401 antenna amplifier (Frequency range: 10kHz-4GHz, Type-N (f))
По запросу
- шт +
4041-024
89901 antenna (Frequency range: 1GHz-18GHz, Type-N (f))
По запросу
- шт +
4041-025
89902 antenna (Frequency range: 18GHz-40GHz, 2.4mm (f))
По запросу
- шт +
4041-001
English version of the option (English Signs、Keys、Menu)
По запросу
- шт +
4041-002
User Manual (Chinese version)
По запросу
- шт +
4041-003
User Manual (English version)
По запросу
- шт +
4041-004
Programming Manual (Chinese version)
По запросу
- шт +
4041-005
Programming Manual (English version)
По запросу
- шт +
Standard Package
1
Standard three-core power line (Standard three-core power line)
По запросу
- шт +
2
Quick start guide
По запросу
- шт +
3
USB cable (USB programmable cable)
По запросу
- шт +
4
Certificate of conformity
По запросу
- шт +
Библиотека

Основные сведения о продукте

Посмотреть более подробную информацию о возможностях этого продукта.

Технические характеристики

Отзывы
Добавить отзыв
Оцените товар:
Ваше имя
Достоинства

Недостатки

Комментарий

Символы на картинке


Тут еще никто ничего не писал, стань первым!
Список просмотренных товаров пуст
Список избранного пуст
Ваша корзина пуста
Помощь
Ошибка на сайте? Выдели её и нажми Ctrl+Enter
