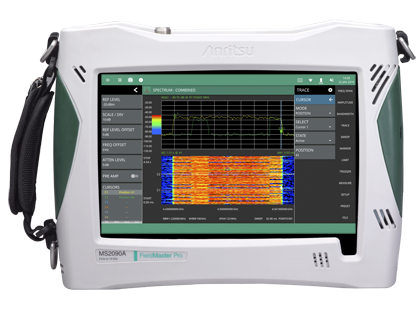

Анализатор спектра портативный 9 кГц - 54 ГГц

MS2090A
Для увеличения картинки наведите мышкой
MS2090AMS2090AMS2090AMS2090AMS2090AMS2090AMS2090AMS2090AMS2090AMS2090AMS2090A
MS2090AMS2090AMS2090AMS2090AMS2090AMS2090AMS2090AMS2090AMS2090AMS2090AMS2090A

Наличие: По запросу

По запросу
По запросу
По запросу

Анализаторы спектра MS2090A Подробнее




Японская корпорация Anritsu (Anritsu Corporation) - ведущий производитель контрольного и измерительного оборудования для постоянного контроля и тестирования систем коммуникаций на всех стадиях: исследования и разработки, производства, ввода в эксплуатацию и технического обслуживания.

Первым предшественником Anritsu была компания Sekisan-sha, основанная в 1895 году. Затем последовала Annaka Electric Company, производящая беспроводные передатчики и первый автоматический общественный телефон Японии. 17 марта 1931 года в результате слияния двух компаний Annaka… подробнее




Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

MS2090A

Handheld Spectrum Analyzer delivers the highest continuous frequency coverage and real-time spectrum analysis bandwidth up to 100 MHz to address current and emerging applications

Frequency Range: 9 kHz to 9/14/20/26.5/32/43.5/54 GHz

Anritsu’s Field Master Pro MS2090A real time spectrum analyzer delivers performance never previously available in a compact, handheld instrument. With continuous frequency coverage from 9 kHz to 54 GHz, the Field Master Pro MS2090A is specifically designed to meet the test challenges of a full range of other wireless technologies in use today, including: 5G, LTE, wireless backhaul, aerospace/defense, satellite systems, and radar.

The Field Master Pro MS2090A delivers the highest levels of RF performance available in a handheld, touchscreen spectrum analyzer, with a displayed average noise level (DANL) of -164 dBm and Third Order Intercept (TOI) of +20 dBm (typical). This makes measurements such as spectrum clearing, radio alignment, harmonic, and distortion even more accurate than previously possible. For modulation measurements on digital systems, 100 MHz modulation bandwidth coupled with best-in-class phase noise performance maximizes measurement precision, while ±0.5 dB typical amplitude accuracy provides confidence when testing transmitter power and spurious.

Ruggedized for field use, all versions provide a comprehensive range of features to speed and simplify measurement, as well as enhance usability. RTSA spans of 22 MHz (standard) to 110 MHz (optional) provide capability for cellular interference monitoring to full ISM band signal analysis. In addition to being a full span swept tuned spectrum analyzer, all versions include a spectrogram display that helps monitor the RF spectrum for intermittent or interfering signals. Integrated channel power and occupied bandwidth measurements simplify the measuring and characterizing of common radio transmission. IQ data capture of 5G frames enables the capture and saving of IQ data for off-line processing on a PC using standard data analysis tools.

  • 9 kHz to 9/14/20/26.5/32/43.5/54 GHz
  • DANL: -164 dBm (with preamp)
  • TOI: +20 dBm (typical)
  • Analysis bandwidth: 100 MHz
  • Amp range: DANL to +30 dBm
  • Phase noise at 1 GHz: -110 dBc/Hz @ 100 kHz offset (typical)
  • Demodulation: 5GNR, LTE FDD, RF, and modulation quality plus SSB signal analysis
  • Resolution bandwidth (RBW): 1 Hz to 10 MHz
  • RTSA bandwidth: 22, 55, 110 MHz (option dependent)
  • Amplitude accuracy: < 14 GHz ± 1.3 dB (± 0.5 dB, typical)
  • Zero span with 60 ns minimum span
  • IQ capture and streaming

Atomic Clock External Frequency Reference for Handheld Instruments

With an extremely low power consumption of <200 mW, the MA25401A brings the accuracy and stability of an atomic clock frequency reference to Anritsu’s handheld products. The MA25401A Atomic Clock Frequency Reference has short-term stability (Allan Deviation) of 3.0e–10 @ t = 1 sec, typical long-term aging of <9e–10 per month, and maximum frequency change of ±5e–10 over an operating temperature range of –10 °C to 55 °C. The MA25401A 10 MHz output may be used to synchronize the internal frequency reference to an external reference clock to within 5 ppb accuracy. A USB C interface is used for power.

MA25401A

MA25424A IQ Data Converter is required in order to stream data from the Field Master Pro MS2090A spectrum analyzer to the Bird IQC5000B RF record and playback system.

MA25424A IQ Converter Box

2000-1985-R Isotropic EMF Probe for use with Option 445

The 2000-1985-R Isotropic EMF Probe, in conjunction with MS2090A Option 445 EMF Meter, offers a broadband EMF measurement from 20 MHz to 40 GHz with excellent accuracy and speed. Simply connect the probe to a USB port on the Field Master Pro, open the EMF Meter application (requires Option 445) and easily measure the EMF energy as a percentage of FCC public, FCC technician, ICNIRP public, or ICNIRP public limits.

MS2090A EMF 2000-1985-R
Directional Antennas
2000-1411-R
824 MHz to 896 MHz, N(f), 12.3 dBi, Yagi
2000-1412-R 885 MHz to 975 MHz, N(f), 12.6 dBi, Yagi
2000-1413-R 1710 MHz to 1880 MHz, N(f), 12.3 dBi, Yagi
2000-1414-R 1850 MHz to 1990 MHz, N(f), 11.4 dBi, Yagi
2000-1415-R 2400 MHz to 2500 MHz, N(f), 14.1 dBi, Yagi
2000-1416-R 1920 MHz to 2170 MHz, N(f), 14.3 dBi, Yagi
2000-1659-R 698 MHz to 787 MHz, N(f), 10.1 dBi, Yagi
2000-1660-R 1425 MHz to 1535 MHz, N(f), 14.3 dBi, Yagi
2000-1715-R Directional Antenna, 698 MHz to 2500 MHz, N(f), gain of 2 dBi to 10 dBi, typical
2000-1726-R Antenna, 2500 MHz to 2700 MHz, N(f), 14.1 dBi, Yagi
2000-1747-R Antenna, Log Periodic, 300 MHz to 7000 MHz, N(f), 5.1 dBi, typical
2000-1748-R Antenna, Log Periodic, 1 GHz to 18 GHz, N(f), 6 dBi, typical
2000-1777-R Portable Directional Antenna, 9 kHz to 20 MHz, N(f)
2000-1778-R Portable Directional Antenna, 20 MHz to 200 MHz, N(f)
2000-1779-R Portable Directional Antenna, 200 MHz to 500 MHz, N(f)
2000-1812-R Portable Yagi Antenna, 450 MHz to 512 MHz, N(f), 7.1 dBi
2000-1825-R Portable Yagi Antenna, 380 MHz to 430 MHz, N(f), 7.1 dBi
Portable Antennas
2000-1200-R
806 MHz to 866 MHz, SMA(m), 50 Ω
2000-1473-R 870 MHz to 960 MHz, SMA(m), 50 Ω
2000-1035-R 896 MHz to 941 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1030-R 1710 MHz to 1880 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1474-R 1710 MHz to 1880 MHz with knuckle elbow (1/2 wave)
2000-1031-R 1850 MHz to 1990 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1475-R 1920 MHz to 1980 MHz and 2110 MHz to 2170 MHz, SMA(m), 50 Ω
2000-1032-R 2400 MHz to 2500 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1361-R 2400 MHz to 2500 MHz, 5000 MHz to 6000 MHz, SMA(m), 50 Ω
2000-1751-R 698 MHz to 960 MHz, 1710 MHz to 2100 MHz, 2500 MHz to 2700 MHz, SMA(m), 2 dB, typical, 50 Ω
2000-1636-R Antenna Kit (Consists of: 2000-1030-R, 2000-1031-R, 2000-1032-R, 2000-1200-R, 2000-1035-R, 2000-1361-R, and carrying pouch)
Directional Horn Antennas
2000-1867-R
17.6 GHz to 26.7 GHz, WR42, 25 dBi gain
2000-1868-R 26.4 GHz, to 40.1 GHz, WR28, 25 dBi gain
2000-1869-R 33.0 GHz to 50.1 GHz, WR22, 25 dBi gain
2000-1870-R 39.3 GHz to 59.7 GHz, WR19, 25 dBi gain

Свернуть Развернуть
Основные возможности и технические характеристики

MS2090A

Handheld Spectrum Analyzer delivers the highest continuous frequency coverage and real-time spectrum analysis bandwidth up to 100 MHz to address current and emerging applications

Frequency Range: 9 kHz to 9/14/20/26.5/32/43.5/54 GHz

Anritsu’s Field Master Pro MS2090A real time spectrum analyzer delivers performance never previously available in a compact, handheld instrument. With continuous frequency coverage from 9 kHz to 54 GHz, the Field Master Pro MS2090A is specifically designed to meet the test challenges of a full range of other wireless technologies in use today, including: 5G, LTE, wireless backhaul, aerospace/defense, satellite systems, and radar.

The Field Master Pro MS2090A delivers the highest levels of RF performance available in a handheld, touchscreen spectrum analyzer, with a displayed average noise level (DANL) of -164 dBm and Third Order Intercept (TOI) of +20 dBm (typical). This makes measurements such as spectrum clearing, radio alignment, harmonic, and distortion even more accurate than previously possible. For modulation measurements on digital systems, 100 MHz modulation bandwidth coupled with best-in-class phase noise performance maximizes measurement precision, while ±0.5 dB typical amplitude accuracy provides confidence when testing transmitter power and spurious.

Ruggedized for field use, all versions provide a comprehensive range of features to speed and simplify measurement, as well as enhance usability. RTSA spans of 22 MHz (standard) to 110 MHz (optional) provide capability for cellular interference monitoring to full ISM band signal analysis. In addition to being a full span swept tuned spectrum analyzer, all versions include a spectrogram display that helps monitor the RF spectrum for intermittent or interfering signals. Integrated channel power and occupied bandwidth measurements simplify the measuring and characterizing of common radio transmission. IQ data capture of 5G frames enables the capture and saving of IQ data for off-line processing on a PC using standard data analysis tools.

  • 9 kHz to 9/14/20/26.5/32/43.5/54 GHz
  • DANL: -164 dBm (with preamp)
  • TOI: +20 dBm (typical)
  • Analysis bandwidth: 100 MHz
  • Amp range: DANL to +30 dBm
  • Phase noise at 1 GHz: -110 dBc/Hz @ 100 kHz offset (typical)
  • Demodulation: 5GNR, LTE FDD, RF, and modulation quality plus SSB signal analysis
  • Resolution bandwidth (RBW): 1 Hz to 10 MHz
  • RTSA bandwidth: 22, 55, 110 MHz (option dependent)
  • Amplitude accuracy: < 14 GHz ± 1.3 dB (± 0.5 dB, typical)
  • Zero span with 60 ns minimum span
  • IQ capture and streaming

Atomic Clock External Frequency Reference for Handheld Instruments

With an extremely low power consumption of <200 mW, the MA25401A brings the accuracy and stability of an atomic clock frequency reference to Anritsu’s handheld products. The MA25401A Atomic Clock Frequency Reference has short-term stability (Allan Deviation) of 3.0e–10 @ t = 1 sec, typical long-term aging of <9e–10 per month, and maximum frequency change of ±5e–10 over an operating temperature range of –10 °C to 55 °C. The MA25401A 10 MHz output may be used to synchronize the internal frequency reference to an external reference clock to within 5 ppb accuracy. A USB C interface is used for power.

MA25401A

MA25424A IQ Data Converter is required in order to stream data from the Field Master Pro MS2090A spectrum analyzer to the Bird IQC5000B RF record and playback system.

MA25424A IQ Converter Box

2000-1985-R Isotropic EMF Probe for use with Option 445

The 2000-1985-R Isotropic EMF Probe, in conjunction with MS2090A Option 445 EMF Meter, offers a broadband EMF measurement from 20 MHz to 40 GHz with excellent accuracy and speed. Simply connect the probe to a USB port on the Field Master Pro, open the EMF Meter application (requires Option 445) and easily measure the EMF energy as a percentage of FCC public, FCC technician, ICNIRP public, or ICNIRP public limits.

MS2090A EMF 2000-1985-R
Directional Antennas
2000-1411-R
824 MHz to 896 MHz, N(f), 12.3 dBi, Yagi
2000-1412-R 885 MHz to 975 MHz, N(f), 12.6 dBi, Yagi
2000-1413-R 1710 MHz to 1880 MHz, N(f), 12.3 dBi, Yagi
2000-1414-R 1850 MHz to 1990 MHz, N(f), 11.4 dBi, Yagi
2000-1415-R 2400 MHz to 2500 MHz, N(f), 14.1 dBi, Yagi
2000-1416-R 1920 MHz to 2170 MHz, N(f), 14.3 dBi, Yagi
2000-1659-R 698 MHz to 787 MHz, N(f), 10.1 dBi, Yagi
2000-1660-R 1425 MHz to 1535 MHz, N(f), 14.3 dBi, Yagi
2000-1715-R Directional Antenna, 698 MHz to 2500 MHz, N(f), gain of 2 dBi to 10 dBi, typical
2000-1726-R Antenna, 2500 MHz to 2700 MHz, N(f), 14.1 dBi, Yagi
2000-1747-R Antenna, Log Periodic, 300 MHz to 7000 MHz, N(f), 5.1 dBi, typical
2000-1748-R Antenna, Log Periodic, 1 GHz to 18 GHz, N(f), 6 dBi, typical
2000-1777-R Portable Directional Antenna, 9 kHz to 20 MHz, N(f)
2000-1778-R Portable Directional Antenna, 20 MHz to 200 MHz, N(f)
2000-1779-R Portable Directional Antenna, 200 MHz to 500 MHz, N(f)
2000-1812-R Portable Yagi Antenna, 450 MHz to 512 MHz, N(f), 7.1 dBi
2000-1825-R Portable Yagi Antenna, 380 MHz to 430 MHz, N(f), 7.1 dBi
Portable Antennas
2000-1200-R
806 MHz to 866 MHz, SMA(m), 50 Ω
2000-1473-R 870 MHz to 960 MHz, SMA(m), 50 Ω
2000-1035-R 896 MHz to 941 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1030-R 1710 MHz to 1880 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1474-R 1710 MHz to 1880 MHz with knuckle elbow (1/2 wave)
2000-1031-R 1850 MHz to 1990 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1475-R 1920 MHz to 1980 MHz and 2110 MHz to 2170 MHz, SMA(m), 50 Ω
2000-1032-R 2400 MHz to 2500 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1361-R 2400 MHz to 2500 MHz, 5000 MHz to 6000 MHz, SMA(m), 50 Ω
2000-1751-R 698 MHz to 960 MHz, 1710 MHz to 2100 MHz, 2500 MHz to 2700 MHz, SMA(m), 2 dB, typical, 50 Ω
2000-1636-R Antenna Kit (Consists of: 2000-1030-R, 2000-1031-R, 2000-1032-R, 2000-1200-R, 2000-1035-R, 2000-1361-R, and carrying pouch)
Directional Horn Antennas
2000-1867-R
17.6 GHz to 26.7 GHz, WR42, 25 dBi gain
2000-1868-R 26.4 GHz, to 40.1 GHz, WR28, 25 dBi gain
2000-1869-R 33.0 GHz to 50.1 GHz, WR22, 25 dBi gain
2000-1870-R 39.3 GHz to 59.7 GHz, WR19, 25 dBi gain

Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Свернуть Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

Характеристики
Загрузить технические характеристики

Frequency Range MS2090A-0709 9 kHz to 9 GHz
MS2090A-0714 9 kHz to 14 GHz
MS2090A-0720 9 kHz to 20 GHz
MS2090A-0726 9 kHz to 26.5 GHz
MS2090A-0732 9 kHz to 32 GHz
MS2090A-0743 9 kHz to 43.5 GHz
MS2090A-0754 9 kHz to 54 GHz
DANL (w/preamp) -164 dBm
TOI +20 dBm
Analysis bandwidth 100 MHz
Demodulation 5GNR, LTE FDD, RF, and modulation quality plus SSB signal analysis
Amplitude range DANL to +30 dBm
Phase noise at 1 GHz -110 dBc/Hz @ 100 kHz offset (typical)
Resolution bandwidth (RBW) 1 Hz to 10 MHz
Input SWR 1.5
Amplitude accuracy < 14 GHz ±1.3 dB (±0.5 dB typical)
RTSA bandwidth 22, 55, 110 MHz (option dependent)

Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
MS2090A
Мейнфрейм анализатора спектра MS2090A
€1 125.60
- шт +
Опции
MS2090A-0089
Нулевая полоса ПЧ фильтра
€5 889.60
- шт +
MS2090A-0090
Ограничение развертки
€842.40
- шт +
MS2090A-0103
Расширение полосы анализа до 50 МГц
€6 733.20
- шт +
MS2090A-0104
Расширение полосы анализа до 100 МГц
€11 958
- шт +
MS2090A-0124
Захват сигнала IQ
€7 696.80
- шт +
MS2090A-0125
Потоковая передача сигнала IQ
€5 346
- шт +
MS2090A-0126
Захват сигнала IQ (без экспортной лицензии)
€7 696.80
- шт +
MS2090A-0127
Потоковая передача сигнала IQ (без экспортной лицензии)
€5 346
- шт +
MS2090A-0199
Анализатор спектра реального времени (RTSA)
€5 780.40
- шт +
MS2090A-0400
Включение визуального монитора
€5 774.40
- шт +
MS2090A-0709
Расширение частотного диапазона до 9 ГГц
€17 880
- шт +
MS2090A-0407
Вкоючение высокоскоростного сканера портов
€9 817.20
- шт +
MS2090A-0444
Измерение ЭМП
€6 172.80
- шт +
MS2090A-0445
Включение измерителя ЭМП
€3 088.80
- шт +
MS2090A-0883
Измерение LTE FDD
€5 889.60
- шт +
MS2090A-0888
Измерение 5G NR Downlink
€7 293.60
- шт +
MS2090A-0714
Расширение частотного диапазона до 14 ГГц
€23 104.80
- шт +
MS2090A-0726
Расширение частотного диапазона до 26,5 ГГц
€32 847.60
- шт +
MS2090A-0732
Расширение частотного диапазона до 32 ГГц
€39 817.20
- шт +
MS2090A-0743
Расширение частотного диапазона до 43,5 ГГц
€53 942.40
- шт +
MS2090A-0754
Расширение частотного диапазона до 54 ГГц
€66 675.60
- шт +
MS2090A-0024
Поиск источника помех
€1 471.20
- шт +
MS2090A-0031
Приемник GPS
€586.80
- шт +
Аксессуары
2000-1371-R
Кабель Ethernet, 2 м
€10.80
- шт +
2000-1859-R
Кабель USB 3.0 Type C - Type A, 1 м
€36
- шт +
2000-1931-R
Стилус со сменным наконечником
€48
- шт +
2000-1938-R
Адаптер DC - 4 ГГц, BNC(f) - SMB(m), 50 Ω
€31.20
- шт +
2000-1940-R
Всенаправленная антенна 3 дБн, 26.5 - 40 ГГц, 2.92 mm K(F)
€6 325.20
- шт +
2000-1945-R
Мягкая сумка
€172.80
- шт +
2000-1985-R
Изотропный пробник ЭМП, 20 МГц - 40 ГГц
€14 455.20
- шт +
2000-2003-R
Направленная рупорная антенна с адаптером K(f) и креплением, 24 - 40 GHz, WR28, 19 dBi gain
€3 225.60
- шт +
40-204-R
Адаптер AC/DC, 1 м, 15 В
€181.20
- шт +
40-207-R
Адаптер 18 В в прикуриватель авто
€759.60
- шт +
633-75
Аккумулятор Li-Ion, 7500 mAh
€404.40
- шт +
806-366-R
Coaxial Cable, 1m, BNC(m) - SMB(m), 50 Ω
€66
- шт +
34NMDVFNF50
Прецизионный адаптер NMD, DC - 18 ГГц, V(f) - N(f), 50 Ω
€2 288.40
- шт +
MA25401A
Атомный стандарт частоты
€16 701.60
- шт +
MA25401A-0098
Стандартная калибровка стандарта частоты MA25401A
€607.20
- шт +
MA25401A-0099
Премиальная калибровка стандарта частоты MA25401A
€744
- шт +
MA25424A
Конвертер IQ Data для IQC5000
€4 894.80
- шт +
Сервисные опции
MS2090A-0709-0097
Акредитованная калибровка (до 9 ГГц)
€1 178.40
- шт +
MS2090A-0709-0098
Стандартная калибровка (до 9 ГГц)
€784.80
- шт +
MS2090A-0709-0099
Премиальная калибровка (до 9 ГГц)
€952.80
- шт +
MS2090A-0714-0097
Акредитованная калибровка (до 14 ГГц)
€1 466.40
- шт +
MS2090A-0714-0098
Стандартная калибровка (до 14 ГГц)
€952.80
- шт +
MS2090A-0714-0099
Премиальная калибровка (до 14 ГГц)
€1 178.40
- шт +
MS2090A-0720-0097
Акредитованная калибровка (до 20 ГГц)
€1 690.80
- шт +
MS2090A-0720-0098
Стандартная калибровка (до 20 ГГц)
€1 293.60
- шт +
MS2090A-0720-0099
Премиальная калибровка (до 20 ГГц)
€1 513.20
- шт +
MS2090A-0726-0097
Акредитованная калибровка (до 26,5 ГГц)
€2 016
- шт +
MS2090A-0726-0098
Стандартная калибровка (до 26,5 ГГц)
€1 455.60
- шт +
MS2090A-0726-0099
Премиальная калибровка (до 26,5 ГГц)
€1 681.20
- шт +
MS2090A-0732-0097
Акредитованная калибровка (до 32 ГГц)
€2 361.60
- шт +
MS2090A-0732-0098
Стандартная калибровка (до 32 ГГц)
€1 623.60
- шт +
MS2090A-0732-0099
Премиальная калибровка (до 32 ГГц)
€2 042.40
- шт +
MS2090A-0743-0097
Акредитованная калибровка (до 43 ГГц)
€2 361.60
- шт +
MS2090A-0743-0098
Стандартная калибровка (до 43 ГГц)
€1 790.40
- шт +
MS2090A-0743-0099
Премиальная калибровка (до 43 ГГц)
€2 042.40
- шт +
MS2090A-0754-0097
Акредитованная калибровка (до 54 ГГц)
€2 466
- шт +
MS2090A-0754-0098
Стандартная калибровка (до 54 ГГц)
€1 942.80
- шт +
MS2090A-0754-0099
Премиальная калибровка (до 54 ГГц)
€2 157.60
- шт +
Библиотека

Основные сведения о продукте

Посмотреть более подробную информацию о возможностях этого продукта.

Технические характеристики

Отзывы
Добавить отзыв
Оцените товар:
Ваше имя
Достоинства

Недостатки

Комментарий

Символы на картинке


Тут еще никто ничего не писал, стань первым!
Список просмотренных товаров пуст
Список избранного пуст
Ваша корзина пуста
Помощь
Ошибка на сайте? Выдели её и нажми Ctrl+Enter
