Компания была основана в 1953 году в Германии Гюнтером Шварцбеком, который во всей Европе считается основоположником по созданию приборов для ЭМС-измерений. Головной офис Schwarzbeck Mess-Elektronik расположен в городе Шёнау-им-Шварцвальд.
Компания Schwarzbeck Mess-Elektronik выпускает широкий ряд измерительных антенн с сопутствующими аксессуарами, эквиваленты сети, системы… подробнее
Description:

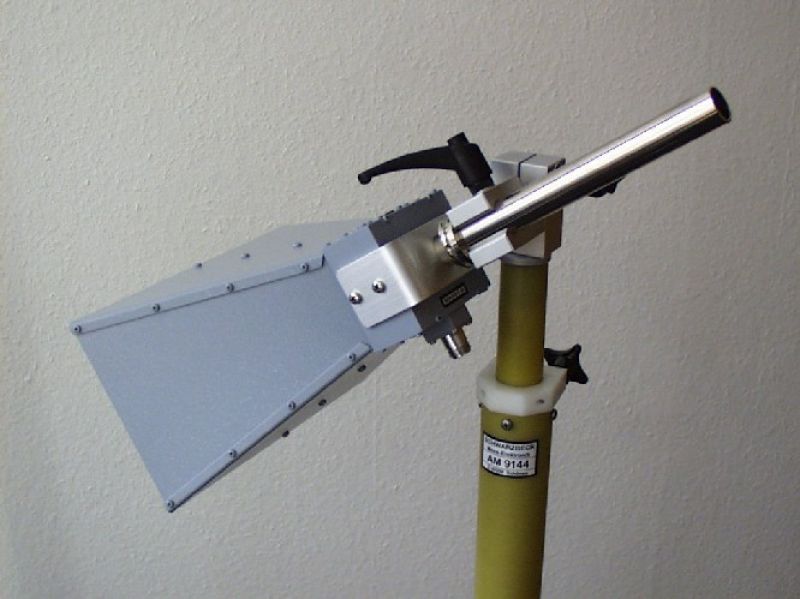

The mast adaptor AA 9203 is used together with Antenna Mast AM 9144 for mounting of Antennas with 22 mm tube. Another possibility is to use the adaptor with a common camera tripod with 1/4" and 3/8" thread.
The polarization can be changed continuously by turning the antenna tube inside the adaptor. In contrast to the simpler adapter AA 9202 the elevation (angle between horizon and 22 mm tube) may be varied continuously. Two robust plastic fixing handles provide a reliable antenna mounting.
Description:
The mast adaptor AA 9203 is used together with Antenna Mast AM 9144 for mounting of Antennas with 22 mm tube. Another possibility is to use the adaptor with a common camera tripod with 1/4" and 3/8" thread.
The polarization can be changed continuously by turning the antenna tube inside the adaptor. In contrast to the simpler adapter AA 9202 the elevation (angle between horizon and 22 mm tube) may be varied continuously. Two robust plastic fixing handles provide a reliable antenna mounting.
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
Specifications: | |
(valid for use with AM 9144) | |
Material: | Aluminium (Eloxal) |
Weight: | 225 g |
Max. Antenna weight: | 5 kg |
Max torque: | 25 Nm |
