Компания была основана в 1953 году в Германии Гюнтером Шварцбеком, который во всей Европе считается основоположником по созданию приборов для ЭМС-измерений. Головной офис Schwarzbeck Mess-Elektronik расположен в городе Шёнау-им-Шварцвальд.
Компания Schwarzbeck Mess-Elektronik выпускает широкий ряд измерительных антенн с сопутствующими аксессуарами, эквиваленты сети, системы… подробнее

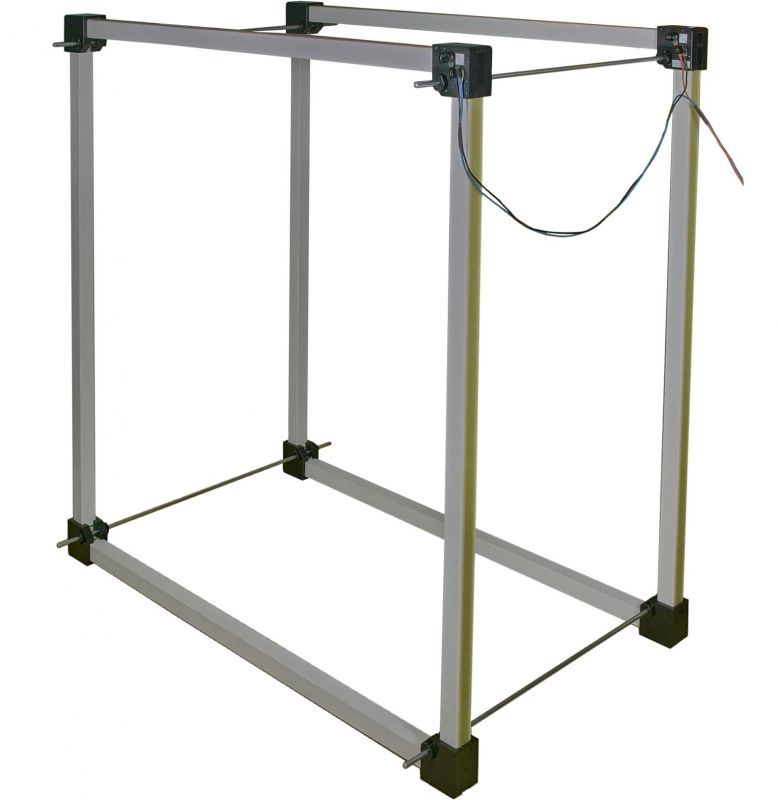

HHS 5213-50
Helmholtz Coils and resulting field strength in direction of the rotational axis, presented in a graph. The total field strength between the coils is the sum of both contributions of each single coil. A uniform field strength characteristic over a large volume can be achieved, choosing the appropriate coil spacing (Coil spacing = 0.6 * side length).
HHS 5213-50
Helmholtz Coils and resulting field strength in direction of the rotational axis, presented in a graph. The total field strength between the coils is the sum of both contributions of each single coil. A uniform field strength characteristic over a large volume can be achieved, choosing the appropriate coil spacing (Coil spacing = 0.6 * side length).
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
HHS 5213-50 - Helmholtz Coils | |
Number of turns: | 50 |
Maximum Coil Current: | 8 A (5 min.) |
Nominal Coil Current: | 5 A continuous |
Max. Magn. Field Strength: | 390 A/m (5 min.) |
Nominal Magn. Field Strength: | 240 A/m continuos |
Magn. Field Strength, 1 A Coil Current: | 48.5 A/m (coil Dist. 0.75 m) |
Coil Separation acc. IEC 1000-4-8: | 0.75 m |
Maximum Coil Separation: | 0.82 m |
Mechanical Dimensions: | 1.36 m x 1.36 m x 0.9 m |
Usable Frequency Range: | DC - 20 kHz |
Inductance (per Coil): | 10.5 mH |
Resonance Frequency (Pair of Coils): | >30 kHz |
Weight: | 18 kg |
Terminals: | 4 mm female |
HHS 5213-100 - Helmholtz Coils | |
Number of turns: | 100 |
Maximum Coil Current: | 15 A (5 min.) |
Nominal Coil Current: | 9 A continuous |
Nominal Magn. Field Strength: | 900.9 A/m continuos |
Magn. Field Strength, 1 A Coil Current: | 100.096 A/m (coil Dist. 0.705 m) |
Maximum Coil Separation: | 0.83 m |
Mechanical Dimensions: | 1.46 m x 1.36 m x 0.91 m |
Usable Frequency Range: | DC - 5 kHz |
Inductance (Coil pair): | 88.3 mH (Coil Dist. 0.705 m) |
Resonance Frequency (Pair of Coils): | >13 kHz |
Weight: | 44.5 kg |
Terminals: | 4 mm female |
Товар |
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
Модели |
HHS 5213-50
|
Катушка Гельмгольца HHS 5213-50, 50 витков
|
По запросу | ||
HHS 5213-100
|
Катушка Гельмгольца HHS 5213-50, 100 витков
|
По запросу |
