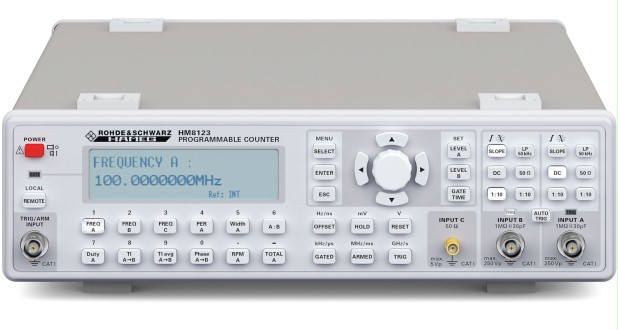

Универсальный частотомер, канал A/B 0 - 200 МГц, канал C 100 МГц - 3 ГГц
Наличие: По запросуПо запросу По запросу По запросу
Частотомеры HM8123 Подробнее
Немецкая компания Rohde & Schwarz основана в 1933 году в Германии, в г. Мюнхен учеными Физико-технического Университета Лотаром Роде и Германом Шварцем.
В нашей стране оборудование Rohde & Schwarz появилось в 1957 году. С тех пор, благодаря собственным технологиям и новаторским идеям сотрудников, Rohde & Schwarz становится одним из технологических лидеров для российских заказчиков различных государственных и силовых структур.
На… подробнее
Обзор
Measurement range: DC to 3 GHz
Input impedance A/B: 50 Ω or 1 MΩ (switchable), sensitivity 25 mV
Input impedance C: 50 Ω, sensitivity 30 mV
10-digit resolution (at 10 s gate time)
Nine measurement functions, external GATE and ARMING connectors (BNC)
External reference input/output (10 MHz) via BNC connector
HM8123: TCXO (temperature stability: ±0.5 x 10-6), HM8123-X: OCXO (temperature stability: ±1.0 x 10-8)
RS-232/USB dual interface, optionally IEEE-488 (GPIB)
Fanless design
Measurement range: DC to 3 GHz
Input impedance A/B: 50 Ω or 1 MΩ (switchable), sensitivity 25 mV
Input impedance C: 50 Ω, sensitivity 30 mV
10-digit resolution (at 10 s gate time)
Nine measurement functions, external GATE and ARMING connectors (BNC)
External reference input/output (10 MHz) via BNC connector
HM8123: TCXO (temperature stability: ±0.5 x 10-6), HM8123-X: OCXO (temperature stability: ±1.0 x 10-8)
RS-232/USB dual interface, optionally IEEE-488 (GPIB)
Fanless design
Line cord
Operating manual
Line cord
Operating manual
Свернуть
Развернуть
Основные возможности и технические характеристики
Key facts
- Input A/B (BNC): DC to 200 MHz
- Input C (SMA): 100 MHz to 3 GHz
Свернуть
Развернуть
Основные возможности и технические характеристики
Key facts
- Input A/B (BNC): DC to 200 MHz
- Input C (SMA): 100 MHz to 3 GHz
Свернуть
Развернуть
Комплектация
Свернуть
Развернуть
Комплектация
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
|
50578-12 |
Частотомеры универсальные |
HM8123 |
Фирма "Rohde & Schwarz GmbH & Co. KG", Германия |
30.05.2022 |
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
|
50578-12 |
Частотомеры универсальные |
HM8123 |
Фирма "Rohde & Schwarz GmbH & Co. KG", Германия |
30.05.2022 |
Характеристики
Загрузить технические характеристики
| 3 GHz Programmable Counter | |||
| HM8123 | |||
| All data valid at 23 °C after 30 minutes warm-up. | |||
| Input characteristics (Input A and B) | |||
| Connection | BNC socket | ||
| Frequency range | |||
| 0 to 200 MHz | DC coupled | ||
| 10 Hz to 200 MHz | 1 MΩ, AC coupled | ||
| 500 kHz to 200 MHz | 50 Ω, AC coupled | ||
| Input impedance | 1 MΩ II 30 pF or 50 Ω (switchable) | ||
| Attenuation | 1:1, 1:10, 1:100 (selectable) | ||
| Sensitivity (normal triggering) | |||
| 0 to 80 MHz | 25 mVrms (sine wave), 80 m√SS (pulse) | ||
| 80 to 200 MHz | 65 mVrms (sine wave) | ||
| 20 Hz to 80 MHz | 50 mVrms (sine wave, auto trigger) | ||
| Trigger (programmable via encoder or software | |||
| Attenuation: | Trigger level | Resolution | |
| 1:1 | 0 to ±2 V | 1 mV | |
| 1:10 | 0 to ±20 V | 10 mV | |
| 1:100 | 0 to ±200V | 100 mV | |
| Max. input voltage | |||
| Input 1 MΩ | 250 V (DC + ACpeak) from 0 to 440 Hz decreasing to 8 Vrms at 1 MHz | ||
| Input 50 Ω | 5 Vrms | ||
| Minimum pulse duration | <5 ns for single pulse | ||
| Input noise | (typ.) 100 μV | ||
| Auto trigger (AC coupling) | trigger point: 50 % of peak-to-peak value | ||
| Trigger slope | Rising or falling | ||
| Filter | 50 kHz low-pass filter (selectable) | ||
| Input characteristics (Input C) | |||
| Connection | SMA socket | ||
| Frequency range: | 100 MHz to 3 GHz | ||
| Input sensitivity | to 1 GHz: | 30 mVrms (typ. 20 mVrms) | |
| 1 to 3 GHz: | 100 mVrms (typ. 80 mVrms) | ||
| Input impedance | 50 Ω nominal | ||
| Max. Input voltage | 5 V (DC + ACpeak) | ||
| Input characteristics | |||
| External | Reset Reference | Gate/ Arming | |
| Input impedance | 5 kΩ | 500 Ω | 5 kΩ |
| Max. Input voltage | ±30V | ±20V | ±30V |
| Input sensitivity | - | typ. 2 Vpp | - |
| High level | >2V | - | >2V |
| Low level | <0,5 V | - | <0,5V |
| Min. pulse duration | 200 ns | - | 50 ns |
| Input frequency | - | 10 MHz | - |
| Min. eff gate time | - | - | 20μs |
| Measurement functions | |||
| Frequency A/B/C; period duration A; width A; totalize A; RPM A; frequency ratio A:B; time interval A:B; time interval A:B (average); phase A to B; Duty cycle A; burst measurements | |||
| Frequency measurement (Inputs A, B, C) | |||
| Frequency range | 0 to 200 MHz (3 GHz) | ||
| LSD | (1,25 x 10 s x frequency) / measurement time | ||
| Resolution | 1 LSD | ||
| Accuracy |
±(resolution∕frequency ±time inaccuracy ±trigger error2)/ measurement time) |
||
| Period duration measurement | |||
| Range | 5 ns to 10.000 s | ||
| LSD | (1,25 x 10-8s x period) / measurement time | ||
| Resolution | 1 LSD | ||
| Accuracy | ±resolution / period ±(trigger error2) / measurement time) | ||
| Totalization A | |||
| manual control | external control | ||
| Range | 0 to 200 MHz | 0 to 200 MHz | |
| Min. pulse duration | 10 ns | 10 ns | |
| LSD | 1 count | ±1 count | |
| Resolution | LSD | LSD | |
| Accuracy | (resolution ±ext. gate time error x frequency A) / total | ||
| Pulse resolution | 10 ns | 10 ns | |
| Ext. gate error | - | 100 ns | |
| Time interval/Average time interval | |||
| (Input A = start; Input B = stop) | |||
| LSD | 10 ns (0,1 ps to 10 ns im 'average' mode) | ||
| Resolution | 1 LSD | ||
| Accuracy | ±(resolution + trigger error2) +system error) / time interval ±time base uncertainty (system error: ≤4 ns) | ||
| Number of average | N = 1 to 25 | LSD = 10 ns | |
| N = 26 to 2.500 | LSD = 1 ns | ||
| N = 2.501 to 250.000 | LSD = 100 ps | ||
| N = 250.001 to 25.000.000 LSD = 10 ps | LSD = 10 ps | ||
| N = >25.000.000 | LSD = 0,1 ps | ||
| Drehzahlmessung | |||
| NPR1) presetting | 1 to 65,535 pulses per revolution | ||
| Gate time | 330 ms fixed | ||
| LSD | 7,5 x 10-8 x revolution speed | ||
| Resolution | 1 LSD | ||
| Accuracy | ±(trigger error2) / 0.33) ±time base error | ||
| Offset | |||
| Range | Covers the entire measurement range | ||
| Resolution | Same resolution as in normal measurement. If the gate time is changed in the offset mode, the offset resolution is the reference value resolution or the current reading resolution (whichever is less precise). | ||
| Gate time | |||
| Range | 1 ms to 65 s | ||
| Resolution | 1 ms | ||
| External gate time | min. 20 μs | ||
| Time base | |||
| Frequency | 400 MHz clock rate; 10 MHz Quarz | ||
| Temperature stability (0 to 50 °C) | TCXO (standard): | ±0,5 x 10-6 | |
| OCXO (HO85): | ±1,0 x 10-8 | ||
| Alterung TCXO | <0.27 ppm per month, 0.05 ppm per day | ||
| OCXO | ≤ ±1 x 10-9/day | ||
| External Reference | 10 MHz ±20 ppm | ||
| Miscellaneous | |||
| Interface | Dual-Interface USB/RS-232 (HO820), optional HO880 IEEE-488 (GPIB) | ||
| Safety class | Safety class I (EN61010-1) | ||
| Display | LCD display (83 x 21 mm) | ||
| Netzanschluss | 115 to 230 V ±10 %, 45 to 60 Hz, CAT II | ||
| Power consumption | approx. 20 W | ||
| Operating temperature | +5 to +40 °C | ||
| Storage temperature | -20 to +70 °C | ||
| Rel. humidity | 5 to 80 % (without condensation) | ||
| Dimensions (W x H x D) | 285 x 75 x 365 mm | ||
| Weight | approx. 4 kg | ||
|
1) NPR=number of pulses per revolution 2) Trigger error= ±noise input (Vpp)∕slew rate of the input signal |
|||
Модели и опции
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
HM8123
|
Универсальный частотомер, канал A/B 0 - 200 МГц, канал C 100 МГц - 3 ГГц
|
По запросу | ||
|
R&S® HM8123
|
Универсальный частотомер, канал A/B 0 - 200 МГц, канал C 100 МГц - 3 ГГц
|
€2 625 | ||
|
HM8123-X
|
Универсальный частотомер, канал A/B 0 - 200 МГц, канал C 100 МГц - 3 ГГц, OCXO ±1,0 × 10e-8
|
По запросу | ||
|
R&S® HM8123-X
|
Универсальный частотомер, канал A/B 0 - 200 МГц, канал C 100 МГц - 3 ГГц, OCXO ±1,0 × 10e-8
|
€3 875 |
4
| Accessories |
|
HZ20
|
Adapter, BNC to 4 mm banana
|
По запросу | ||
|
HZ24
|
Attenuator set, 50 Ω (4 pcs.), 3/6/10/20 dB (1 GHz) + 1 pc. HZ22
|
По запросу | ||
|
R&S® HZ24
|
Attenuator set, 50 Ω (4 pcs.), 3/6/10/20 dB (1 GHz) + 1 pc. HZ22
|
€250 | ||
|
HZ42
|
19" Rack Adapter, 2 HU for R&S®HMP2020/HMP2030
|
По запросу | ||
|
R&S® HZ42
|
19" Rack Adapter, 2 HU for R&S®HMP2020/HMP2030
|
€375 | ||
|
HZ72
|
GPIB cable, 2 m, 90° angled, stackable
|
По запросу | ||
|
R&S® HZ72
|
GPIB cable, 2 m, 90° angled, stackable
|
€250 |
11
| Options |
|
HO85
|
OCXO temperature stability ±1x10-8 for HM8123, HM8134-3, HM8135, OCXO Installation only ex factory
|
По запросу |
12
| hardware options |
|
HO820
|
USB/RS-232 Interface for Series 8100, included in delivery
|
По запросу | ||
|
HO880
|
IEEE-488 (GPIB) Interface
|
По запросу | ||
|
R&S® HO880
|
IEEE-488 (GPIB) Interface
|
€750 |
