Генератор сигналов, 30 МГц, 2 канала, функция генерации сигналов произвольной формы
Наличие: По запросуПо запросу По запросу По запросу
Генераторы сигналов 33500B Подробнее
Американская компания Keysight Technologies начала свою историю в 1930-х годах прошлого века. Сегодня – это лидер в производстве измерительного оборудования и САПР (систем автоматизированного проектирования). Keysight Technologies предлагает интегрированные решения, объединяющие измерения, экстракцию параметров и верификацию разработок.
Компания Keysight Technologies производит осциллографы, анализаторы, измерители, генераторы, источники питания, а также… подробнее
Обзор
Свернуть
Развернуть
Основные возможности и технические характеристики
33500B Series waveform generators with exclusive Trueform signal generation technology offer more capability, fidelity and flexibility than traditional DDS generators. Use them to accelerate your development process from start to fi nish.
Over the past two decades, direct digital synthesis (DDS) has been the waveform generation technology of choice in function generators and economical arbitrary waveform generators. DDS enables waveform generators with great frequency resolution, convenient custom waveforms, and a low price.
As with any technology, DDS has intrinsic downsides and limitations as well. Engineers with exacting requirements have had to either work around the compromised performance or spend up to 10 times more for a high-end, point-by-point waveform generator.
The Keysight Technologies, Inc. Trueform technology offers a new alternative that blends the best of DDS and point-by-point architectures, giving you the benefits of both without the limitations of either. Trueform technology uses an exclusive digital sampling technique that delivers unmatched performance at the same low price you are accustomed to with DDS.
The table below highlights the revolutionary capabilities of Trueform technology.
Over the past two decades, direct digital synthesis (DDS) has been the waveform generation technology of choice in function generators and economical arbitrary waveform generators. DDS enables waveform generators with great frequency resolution, convenient custom waveforms, and a low price.
As with any technology, DDS has intrinsic downsides and limitations as well. Engineers with exacting requirements have had to either work around the compromised performance or spend up to 10 times more for a high-end, point-by-point waveform generator.
The Keysight Technologies, Inc. Trueform technology offers a new alternative that blends the best of DDS and point-by-point architectures, giving you the benefits of both without the limitations of either. Trueform technology uses an exclusive digital sampling technique that delivers unmatched performance at the same low price you are accustomed to with DDS.
The table below highlights the revolutionary capabilities of Trueform technology.
Свернуть
Развернуть
Основные возможности и технические характеристики
33500B Series waveform generators with exclusive Trueform signal generation technology offer more capability, fidelity and flexibility than traditional DDS generators. Use them to accelerate your development process from start to fi nish.
Over the past two decades, direct digital synthesis (DDS) has been the waveform generation technology of choice in function generators and economical arbitrary waveform generators. DDS enables waveform generators with great frequency resolution, convenient custom waveforms, and a low price.
As with any technology, DDS has intrinsic downsides and limitations as well. Engineers with exacting requirements have had to either work around the compromised performance or spend up to 10 times more for a high-end, point-by-point waveform generator.
The Keysight Technologies, Inc. Trueform technology offers a new alternative that blends the best of DDS and point-by-point architectures, giving you the benefits of both without the limitations of either. Trueform technology uses an exclusive digital sampling technique that delivers unmatched performance at the same low price you are accustomed to with DDS.
The table below highlights the revolutionary capabilities of Trueform technology.
Over the past two decades, direct digital synthesis (DDS) has been the waveform generation technology of choice in function generators and economical arbitrary waveform generators. DDS enables waveform generators with great frequency resolution, convenient custom waveforms, and a low price.
As with any technology, DDS has intrinsic downsides and limitations as well. Engineers with exacting requirements have had to either work around the compromised performance or spend up to 10 times more for a high-end, point-by-point waveform generator.
The Keysight Technologies, Inc. Trueform technology offers a new alternative that blends the best of DDS and point-by-point architectures, giving you the benefits of both without the limitations of either. Trueform technology uses an exclusive digital sampling technique that delivers unmatched performance at the same low price you are accustomed to with DDS.
The table below highlights the revolutionary capabilities of Trueform technology.
Свернуть
Развернуть
Комплектация
Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Свернуть
Развернуть
Комплектация
Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
|
72915-18 |
Генераторы сигналов произвольной формы |
33500B |
Компания "Keysight Technologies Malaysia Sdn. Bhd.", Малайзия |
26.10.2023 |
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
|
72915-18 |
Генераторы сигналов произвольной формы |
33500B |
Компания "Keysight Technologies Malaysia Sdn. Bhd.", Малайзия |
26.10.2023 |
Характеристики
Загрузить технические характеристики
| Instrument characteristics | |||||||||
| Models & options | |||||||||
| 33509B/11B/19B/21B | 1-channel | ||||||||
| 33510B/12B/20B/22B | 2-channel | ||||||||
| Option MEM | Increases arbitrary waveform memory to 16 MSa/channel* | ||||||||
| Option OCX | OCXO timebase for ultra-high stability | ||||||||
| Option IQP | IQ player (Only available on 33512B and 33522B) | ||||||||
| Waveforms | |||||||||
| Standard | Sine, square, ramp, pulse, triangle, Gaussian noise, PRBS (Pseudorandom Binary Sequence), DC | ||||||||
| Built-in arbitrary* | Cardiac, exponential fall, exponential rise, Gaussian pulse, Haversine, Lorentz, D-Lorentz, negative ramp, sinc | ||||||||
| User-defined arbitrary* | Up to 1 MSa (16 MSa with Option MEM) with multi-segment sequencing | ||||||||
| Operating modes & modulation types | |||||||||
| Operating modes | Continuous, modulate, frequency sweep, burst, output gate | ||||||||
| Modulation types | AM, FM, PM, FSK, BPSK, PWM, Sum (carrier + modulation) | ||||||||
| Waveform characteristics | |||||||||
| Sine | |||||||||
| Frequency range | 1 μHz to 20 MHz or 30 MHz, 1 μHz resolution | ||||||||
| Amplitude flatness (spec)1, 2 (relative to 1 kHz) |
< 100 kHz: | ± 0.10 dB | |||||||
| 100 kHz to 5 MHz: | ± 0.15 dB | ||||||||
| 5 to 20 MHz: | ± 0.30 dB | ||||||||
| 20 to 30 MHz:** | ± 0.40 dB | ||||||||
| Harmonic distortion (typ) 2, 3 | < 20 kHz: | < -70 dBc | |||||||
| 20 to 100 kHz: | < -65 dBc | ||||||||
| 100 kHz to 1 MHz: | < -50 dBc | ||||||||
| 1 to 20 MHz: | < -40 dBc | ||||||||
| 20 to 30 MHz:** | < -35 dBc | ||||||||
| THD (typ) | 20 Hz to 20 kHz: | < 0.04% | |||||||
| Non-harmonic spurious (typ) 2, 3 | Standard: < -75
dBc, increasing +20 dB/decade above 2 MHz Option OCX: < -75 dBc, increasing +20 dB/decade above 10 MHz (or < -100 dBm, whichever is greater, below 500 MHz) |

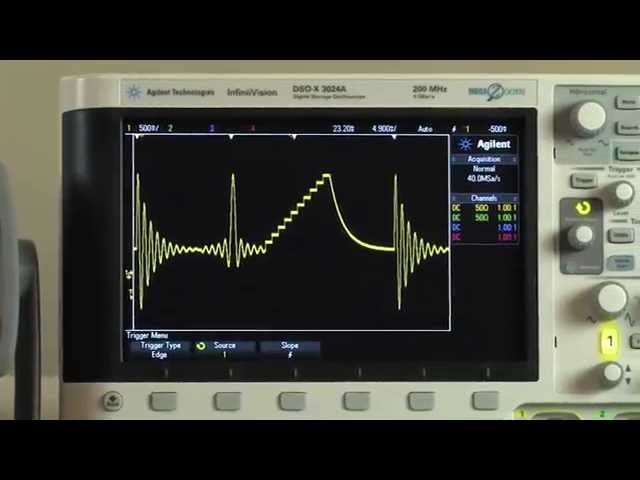

||||||||
| Phase noise (SSB) (typ) | Standard | Option OCX | |||||||
| 1 kHz offset: | -105 | -110 dBc/Hz | |||||||
| 10 kHz offset: | -115 | -125 dBc/Hz | |||||||
| 100 kHz offset: | -125 | -135 dBc/Hz | |||||||
| *Only available on 33511B/12B/21B/22B | |||||||||
| **Only available on 33519B/20B/21B/22B | |||||||||
| NOTE: See page 22 for footnotes 1 through 10 | |||||||||
| Square & pulse | |||||||||
| Frequency range | 1 μHz to 20 MHz or 30 MHz, 1 μHz resolution | ||||||||
| Rise and fall times (nom) | Square: 8.4 ns, fixed Pulse: 8.4 ns to 1 μs, independently variable, 100-ps or 3-digit resolution | ||||||||
| Overshoot (typ) | < 2% | ||||||||
| Duty cycle | 0.01% to 99.99% 8 | ||||||||
| Pulse width | 16 ns minimum, 100-ps resolution | ||||||||
| Jitter (cycle-to-cycle, typ) | < 40 ps rms | ||||||||
| Ramp & triangle | |||||||||
| Frequency range | 1 μHz to 200 kHz, 1 μHz resolution | ||||||||
| Ramp symmetry | 0.0% to 100.0%, 0.1% resolution (0% is negative ramp, 100% is positive ramp, 50% is Triangle) | ||||||||
| Nonlinearity (typ) | < 0.05% from 5% to 95% of the signal amplitude | ||||||||
| Gaussian noise | |||||||||
| Bandwidth (typ) | 1 mHz to 20 MHz or 30 MHz, variable | ||||||||
| Crest factor (nom) | 4,6 | ||||||||
| Repetition period | > 50 years | ||||||||
| Pseudorandom binary sequence (PRBS) | |||||||||
| Bit rate | 1 mbps to 50 Mbps, 1 mbps resolution | ||||||||
| Sequence length | 2m -1, m=7, 9, 11, 15, 20, 23 | ||||||||
| Rise and fall times (nom) | 8.4 ns to 1 μs, variable, 100-ps or 3-digit resolution | ||||||||
| Arbitrary waveform characteristics | |||||||||
| General Waveform length | 8 Sa to 1 MSa per channel (16 MSa with Option OCX) in increments of 1 sample | ||||||||
| Sample rate | 1 μSa∕s to 250 MSa/s, 1 μSa∕s resolution | ||||||||
| Voltage resolution | 16 bits | ||||||||
| Bandwidth (-3 dB, nom) | Filter Off: 40 MHz "Normal" Filter On: 0.27 x (Sample Rate) "Step" Filter On: 0.13 x (Sample Rate) | ||||||||
| Rise and fall time | 0.35 / Bandwidth (10 ns min) with "Normal" or "Step" filter On | ||||||||
| Settling time (typ) | < 200 ns to 0.5% of final value | ||||||||
| Jitter (typ) | Filter Off: < 40 ps rms "Normal" or "Step" filter On: < 5 ps | ||||||||
| IQ Player Characteristics | |||||||||
| Balance Adjust | |||||||||
| Amplitude Gain (channel to channel amplitud | -30% to +30% | ||||||||
| Delta Offset Ch 1 and Ch 2 | ± (5 VDC - Peak AC) into 50 Ω ± (10 VDC - Peak AC) into open circuit | ||||||||
| IQ Signal Skew (adjusts channel to channel sk | -4.00 ns to +4.00 ns | ||||||||
| Views | |||||||||
| Amplitude vs. Time | |||||||||
| X-Y (constellation diagram) | |||||||||
| Waveform sequencing (Available only on 33511B/12B/21B/22B) | |||||||||
| Operation | Individual arbitrary waveforms (segments) can be combined into user-defined lists (sequences) to form longer, more complex waveforms. Each sequence step specifies whether to repeat the associated segment a certain number of times, to repeat it indefinitely, to repeat it until a Trigger event occurs, or to stop and wait for a Trigger event. Additionally, the behavior of the Sync output can be specified in each step. To improve throughput, up to 32 sequences totalling up to 1,024 segments can be pre-loaded into volatile memory. | ||||||||
| Segment length | 8 Sa to 1 MSa per channel (16 MSa with Option MEM) in increments of 1 sample | ||||||||
| Sequence length | 1 to 512 steps | ||||||||
| Segment repeat count | 1 to 1x106, or infinite | ||||||||
| Output characteristics | |||||||||
| Isolation | |||||||||
| Outputs | Connector shells for channel output(s), Sync, and Mod In are connected together but isolated from the instrument's chassis. Maximum allowable voltage on isolated connector shells is ±42 Vpk | ||||||||
| Signal output | |||||||||
| Output impedance (nom) | 50 Ω | ||||||||
| On, off, inverted | User-selectable for each channel | ||||||||
| Voltage limit | User-definable VMAX and VMIN limits | ||||||||
| Overload protection | Output turns off automatically when an overload is applied Instrument will tolerate a short-circuit to ground indefinitely | ||||||||
| Amplitude | |||||||||
| Range | 1 mVpp to 10 Vpp into
50 Ω 2 mVpp to 20 Vpp into open circuit |
||||||||
| Resolution | 4 digits | ||||||||
| Units | Vpp, Vrms, or dBm, selectable | ||||||||
| Accuracy 1,2 (spec) | ±1% of setting ±1 mVpp at 1 kHz | ||||||||
| DC offset | |||||||||
| Range 5 | ±(5 VDC - Peak AC) into 50 Ω ±(10 VDC - Peak AC) into open circuit | ||||||||
| Resolution | 4 digits | ||||||||
| Units | VDC | ||||||||
| Accuracy 1,2 (spec) | ±1% of Offset setting ±0.25% of Amplitude setting ±2mV | ||||||||
| Frequency accuracy | |||||||||
| Standard frequency reference (spec) | |||||||||
| 1 year, 23° C ± 5° C | ±1 ppm of setting ± 15 pHz | ||||||||
| 1 year, 0° C to 55° C | ±2 ppm of setting ± 15 pHz | ||||||||
| High-stability frequency reference (spec): Option OCX | |||||||||
| 1 year, 0° C to 55° C | ±0.1 ppm of setting ± 15 pHz | ||||||||
| Modulation types and operating modes | |||||||||
| Carrier | AM | FM | PM | FSK | BPSK | PWM | Sum | Burst | Sweep |
| Sine and Square | • | • | • | • | • | • | • | • | |
| Pulse | • | • | • | • | • | • | • | • | • |
| Triangle and Ramp | • | • | • | • | • | • | • | • | |
| Gaussian Noise | • | • | •a | ||||||
| PRBS | • | • | • | • | • | ||||
| Single ARB* | • | •b | •b | • | • | ||||
| Sequenced ARB* | • | • | |||||||
| a. Gated burst only. b. Applies to sample clock, not whole waveform. | |||||||||
| Modulating signals | |||||||||
| Carrier | Sine | Square | Triangle / | Noise | PRBS | ARB* | External | ||
| Sine | • | • | • | • | • | • | • | ||
| Square and Pulse | • | • | • | • | • | • | • | ||
| Triangle and Ramp | • | • | • | • | • | • | • | ||
| Gaussian Noise | • | • | • | • | • | • | |||
| PRBS | • | • | • | • | • | • | |||
| ARB* | • | • | • | • | • | • | |||
| * Only applies to 33511B/12B/21B/22B | |||||||||
| Modulation characteristics | |||||||||
| Amplitude modulation (AM) | |||||||||
| Source | Internal or external, or either channel with 2-channel models | ||||||||
| Type | Full-carrier or double-sideband suppressed-carrier | ||||||||
| Depth 1 | 0% to 120%, 0.01% resolution | ||||||||
| Frequency modulation (FM) 7 | |||||||||
| Source | Internal or external, or either channel with 2-channel models | ||||||||
| Deviation | 1 μHz to 15 MHz, 1 μHz resolution | ||||||||
| Phase modulation(PM) | |||||||||
| Source | Internal or external, or either channel with 2-channel models | ||||||||
| Deviation | 0° to 360°, 0.1° resolution | ||||||||
| Frequency shift key modulation (FSK) 7 | |||||||||
| Source | Internal timer or ext trig connector | ||||||||
| Mark & space | Any frequency within the carrier signal's range | ||||||||
| Rate | 0 Hz to 1 MHz | ||||||||
| Binary phase shift key modulation (BPSK) | |||||||||
| Source | Internal timer or ext trig connector | ||||||||
| Phase shift | 0° to 360°, 0.1° resolution | ||||||||
| Rate | 0 Hz to 1 MHz | ||||||||
| Pulse width modulation (PWM) | |||||||||
| Source | Internal or external, or either channel with 2-channel models | ||||||||
| Deviation 8 | 0% to 100% of pulse width, 0.01% resolution | ||||||||
| Additive modulation (Sum) | |||||||||
| Source | Internal or external, or either channel with 2-channel models | ||||||||
| Ratio 6 | 0% to 100% of carrier amplitude, 0.01% resolution | ||||||||
| Burst 9 | |||||||||
| Type | Counted or gated | ||||||||
| Count | 1 to 1x108 cycles, or infinite | ||||||||
| Gated | Produces complete cycles while Ext Trig is asserted | ||||||||
| Start/stop phase 4 | -360° to 360°, 0.1° resolution | ||||||||
| Trigger source | Internal Timer or Ext Trig connector | ||||||||
| Marker | Adjustable to any cycle; indicated by the trailing edge of the Sync pulse | ||||||||
| Sweep 7 | |||||||||
| Type | Linear, Logarithmic, List (up to 128 user-defined frequencies) | ||||||||
| Operation | Linear and Logarithmic sweeps are characterized by a Sweep time (during which the frequency changes smoothly from Start to Stop), a Hold time (during which the frequency stays at the Stop frequency), and a Return time (during which the frequency changes smoothly from Stop to Start). Returns are always linear. | ||||||||
| Direction | Up (Start freq < Stop freq) or Down (Start freq > Stop freq) | ||||||||
| Start and stop frequencies | Any frequency within the waveform's range | ||||||||
| Sweep time | Linear: 1 ms to 3600 s, 1 ms
resolution; 3601 s to 250,000 s, 1 s resolution Logarithmic: 1 ms to 500 s |

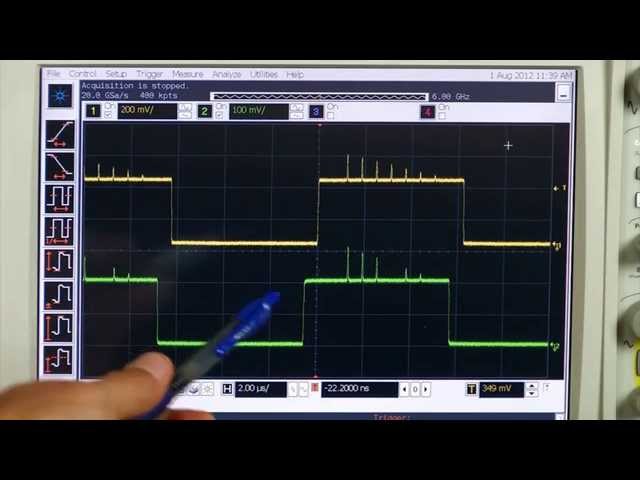

||||||||
| Hold time | 0 s to 3600 s, 1 ms resolution | ||||||||
| Return time | 0 s to 3600 s, 1 ms resolution | ||||||||
| Trigger source 10 | Immediate (continuous), external, single, bus, or timer | ||||||||
| Marker | Adjustable to any frequency between Start and Stop for Linear and Logarithmic types or any frequency in the list for List type; indicated by the trailing edge of the sync pulse | ||||||||
| Internal timer for FSK, BPSK, BURST, and SWEEP | |||||||||
| Range | 1 μs to 8000s, 6-digit or 4 ns resolution | ||||||||
| 2-channel characteristics (Only applies to 33519B/20B/21B/22B) | |||||||||
| Operating modes | Independent, coupled parameter(s), combined (Ch 1 + Ch 2), Equal (Ch 2 = Ch 1), or differential (Ch 2 = -Ch 1) | ||||||||
| Parameter coupling | None, frequency (ratio or difference) and/or amplitude and DC offset | ||||||||
| Relative phase | 0° to 360°, 0.1° resolution | ||||||||
| Skew (typ) | < 200 ps (when performing identical operations) | ||||||||
| Crosstalk (typ) | < -85 dB | ||||||||
| Sync/marker output | |||||||||
| Connector | Front-panel BNC, isolated from chassis | ||||||||
| Functions | Sync, sweep marker, burst marker, or arbitrary waveform marker | ||||||||
| Assignment | Channel 1 or channel 2 | ||||||||
| Polarity | Normal or inverted | ||||||||
| Voltage level (nom) | 3 Vpp into open circuit, 1.5 Vpp into 50 Ω | ||||||||
| Output impedance (nom) | 50 Ω | ||||||||
| Minimum pulse width (nom) | 16 ns | ||||||||
| External trigger/gate | |||||||||
| Connector | Rear-panel BNC, chassis-referenced | ||||||||
| Function | Input or output | ||||||||
| Assignment | Channel 1, channel 2, or both (as input) Channel 1 or channel 2 (as output) | ||||||||
| Polarity | Positive or negative slope | ||||||||
| Voltage level (nom) | 0 V to 0.4 V for low,
> 2.3 V for high, 3.5 V maximum (as input) 3 Vpp (nom) into open circuit, 1.5 Vpp (nom) into 50 Ω (as output) |
||||||||
| Impedance (nom) | 10k Ω, DC-coupled (as input) 50 Ω (as output) | ||||||||
| Minimum pulse width (nom) | 16 ns | ||||||||
| Input rate | DC to 1 MHz | ||||||||
| Minimum pulse width | 100 ns (as input) | ||||||||
| Duty cycle (nom) | 50% (as output) | ||||||||
| Trigger delay | 0 s to 1000 s, 4 ns resolution; applies to all trigger events | ||||||||
| Input latency (typ) | < 135 ns with Trigger Delay set to zero | ||||||||
| Input jitter (typ) | < 2.5 ns, rms | ||||||||
| Fanout | ≤ 4 total Keysight 33500B Series waveform generators | ||||||||
| Modulation input | |||||||||
| Connector | Rear-panel BNC, isolated | ||||||||
| Assignment | Channel 1, Channel 2, or both | ||||||||
| Voltage level | ±5 V full-scale | ||||||||
| Input impedance (nom) | 5k Ω | ||||||||
| Bandwidth (-3 dB, typ) | 0 Hz to 100 kHz | ||||||||
| Frequency reference input | |||||||||
| Connector | Rear-panel BNC, isolated from chassis and all other connectors | ||||||||
| Reference selection | Internal, external, or auto | ||||||||
| Frequency range | Standard: 10 MHz ± 20 Hz Option OCX: 10 MHz ± 1 Hz |
||||||||
| Lock time (typ) | <2 s | ||||||||
| Voltage level | 200 mVpp to 5 Vpp | ||||||||
| Input Impedance (nom) | 1k Ω || 20 pF, AC-coupled | ||||||||
| Frequency reference output | |||||||||
| Connector | Rear-panel BNC, chasis-referenced | ||||||||
| Frequency (nom) | 10 MHz | ||||||||
| Output impedance (nom) | 50 Ω, AC-coupled | ||||||||
| Level (nom) | 0 dBm, 632 mVpp into 50 Ω | ||||||||
| Real-time clock/calendar | |||||||||
| Set and read | Year, month, day, hour, minute, second | ||||||||
| Battery | CR-2032 coin-type, replacable, >5-year life (typ) | ||||||||
| Programming times (meas.) | |||||||||
| Configuration change speed | |||||||||
| LAN (socket) | LAN (VXI-11) | USB 2.0 | GPIB | ||||||
| Change function | 5 ms | 6 ms | 5 ms | 5 ms | |||||
| Change frequency | 2 ms | 3 ms | 2 ms | 3 ms | |||||
| Change amplitude | 20 ms | 20 ms | 19 ms | 22 ms | |||||
| Select user arb (16 k) | 9 ms | 11 ms | 9 ms | 9 ms | |||||
| Arbitrary waveform download speed to volatile | |||||||||
| (binary transfer) | LAN (socket) | LAN (VXI-11) | USB 2.0 | GPIB | |||||
| 4 k sample | 6 ms | 18 ms | 8 ms | 39 ms | |||||
| 1 M sample | 1.3 s | 2.6 s | 13 s | 9.1 s | |||||
| Memory | |||||||||
| Arbitrary waveform and instrument state memory | |||||||||
| Volatile | 1x106 samples per channel or 16x106 samples per channel (Option MEM) 512 sequence steps per channel | ||||||||
| Non-volatile | File sytem file space is limited to 64 MB (~32 MSa of arbitrary waveform records) | ||||||||
| Instrument state | |||||||||
| Store / Recall | User defined instrument states | ||||||||
| Power Off | Power Off state automatically saved | ||||||||
| Power On | Factory default settings or last power off settings | ||||||||
| USB File System | |||||||||
| Front-panel port | USB 2.0 high-speed mass storage (MSC) class device | ||||||||
| Capability | Read or write instrument configuration settings, instrument states and user arbitrary waveform and sequence files. | ||||||||
| Speed | 10 MB/s (nom) | ||||||||
| General characteristics | |||||||||
| Computer interfaces | |||||||||
| LXI- C (rev1.3) | 10/100Base-T Ethernet (Sockets & VXI-11 protocol) USB2.0 (USB-TMC488 protocol) GPIB/IEEE-488.1, IEEE-488.2 | ||||||||
| Web user interface | Remote operation and monitoring | ||||||||
| Programming language | SCPI-1999, IEEE-488.2 Keysight 33210A / 33220A compatibile | ||||||||
| Graphical display | 4.3" Color TFT WQVGA (480x272) with LED backlight | ||||||||
| Mechanical | |||||||||
| Size | 261.1mm W x 103.8mm H x 303.2mm D (with bumpers installed) 212.8mm W x 88.3mm H x 272.3mm D (with bumpers removed) 2U x 1/2 rack width | ||||||||
| Weight (nom) Environmental | 3.3 kg (7.2 lbs) | ||||||||
| Storage temperature | -40"C to 70‘C | ||||||||
| Warm-up time | 1 hour | ||||||||
| Operating environment | EN61010, polution degree 2; indoor locations | ||||||||
| Operating temperature | 0‘C to 55‘C | ||||||||
| Operating humidity | 5% to 80% RH, non-condensing | ||||||||
| Operating altitude | up to 3000 meters | ||||||||
| Regulatory | |||||||||
| Safety | Complies with European Low Voltage Directive and carries the CE-marking. Conforms to UL 61010-1, CSA C22.2 61010-1, and IEC 61010-1:2001 | ||||||||
| EMC | Complies with European
EMC Directive for test and measurement products. - IEC/EN 61326-1 - CISPR Pub 11 Group 1, class A - AS/NZS CISPR 11 - ICES/NMB-001 Complies with Australian standard and carries C-Tick mark This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme a la norme NMB-001 du Canada |
||||||||
| Acoustic Noise (nom) | SPL 35 dB(A) | ||||||||
| Line power | |||||||||
| Voltage | 100 V - 240 V 50/60 Hz -5%, +10% 100 V - 120 V 400 Hz ±10% | ||||||||
| Power consumption (typ) | < 45 W, < 130 VA | ||||||||
| Definitions | |||||||||
| Specification (spec) | |||||||||
| The warranted performance of a calibrated instrument that has been stored for a minimum of 2 hours within the operating temperature range of 0° C - 55° C and after a 45-minute warm up period. All specifications include measurement uncertainty and were created in compliance with ISO-17025 methods. Data published in this document are specifications (spec) only where specifically indicated. | |||||||||
| Typical (typ) | |||||||||
| The characteristic performance, which 80% or more of manufactured instruments will meet. This data is not warranted, does not include measurement uncertainty, and is valid only at room temperature (approximately 23°C). | |||||||||
| Nominal (nom) | |||||||||
| The mean or average characteristic performance, or the value of an attribute that is determined by design such as a connector type, physical dimension, or operating speed. This data is not warranted and is measured at room temperature (approximately 23°C). | |||||||||
| Measured (meas) | |||||||||
| An attribute measured during development for purposes of communicating the expected performance. This data is not warranted and is measured at room temperature (approximately 23°C). | |||||||||
| Accuracy | |||||||||
| Represents the traceable accuracy of a specified parameter. Includes measurement error and timebase error, and calibration source uncertainty. Random measuremet errors are combined using the root-sum-square method and are multiplied by M for the desired Confidence Level. Syatematic errors are added linearly and include time skew errors, trigger timing errors, and timebase errors as appropriate for each measurement type. | |||||||||
| Confidence Level | |||||||||
| For 99% Confidence use k= 2.5 in accuracy calculations. For 95% Confidence use k= 2.0 in accuracy calculations. |
|||||||||
| 1. Add 1/10th of the output amplitude and offset accuracy
specification per °C for operation at temperatures beyond 23°C ± 5°C. 2. Auto range ON. 3. DC Offset set to zero. 4. limited to arbitrary waveforms that are < 1 million points; phase resolution limited by number of points in arbitrary waveforms < 3,600 points. 5. Output noise is typically 20 dB lower when (DC + Peak AC) < 320 mV (into 50 Ω) or 640 mV (into open circuit). 6. Subject to maximum output voltage limits. 7. All frequency changes are phase-continuous. 8. Subject to pulse width limits. 9. Counted Burst operation is not allowed for Gaussian Noise. 10. External trigger only for sweep time > 8000 sec. |
|||||||||
Модели и опции
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
33509B
|
Генератор сигналов, 20 МГц, 1 канал
|
По запросу | ||
|
33511B
|
Генератор сигналов, 20 МГц, 1 канал, функция генерации сигналов произвольной формы
|
По запросу | ||
|
33510B
|
Генератор сигналов, 20 МГц, 2 канала
|
По запросу | ||
|
33512B
|
Генератор сигналов, 20 МГц, 2 канала, функция генерации сигналов произвольной формы
|
По запросу | ||
|
33519B
|
Генератор сигналов, 30 МГц, 1 канал
|
По запросу | ||
|
33521B
|
Генератор сигналов, 30 МГц, 1 канал, функция генерации сигналов произвольной формы
|
По запросу | ||
|
33520B
|
Генератор сигналов, 30 МГц, 2 канала
|
По запросу | ||
|
33522B
|
Генератор сигналов, 30 МГц, 2 канала, функция генерации сигналов произвольной формы
|
По запросу |
Библиотека
Основные сведения о продукте
Посмотреть более подробную информацию о возможностях этого продукта.
