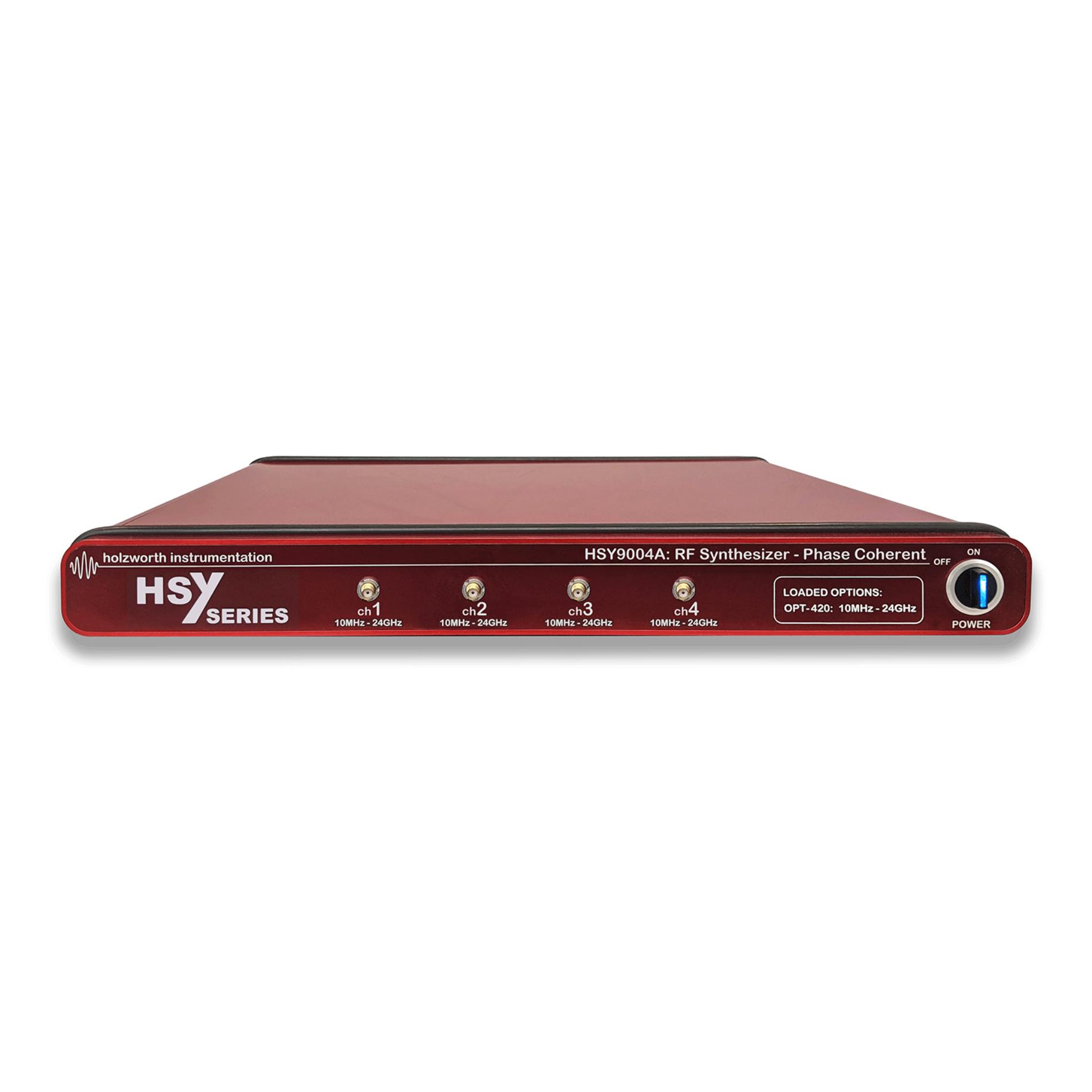

РЧ синтезаторы частот со сверх низким фазовым шумом
Обзор
Свернуть
Развернуть
Основные возможности и технические характеристики
The HSY Series are broadband frequency sources that exhibit best in industry phase noise performance coupled with the highest channel density available in its class. The YIG based architecture also enhances spectral purity performance coupled with a highly accurate dynamic range of up to +20dBm and down to -110dBm. The 1U high form factor offers 1, 2, 3 or 4 channel models; all providing the ultimate in frequency accuracy, while the phase coherent RF outputs provide the ultimate in channel-to-channel stability.
Key Specifications and Features:
- Fully independently tunable channels
- 12GHz Phase Noise: -125dBc/Hz (10kHz offset)
- 24GHz Phase Noise: -122dBc/Hz (10kHz offset)
- 40GHz Phase Noise: -113dBc/Hz (10kHz offset)
- Phase coherent channels for the ultimate in channel-to channel stability
Свернуть
Развернуть
Основные возможности и технические характеристики
The HSY Series are broadband frequency sources that exhibit best in industry phase noise performance coupled with the highest channel density available in its class. The YIG based architecture also enhances spectral purity performance coupled with a highly accurate dynamic range of up to +20dBm and down to -110dBm. The 1U high form factor offers 1, 2, 3 or 4 channel models; all providing the ultimate in frequency accuracy, while the phase coherent RF outputs provide the ultimate in channel-to-channel stability.
Key Specifications and Features:
- Fully independently tunable channels
- 12GHz Phase Noise: -125dBc/Hz (10kHz offset)
- 24GHz Phase Noise: -122dBc/Hz (10kHz offset)
- 40GHz Phase Noise: -113dBc/Hz (10kHz offset)
- Phase coherent channels for the ultimate in channel-to channel stability
Свернуть
Развернуть
Комплектация
- TYPE — DESCRIPTION — COMMENTS
- HARDWARE — HSY SERIES SYNTHESIZER — DELIVERABLE
- HARDWARE — AC Power Cord (7ft/2.1m)6 — DELIVERABLE
- HARDWARE — Ethernet Cable (10ft/3m) — DELIVERABLE
- HARDWARE — USB Cable (6ft/1.8m) — DELIVERABLE
- WARRANTY — 3 YEAR MANUFACTURER’S WARRANTY — NON-DELIVERABLE
- CERTIFICATE — CE COMPLIANCE CERTIFICATE — WEB DOWNLOAD
DIRECTIVE: 2004/108/EC, TEST STANDARD: EN 61326-1: 2006 - CERTIFICATE — RoHS COMPLIANCE CERTIFICATE — WEB DOWNLOAD
DIRECTIVE: 2002/95/EC - CERTIFICATE — WEEE COMPLIANCE STATEMENT — WEB DOWNLOAD
DIRECTIVE: 2002/96/EC
6 Specify final country of destination for shipment with proper power cord
Свернуть
Развернуть
Комплектация
- TYPE — DESCRIPTION — COMMENTS
- HARDWARE — HSY SERIES SYNTHESIZER — DELIVERABLE
- HARDWARE — AC Power Cord (7ft/2.1m)6 — DELIVERABLE
- HARDWARE — Ethernet Cable (10ft/3m) — DELIVERABLE
- HARDWARE — USB Cable (6ft/1.8m) — DELIVERABLE
- WARRANTY — 3 YEAR MANUFACTURER’S WARRANTY — NON-DELIVERABLE
- CERTIFICATE — CE COMPLIANCE CERTIFICATE — WEB DOWNLOAD
DIRECTIVE: 2004/108/EC, TEST STANDARD: EN 61326-1: 2006 - CERTIFICATE — RoHS COMPLIANCE CERTIFICATE — WEB DOWNLOAD
DIRECTIVE: 2002/95/EC - CERTIFICATE — WEEE COMPLIANCE STATEMENT — WEB DOWNLOAD
DIRECTIVE: 2002/96/EC
6 Specify final country of destination for shipment with proper power cord
Свернуть
Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ
Обозначение типа СИ
Изготовитель
Срок свидетельства или заводской номер
Свернуть
Развернуть
Сведения о реестре СИ
Номер в госреестре
Не в реестре
Наименование СИ
Обозначение типа СИ
Изготовитель
Срок свидетельства или заводской номер
Характеристики
Загрузить технические характеристики
| FREQUENCY PERFORMANCE | ||||
| The specified frequency performance parameters for the HSY Series RF Synthesizers are fully verified at final performance test and 100% guaranteed for the full warranty period of the product. | ||||
| PARAMETER | MIN | TYPICAL | MAX | COMMENTS |
| Frequency Range |
10 MHz 10 MHz 10 MHz 10 MHz 10 MHz |
3 GHz 6 GHz 12 GHz 24 GHz 40 GHz |
See page 4 for channel selection options | |
| Frequency Step Size | 0.001 Hz | |||
| Switching Speed (Frequency) | 5ms | 10ms | ||
| Phase Offset Resolution | 0.1 ° | Base band 750-1500MHz (N=1) 0.05 ° ±0.05 ° | ||
| Internal Time Base Reference (Oscillator Aging Rate) | ± 1 ppm/yr | 1st year. ±0.5 ppm/yr each subsequent year | ||
| Temperature Effects | ≤ ± 1 ppm | 0 to 55 °C | ||
| 10MHz Reference Output Amplitude Impedance | +2 dBm |
50 Ω |
+6 dBm |
Nominal Nominal |
| 100MHz Reference Output Amplitude Impedance | +2 dBm | 50 Ω | +6 dBm | Nominal Nominal |
| External Reference Input (standard) Input Frequency Lock Range External Amplitude Impedance Waveform | 0 dBm |
10/100MHz ± 4 ppm 50 Ω |
+10 dBm |
20Hz Locking BW 50 Ω (nominal) Sine or Square |
|
OPT-REFX Ext. Ref. Input (optional) Input Frequency Range Lock Range External Amplitude Impedance Waveform |
5 MHz 0 dBm |
± 4 ppm 50 Ω |
160 MHz ± 1 ppm +10 dBm |
Any 100kHz increment within range Sine or square |
|
1
Specifications are subject to change per the discretion of Holzworth Instrumentation, Inc 2 All MIN/ MAX (Minimum/ Maximum) performance parameters are guaranteed and 100% verified during final performance test. 3 Typical performance is “by design” and consistent with field performance data. |
||||
| 3GHz / 6GHz AMPLITUDE PERFORMANCE 1 | ||||
| This section contains performance specifications and data for OPT-n03 (3GHz) and OPT-n06 (6GHz) channels. The specified parameters for the HSY Series RF Synthesizers are fully verified at final performance test and 100% guaranteed for the full warranty period of the product. | ||||
| PARAMETER | MIN2 | TYPICAL3 | MAX2 | COMMENTS |
|
Output Power (Calibrated) 10 MHz < f ≤ 200 MHz 200 MHz < f ≤ 5.0 GHz 5.0 GHz < f ≤ 6.0 GHz |
-110 dBm -110 dBm -110 dBm |
+15 dBm +18 dBm +16 dBm |
Settable from -115dBm to +25dBm | |
|
Maximum Output Power (unleveled) 10 MHz < f ≤ 6.0 GHz |
See plot on Page 6 | |||
| Resolution | 0.01 dB | |||
| Connector | 50 Ω | SMA (Jack) | ||
| Switching Speed (Amplitude) | 5 ms | |||
| Switching Speed (Frequency) | 10 ms | |||
|
Absolute Level Accuracy 10 MHz < f ≤ 6.0 GHz |
||||
|
MAX to +10 dBm +10 to -10 dBm -10 to -60 dBm < -60 dBm |
± 1.0 dB ± 0.7 dB ± 1.0 dB ± 1.3 dB |
35C to 45C case temperature | ||
|
SSB Phase Noise 10 MHz, 10 kHz offset 100 MHz, 10 kHz offset 375 MHz < f ≤ 750 MHz, 10kHz offset 750 MHz < f ≤ 1.5 GHz, 10kHz offset 1.5 GHz < f ≤ 3.0 GHz, 10kHz offset 3.0 GHz < f ≤ 6.0 GHz, 10kHz offset |
≤ -160 dBc/Hz ≤ -157 dBc/Hz ≤ -148 dBc/Hz ≤ -142 dBc/Hz ≤ -136 dBc/Hz ≤ -132 dBc/Hz |
(Output set to +10dBm) Refer to Phase Noise performance plots on page 6 |
||
|
Harmonics 10 MHz < f ≤ 6.0 GHz |
(2ND / 3RD) -30 / -45 dBc |
(Output set to +10dBm) Refer to Harmonics performance plots on page 7 |
||
|
Sub-Harmonics 10 MHz < f ≤ 1.5 GHz 1.5 GHz < f ≤ 3.0 GHz 3.0 GHz < f ≤ 6.0 GHz |
(1/2 / 3/2) N/A -80 / -90 dBc -84 / -92 dBc |
(Output set to +10dBm) Refer to Spurious performance plots on page 7 |
||
|
Non-Harmonics / Spurious 10 MHz < f ≤ 1.5 GHz 1.5 GHz < f ≤ 6.0 GHz |
-88 dBc -83 dBc |
(Output set to 10dBm) Refer to Spurious performance plots on page 7 |
||
|
1
Specifications are subject to change per the discretion of Holzworth Instrumentation, Inc. 2 All MIN/ MAX (Minimum/ Maximum) performance parameters are guaranteed and 100% verified during final performance test. 3 Typical performance is “by design” and consistent with field performance data. |
||||
| 12GHz / 24GHz AMPLITUDE PERFORMANCE 1 | ||||
| This section contains performance specifications and data for OPT-n12 (12GHz), and OPT-n20 (24GHz) channels. The specified parameters for the HSY Series RF Synthesizers are fully verified at final performance test and 100% guaranteed for the full warranty period of the product. | ||||
| PARAMETER | MIN2 | TYPICAL3 | MAX2 | COMMENTS |
|
Output Power (Calibrated) 10 MHz < f ≤ 16.0 GHz 16.0 GHz < f ≤ 20.0 GHz 20.0 GHz < f ≤ 24.0 GHz |
-50 dBm -50 dBm -50 dBm |
+18 dBm +16 dBm +14 dBm |
Settable from -60dBm to +25dBm | |
|
Maximum Output Power (unleveled) 10 MHz < f ≤ 24.0 GHz |
See plot on Page 9 |
|||
| Resolution | 0.01 dB | |||
| Connector | 50 Ω |
OPT-n12: SMA (Jack) OPT-n20/OPT-n24: Super SMA (Jack) |
||
| Switching Speed (Amplitude) | 5 ms | |||
| Switching Speed (Frequency) | 10 ms | |||
|
Absolute Level Accuracy 10 MHz < f ≤ 24.0 GHz |
||||
|
MAX to +10 dBm +10 to -10 dBm -10 to -50 dBm |
± 1.4 dB ± 0.7 dB ± 1.4 dB |
35C to 45C case temperature | ||
|
SSB Phase Noise 10 MHz, 10 kHz offset 100 MHz, 10 kHz offset 375 MHz < f ≤ 750 MHz, 10kHz offset 750 MHz < f ≤ 1.5 GHz, 10kHz offset 1.5 GHz < f ≤ 3.0 GHz, 10kHz offset 3.0 GHz < f ≤ 6.0 GHz, 10kHz offset 6.0 GHz < f ≤ 12.0 GHz, 10kHz offset 12.0 GHz < f ≤ 24.0 GHz, 10kHz offset |
≤ -160 dBc/Hz ≤ -157 dBc/Hz ≤ -148 dBc/Hz ≤ -142 dBc/Hz ≤ -136 dBc/Hz ≤ -132 dBc/Hz ≤ -124 dBc/Hz ≤ -118 dBc/Hz |
(Output set to +10dBm) Refer to Phase Noise performance plots on page 9 |
||
|
Harmonics 10 MHz < f ≤ 5.0 GHz 5 GHz < f ≤ 24.0 GHz |
(2ND / 3RD) -40 / -48 dBc -28 / -50 dBc |
(Output set to +10dBm) Refer to Harmonics performance plots on page 8 |
||
|
Sub-Harmonics 10 MHz < f ≤ 1.5 GHz 1.5 GHz < f ≤ 6.0 GHz 6.0 GHz < f ≤ 12.0 GHz 12.0 GHz < f ≤ 18.0 GHz 18.0 GHz < f ≤ 24.0 GHz |
(1/2 / 3/2) N/A -64 / -84 dBc -84 / -90 dBc -70 / -88 dBc -64 / -100 dBc |
(Output set to +10dBm) Refer to Spurious performance plots on page 10 |
||
|
Non-Harmonics / Spurious 10 MHz < f ≤ 750 MHz 750 MHz < f ≤ 1.5 GHz 1.5 GHz < f ≤ 3.0 GHz 3.0 GHz < f ≤ 6.0 GHz 6.0 GHz < f ≤ 12.0 GHz 12.0 GHz < f ≤ 24.0 GHz |
N/A - 86 dBc - 78 dBc - 73 dBc - 68 dBc - 62 dBc |
(Output set to 10dBm) Refer to Spurious performance plots on page 10 |
||
|
1
Specifications are subject to change per the discretion of Holzworth Instrumentation, Inc. 2 All MIN/ MAX (Minimum/ Maximum) performance parameters are guaranteed and 100% verified during final performance test. 3 Typical performance is “by design” and consistent with field performance data. |
||||
| 40GHz AMPLITUDE PERFORMANCE 1 | ||||
| This section contains performance specifications for channels that operate to 40GHz. The specified parameters for the HSY Series RF Synthesizers are fully verified at final performance test and 100% guaranteed for the full warranty period of the product. | ||||
| PARAMETER | MIN2 | TYPICAL3 | MAX2 | COMMENTS |
|
Output Power (Calibrated) 10 MHz < f ≤ 35.0 GHz 35.0 GHz < f ≤ 40.0 GHz |
0 dBm 0 dBm |
+18 dBm +13 dBm |
Settable from -5dBm to +25dBm | |
|
Maximum Output Power (unleveled) 10 MHz < f ≤ f ≤ 40.0 GHz |
See plot on Page 12 |
|||
| Resolution | 0.01 dB | |||
| Connector | 50 Ω | 2.92mm (Jack) | ||
| Switching Speed (Amplitude) | 5 ms | |||
| Switching Speed (Frequency) | 10 ms | |||
|
Absolute Level Accuracy 10 MHz < f ≤ 35.0 GHz +18 to 0 dBm 35.0 GHz < f ≤ 40.0 GHz +12 to 0 dBm |
± 0.7 dB ± 1.0 dB |
35C to 45C case temperature | ||
|
SSB Phase Noise (10kHz offset) 10 MHz 100 MHz 375 MHz < f ≤ 750 MHz 750 MHz < f ≤ 1.5 GHz 1.5 GHz < f ≤ 3.0 GHz 3.0 GHz < f ≤ 6.0 GHz 6.0 GHz < f ≤ 12.0 GHz 12.0 GHz < f ≤ 24.0 GHz 24.0 GHz < f ≤ 40.0 GHz |
≤ -160 dBc/Hz ≤ -157 dBc/Hz ≤ -148 dBc/Hz ≤ -142 dBc/Hz ≤ -136 dBc/Hz ≤ -132 dBc/Hz ≤ -124 dBc/Hz ≤ -118 dBc/Hz ≤ -112 dBc/Hz |
(Output set to +10dBm) Refer to Phase Noise performance on Page 12 |
||
|
Harmonics 10 MHz < f ≤ 6.0 GHz > 6.0GHz |
(2ND / 3RD) -40 / -60 dBc -32 / -56 dBc |
(Output set to +10dBm) Refer to plot on Page 13 |
||
|
Sub-Harmonics 10 MHz < f ≤ 1.5 GHz 1.5 GHz < f ≤ 6.0 GHz 6.0 GHz < f ≤ 12.0 GHz 12.0 GHz < f ≤ 18.0 GHz 18.0 GHz < f ≤ 34.0 GHz 34.0 GHz < f ≤ 40.0 GHz |
(1/2 / 3/2) N/A -64 / -80 dBc -84 / -88 dBc -60 / -84dBc -88 / -84 dBc -80 / -100 dBc |
(Output set to +10dBm) Refer to plot on Page 13 |
||
|
Non-Harmonics / Spurious 10 MHz < f ≤ 750 MHz 750 MHz < f ≤ 1.5 GHz 1.5 GHz < f ≤ 9.0 GHz 9.0 GHz < f ≤ 18.0 GHz 18.0 GHz < f ≤ 24.0 GHz 24.0 GHz < f ≤ 40.0 GHz |
N/A -88 dBc -82 dBc -76 dBc -72 dBc -70 dBc |
(Output set to +10dBm) Refer to Spurious performance on Page 13 |
||
|
1
Specifications are subject to change per the discretion of Holzworth Instrumentation, Inc. 2 All MIN/ MAX (Minimum/ Maximum) performance parameters are guaranteed and 100% verified during final performance test. 3 Typical performance is “by design” and consistent with field performance data. |
||||
| ENVIRONMENTAL SPECIFICATIONS1 | ||||
| Environmental specifications are based on component margins, thermal verification testing and current draw tests. Production unit performance is not verified over temperature. | ||||
| PARAMETER | MIN | TYPICAL | MAX | COMMENTS |
| Operating Temperature | 0 C | +55 C | Case temperature | |
| Temperature Monitor Range | -40 C | +85 C | Absolute, channel dedicated sensor | |
| AC Power Supply | 100 Vac | 240 Vac | 47 - 63Hz | |
|
Power Consumption Chassis Channel (per) |
5 W 17 W |
HSY9003 (3 channel) Example: 5W + (17W * 3) = 56W Total |
||
| Warm-Up Time | 10 min | 20 C (ambient temp. dependent) | ||
| 1 Specifications are subject to change per the discretion of Holzworth Instrumentation, Inc | ||||
| DESCRIPTION | SPECIFICATION (by design) | |||
|
Operating Environment Humidity Altitude Vibration |
RH 20% to 80% at wet bulb temp. <29C (non-condensing) 0 to 2,000m (0 to 6,561 feet) 0.21 G-rms maximum, 5Hz to 500Hz |
|||
|
Storage (Non-Operating) Temperature Humidity Altitude Vibration |
-10C to + 60C RH 20% to 80% at wet bulb temp. <40C (non-condensing) 0 to 4,572m (0 to 15,000 feet) 0.5 G-rms maximum, 5Hz to 500Hz |
|||
| CONNECTORS and PHYSICAL SPECIFICATIONS | ||||
| FRONT PANEL | ||||
| DESCRIPTION | CONFIGURATION | |||
| RF Output(s) Connector Type | SMA-J, 50ohm: OPT-n03, OPT-n06, OPT-n12 (n = number of channels = number of connectors) Super SMA-J, 50ohm: OPT-n20, OPT-n24 (n = number of channels = number of connectors) 2.92mm-J, 50ohm: OPT-n40 (n = number of channels = number of connectors) | |||
| REAR PANEL | ||||
| DESCRIPTION | CONFIGURATION | |||
|
Reference Output Port Connector Type Output Frequency Output Level Output Waveform |
SMA, 50ohm 10MHz ±10Hz and 100MHz ±100Hz +5dBm ±2dBm Sinusoid |
|||
|
Reference Input Port Connector Type Input Frequency Input Frequency (OPT-REFX) Input Level |
SMA, 50ohm 10/100 MHz 5MHz - 160MHz (100kHz increments) 0dBm to +15dBm (Sinusoid or Square) |
|||
|
AC Power Input Connector Type AC Input Rating |
IEC 320-C13 100-240Vac, 47-63Hz. Specify country at time of order for proper power cord. |
|||
|
Data I/O Interface Connectivity Storage |
USB B-Type (virtual COM port), Ethernet, RS-232, GPIB SD Card Reader (not currently active) |
|||
| PHYSICAL | ||||
| Dimensions (L x W x H) | 1U high, 19” rack mount: 15in x 17in x 1.75in | |||
| Weight | 25 lb ( 11.34 kilograms ) MAXIMUM | |||
Модели и опции
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
HSY9001A
|
РЧ синтезаторы часото со сверх низким фазовым шумом, 1 канал
|
По запросу | ||
|
HSY9002A
|
РЧ синтезаторы часото со сверх низким фазовым шумом, 2 канал
|
По запросу | ||
|
HSY9003A
|
РЧ синтезаторы часото со сверх низким фазовым шумом, 3 канал
|
По запросу | ||
|
HSY9004A
|
РЧ синтезаторы часото со сверх низким фазовым шумом, 4 канал
|
По запросу |
4
| Опции |
|
OPT-REFX
|
Вход опорной частоты 5МГц – 160 МГц (шаг 100 кГц, низкий фазовый шум)
|
По запросу | ||
|
RACK-1U
|
19 "Комплект кронштейнов для монтажа в стойку, задний кронштенй 90 градусов, общая глубина 24" (макс.)
|
По запросу | ||
|
RACK2-1U
|
19 "Комплект кронштейнов для монтажа в стойку, прямой задний кронштейн, общая глубина 24" (макс.)
|
По запросу | ||
|
RACK-1U-L
|
19 "Комплект кронштейнов для монтажа в стойку, задний кронштейн 90 градусов, общая глубина 29" (макс.
|
По запросу | ||
|
RACK2-1U-L
|
19 "Комплект кронштейнов для монтажа в стойку, прямой задний кронштецн, общая глубина 29" (макс.)
|
По запросу |
9
| Опция РЧ-части |
|
OPT-206
|
РЧ-часть: 2 канала 10 МГц - 6 ГГц
|
По запросу | ||
|
OPT-306
|
РЧ-часть: 3 канала 10 МГц - 6 ГГц
|
По запросу | ||
|
OPT-406
|
РЧ-часть: 4 канала 10 МГц - 6 ГГц
|
По запросу | ||
|
OPT-112
|
РЧ-часть: 1 канал 10 МГц - 12 ГГц
|
По запросу | ||
|
OPT-212
|
РЧ-часть: 2 канала 10 МГц - 12 ГГц
|
По запросу | ||
|
OPT-312
|
РЧ-часть: 3 канала 10 МГц - 12 ГГц
|
По запросу | ||
|
OPT-412
|
РЧ-часть: 4 канала 10 МГц - 12 ГГц
|
По запросу | ||
|
OPT-120
|
РЧ-часть: 1 канал 10 МГц - 24 ГГц
|
По запросу | ||
|
OPT-220
|
РЧ-часть: 2 канала 10 МГц - 24 ГГц
|
По запросу | ||
|
OPT-320
|
РЧ-часть: 3 канала 10 МГц - 24 ГГц
|
По запросу | ||
|
OPT-420
|
РЧ-часть: 4 канала 10 МГц - 24 ГГц
|
По запросу | ||
|
OPT-140
|
РЧ-часть: 1 канал 10 МГц - 40 ГГц
|
По запросу | ||
|
OPT-240
|
РЧ-часть: 2 канала 10 МГц - 40 ГГц
|
По запросу | ||
|
OPT-103
|
РЧ-часть: 1 канал 10 МГц - 3 ГГц
|
По запросу | ||
|
OPT-203
|
РЧ-часть: 2 канала 10 МГц - 3 ГГц
|
По запросу | ||
|
OPT-303
|
РЧ-часть: 3 канала 10 МГц - 3 ГГц
|
По запросу | ||
|
OPT-403
|
РЧ-часть: 4 канала 10 МГц - 3 ГГц
|
По запросу | ||
|
OPT-106
|
РЧ-часть: 1 канал 10 МГц - 6 ГГц
|
По запросу |
Библиотека
Основные сведения о продукте
Посмотреть более подробную информацию о возможностях этого продукта.
Технические характеристики
Отзывы
Добавить отзыв
Тут еще никто ничего не писал, стань первым!
