USB/LAN-измеритель средней мощности 50 МГц - 8 ГГц, -40 дБм - +20 дБм
Наличие: По запросуПо запросу По запросу По запросу
Измерители мощности CPS2000 Подробнее
Американская компания Boonton Electronics была основана в 1947 году в Morris Plains, штат Нью-Джерси и быстро завоевала репутацию лидера в области высокопроизводительных измерительных приборов и датчиков. Приборы компании отличаются высокой точностью измерений и простотой в использовании.
Boonton Electronics - производитель испытательного оборудования, предназначенного для измерения мощности радиочастотных и микроволновых систем, используемых как в военном, так и в коммерческом секторах. Компания… подробнее
Обзор
USB 2.0 Type A Male to Type B Male cable and URL for manuals and software
USB 2.0 Type A Male to Type B Male cable and URL for manuals and software
Свернуть
Развернуть
Основные возможности и технические характеристики
CPS2000 True-Average Connected Power Sensors
CPS2000 True-Average Connected Power Sensors combine USB and PoE LAN connectivity to enable easy, true-average RF power measurement of CW and modulated signals from 50 MHZ to 8 GHz. Compatible with Windows® and Linux systems, CPS2000 sensors include all the necessary drivers for programming through SCPI, IVI and LabVIEW. Flexible connectivity, combined with a 60 dB dynamic range and >100 measurements per second, make CPS2000 sensors the ideal solution for measurements in the lab, production, and the field in ATE, remote monitoring and embedded environments.
Features
50 MHz to 8 GHz frequency range
-40 dBm to +20 dBm dynamic range
True average power measurements for CW and modulated signals
USB and LAN with PoE connectivity
SCPI, IVI and LabVIEW programming
Windows® and Linux compatibility
>100 measurements per second
Multi-channel measurements
Streamlined user interface for fast, easy, and accurate measurements

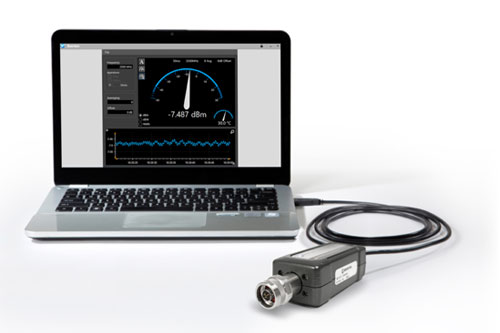

Boonton Power Viewer Software
Boonton Power Viewer provides a simple, virtual power meter on Windows® systems. Power measurements are displayed in a numerical readout as well as analog-style meter. A data logging strip chart function allows for easy tracking of variations in measurements over time. Multiple sensors can be used and monitored virtually simultaneously.
Standard connections on the CPS2008 are a Type N for RF input, as well as USB Type B with locking, SeaLATCH cable
compatibility and RJ-45 Ethernet with Power-over-Ethernet capability for communications and control.
CPS2000 True-Average Connected Power Sensors combine USB and PoE LAN connectivity to enable easy, true-average RF power measurement of CW and modulated signals from 50 MHZ to 8 GHz. Compatible with Windows® and Linux systems, CPS2000 sensors include all the necessary drivers for programming through SCPI, IVI and LabVIEW. Flexible connectivity, combined with a 60 dB dynamic range and >100 measurements per second, make CPS2000 sensors the ideal solution for measurements in the lab, production, and the field in ATE, remote monitoring and embedded environments.
Features
Boonton Power Viewer provides a simple, virtual power meter on Windows® systems. Power measurements are displayed in a numerical readout as well as analog-style meter. A data logging strip chart function allows for easy tracking of variations in measurements over time. Multiple sensors can be used and monitored virtually simultaneously.
Standard connections on the CPS2008 are a Type N for RF input, as well as USB Type B with locking, SeaLATCH cable
compatibility and RJ-45 Ethernet with Power-over-Ethernet capability for communications and control.
Свернуть
Развернуть
Основные возможности и технические характеристики
CPS2000 True-Average Connected Power Sensors
CPS2000 True-Average Connected Power Sensors combine USB and PoE LAN connectivity to enable easy, true-average RF power measurement of CW and modulated signals from 50 MHZ to 8 GHz. Compatible with Windows® and Linux systems, CPS2000 sensors include all the necessary drivers for programming through SCPI, IVI and LabVIEW. Flexible connectivity, combined with a 60 dB dynamic range and >100 measurements per second, make CPS2000 sensors the ideal solution for measurements in the lab, production, and the field in ATE, remote monitoring and embedded environments.
Features
50 MHz to 8 GHz frequency range
-40 dBm to +20 dBm dynamic range
True average power measurements for CW and modulated signals
USB and LAN with PoE connectivity
SCPI, IVI and LabVIEW programming
Windows® and Linux compatibility
>100 measurements per second
Multi-channel measurements
Streamlined user interface for fast, easy, and accurate measurements
Boonton Power Viewer Software
Boonton Power Viewer provides a simple, virtual power meter on Windows® systems. Power measurements are displayed in a numerical readout as well as analog-style meter. A data logging strip chart function allows for easy tracking of variations in measurements over time. Multiple sensors can be used and monitored virtually simultaneously.
Standard connections on the CPS2008 are a Type N for RF input, as well as USB Type B with locking, SeaLATCH cable
compatibility and RJ-45 Ethernet with Power-over-Ethernet capability for communications and control.
CPS2000 True-Average Connected Power Sensors combine USB and PoE LAN connectivity to enable easy, true-average RF power measurement of CW and modulated signals from 50 MHZ to 8 GHz. Compatible with Windows® and Linux systems, CPS2000 sensors include all the necessary drivers for programming through SCPI, IVI and LabVIEW. Flexible connectivity, combined with a 60 dB dynamic range and >100 measurements per second, make CPS2000 sensors the ideal solution for measurements in the lab, production, and the field in ATE, remote monitoring and embedded environments.
Features
Boonton Power Viewer provides a simple, virtual power meter on Windows® systems. Power measurements are displayed in a numerical readout as well as analog-style meter. A data logging strip chart function allows for easy tracking of variations in measurements over time. Multiple sensors can be used and monitored virtually simultaneously.
Standard connections on the CPS2008 are a Type N for RF input, as well as USB Type B with locking, SeaLATCH cable
compatibility and RJ-45 Ethernet with Power-over-Ethernet capability for communications and control.
Свернуть
Развернуть
Комплектация
Свернуть
Развернуть
Комплектация
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
Характеристики
Загрузить технические характеристики
| RF Frequency Range | 50 MHz to 8 GHz |
| Average Dynamic Range | -40 dBm to +20 dBm (50 MHz to 6 GHz) |
| -35 dBm to +20 dBm (6 GHz to 8 GHz) | |
| RF Input | Type N, 50 Ω |
| VSWR | 1.15:1 (50 MHz to 2 GHz) |
| 1.25:1 (>2 GHz to 6 GHz) | |
| 1.35:1 (>6 GHz to 8 GHz) | |
| Trigger Mode | Single, Free run |
| Measuring Speed | >100 Meas/s |
| Aperture Time | 1 ms to 2 sec |
| Remote Connectivity | USB Type B with SeaLATCH capability |
| 10/100 BaseT with Power-over Ethernet (PoE) Capability | |
| Size (LxWxH) | 132x43x33 (mm) |
| 5.2x1.7x1.3 (inches) | |
| Operating Temperature | 0°C -50°C |
| Storage Temperature | -40 °C to 70 °C |
| Weight | 420 grams/0.9 lbs |
| Power Consumption | 2.0 W max |
Модели и опции
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
CPS2008
|
USB/LAN-измеритель средней мощности 50 МГц - 8 ГГц, -40 дБм - +20 дБм
|
По запросу |
1
| Дополнительные аксессуары |
|
48402500A
|
PoE инжектор, IEEE-802.3af
|
По запросу | ||
|
48402600A
|
USB AC адаптер
|
По запросу | ||
|
57401000A
|
6 фут SeaLATCH locking USB кабель
|
По запросу |
