Американская компания Boonton Electronics была основана в 1947 году в Morris Plains, штат Нью-Джерси и быстро завоевала репутацию лидера в области высокопроизводительных измерительных приборов и датчиков. Приборы компании отличаются высокой точностью измерений и простотой в использовании.
Boonton Electronics - производитель испытательного оборудования, предназначенного для измерения мощности радиочастотных и микроволновых систем, используемых как в военном, так и в коммерческом секторах. Компания… подробнее

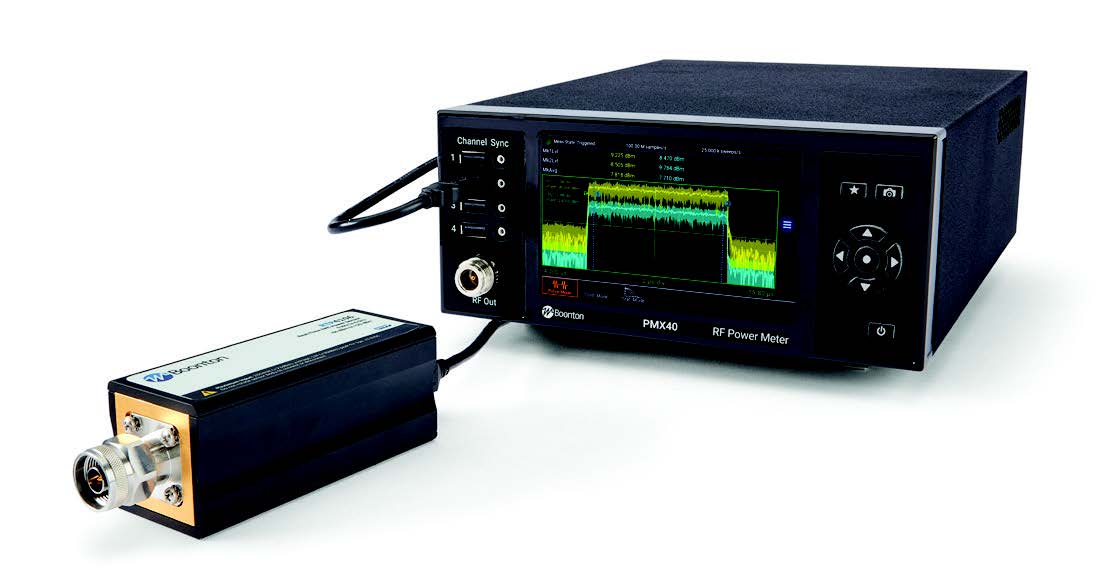

RTP4000
Real-Time True Average Power Sensors
Key Features
- Real-Time Power Processing™ technology for virtually no gaps in signal acquisition and zero measurement latency
- Synchronized multi-channel measurements
- Power Analyzer advanced measurement and analysis software
Key Specifications
- Frequency range: 4 kHz to 18 GHz
- Measurement range: -60 dBm to +20 dBm
- Measurement speed: 100,000 per second
True average measurements with virtually no modulation bandwidth limitations
Real-Time Power Processing™
Real-Time Power Processing™ (RTPP) technology is a unique parallel processing methodology that performs the multi-step process of RF power measurement at incredible, unmatched speeds. While conventional power meters and USB sensors perform steps serially, resulting in long re-arm times and missed data, Boonton sensors with Real-Time Power Processing™ capture, display and measure every pulse, glitch and detail with no gaps in data and zero latency.
Measurement Buffer Mode
The RTP series Measurement Buffer mode is a remote-control function that works in conjunction with Real-Time Power Processing™ to provide only the relevant burst or pulse information, eliminating the need to download and post-process large sample buffers. As a result, users can collect and analyze measurements from a virtually unlimited number of consecutive pulses or events. A wide variety of parameters can be calculated and plotted, such as duty cycle, pulse repetition rate, pulse width variation, and pulse jitter. In addition, anomalies, such as dropouts, can be identified.
RTP4000
Real-Time True Average Power Sensors
Key Features
- Real-Time Power Processing™ technology for virtually no gaps in signal acquisition and zero measurement latency
- Synchronized multi-channel measurements
- Power Analyzer advanced measurement and analysis software
Key Specifications
- Frequency range: 4 kHz to 18 GHz
- Measurement range: -60 dBm to +20 dBm
- Measurement speed: 100,000 per second
True average measurements with virtually no modulation bandwidth limitations
Real-Time Power Processing™
Real-Time Power Processing™ (RTPP) technology is a unique parallel processing methodology that performs the multi-step process of RF power measurement at incredible, unmatched speeds. While conventional power meters and USB sensors perform steps serially, resulting in long re-arm times and missed data, Boonton sensors with Real-Time Power Processing™ capture, display and measure every pulse, glitch and detail with no gaps in data and zero latency.
Measurement Buffer Mode
The RTP series Measurement Buffer mode is a remote-control function that works in conjunction with Real-Time Power Processing™ to provide only the relevant burst or pulse information, eliminating the need to download and post-process large sample buffers. As a result, users can collect and analyze measurements from a virtually unlimited number of consecutive pulses or events. A wide variety of parameters can be calculated and plotted, such as duty cycle, pulse repetition rate, pulse width variation, and pulse jitter. In addition, anomalies, such as dropouts, can be identified.
- 84620400A — Information Card
- 57500800A — 0.9 m BNC (m) to SMB (m) cable
- 57500900A — 0.9 m SMB (m) to SMB (m) cable
- 57401000A — 1.8 m USB A (m) to USB B (m) locking SeaLATCH cable
- 84620400A — Information Card
- 57500800A — 0.9 m BNC (m) to SMB (m) cable
- 57500900A — 0.9 m SMB (m) to SMB (m) cable
- 57401000A — 1.8 m USB A (m) to USB B (m) locking SeaLATCH cable
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
| Specifications | RTP4006 | RTP4106 | RTP4018 | RTP4118 |
| RF Frequency Range | 10 MHz to 6 GHz | 4 kHz to 6 GHz | 10 MHz to 18 GHz | 4 kHz to 18 GHz |
| Dynamic Range | ||||
| Average | -60 to +20 dBm | -60 to +20 dBm | -60 to +20 dBm | -60 to +20 dBm |
| Pulse | -45 to +20 dBm | -45 to +20 dBm | -45 to +20 dBm | -45 to +20 dBm |
| Internal Trigger Range | -40 to +20 dBm | -40 to +20 dBm | -40 to +20 dBm | -40 to +20 dBm |
| Min Pulse Width | 4 µs | 4 µs | 4 µs | 4 µs |
| Max Repetition Rate | 120 kHz | 120 kHz | 120 kHz | 120 kHz |
| Rise time (fast/std) 1 2 | 2 µs / 1 ms | 2 µs / 1 ms | 2 µs / 1 ms | 2 µs / 1 ms |
| RF Input | Type N, 50 Ω | Type N, 50 Ω | Type N 3, 50 Ω | Type N 3, 50 Ω |
| VSWR | 1.15 (0.01 GHz to 2.0 GHz) | 1.15 (0.01 GHz to 2.0 GHz) | 1.15 (0.01 GHz to 2.0 GHz) | 1.15 (0.01 GHz to 2.0 GHz) |
| 1.20 (2.0 GHz to 5.0 GHz) | 1.20 (2.0 GHz to 5.0 GHz) | 1.25 (2.0 GHz to 12.4 GHz) | 1.25 (2.0 GHz to 12.4 GHz) | |
| 1.23 (5.0 GHz to 6.0 GHz) | 1.23 (5.0 GHz to 6.0 GHz) | 1.35 (12.4 GHz to 16.0 GHz) | 1.35 (12.4 GHz to 16.0 GHz) | |
| 1.45 (16.0 GHz to 18.0 GHz) | 1.45 (16.0 GHz to 18.0 GHz) | |||
| 1 In High Sensitivity Mode, the RTP4000 sensors change to Standard Bandwidth Mode automatically - video bandwidth changes to 350 Hz. | ||||
| 2 At frequencies < 1MHz, the RTP4106 and RTP4118 changes to High Sensitivity Mode (from fast to standard rise time) automatically. | ||||
| 3 SMA versions also available | ||||
| Series Specifications | ||||
| Sampling Techniques | Real-time / Equivalent Time | |||
| Continuous sample rate | 25 MHz | |||
| Effective sample rate | 1 GHz | |||
| Time Base | ||||
| Time Base Range | 50 ns / div to 50 ms / div (pulse mode) | |||
| Time Base Accuracy | +/- 25 ppm | |||
| Time Base Resolution | 1 ns (RIS mode) | |||
| 40 ns (Single-sweep) | ||||
| Triggers | ||||
| Trigger Sources | Internal (applied RF), External TTL, Crossover (from another sensor) | |||
| Trigger Modes | Single, Normal, AutoTrig, AutoLevel, Free Run | |||
| Trigger Slope | Positive or negative | |||
| Trigger Delay | ||||
| Range | -600 to 1000 ms (timebase dependent) | |||
| Resolution | 0.02 divisions | |||
| Trigger Holdoff (arming control) | ||||
| Modes | Off, Holdoff, Gap (frame) arming | |||
| Range | 1 μs to 1000 ms | |||
| Resolution | 50 ns | |||
| Trigger Jitter | ≤ 20 ns rms | |||
| Trigger Latency | < 100 ns | |||
| External Trigger | ||||
| Logic Thresholds | High: > 2.4 V, Low: < 0.7 V | |||
| Maximum Input Range | -0.1 V to 5.1 V | |||
| Input Impedance | 10 kOhms | |||
| Minimum Pulse Width | 100 ns | |||
| Maximum Repetition Rate | 2 MHz | |||
| Time Base | ||||
| Trace Acquisition Speed | > 100,000 triggered sweeps / s | |||
| Measurement Speed over USB | ||||
| Triggered or Free-run | 100,000 readings / s (buffered mode) | |||
| Continuous Query/Response | 1000 measurements / s | |||
| Interface | ||||
| Connectivity | ||||
| Data Interface | USB 2.0 Hi-Speed | |||
| Device Type | USB High-Power device, bus powered | |||
| Current draw | 500 mA max (480 mA typical) | |||
| Connector | Type B, locking | |||
| Multi-I/O | ||||
| Connector type | SMB female | |||
| Input Modes | Ext Trig, Crossover Slave, Analog | |||
| Output Modes | Timebase ref, Sweep, Trig Threshold, Crossover Master, Status | |||
| Software Interface | ||||
| Application Programming Interface | Windows DLL | |||
| Graphical User Interface | Boonton Power Analyzer™ software | |||
| Supported Operating Systems | Windows 10 | |||
| System Hardware Requirements | ||||
| Processor | 1.3 GHz or higher recommended | |||
| RAM | 512 MB (1 GB or more recommended) | |||
| Hard Disk Space | Min 1.0 GB free space to install or run | |||
| Display Resolution | 800 x 600 (1280 x 1024 or higher recommended) | |||
| Power Analyzer™ Software | ||||
| Display Types | ||||
| Trace (power vs time) | Meter (numeric display) | |||
| Automatic measurements (pulse / multiple pulse analysis, marker measurements) | ||||
| Marker Measurements (in Trace View) | ||||
| Markers (vertical cursors) | Settable in time relative to the trigger position | |||
| Marker Independently | Power at specified time | |||
| Pair of Markers: | ||||
| Min and max power between markers and ratio or average power between them. | ||||
| Ref Lines (horizontal cursors) | Settable in power | |||
| Automatic Tracking - | ||||
| Intersection of either marker and the waveform. Either marker and pulse distal, mesial or proximal levels. | ||||
| Operational Requirements | Tests performed per MIL-28800F (Class3) | |||
| Operating Temperature | 0 C to 55 C | |||
| Storage Temperature | -40 C to +70 C | |||
| Relative Humidity (non-condensing) | < 45 % at 50 C | |||
| < 75 % at 40 C | ||||
| < 95 % at 30 C | ||||
| Altitude | 3048 m max | |||
| Shock | 30 g half-sine, 11 ms duration | |||
| Vibration | Sinusoidal: 5 Hz to 55 Hz, 3 g max | |||
| Random: 10 Hz to 500 Hz, 2.34 g rms | ||||
| Power Spectral Density: 0.01 g2 / Hz | ||||
| Regulatory Compliance | Class A Equipment | |||
| European Union | EMC Directive 2014/30/EU, EN 61326:2013, | |||
| Low Voltage Directive 2014/35/EU, EN 61010-1:2010 / A1:2019 | ||||
| RoHS 3 Directive 2015/863/EU | ||||
| Australia and New Zealand | RCM AS/NZS 4417:2012 | |||
| General Characteristics | ||||
| Power Consumption | 2.5W max (USB High-Power device) | |||
| Dimensions (HxWxD) | 1.7” x 1.7” x 5.6” RTP4x06; 1.7” x 1.7” x 5.75” RTP4x18 | |||
| Excluding RF Connector | (4.3 cm x 4.3 cm x 14.2 cm) (4.3 cm x 4.3 cm x 14.6 cm) | |||
| Weight | 0.8 lbs (0.36 kg) | |||
| Warranty | 3 years | |||
| Ordering Information | ||||
| RTP4006 | Real-Time True Average Power Sensor 10 MHz to 6 GHz | |||
| RTP4106 | Real-Time True Average Power Sensor 4 kHz to 8 GHz | |||
| RTP4018 | Real-Time True Average Power Sensor 10 MHz to 18 GHz (-S/1 replaces N-type with an SMA connector) | |||
| RTP4118 | Real-Time True Average Power Sensor 4 kHz to 18 GHz (-S/1 replaces N-type with an SMA connector) | |||
| Included Accessories | ||||
| 84620400A | Information Card | |||
| 57500800A | 0.9 m BNC (m) to SMB (m) cable | |||
| 57500900A | 0.9 m SMB (m) to SMB (m) cable | |||
| 57401000A | 1.8 m USB A (m) to USB B (m) locking SeaLATCH cable | |||
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
RTP4006
|
USB-измеритель средней мощности реального времени 10 МГц - 6 ГГц, -60 дБм - +20 дБм, видео полоса 175 кГц
|
По запросу | ||
|
RTP4106
|
USB-измеритель средней мощности реального времени 4 кГц - 6 ГГц, -60 дБм - +20 дБм, видео полоса 175 кГц
|
По запросу | ||
|
RTP4018
|
USB-измеритель средней мощности реального времени 10 МГц - 18 ГГц, -60 дБм - +20 дБм, видео полоса 175 кГц
|
По запросу | ||
|
RTP4118
|
USB-измеритель средней мощности реального времени 4 кГц - 18 ГГц, -60 дБм - +20 дБм, видео полоса 175 кГц
|
По запросу |
