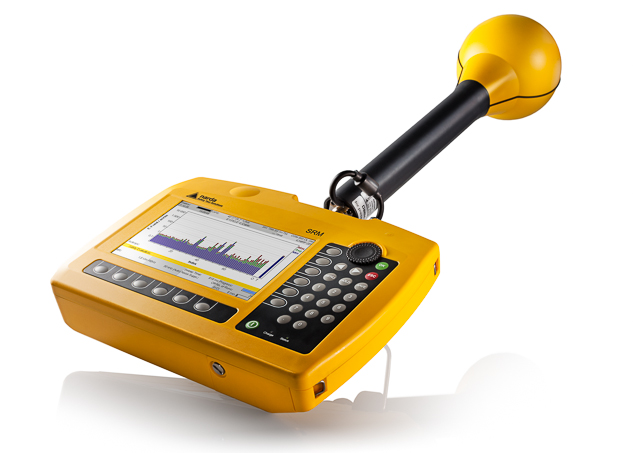

Портативный селективный измеритель напряженности поля 9 кГц - 6 ГГц Narda-STS SRM-3006

SRM-3006
Для увеличения картинки наведите мышкой
SRM-3006SRM-3006SRM-3006
SRM-3006SRM-3006SRM-3006
НаличиеПо запросу
По запросу
По запросу
По запросу
Измерители напряженности поля SRM-3006 Подробнее
Обзор
Свернуть Развернуть
Основные возможности и технические характеристики
SRM-3006 Selective measurement of high frequency electro- magnetic fields

Complete, easy to use test system, consisting of a base unit and measuring antennas, for non-directional detection of fields and their sources in the frequency range from 9 kHz to 6 GHz.

Measurements conforming to ICNIRP and national standards with results displayed directly in terms of the permitted limit value

Fast, reliable results using predefined measurement routines, setups, and automatic settings

LTE - FDD/TDD and UMTS operating modes for evaluating pilot signal information and extrapolation to maximum exposure levels

Scope mode for short term analysis of pulsed signals and long term recording of variable exposure levels

Editable tables for automatic correlation of results with telecommunications services (e.g. broadcasting, GSM, WiMAX)

Individual preparation of field campaigns with subsequent evaluation and handling of large quantities of measurement data

Suitable for outdoor use: Radiation protected, robust, splash-proof, ergonomically designed; uses exchangeable rechargeable batteries; equipped with integrated GPS and voice recorder

Product Features
  • Measurements conforming to ICNIRP and national standards with results displayed directly in terms of the permitted limit value
  • Fast, reliable results using predefined measurement routines, setups, and automatic settings
  • LTE and UMTS operating modes for evaluating pilot signal information and extrapolation to maximum exposure levels
  • Scope mode for short term analysis of pulsed signals and long term recording of variable exposure levels
  • Editable tables for automatic correlation of results with telecommunications services (e.g. broadcasting, GSM, WiMAX)
  • Individual preparation of field campaigns with subsequent evaluation and handling of large quantities of measurement data
  • Suitable for outdoor use: Radiation protected, robust, splash-proof, ergonomically designed; uses exchangeable rechargeable batteries; equipped with integrated GPS and voice recorder
Product description

Frequency selective hand held field strength measuring system for rapid and reliable safety assessments with e.g. separate recording of mobile communications channels of different providers and worst case evaluation through decoding of control signals in UMTS and LTE.

SRM-3006 has become established as the standard instrument for these tasks. It provides the user with automatic evaluations taking various human safety standards into account directly in the instrument, together with a specified overall measurement uncertainty, making error-prone and complicated calculations unnecessary.

The operating modes are tailored to different applications.








Свернуть Развернуть
Основные возможности и технические характеристики
SRM-3006 Selective measurement of high frequency electro- magnetic fields

Complete, easy to use test system, consisting of a base unit and measuring antennas, for non-directional detection of fields and their sources in the frequency range from 9 kHz to 6 GHz.

Measurements conforming to ICNIRP and national standards with results displayed directly in terms of the permitted limit value

Fast, reliable results using predefined measurement routines, setups, and automatic settings

LTE - FDD/TDD and UMTS operating modes for evaluating pilot signal information and extrapolation to maximum exposure levels

Scope mode for short term analysis of pulsed signals and long term recording of variable exposure levels

Editable tables for automatic correlation of results with telecommunications services (e.g. broadcasting, GSM, WiMAX)

Individual preparation of field campaigns with subsequent evaluation and handling of large quantities of measurement data

Suitable for outdoor use: Radiation protected, robust, splash-proof, ergonomically designed; uses exchangeable rechargeable batteries; equipped with integrated GPS and voice recorder

Product Features
  • Measurements conforming to ICNIRP and national standards with results displayed directly in terms of the permitted limit value
  • Fast, reliable results using predefined measurement routines, setups, and automatic settings
  • LTE and UMTS operating modes for evaluating pilot signal information and extrapolation to maximum exposure levels
  • Scope mode for short term analysis of pulsed signals and long term recording of variable exposure levels
  • Editable tables for automatic correlation of results with telecommunications services (e.g. broadcasting, GSM, WiMAX)
  • Individual preparation of field campaigns with subsequent evaluation and handling of large quantities of measurement data
  • Suitable for outdoor use: Radiation protected, robust, splash-proof, ergonomically designed; uses exchangeable rechargeable batteries; equipped with integrated GPS and voice recorder
Product description

Frequency selective hand held field strength measuring system for rapid and reliable safety assessments with e.g. separate recording of mobile communications channels of different providers and worst case evaluation through decoding of control signals in UMTS and LTE.

SRM-3006 has become established as the standard instrument for these tasks. It provides the user with automatic evaluations taking various human safety standards into account directly in the instrument, together with a specified overall measurement uncertainty, making error-prone and complicated calculations unnecessary.

The operating modes are tailored to different applications.








SRM - Set Overview Part Number
SRM-3006, Selective Radiation Meter, Set 1/2, Basic Unit, no Antenna
Set includes:
- Selective Radiation Meter, Basic Unit, SRM-3006
- RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01)
- Carrying Strap for SRM (Basic Unit) (3001/90.02)
- Holding Strap for SRM-3006 Basic Unit (3001/90.12)
- Operating Manual SRM-3006, English
- Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04)
- Software, SRM-3006 Tools (3006/93.01)
- Cable, USB 2.0, Master/Slave
- A/B mini (2260/90.55)
Set with Hardcase 3006/101

Set with Softcase 3006/102
SRM-3006, Selective Radiation Meter, Set 3/4, Basic Unit plus one Isotropic Antenna (420MHz-6GHz)
Set includes:
- Selective Radiation Meter, Basic Unit, SRM-3006
- Antenna, Three-Axis, E-Field, 420 MHz-6GHz (3502/01)
- RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01)
- Carrying Strap for SRM (Basic Unit) (3001/90.02)
- Holding Strap for SRM-3006 Basic Unit (3001/90.12)
- Operating Manual SRM-3006, English
- Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04)
- Software, SRM-3006 Tools (3006/93.01)
- Cable, USB 2.0, Master/Slave
- A/B mini (2260/90.55)
Set with Hardcase 3006/103

Set with Softcase 3006/104
SRM-3006, Selective Radiation Meter, Set 5/6, Basic Unit plus two Isotropic Antennas
Set includes:
- Selective Radiation Meter, Basic Unit, SRM-3006
- Antenna, Three-Axis, E-Field, 420 MHz-6GHz (3502/01)
- Antenna, Three-Axis, E-Field, 27 MHz-3GHz (3501/03)
- RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01)
- Carrying Strap for SRM (Basic Unit) (3001/90.02)
- Holding Strap for SRM-3006 Basic Unit (3001/90.12)
- Operating Manual SRM-3006, English
- Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04)
- Software, SRM-3006 Tools (3006/93.01)
- Cable, USB 2.0, Master/Slave
- A/B mini (2260/90.55)
Set with Hardcase 3006/105

Set with Softcase 3006/106
SRM-3006, Selective Radiation Meter, Set 7/8, Basic Unit plus one Isotropic Antenna (27MHz-3GHz)
Set includes:
- Selective Radiation Meter, Basic Unit, SRM-3006
- Antenna, Three-Axis, E-Field, 27MHz-3GHz (3501/03)
- RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01)
- Carrying Strap for SRM (Basic Unit) (3001/90.02)
- Holding Strap for SRM-3006 Basic Unit (3001/90.12)
- Operating Manual SRM-3006, English
- Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04)
- Software, SRM-3006 Tools (3006/93.01)
- Cable, USB 2.0, Master/Slave
- A/B mini (2260/90.55)
Set with Hardcase 3006/107

Set with Softcase 3006/108
SRM - Set Overview Part Number
SRM-3006, Selective Radiation Meter, Set 1/2, Basic Unit, no Antenna
Set includes:
- Selective Radiation Meter, Basic Unit, SRM-3006
- RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01)
- Carrying Strap for SRM (Basic Unit) (3001/90.02)
- Holding Strap for SRM-3006 Basic Unit (3001/90.12)
- Operating Manual SRM-3006, English
- Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04)
- Software, SRM-3006 Tools (3006/93.01)
- Cable, USB 2.0, Master/Slave
- A/B mini (2260/90.55)
Set with Hardcase 3006/101

Set with Softcase 3006/102
SRM-3006, Selective Radiation Meter, Set 3/4, Basic Unit plus one Isotropic Antenna (420MHz-6GHz)
Set includes:
- Selective Radiation Meter, Basic Unit, SRM-3006
- Antenna, Three-Axis, E-Field, 420 MHz-6GHz (3502/01)
- RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01)
- Carrying Strap for SRM (Basic Unit) (3001/90.02)
- Holding Strap for SRM-3006 Basic Unit (3001/90.12)
- Operating Manual SRM-3006, English
- Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04)
- Software, SRM-3006 Tools (3006/93.01)
- Cable, USB 2.0, Master/Slave
- A/B mini (2260/90.55)
Set with Hardcase 3006/103

Set with Softcase 3006/104
SRM-3006, Selective Radiation Meter, Set 5/6, Basic Unit plus two Isotropic Antennas
Set includes:
- Selective Radiation Meter, Basic Unit, SRM-3006
- Antenna, Three-Axis, E-Field, 420 MHz-6GHz (3502/01)
- Antenna, Three-Axis, E-Field, 27 MHz-3GHz (3501/03)
- RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01)
- Carrying Strap for SRM (Basic Unit) (3001/90.02)
- Holding Strap for SRM-3006 Basic Unit (3001/90.12)
- Operating Manual SRM-3006, English
- Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04)
- Software, SRM-3006 Tools (3006/93.01)
- Cable, USB 2.0, Master/Slave
- A/B mini (2260/90.55)
Set with Hardcase 3006/105

Set with Softcase 3006/106
SRM-3006, Selective Radiation Meter, Set 7/8, Basic Unit plus one Isotropic Antenna (27MHz-3GHz)
Set includes:
- Selective Radiation Meter, Basic Unit, SRM-3006
- Antenna, Three-Axis, E-Field, 27MHz-3GHz (3501/03)
- RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01)
- Carrying Strap for SRM (Basic Unit) (3001/90.02)
- Holding Strap for SRM-3006 Basic Unit (3001/90.12)
- Operating Manual SRM-3006, English
- Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04)
- Software, SRM-3006 Tools (3006/93.01)
- Cable, USB 2.0, Master/Slave
- A/B mini (2260/90.55)
Set with Hardcase 3006/107

Set with Softcase 3006/108
Свернуть Развернуть
Сведения о реестре СИ

Номер в Госреестре

Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

62013-15
Измерители параметров электромагнитного поля селективные
SRM-3006
Фирма "Narda Safety Test Solutions GmbH", Германия
30.10.2020
43284-09
Измерители параметров электромагнитного поля селективные
SRM-3000, SRM-3006
Фирма "Narda Safety Test Solutions GmbH", Германия
01.01.2015
Свернуть Развернуть
Сведения о реестре СИ

Номер в Госреестре

Наименование СИ

Обозначение типа СИ

Изготовитель

Срок свидетельства или заводской номер

62013-15
Измерители параметров электромагнитного поля селективные
SRM-3006
Фирма "Narda Safety Test Solutions GmbH", Германия
30.10.2020
43284-09
Измерители параметров электромагнитного поля селективные
SRM-3000, SRM-3006
Фирма "Narda Safety Test Solutions GmbH", Германия
01.01.2015
  • LTE Messung mit dem SRM-3006
  • 07 RF Safety Selective meters SRM EMF

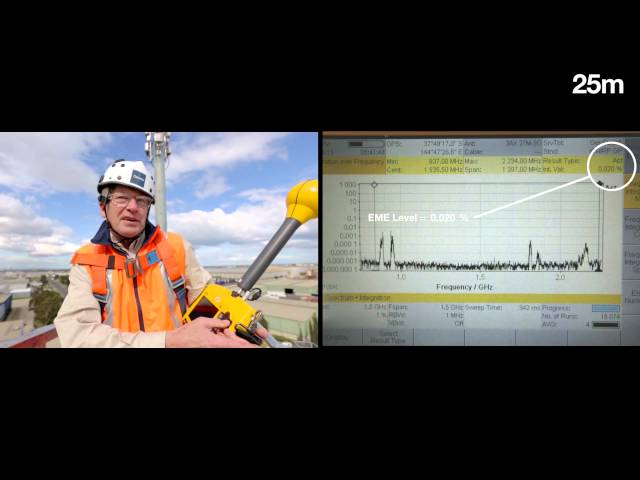

  • EME Levels on a mobile phone tower - live readings from 35m to ground level
Характеристики
Dimensions 213 x 297x 77 mm (basic unit)
Weight with antenna
3300 g
Color display
TFT-LCD 7 inch, 800 x 480 pixels
Frequency range
9 kHz to 6 GHz
Temperature range
-10° to +50° C
Battery operating time
3 hours +/- 15 minutes
Модели и опции
Товар
Модели и Опции
Описание
Цена Заказать
Модели
SRM-3006
Портативный селективный измеритель напряженности поля 9 кГц - 6 ГГц
По запросу
- шт +
Accessories
3501/90.01
Antenna Holder for Uniaxial/Triaxial Antenna
По запросу
- шт +
3501/90.02
Antenna Holder for Triaxial Antenna
По запросу
- шт +
3602/02
RF-Cable, 9 kHz - 6 GHz, N 50 ohm, 5m
По запросу
- шт +
2244/90.31
Tripod, Non-Conductive, 1.65 m with carrying bag
По запросу
- шт +
2244/90.45
Tripod Extension, 0.50m, Non-Conductive
По запросу
- шт +
3001/90.15
Battery Pack, Rechargeable, 7V2 / 6200 mAh (one is included in each SRM Basic Unit)
По запросу
- шт +
3001/90.07
Charger Set for Battery Pack, External
По запросу
- шт +
2260/90.56
Power Supply DC Vehicle Adapter
По запросу
- шт +
3001/90.03
Hardcase for SRM
По запросу
- шт +
3001/90.04
Carrying Strap for Hardcase (included in all sets with hardcase)
По запросу
- шт +
3001/90.05
Softcase for SRM
По запросу
- шт +
3001/90.13
Protective Soft Carrying Bag for SRM-3006 Basic Unit
По запросу
- шт +
3001/90.14
N-Connector Saver for SRM
По запросу
- шт +
2260/90.07
O/E Converter USB, RP-02/USB
По запросу
- шт +
2260/91.01
Cable, FO Duplex, F-SMA to RP-02, 0.3m
По запросу
- шт +
2260/91.02
Cable, FO Duplex, RP-02, 2m
По запросу
- шт +
2260/91.09
Cable, FO Duplex, RP-02, 5m
По запросу
- шт +
2260/91.07
Cable, FO Duplex, RP-02, 10m
По запросу
- шт +
2260/91.03
Cable, FO Duplex, RP-02, 20m
По запросу
- шт +
2260/91.04
Cable, FO Duplex, RP-02, 50m
По запросу
- шт +
2400/90.03
Earphone, 3.5mm Plug
По запросу
- шт +
3006/98.01
Operating Manual SRM-3006, German (select for free instead of English)
По запросу
- шт +
Options
3701/04
Option, UMTS P-CPICH Demodulation
По запросу
- шт +
3701/05
Option, Scope
По запросу
- шт +
3701/06
Option, LTE (for FDD networks)
По запросу
- шт +
3701/07
Option, LTE (for TDD networks)
По запросу
- шт +
SRM – Set Overview
3006/101
Set with Hardcase. SRM-3006, Selective Radiation Meter, Set 1/2, Basic Unit, no Antenna Set includes: - Selective Radiation Meter, Basic Unit, SRM-3006 - RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01) - Carrying Strap for SRM (Basic Unit) (3001/90.02) - Holding Strap for SRM-3006 Basic Unit (3001/90.12) - Operating Manual SRM-3006, English - Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04) - Software, SRM-3006 Tools (3006/93.01) - Cable, USB 2.0, Master/Slave - A/B mini (2260/90.55)
По запросу
- шт +
3006/102
Set with Softcase. SRM-3006, Selective Radiation Meter, Set 1/2, Basic Unit, no Antenna Set includes: - Selective Radiation Meter, Basic Unit, SRM-3006 - RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01) - Carrying Strap for SRM (Basic Unit) (3001/90.02) - Holding Strap for SRM-3006 Basic Unit (3001/90.12) - Operating Manual SRM-3006, English - Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04) - Software, SRM-3006 Tools (3006/93.01) - Cable, USB 2.0, Master/Slave - A/B mini (2260/90.55)
По запросу
- шт +
3006/103
Set with Hardcase. SRM-3006, Selective Radiation Meter, Set 3/4, Basic Unit plus one Isotropic Antenna (420MHz-6GHz) Set includes: - Selective Radiation Meter, Basic Unit, SRM-3006 - Antenna, Three-Axis, E-Field, 420 MHz-6GHz (3502/01) - RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01) - Carrying Strap for SRM (Basic Unit) (3001/90.02) - Holding Strap for SRM-3006 Basic Unit (3001/90.12) - Operating Manual SRM-3006, English - Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04) - Software, SRM-3006 Tools (3006/93.01) - Cable, USB 2.0, Master/Slave - A/B mini (2260/90.55)
По запросу
- шт +
3006/104
Set with Softcase. SRM-3006, Selective Radiation Meter, Set 3/4, Basic Unit plus one Isotropic Antenna (420MHz-6GHz) Set includes: - Selective Radiation Meter, Basic Unit, SRM-3006 - Antenna, Three-Axis, E-Field, 420 MHz-6GHz (3502/01) - RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01) - Carrying Strap for SRM (Basic Unit) (3001/90.02) - Holding Strap for SRM-3006 Basic Unit (3001/90.12) - Operating Manual SRM-3006, English - Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04) - Software, SRM-3006 Tools (3006/93.01) - Cable, USB 2.0, Master/Slave - A/B mini (2260/90.55)
По запросу
- шт +
3006/105
Set with Hardcase. SRM-3006, Selective Radiation Meter, Set 5/6, Basic Unit plus two Isotropic Antennas Set includes: - Selective Radiation Meter, Basic Unit, SRM-3006 - Antenna, Three-Axis, E-Field, 420 MHz-6GHz (3502/01) - Antenna, Three-Axis, E-Field, 27 MHz-3GHz (3501/03) - RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01) - Carrying Strap for SRM (Basic Unit) (3001/90.02) - Holding Strap for SRM-3006 Basic Unit (3001/90.12) - Operating Manual SRM-3006, English - Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04) - Software, SRM-3006 Tools (3006/93.01) - Cable, USB 2.0, Master/Slave - A/B mini (2260/90.55)
По запросу
- шт +
3006/106
Set with Softcase. SRM-3006, Selective Radiation Meter, Set 5/6, Basic Unit plus two Isotropic Antennas Set includes: - Selective Radiation Meter, Basic Unit, SRM-3006 - Antenna, Three-Axis, E-Field, 420 MHz-6GHz (3502/01) - Antenna, Three-Axis, E-Field, 27 MHz-3GHz (3501/03) - RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01) - Carrying Strap for SRM (Basic Unit) (3001/90.02) - Holding Strap for SRM-3006 Basic Unit (3001/90.12) - Operating Manual SRM-3006, English - Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04) - Software, SRM-3006 Tools (3006/93.01) - Cable, USB 2.0, Master/Slave - A/B mini (2260/90.55)
По запросу
- шт +
3006/107
Set with Hardcase. SRM-3006, Selective Radiation Meter, Set 7/8, Basic Unit plus one Isotropic Antenna (27MHz-3GHz) Set includes: - Selective Radiation Meter, Basic Unit, SRM-3006 - Antenna, Three-Axis, E-Field, 27MHz-3GHz (3501/03) - RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01) - Carrying Strap for SRM (Basic Unit) (3001/90.02) - Holding Strap for SRM-3006 Basic Unit (3001/90.12) - Operating Manual SRM-3006, English - Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04) - Software, SRM-3006 Tools (3006/93.01) - Cable, USB 2.0, Master/Slave - A/B mini (2260/90.55)
По запросу
- шт +
3006/108
Set with Softcase. SRM-3006, Selective Radiation Meter, Set 7/8, Basic Unit plus one Isotropic Antenna (27MHz-3GHz) Set includes: - Selective Radiation Meter, Basic Unit, SRM-3006 - Antenna, Three-Axis, E-Field, 27MHz-3GHz (3501/03) - RF-Cable SRM, 9kHz-6GHz, N 50 Ohm, 1.5m (3602/01) - Carrying Strap for SRM (Basic Unit) (3001/90.02) - Holding Strap for SRM-3006 Basic Unit (3001/90.12) - Operating Manual SRM-3006, English - Power Supply 12VDC, 100V-240VAC, all Plugs (2259/92.04) - Software, SRM-3006 Tools (3006/93.01) - Cable, USB 2.0, Master/Slave - A/B mini (2260/90.55)
По запросу
- шт +
ANTENNAS
3501/03
Antenna, Three-Axis, E-Field, 27 MHz - 3 GHz
По запросу
- шт +
3502/01
Antenna, Three-Axis, E-Field, 420 MHz - 6 GHz
По запросу
- шт +
3581/02
Antenna, Three-Axis, H-Field, 9 kHz - 250 MHz
По запросу
- шт +
3531/01
Antenna, Single-Axis, E-Field, 27 MHz - 3 GHz
По запросу
- шт +
3531/04
Antenna, Single-Axis, E-Field, 9 kHz - 300 MHz
По запросу
- шт +
3551/02
Antenna, Single-Axis, H-Field, 9 kHz - 300 MHz
По запросу
- шт +
SOFTWARE
-
Software, SRM-3006 Tools, Configuration SW (included in all sets)
По запросу
- шт +
3006/93.10
Software, SRM-3006 TS, PC Evaluation and Remote
По запросу
- шт +
Отзывы
Добавить отзыв
Оцените товар:
Ваше имя
Достоинства

Недостатки

Комментарий

Символы на картинке


Тут еще никто ничего не писал, стань первым!
Список просмотренных товаров пуст
Список избранного пуст
Ваша корзина пуста
Помощь
Ошибка на сайте? Выдели её и нажми Ctrl+Enter
