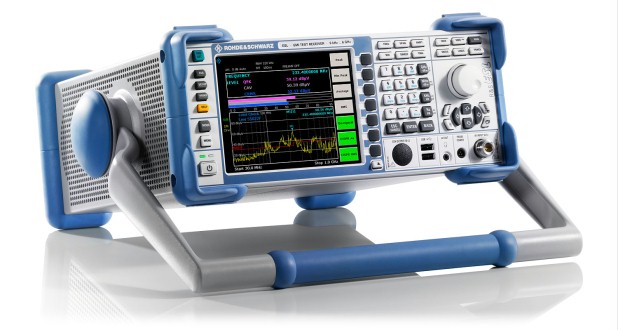

Измерительный приемник ЭМП 9 кГц - 6 ГГц со следящим генератором

ESL
Для увеличения картинки наведите мышкой
ESLESLESLESLESLESLESLESLESL
ESLESLESLESLESLESLESLESLESL
НаличиеПо запросу
По запросу
По запросу
По запросу
Приемники измерительные ЭМП ESL Подробнее
Обзор
Свернуть Развернуть
Основные возможности и технические характеристики
  • Frequency range from 9 kHz to 3 GHz or 9 kHz to 6 GHz covering almost all commercial EMC standards
  • First-ever combination of an EMI test receiver and spectrum analyzer in the entry-level class
  • All major functions of an advanced EMI test receiver, including fully automated test sequences
  • Weighting detectors: max./min. peak, average, RMS, quasi-peak as well as average with meter time constant (CISPR-Average) and RMS-Average in line with the latest version of CISPR 16-1-1
  • Compact, lightweight instrument, can be battery-powered for mobile applications


  • Features & Benefits

    Precise, reproducible measurement results due to very good RF characteristics

  • 0.5 dB amplitude accuracy
  • 1 dB compression +5 dBm
  • RF input pulse-resistant up to 10 mWs
  • Displayed average noise level with preamplifier <-152 dBm (1 Hz)
  • Resolution bandwidths 10 Hz to 10 MHz (–3 dB), 200 Hz, 9 kHz, 120 kHz (–6 dB), 1 MHz (impulse)


  • Unrivaled price/performance ratio in this class

  • Two test instruments in one: EMI test receiver and spectrum analyzer
  • Low investment costs
  • Best RF characteristics available in this class of instrument
  • Extensive measurement functions and evaluation features
  • Cost-saving plug & play options


  • Intuitive operation – as with all the EMI test receivers from Rohde & Schwarz

  • Clear SCAN settings in tabular format
  • Capability to perform simultaneous measurement with multiple detectors
  • Predefined antenna factors and limit lines in accordance with commercial standards
  • Selective monitoring of critical disturbances using TUNE to MARKER and MARKER TRACK functions
  • Simultaneous measurement with up to four detectors
  • Large bargraph display with MAX HOLD function for clear presentation of measured values


  • Easy expansion, many interfaces

  • Plug & play addition of options without opening the instrument
  • Additional interfaces for expanding the range of applications of the R&S®ESL (option R&S®FSL-B5 incl. video output, IF output, noise source control output, remote-control interface for V-networks, interface for R&S®NRP-Zxx power sensors)


  • Lightweight and compact for installation, maintenance and on-site applications

  • Easy to transport due to small size and low weight
  • AC-independent operation with internal rechargeable battery (option)
  • Power measurements using the R&S®NRP-Zxx power sensors


  • Brief Description

    The R&S®ESL EMI test receiver combines two instruments in one, measuring EMC disturbances in accordance with the latest standards and also serving as a full-featured spectrum analyzer for diverse lab applications. The R&S®ESL is designed to meet the needs of cost-conscious users who want to perform diagnostic and precompliance EMI measurements up to 3 GHz or 6 GHz.

    The combination of very good RF characteristics and all of the important functions needed for fast, precise measurement and evaluation of the EMC of a device under test in accordance with commercial standards is unmatched in this class of instrument. The diverse analysis capabilities, high measurement speed and time-saving automated test routines make the R&S®ESL the obvious choice for any development lab that needs to prepare for the final EMC certification tests.


    Свернуть Развернуть
    Основные возможности и технические характеристики
  • Frequency range from 9 kHz to 3 GHz or 9 kHz to 6 GHz covering almost all commercial EMC standards
  • First-ever combination of an EMI test receiver and spectrum analyzer in the entry-level class
  • All major functions of an advanced EMI test receiver, including fully automated test sequences
  • Weighting detectors: max./min. peak, average, RMS, quasi-peak as well as average with meter time constant (CISPR-Average) and RMS-Average in line with the latest version of CISPR 16-1-1
  • Compact, lightweight instrument, can be battery-powered for mobile applications


  • Features & Benefits

    Precise, reproducible measurement results due to very good RF characteristics

  • 0.5 dB amplitude accuracy
  • 1 dB compression +5 dBm
  • RF input pulse-resistant up to 10 mWs
  • Displayed average noise level with preamplifier <-152 dBm (1 Hz)
  • Resolution bandwidths 10 Hz to 10 MHz (–3 dB), 200 Hz, 9 kHz, 120 kHz (–6 dB), 1 MHz (impulse)


  • Unrivaled price/performance ratio in this class

  • Two test instruments in one: EMI test receiver and spectrum analyzer
  • Low investment costs
  • Best RF characteristics available in this class of instrument
  • Extensive measurement functions and evaluation features
  • Cost-saving plug & play options


  • Intuitive operation – as with all the EMI test receivers from Rohde & Schwarz

  • Clear SCAN settings in tabular format
  • Capability to perform simultaneous measurement with multiple detectors
  • Predefined antenna factors and limit lines in accordance with commercial standards
  • Selective monitoring of critical disturbances using TUNE to MARKER and MARKER TRACK functions
  • Simultaneous measurement with up to four detectors
  • Large bargraph display with MAX HOLD function for clear presentation of measured values


  • Easy expansion, many interfaces

  • Plug & play addition of options without opening the instrument
  • Additional interfaces for expanding the range of applications of the R&S®ESL (option R&S®FSL-B5 incl. video output, IF output, noise source control output, remote-control interface for V-networks, interface for R&S®NRP-Zxx power sensors)


  • Lightweight and compact for installation, maintenance and on-site applications

  • Easy to transport due to small size and low weight
  • AC-independent operation with internal rechargeable battery (option)
  • Power measurements using the R&S®NRP-Zxx power sensors


  • Brief Description

    The R&S®ESL EMI test receiver combines two instruments in one, measuring EMC disturbances in accordance with the latest standards and also serving as a full-featured spectrum analyzer for diverse lab applications. The R&S®ESL is designed to meet the needs of cost-conscious users who want to perform diagnostic and precompliance EMI measurements up to 3 GHz or 6 GHz.

    The combination of very good RF characteristics and all of the important functions needed for fast, precise measurement and evaluation of the EMC of a device under test in accordance with commercial standards is unmatched in this class of instrument. The diverse analysis capabilities, high measurement speed and time-saving automated test routines make the R&S®ESL the obvious choice for any development lab that needs to prepare for the final EMC certification tests.


  • Power cable
  • Quick start guide
  • CD-ROM (with operating manual and service manual)
  • Power cable
  • Quick start guide
  • CD-ROM (with operating manual and service manual)
  • Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    41606-09
    Приемники измерительные
    R&S ESL3, R&S ESL6
    Фирма "Rohde & Schwarz GmbH & Co. KG", Германия; Фирма "Rohde & Schwarz zavod Vimperk, s.r.o", Чехия
    26.11.2019
    41606-09
    Приемники измерительные
    R&S ESL3, R&S ESL6
    Фирма "Rohde & Schwarz GmbH & Co. KG", Германия
    26.11.2019
    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    41606-09
    Приемники измерительные
    R&S ESL3, R&S ESL6
    Фирма "Rohde & Schwarz GmbH & Co. KG", Германия; Фирма "Rohde & Schwarz zavod Vimperk, s.r.o", Чехия
    26.11.2019
    41606-09
    Приемники измерительные
    R&S ESL3, R&S ESL6
    Фирма "Rohde & Schwarz GmbH & Co. KG", Германия
    26.11.2019
    • Rohde & Schwarz ESRP EMI Test Receiver - Overview
    • Real time analysis using the R&S ESR EMI Test Receiver
    • R&S®ESR, the world's fastest EMI test receiver
    Модели и опции
    Товар
    Модели и Опции
    Описание
    Цена Заказать
    Модели
    R&S® ESL3.03
    Измерительный приемник ЭМП 9 кГц - 3 ГГц со следящим генератором
    €26 500
    - шт +
    R&S ESL3
    Измерительный приемник ЭМП 9 кГц - 3 ГГц со следящим генератором
    По запросу
    - шт +
    R&S® ESL6.06
    Измерительный приемник ЭМП 9 кГц - 6 ГГц со следящим генератором
    €32 500
    - шт +
    R&S ESL6
    Измерительный приемник ЭМП 9 кГц - 6 ГГц со следящим генератором
    По запросу
    - шт +
    Options
    R&S® FSL-B30
    DC Power Supply
    €1 000
    - шт +
    R&S®FSL-B30
    DC Power Supply
    По запросу
    - шт +
    R&S® FSL-B31
    NiMH Battery Pack
    €1 625
    - шт +
    R&S®FSL-B31
    NiMH Battery Pack
    По запросу
    - шт +
    R&S® FSL-B4
    OCXO Reference Frequency
    €1 750
    - шт +
    R&S®FSL-B4
    OCXO Reference Frequency
    По запросу
    - шт +
    R&S® FSL-B5
    Additional Interfaces
    €750
    - шт +
    R&S®FSL-B5
    Additional Interfaces
    По запросу
    - шт +
    R&S® FSL-B8
    Gated Sweep
    €1 000
    - шт +
    R&S®FSL-B8
    Gated Sweep
    По запросу
    - шт +
    R&S® FSL-B10
    GPIB Interface
    €1 000
    - шт +
    R&S®FSL-B10
    GPIB Interface
    По запросу
    - шт +
    R&S® FSL-B22
    RF Preamplifier (3/6 GHz)
    €1 875
    - шт +
    R&S®FSL-B22
    RF Preamplifier (3/6 GHz)
    По запросу
    - шт +
    Service options
    R&S®WE1ESL
    Extended Warranty, one year
    По запросу
    - шт +
    R&S®WE2ESL
    Extended Warranty, two years
    По запросу
    - шт +
    R&S®WE3ESL
    Extended Warranty, three years
    По запросу
    - шт +
    R&S®WE4ESL
    Extended Warranty, four years
    По запросу
    - шт +
    R&S®CW1ESL
    Extended Warranty with Calibration Coverage, one year
    По запросу
    - шт +
    R&S®CW2 ESL
    Extended Warranty with Calibration Coverage, two years
    По запросу
    - шт +
    R&S®CW3 ESL
    Extended Warranty with Calibration Coverage, three years
    По запросу
    - шт +
    R&S®CW4 ESL
    Extended Warranty with Calibration Coverage, four years
    По запросу
    - шт +
    Recommended extras
    R&S® ZZA-S334
    19'' Rackmount Adapter
    €625
    - шт +
    R&S®ZZA-S334
    19'' Rackmount Adapter
    По запросу
    - шт +
    R&S® FSL-Z3
    Soft Carrying Bag
    €750
    - шт +
    R&S®FSL-Z3
    Soft Carrying Bag
    По запросу
    - шт +
    R&S®EVS-Z6
    Protective Hard Cover
    По запросу
    - шт +
    R&S® FSL-Z4
    Additional Charger Unit
    €375
    - шт +
    R&S®FSL-Z4
    Additional Charger Unit
    По запросу
    - шт +
    R&S® RAM
    Matching Pad 75 0, L section
    €1 375
    - шт +
    R&S®RAM
    Matching Pad 75 0, L section
    По запросу
    - шт +
    R&S® RAZ.02
    Matching Pad 75 0, series resistor 25 0
    €1 375
    - шт +
    R&S®RAZ
    Matching Pad 75 0, series resistor 25 0
    По запросу
    - шт +
    R&S® FSH-Z38
    Matching Pad 75 0, L section, N to BNC
    €625
    - шт +
    R&S®FSH-Z38
    Matching Pad 75 0, L section, N to BNC
    По запросу
    - шт +
    Firmware/software
    R&S® FSL-K7
    AM/FM^M Measurement Demodulator
    €3 000
    - шт +
    R&S®FSL-K7
    AM/FM^M Measurement Demodulator
    По запросу
    - шт +
    R&S® FSL-K9
    Power Sensor Support
    €1 000
    - шт +
    R&S®FSL-K9
    Power Sensor Support
    По запросу
    - шт +
    R&S® FSL-K30
    Application Firmware for Noise Figure and Gain Measurements
    €8 000
    - шт +
    R&S®FSL-K30
    Application Firmware for Noise Figure and Gain Measurements
    По запросу
    - шт +
    Power sensors supported by the R&S®FSL-K9
    R&S®NRP-Z11
    Average Power Sensor 10 MHz to 8 GHz, 200 mW
    По запросу
    - шт +
    R&S®NRP-Z21
    Average Power Sensor 10 MHz to 18 GHz, 200 mW
    По запросу
    - шт +
    R&S®NRP-Z22
    Average Power Sensor 10 MHz to 18 GHz, 2 W
    По запросу
    - шт +
    R&S®NRP-Z23
    Average Power Sensor 10 MHz to 18 GHz, 15 W
    По запросу
    - шт +
    R&S®NRP-Z24
    Average Power Sensor 10 MHz to 18 GHz, 30 W
    По запросу
    - шт +
    R&S® NRP-Z27
    Power Sensor Module with Power Splitter DC to 18 GHz, 500 mW
    €13 250
    - шт +
    R&S®NRP-Z27
    Power Sensor Module with Power Splitter DC to 18 GHz, 500 mW
    По запросу
    - шт +
    R&S® NRP-Z37
    Power Sensor Module with Power Splitter DC to 26.5 GHz, 500 mW
    €14 875
    - шт +
    R&S®NRP-Z37
    Power Sensor Module with Power Splitter DC to 26.5 GHz, 500 mW
    По запросу
    - шт +
    R&S®NRP-Z91
    Average Power Sensor 9 kHz to 6 GHz, 200 mW
    По запросу
    - шт +
    R&S®NRP-Z51
    Thermal Power Sensor 0 Hz to 18 GHz, 100 mW
    По запросу
    - шт +
    R&S®NRP-Z55
    Thermal Power Sensor 0 Hz to 40 GHz, 100 mW
    По запросу
    - шт +
    R&S® NRP-Z81
    Wideband Power Sensor 50 MHz to 18 GHz, 100 mW
    €10 125
    - шт +
    R&S®NRP-Z81
    Wideband Power Sensor 50 MHz to 18 GHz, 100 mW
    По запросу
    - шт +
