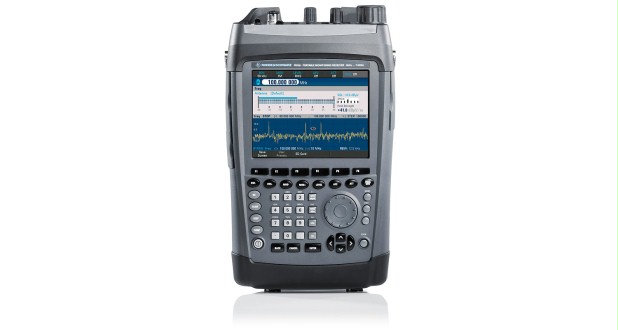

Портативный мониторинговый приемник 9 кГц - 7,5 ГГц
Наличие: По запросуПо запросу По запросу По запросу
Приемники мониторинговые PR100 Подробнее
Немецкая компания Rohde & Schwarz основана в 1933 году в Германии, в г. Мюнхен учеными Физико-технического Университета Лотаром Роде и Германом Шварцем.
В нашей стране оборудование Rohde & Schwarz появилось в 1957 году. С тех пор, благодаря собственным технологиям и новаторским идеям сотрудников, Rohde & Schwarz становится одним из технологических лидеров для российских заказчиков различных государственных и силовых структур.
На… подробнее
Обзор
Fast panorama scan across the entire frequency range from 9 kHz to 7.5 GHz
10 MHz IF spectrum and demodulation with bandwidths from 150 Hz to 500 kHz
Spectrum and spectrogram (waterfall) display on 6.5" color screen
Storage of measurement data to receiver's built-in SD card
LAN interface for remote control and data output
Ergonomic and rugged design for portable use
Low weight: 3.5 kg including battery
Manual location of emissions with the R&S®HE400 handheld directional antenna (9 kHz to 7.5 GHz)
Automatic location of emissions with direction finding algorithms (20 MHz to 6 GHz)
Display of digital maps on the R&S®PR100; triangulation based on multiple, manually or automatically determined DF results
Wide frequency range and outstanding performance
Capable of receiving and processing signals of current and future radio services
High receiver sensitivity, high signal resolution
State-of-the-art digital signal processing for high receiver sensitivity and detection of extremely weak signals, without any loss in processing speed
Significantly superior receiver sensitivity and signal resolution (compared with conventional analog receivers)
Retrieval of information through demodulation
Analog-modulated signals demodulated directly in the receiver; contents audible using headphones or built-in loudspeaker
Digitally modulated signals converted to the baseband using I/Q demodulation and stored in the receiver or exported via LAN
Online and offline analysis of digitally modulated signals, e.g. with the R&S®CA100 software
Detection of pulsed signals and radar emissions
Capture of short-duration pulses, such as radar emissions
Wide IF bandwidth for analysis of short-duration pulses and pulse packets
Monitoring receiver and mobile data memory in a single unit
Collected information written directly to the receiver’s built-in SD card
Offline analysis of data recording during monitoring
Efficient operation via remote control
Full remote control via LAN interface (SCPI commands to IEEE 488.2)
Efficient, remote receiver operation, e.g. in unattended monitoring stations
R&S®PR100-Control remote control software from the R&S®RAMON software family included
Battery operation for mobile use
Low weight: 3.5 kg including battery
Long battery-powered operation: approx. 4 hours
Intuitive and simple operation
Short learning curve due to straightforward menu structure and simple operation
Large 6.5" color display for signal analysis
Fast panorama scan across the entire frequency range from 9 kHz to 7.5 GHz
10 MHz IF spectrum and demodulation with bandwidths from 150 Hz to 500 kHz
Spectrum and spectrogram (waterfall) display on 6.5" color screen
Storage of measurement data to receiver's built-in SD card
LAN interface for remote control and data output
Ergonomic and rugged design for portable use
Low weight: 3.5 kg including battery
Manual location of emissions with the R&S®HE400 handheld directional antenna (9 kHz to 7.5 GHz)
Automatic location of emissions with direction finding algorithms (20 MHz to 6 GHz)
Display of digital maps on the R&S®PR100; triangulation based on multiple, manually or automatically determined DF results
Wide frequency range and outstanding performance
Capable of receiving and processing signals of current and future radio services
High receiver sensitivity, high signal resolution
State-of-the-art digital signal processing for high receiver sensitivity and detection of extremely weak signals, without any loss in processing speed
Significantly superior receiver sensitivity and signal resolution (compared with conventional analog receivers)
Retrieval of information through demodulation
Analog-modulated signals demodulated directly in the receiver; contents audible using headphones or built-in loudspeaker
Digitally modulated signals converted to the baseband using I/Q demodulation and stored in the receiver or exported via LAN
Online and offline analysis of digitally modulated signals, e.g. with the R&S®CA100 software
Detection of pulsed signals and radar emissions
Capture of short-duration pulses, such as radar emissions
Wide IF bandwidth for analysis of short-duration pulses and pulse packets
Monitoring receiver and mobile data memory in a single unit
Collected information written directly to the receiver’s built-in SD card
Offline analysis of data recording during monitoring
Efficient operation via remote control
Full remote control via LAN interface (SCPI commands to IEEE 488.2)
Efficient, remote receiver operation, e.g. in unattended monitoring stations
R&S®PR100-Control remote control software from the R&S®RAMON software family included
Battery operation for mobile use
Low weight: 3.5 kg including battery
Long battery-powered operation: approx. 4 hours
Intuitive and simple operation
Short learning curve due to straightforward menu structure and simple operation
Large 6.5" color display for signal analysis
Свернуть
Развернуть
Основные возможности и технические характеристики
Key Facts
Features & Benefits
Future-ready investmentHigh receiver sensitivity, high signal resolution
Retrieval of information through demodulation
Detection of pulsed signals and radar emissions
Monitoring receiver and mobile data memory in a single unit
Efficient operation via remote control
Battery operation for mobile use
Intuitive and simple operation
Brief Description
The R&S®PR100 portable receiver has been specifically designed for radiomonitoring applications in the field. The receiver’s functions and control concept have been optimized for monitoring tasks. In addition, it can be used for a variety of other applications.
The R&S®PR100 operates in a wide frequency range from 9 kHz to 7.5 GHz. Whether used for monitoring emissions, detecting interference or locating miniature transmitters, the receiver always combines high mobility with maximum operating ease. The receiver and the R&S®HE400 handheld directional antenna together form a compact receiving system. The receiver can also be used in conjunction with other antennas, e.g. broadband omnidirectional antennas.
Свернуть
Развернуть
Основные возможности и технические характеристики
Key Facts
Features & Benefits
Future-ready investmentHigh receiver sensitivity, high signal resolution
Retrieval of information through demodulation
Detection of pulsed signals and radar emissions
Monitoring receiver and mobile data memory in a single unit
Efficient operation via remote control
Battery operation for mobile use
Intuitive and simple operation
Brief Description
The R&S®PR100 portable receiver has been specifically designed for radiomonitoring applications in the field. The receiver’s functions and control concept have been optimized for monitoring tasks. In addition, it can be used for a variety of other applications.
The R&S®PR100 operates in a wide frequency range from 9 kHz to 7.5 GHz. Whether used for monitoring emissions, detecting interference or locating miniature transmitters, the receiver always combines high mobility with maximum operating ease. The receiver and the R&S®HE400 handheld directional antenna together form a compact receiving system. The receiver can also be used in conjunction with other antennas, e.g. broadband omnidirectional antennas.
Свернуть
Развернуть
Комплектация
Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Свернуть
Развернуть
Комплектация
Комплектацию Вы можете узнать:
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
По тел.: +7 (495) 105 96 88 или
Написать нам письмо: info@micro-electronics.ru
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
|
52163-12 |
Приемники измерительные портативные |
R&S PR100 |
Фирма "Rohde & Schwarz GmbH & Co. KG", Германия; Фирма "Rohde & Schwarz Technologies Malaysia Sdn Bhd", Малайзия |
01.11.2022 |
|
52163-12 |
Приемники измерительные портативные |
R&S PR100 |
Фирма "Rohde & Schwarz GmbH & Co. KG", Германия |
01.11.2022 |
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
|
52163-12 |
Приемники измерительные портативные |
R&S PR100 |
Фирма "Rohde & Schwarz GmbH & Co. KG", Германия; Фирма "Rohde & Schwarz Technologies Malaysia Sdn Bhd", Малайзия |
01.11.2022 |
|
52163-12 |
Приемники измерительные портативные |
R&S PR100 |
Фирма "Rohde & Schwarz GmbH & Co. KG", Германия |
01.11.2022 |
Характеристики
Загрузить технические характеристики
| RF data | ||
| Frequency range | 9 kHz to 7.5 GHz | |
| RF input | ||
| Impedance | 50 Ω | |
| Preselection | 9 kHz to 30 MHz | 30 MHz lowpass filter |
| 20 MHz to 1.5 GHz | tuned bandpass filters | |
| 1.5 GHz to 7.5 GHz | highpass/lowpass filter combination | |
| IF data | ||
| IF spectrum display range |
1 kHz to 10 MHz, 1/2/5/10/20/50/100/200/500 kHz, 1/2/5/10 MHz |
|
| Display modes | normal (clear/write), average, max. hold, min. hold | |
| IF demodulation bandwidths | 15 filters (specified values indicate 3 dB bandwidth) |
150/300/600 Hz, 1.5/2.4/6/9/15/30/50/120/150/ 250/300/500 kHz |
| Demodulation modes | all demodulation bandwidths | AM, FM, PULSE, I/Q |
| demodulation bandwidth ≤ 9 kHz | LSB | |
| demodulation bandwidth ≤ 15 kHz | ISB | |
| demodulation bandwidth ≤ 9 kHz | CW | |
| Scan modes | ||
| Frequency scan (FScan) | start and stop frequency, step width | user-selectable |
| scan speed | up to 200 channels/s | |
| Memory scan (MScan) | memory locations | 1024, user-programmable |
| scan speed | up to 150 channels/s | |
| Panorama scan (PScan) | start and stop frequency | user-selectable |
| resolution bandwidths (bin widths) |
125/250/500/625 Hz, 1.25/2.5/3.125/6.25/12.5/25/50/100 kHz |
|
| scan speed (RBW = 100 kHz, measurement time = 500 μs, IF spectrum = normal, clear/write, display mode = IF spectrum) | up to 2 GHz/s | |
| DF mode | ||
| Frequency range | 20 MHz to 6 GHz | |
| DF method | 20 MHz to 173 MHz | Watson-Watt |
| 173 MHz to 6 GHz | correlative interferometer | |
| Display resolution | selectable | 0.1° or 1° |
Модели и опции
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
R&S PR100
|
Портативный мониторинговый приемник 9 кГц - 7,5 ГГц
|
По запросу |
1
| Accessories |
|
R&S®PR100-BP
|
Battery Pack 6-cell lithium-ion battery, charging cradle, plug-in power supply
|
По запросу | ||
|
R&S®PR100-SC
|
Suitcase Kit hard-shell transit case with headphones and telescopic antenna and extra space for accessories
|
По запросу | ||
|
R&S® HA-Z202
|
Vehicle Adapter
|
€250 | ||
|
R&S®HA-Z202
|
Vehicle Adapter
|
По запросу | ||
|
R&S® HA-Z206
|
Lithium-Ion Battery Pack, 6 Ah
|
€750 | ||
|
R&S®HA-Z206
|
Lithium-Ion Battery Pack, 6 Ah
|
По запросу | ||
|
R&S® HA-Z222
|
Carrying Holster chest strap and rainproof cover
|
€625 | ||
|
R&S®HA-Z222
|
Carrying Holster chest strap and rainproof cover
|
По запросу | ||
|
R&S® HA-Z220
|
Carrying Bag soft carrying bag
|
€500 | ||
|
R&S®HA-Z220
|
Carrying Bag soft carrying bag
|
По запросу | ||
|
R&S® HA-Z240
|
GPS Receiver external GPS receiver for the R&S®PR100
|
€750 | ||
|
R&S®HA-Z240
|
GPS Receiver external GPS receiver for the R&S®PR100
|
По запросу | ||
|
R&S®HE400
|
Handheld Directional Antenna (antenna handle)
|
По запросу | ||
|
R&S®HE400HF
|
HF Antenna Module, 8.3 kHz to 30 MHz
|
По запросу | ||
|
R&S®HE400VHF
|
VHF Antenna Module, 20 MHz to 200 MHz
|
По запросу | ||
|
R&S®HE400UWB
|
UWB Antenna Module, 30 MHz to 6 GHz
|
По запросу | ||
|
R&S®HE400LP
|
Log-Periodic Antenna Module, 450 MHz to 8 GHz
|
По запросу | ||
|
R&S®HE400CEL
|
Cellular Antenna Module, 700 MHz to 2500 MHz
|
По запросу | ||
|
R&S®HE400-K
|
Cable Set for R&S®HE400 and R&S®PR100 or R&S®FSH
|
По запросу | ||
|
R&S®HE400Z1
|
Transport Case for R&S®HE400
|
По запросу | ||
|
R&S®HE400Z2
|
Transport Bag (small) for R&S®HE400 (recommended for one or two antenna modules)
|
По запросу | ||
|
R&S®HE400Z3
|
Transport Bag (large) for R&S®HE400 (recommended for three or four antenna modules)
|
По запросу | ||
|
R&S®HE400Z4
|
Tripod for R&S®HE400
|
По запросу |
24
| Service options |
|
R&S®WE1
|
Extended Warranty, one year
|
По запросу | ||
|
R&S®WE2
|
Extended Warranty, two years
|
По запросу | ||
|
R&S®WE3
|
Extended Warranty, three years
|
По запросу | ||
|
R&S®WE4
|
Extended Warranty, four years
|
По запросу | ||
|
R&S®CW1
|
Extended Warranty with Calibration Coverage, one year
|
По запросу | ||
|
R&S®CW2
|
Extended Warranty with Calibration Coverage, two years
|
По запросу | ||
|
R&S®CW3
|
Extended Warranty with Calibration Coverage, three years
|
По запросу | ||
|
R&S®CW4
|
Extended Warranty with Calibration Coverage, four years
|
По запросу |
32
| Software options |
|
R&S®PR100-PC
|
Polychrome Spectrum Display adds a color-coded spectrum display to indicate the relative signal occupancy
|
По запросу | ||
|
R&S®PR100-PS
|
Panorama Scan RF scan, high-speed FFT scan across user-selectable scan range, selectable spectral resolution (bin width)
|
По запросу | ||
|
R&S®PR100-IR
|
Internal Recording recording of measured data in the receiver (64 Mbyte RAM) or on SD card, recording of audio data in WAV format (replay using Windows Media Player, for example), recording of I/Q data, spectra and spectrogram (waterfall) data, R&S®PR100-Control software for viewing measured data on customer PC
|
По запросу | ||
|
R&S®PR100-RC
|
Remote Control remote control of receiver via LAN interface (SCPI protocol); transfer of measured data via LAN interface; transfer of demodulated I/Q data (up to 500 kHz bandwidth) via LAN interface; R&S®PR100-Control software (for remote control, data recording and data playback via PC)
|
По запросу | ||
|
R&S®PR100-ETM R&S®PR100-FS
|
Externally Triggered Measurements an external sensor (not supplied with the receiver) triggers a measurement in the R&S®PR100; the sensor is connected via the AUX interface 1) Field Strength Measurement the field strength is calculated using antenna factors stored in the receiver; the receiver displays the field strength directly in dBpV/m
|
По запросу | ||
|
R&S®PR100-FP
|
SHF Frequency Processing for downconverter antennas the downconverter unit of the R&S®HF907DC antenna is connected to the receiver via a control cable; the receiver recalculates the downconverted signals to display them with their original frequencies up to 18 GHz and with the sidebands in their original positions, thus relieving the user from having to convert signals subsequently (antenna and downconverter not supplied with the R&S®PR100-FP option)
|
По запросу | ||
|
R&S®PR100-GPS
|
GPS Software Interface for data stream processing of external GPS module (GPS module not included in scope of delivery)
|
По запросу | ||
|
R&S®PR100-DF
|
Direction Finder Upgrade Kit adds accurate direction finding functionality to the R&S®PR100 receiver (DF antennas and cable set not included)
|
По запросу |
40
| Documentation of Calibration Values |
|
R&S®PR100-DCV
|
Documentation of Calibration Values
|
По запросу |
41
| SHF antenna and accessories |
|
R&S®HF907DC
|
SHF Directional Antenna with Downconverter
|
По запросу | ||
|
R&S®HF907DC-K1
|
Cable Set
|
По запросу |
43
| DF antennas and accessories |
|
R&S®ADD107
|
Compact VHF/UHF DF Antenna
|
По запросу | ||
|
R&S®ADD207
|
Compact UHF/SHF DF Antenna
|
По запросу | ||
|
R&S®ADD307
|
Collapsible VHF/UHF DF Antenna
|
По запросу | ||
|
R&S®ADD17XZ3
|
Vehicle Adapter with Magnet Mount
|
По запросу | ||
|
R&S®ADD17XZ5
|
Cable Set with Converter
|
По запросу | ||
|
R&S®ADD17XZ6
|
Wooden Tripod
|
По запросу | ||
|
R&S®ADD17XZ7
|
Tripod Bag for R&S®ADD17XZ6
|
По запросу | ||
|
R&S®ADD17XZ8
|
DF Antenna Backpack, for R&S®DDF007, R&S®ADD107 or R&S®ADD207, R&S®ADD17XZ5 and R&S®ADD17XZ3
|
По запросу | ||
|
R&S®ADD17XZ9
|
Antenna Cable with Converter for R&S®ADD307, length: 5 m
|
По запросу | ||
|
R&S®EXTCABLRF
|
Extender Cable RF for R&S®DDF007 and R&S®PR100-DF
|
По запросу | ||
|
R&S®EXTCABLCTL
|
Extender Cable Control for R&S®DDF007 and R&S®PR100-DF
|
По запросу | ||
|
R&S®EXTCABLSET
|
Extender Cable Set for R&S®DDF007 and R&S®PR100-DF
|
По запросу |
Библиотека
Основные сведения о продукте
Посмотреть более подробную информацию о возможностях этого продукта.
Технические характеристики
Отзывы
Добавить отзыв
Тут еще никто ничего не писал, стань первым!
