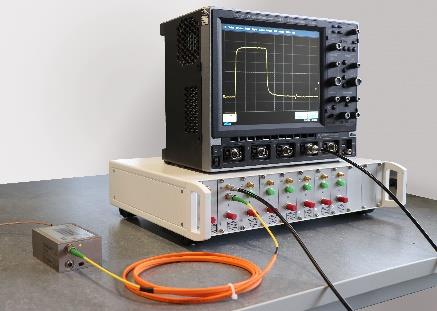

Montena MOL500T optical link is designed for real-time measurement of analogue electric signals from DC up to 500 MHz in harsh electromagnetic environment.
The shielded optical transmitter has a 1 MΩ / 50 Ω BNC input which enables connecting any sensing device (current probe, HV probe or specific means for HF measurements). It also makes an ideal oscilloscope front-end for the remote measurement of floating potentials in industrial applications and ensures a total galvanic insulation of the operator, for safe operation in high voltage areas.
The input electric signal is conditioned and converted into an optical signal in the transmitter module and sent to the receiver module through a single mode fibre. The receiver module converts back the optical signal into an electric signal. The optical signal transmission is regulated with an automatic level control that maintains precise and constant performance independently of the optical losses.
The battery powered optical transmitter comprises a remote-controlled attenuator stage (1:1 / 10:1 / 100:1) to adjust the received signal level for an optimal use of the dynamic range. The transmitter can remotely be put in a low power standby mode to reduce energy consumption when not used. A LED indicator shows the operating state.
Configurable settings are remote controlled by a Windows-based software application.
The compact optical transmitter is battery powered and especially shielded for a very high immunity to electromagnetic fields.

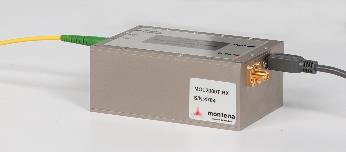

The compact optical receiver for point-to-point application is battery powered and especially shielded for a very high immunity to electromagnetic fields. It has one USB interface for system configuration and supervision.
The compact optical receiver for multilink application is a plugin module. To be inserted in the MOL-MF-10 chassis.

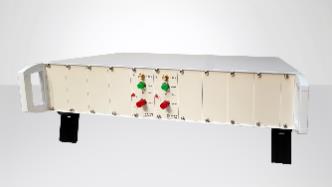

The multilink main frame is a 19", 2 HU chassis for up to ten RX modules. The receiver modules are powered and controlled from the chassis back plane.

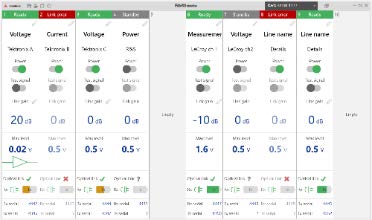

The system is delivered with the FibREmote software application, running on Windows PC.
The application allows simple configuration and monitoring of the MOL500T optical links.
The configuration can be stored and recalled at any time in order to ease the configuration of large test setup's.
The transmission link utilises single mode optical fibre with FC/APC connectors.
Montena MOL500T optical link is designed for real-time measurement of analogue electric signals from DC up to 500 MHz in harsh electromagnetic environment.
The shielded optical transmitter has a 1 MΩ / 50 Ω BNC input which enables connecting any sensing device (current probe, HV probe or specific means for HF measurements). It also makes an ideal oscilloscope front-end for the remote measurement of floating potentials in industrial applications and ensures a total galvanic insulation of the operator, for safe operation in high voltage areas.
The input electric signal is conditioned and converted into an optical signal in the transmitter module and sent to the receiver module through a single mode fibre. The receiver module converts back the optical signal into an electric signal. The optical signal transmission is regulated with an automatic level control that maintains precise and constant performance independently of the optical losses.
The battery powered optical transmitter comprises a remote-controlled attenuator stage (1:1 / 10:1 / 100:1) to adjust the received signal level for an optimal use of the dynamic range. The transmitter can remotely be put in a low power standby mode to reduce energy consumption when not used. A LED indicator shows the operating state.
Configurable settings are remote controlled by a Windows-based software application.
The compact optical transmitter is battery powered and especially shielded for a very high immunity to electromagnetic fields.
The compact optical receiver for point-to-point application is battery powered and especially shielded for a very high immunity to electromagnetic fields. It has one USB interface for system configuration and supervision.
The compact optical receiver for multilink application is a plugin module. To be inserted in the MOL-MF-10 chassis.
The multilink main frame is a 19", 2 HU chassis for up to ten RX modules. The receiver modules are powered and controlled from the chassis back plane.
The system is delivered with the FibREmote software application, running on Windows PC.
The application allows simple configuration and monitoring of the MOL500T optical links.
The configuration can be stored and recalled at any time in order to ease the configuration of large test setup's.
The transmission link utilises single mode optical fibre with FC/APC connectors.
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Производитель | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
MOL500T
|
Оптоволоконная аналоговая линия точка-точка 0 - 500 МГц 50 Ом и 1 МОм, 1:1/10:1/100:1, АКБ
|
По запросу | ||
|
MOL500T-M
|
Оптоволоконная аналоговая линия модульная 0 - 500 МГц 50 Ом и 1 МОм, 1:1/10:1/100:1, АКБ
|
По запросу |
2
| Опции |
|
MOL-MF-10
|
Шасси для модулей приемников MOL-MF-10, 10 слотов, высота 2HU, на столе или в стойке 19"
|
По запросу | ||
|
PULSELab
|
Программное обеспечение для импульсных измерений, управления MOL3000, MOL2000T и обработки данных
|
По запросу |
4
| Оптоволоконный кабель |
|

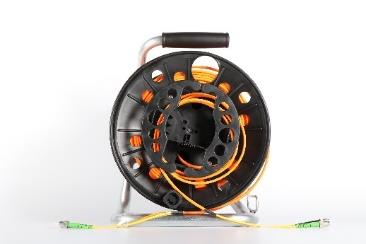

FCLB10
|
Оптоволоконный кабель, диам. 3мм, длина 10 метров
|
По запросу | ||
|
FCLB20
|
Оптоволоконный кабель, диам. 3мм, длина 20 метров
|
По запросу | ||
|
FCLB50
|
Оптоволоконный кабель, диам. 3мм, длина 50 метров
|
По запросу | ||
|
FCLB100
|
Оптоволоконный кабель, диам. 3мм, длина 100 метров
|
По запросу | ||
|
FCLB200
|
Оптоволоконный кабель, диам. 3мм, длина 200 метров
|
По запросу | ||
|
FCLB500
|
Оптоволоконный кабель, диам. 3мм, длина 500 метров
|
По запросу | ||
|
FCLB1000
|
Оптоволоконный кабель, диам. 3мм, длина 1000 метров
|
По запросу | ||
|
FCLB10-RU
|
Оптоволоконный кабель армированный, диам. 7мм, длина 10 метров
|
По запросу | ||
|
FCLB20-RU
|
Оптоволоконный кабель армированный, диам. 7мм, длина 20 метров
|
По запросу | ||
|
FCLB50-RU
|
Оптоволоконный кабель армированный, диам. 7мм, длина 50 метров
|
По запросу | ||
|
FCLB100-RU
|
Оптоволоконный кабель армированный, диам. 7мм, длина 100 метров
|
По запросу | ||
|
FCLB200-RU
|
Оптоволоконный кабель армированный, диам. 7мм, длина 200 метров
|
По запросу | ||
|
FCLB500-RU
|
Оптоволоконный кабель армированный, диам. 7мм, длина 500 метров
|
По запросу | ||
|
FCLB1000-RU
|
Оптоволоконный кабель армированный, диам. 7мм, длина 1000 метров
|
По запросу |
