Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Model overview

Frequency related

Reference frequency

Specification	Standard	Option PFR	Conditions
Initial accuracy at cal	± 1 x 10  -6	± 1 x 10  -7	After 10 minute warm-up
Aging per day	1 x 10  -8	1 x 10  -9	After 30 days of operation
First year aging (typical)	1 x 10  -6	7.5 x 10  -8	After 1 year of operation
Aging per 10 years		3 x 10  - 7	After 10 years of operation
Temperature drift	2 x 10  -6	1 x 10  -7	From 5 to 40 °C
Cumulative error (temperature + aging, typical)	3 x 10  -6	4 x 10  -7	Within 10 years after calibration

Reference output level

>0 dBm (internal or external reference selected), +4 dBm, typical

External reference input frequency

Every 1 MHz from 1 to 100 MHz plus 1.2288 MHz, 4.8 MHz, and 19.6608 MHz.

External input must be within ± 1 x 10 ^-6(Std), ± 3 x 10 ^-7(Opt PFR) to stated input

External reference input frequency requirements

Spurious level on input must be < –80 dBc within 100 kHz offset to avoid on-screen spurs

Spurious

< –80 dBc within 100 kHz offset

Input level range

–10 dBm to +6 dBm

Center frequency setting resolution

0.1 Hz

Frequency marker readout accuracy

±(RE × MF + 0.001 × Span + 2) Hz

(RE = Reference frequency error)

(MF = Marker frequency (Hz))

Span accuracy

±0.3% of span (Auto mode)

Trigger related

Trigger event source

RF input, Trigger 1 (front panel), Trigger 2 (rear panel), Gated, Line

Trigger setting

Trigger position settable from 1 to 99% of total acquisition length

Trigger combinatorial logic

Trigger 1 AND trigger 2 / gate may be defined as a trigger event

Trigger actions

Save acquisition and/or save picture on trigger

Power level trigger

Level range

0 dB to –100 dB from reference level

Accuracy

For trigger levels >30 dB above noise floor, 10% to 90% of signal level

Level ≥ –50 dB from reference level

±0.5 dB

From < –50 dB to –70 dB from reference level

±1.5 dB

Trigger bandwidth range

At maximum acquisition bandwidth

Standard (Opt. B25)

4 kHz to 10 MHz + wide open

Opt. B40

4 kHz to 20 MHz + wide open

Opt. B85/B16x

11 kHz to 40 MHz + wide open

Trigger position timing uncertainty

25/40 MHz acquisition BW, 20 MHz trigger BW

Uncertainty = ±15 ns

25/40 MHz acquisition BW, Max Trigger BW

Uncertainty = ±12 ns

85/125/165 MHz acquisition BW, 60 MHz Trigger BW

Uncertainty = ±5 ns

85/125/165 MHz acquisition BW, Max Trigger BW

Uncertainty = ±4 ns

Trigger re-arm time, minimum (fast frame on)

10 MHz acquisition BW

≤25 μs

40 MHz acquisition BW

≤10 μs

85/125 MHz acquisition BW

≤5 μs

165 MHz acquisition BW

≤5 μs

Minimum event duration

25 MHz acquisition BW

25 ns

40 MHz acquisition BW

25 ns

85/125 MHz acquisition BW

6.2 ns

165 MHz acquisition BW

6.2 ns

External trigger 1

Level range

-2.5 V to +2.5 V

Level setting resolution

0.01 V

Trigger position timing uncertainty

50 Ω input impedance

>20 MHz to 40 MHz acquisition BW:

±20 ns

>40 MHz to 80 MHz acquisition BW:

±13.5 ns

>80 MHz to 165 MHz acquisition BW:

±11 ns

Input impedance

Selectable 50 Ω/5 kΩ impedance (nominal)

External trigger 2

Threshold voltage

Fixed, TTL

Input impedance

10 kΩ (nominal)

Trigger state select

High, Low

Trigger output

Voltage

Output current <1 mA

High

>2.0 V

Low

<0.4 V

Frequency mask trigger

Mask shape

User defined

Mask point horizontal resolution

<0.12% of span

Level range

0 dB to –80 dB from reference level

Level accuracy¹

0 to –50 dB from reference level

±(Channel response + 1.0 dB)

–50 dB to –70 dB from reference level

±(Channel response + 2.5 dB)

¹For masks >30 dB above noise floor.

Span range

100 Hz to 25 MHz (Opt. B25)

100 Hz to 40 MHz (Opt. B40)

100 Hz to 85 MHz (Opt. B85, B85HD)

100 Hz to 125 MHz (Opt. B125, B125HD)

100 Hz to 165 MHz (Opt. B16x, B16xHD)

Trigger position uncertainty

Span = 25 MHz (Opt. B25)

±13 μs (RBW ≥ 300 kHz)

±7 μs (Opt. 09)

Span = 40 MHz (Opt. B40)

±13 μs (RBW ≥ 300 kHz)

±6 μs (Opt. 09)

Span = 85 MHz (Opt. B85)

±10 μs (RBW ≥ 1 MHz)

±3 μs (Opt. 09)

Span = 165 MHz (Opt. B16x)

±9 μs (RBW ≥ 1 MHz)

±3 μs (Opt. 09)

Minimum signal duration for 100% probability of trigger at 100% amplitude

Frequency-Mask and DPX signal processing				Minimum signal duration, 100% probability of intercept, Frequency-Mask and DPX density trigger (μs) 1
Span (MHz)	RBW (kHz)	FFT Length (points)	Spectrums / sec	Standard		Opt. 09
				Full amplitude	-3 dB	Full amplitude	-3 dB
165 MHz	20000	1024	390,625	15.5	15.4	2.7	2.6
	10000	1024	390,625	15.6	15.4	2.8	2.6
	1000	1024	390,625	17.8	15.7	5.0	2.9
	300	2048	195,313	23.4	16.3	13.1	6.1
	100	8192	48,828	44.5	23.4	44.5	23.4
	30	32768	12,207	161.9	91.7	161.9	91.7
	25	32768	12,207	178.0	93.6	178.0	93.6
125 MHz	10000	1024	390,625	15.6	15.4	2.8	2.6
	1000	1024	390,625	17.8	15.7	5.0	2.9
	500	1024	390,625	20.2	15.9	7.4	3.1
	300	2048	195,313	23.4	16.3	13.1	6.1
	100	4096	97,656	44.5	23.4	34.2	13.2
	30	16384	24,414	120.9	50.7	120.9	50.7
	20	32768	24,414	201.9	96.5	201.9	96.5
85 MHz	10000	1024	390,625	15.6	15.4	2.8	2.6
	1000	1024	390,625	17.8	15.7	5.0	2.9
	500	1024	390,625	20.2	15.9	7.4	3.1
	300	1024	390,625	23.4	16.3	10.6	3.5
	100	4096	97,656	44.5	23.4	34.2	13.2
	30	16384	24,414	121.0	50.7	121.0	50.7
	20	16384	24,414	161.0	55.6	161.0	55.6
40 MHz	5000	1024	390,625	15.8	15.4	3.0	2.6
	1000	1024	390,625	17.8	15.7	5.0	2.9
	300	1024	390,625	23.3	16.3	10.5	3.5
	100	2048	195,313	39.4	18.3	29.1	8.1
	30	4096	97,656	90.4	21.8	90.4	21.8
	20	8192	48,828	140.7	36.3	140.7	36.3
	10	16384	24,414	281.3	72.6	281.3	72.6
25 MHz	3800	1024	390,625	16.0	15.4	3.2	2.6
	1000	1024	390,625	17.7	15.7	4.9	2.9
	300	1024	390,625	23.4	16.3	10.6	3.5
	200	1024	390,625	27.4	16.8	14.6	4.1

Frequency-Mask and DPX signal processing (Option 300 with Option 09)					Minimum signal duration, 100% probability of intercept, Frequency-Mask and DPX density trigger (μs) 2
Span (MHz)	RBW (kHz)	FFT Length (points)	Spectrums / sec		Option 300 + Option 09
			Standard	Option 300 + Option 09	Full amplitude	-3 dB
165 MHz	20000	1024	390,625	3,125,000	0.434	0.334
	10000	1024	390,625	3,125,000	0.557	0.349
	1000	1024	390,625	3,125,000	2.7	0.662
	300	2048	195,313	195,313	13.1	6.1
	100	8192	48,828	48,828	44.5	23.4
	30	32768	12,207	12,207	161.9	91.7
	25	32768	12,207	12,207	178.0	93.6
125 MHz	10000	1024	390,625	3,125,000	0.551	0.348
	1000	1024	390,625	3,125,000	2.7	0.662
	500	1024	390,625	3,125,000	5.1	1.2
	300	2048	195,313	195,313	13.1	6.1
	100	4096	97,656	97,656	44.5	13.2
	30	16384	24,414	24,414	120.9	50.7
	20	32768	24,414	24,414	201.9	96.5
85 MHz	10000	1024	390,625	3,125,000	0.55	0.348
	1000	1024	390,625	3,125,000	2.7	0.662
	500	1024	390,625	3,125,000	5.1	1.2
	300	1024	390,625	3,125,000	8.3	1.9
	100	4096	97,656	97,656	34.2	13.2
	30	16384	24,414	24,414	121.0	50.7
	20	16384	24,414	24,414	161.0	55.6
40 MHz	5000	1024	390,625	3,125,000	0.79	0.377
	1000	1024	390,625	3,125,000	2.7	0.663
	300	1024	390,625	3,125,000	8.3	1.9
	100	2048	195,313	195,313	29.1	8.1
	30	4096	97,656	97,656	90.4	21.8
	20	8192	48,828	48,828	140.7	36.3
	10	16384	24,414	24,414	281.3	72.6
25 MHz	3800	1024	390,625	3,125,000	0.915	0.392
	1000	1024	390,625	3,125,000	2.7	0.664
	300	1024	390,625	3,125,000	8.3	1.9
	200	1024	390,625	3,125,000	12.3	2.8

¹Values displayed by the instrument may differ by 0.1μs

²Values displayed by the instrument may differ by 0.1μs

Advanced triggers

DPX density trigger

Density range

0 to 100% density

Horizontal range

0.25 Hz to 25 MHz (Opt. B25)

0.25 Hz to 40 MHz (Opt. B40)

0.25 Hz to 85 MHz (Opt. B85, B85HD)

0.25 Hz to 125 MHz (Opt. B125, B125HD)

0.25 Hz to 165 MHz (Opt. B16x, B16xHD)

Minimum signal duration for 100% probability of trigger

See minimum signal duration for 100% probability of trigger at 100% amplitude table

Frequency edge trigger

Range

±(½ × (ACQ BW or TDBW if TDBW is active))

Minimum event duration

6.2 ns (ACQ BW = 165 MHz, no TDBW, Opt. 16x)

6.2 ns (ACQ BW = 85 MHz, no TDBW, Opt. B85)

25 ns (ACQ BW = 40 MHz, no TDBW, Opt. B40)

25 ns (ACQ BW = 25 MHz, no TDBW, Opt. B25)

Timing uncertainty

Same as power trigger position timing uncertainty

Runt trigger

Runt definitions

Positive, Negative

Accuracy (for trigger levels >30 dB above noise floor, 10% to 90% of signal level)

±0.5 dB (level ≥ -50 dB from reference level)

±1.5 dB (from < -50 dB to -70 dB from reference level)

Time qualified triggering

Trigger types and source

Time qualification may be applied to: Level, Frequency mask, DPX Density, Runt, Frequency edge, Ext. 1, Ext. 2

Time qualification range

T1: 0 to 10 seconds

T2: 0 to 10 seconds

Time qualification definitions

Shorter than T1

Longer than T1

Longer than T1 AND shorter than T2

Shorter than T1 OR longer than T2

Holdoff trigger

Range

0 to 10 seconds

Acquisition related

A/D converter

200 MS/s, 16 bit (Option B25, B40, B85, B16x); 400 MS/s, 14 bit (Option B85, B16x); 200 MS/s and 400 MS/s, 16 bit (Opt B85HD, B125HD, B16xHD)

Acquisition memory size

1 GB (4 GB, opt. 53)

Minimum acquisition length

64 samples

Acquisition length setting resolution

1 sample

Fast frame acquisition mode¹

Up to 1 Million records can be stored in a single acquisition (for pulse measurements and spectrogram analysis (with option 53))

¹Exact number depends on Bandwidth, Sample Rate, Acquisition time. Achieved up to 200,000 pulses

Memory depth (time) and minimum time domain resolution

Acq. BW (max span)	Sample rate (for I and Q)	Record length (Std.)	Record length (Opt. 53)	Time resolution
165 MHz	200 MS/s	1.34 s	5.37 s	5 ns
85 MHz	200 MS/s	1.34 s	5.37 s	5 ns
80 MHz	100 MS/s	2.68 s	10.74 s	10 ns
40 MHz	50 MS/s	4.77 s	19.09 s	20 ns
25 MHz	50 MS/s	4.77 s	19.09 s	20 ns
20 MHz	25 MS/s	4.77 s	38.18 s	20 ns
10 MHz	12.5 MS/s	19.09 s	76.35 s	80 ns
5 MHz	6.25 MS/s	38.18 s	152.71 s	160 ns
2 MHz 1	3.125 MS/s	42.9 s	171.8 s	320 ns
1 MHz	1.563 MS/s	85.9 s	343.6 s	640 ns
500 kHz	781.25 kS/s	171.8 s	687.2 s	1.28 μs
200 kHz	390.625 kS/s	343.6 s	1374.4 s	2.56 μs
100 kHz	195.313 kS/s	687.2 s	2748.8 s	5.12 μs
50 kHz	97.656 kS/s	1374.4 s	5497.6 s	10.24 μs
20 kHz	48.828 kS/s	2748.8 s	10955.1 s	20.48 μs
10 kHz	24.414 kS/s	5497.6 s	21990.2 s	40.96 μs
5 kHz	12.207 kS/s	10955.1 s	43980.5 s	81.92 μs
2 kHz	3.052 kS/s	43980.4 s	175921.8 s	328 μs
1 kHz	1.526 kS/s	87960.8 s	351843.6 s	655 μs
500 Hz	762.9 S/s	175921.7 s	703687.3 s	1.31 ms
200 Hz	381.5 S/s	351843.4 s	1407374.5 s	2.62 ms
100 Hz	190.7 S/s	703686.8 s	2814749.1 s	5.24 ms

¹In spans ≤2 MHz, higher resolution data is stored.

Displays and measurements

Frequency views

Spectrum (amplitude vs linear or log frequency)

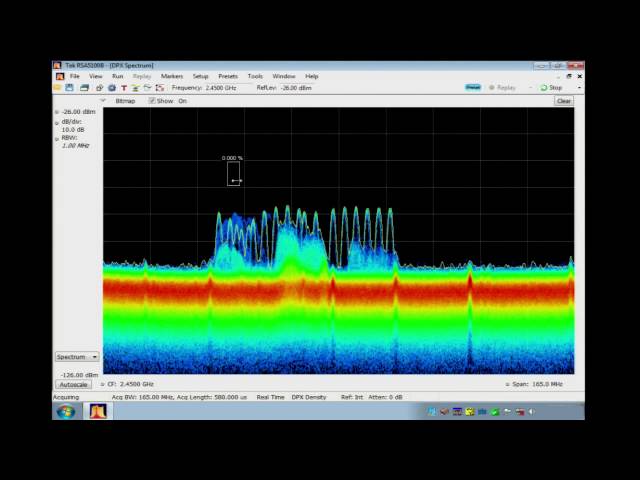

DPX^®spectrum display (live RF color-graded spectrum)

Spectrogram (amplitude vs frequency over time)

Spurious (amplitude vs linear or log frequency)

Phase noise (phase noise and Jitter measurement) (Opt. 11)

Time and statistics views

Amplitude vs time

Frequency vs time

Phase vs time

DPX amplitude vs time

DPX frequency vs time

DPX phase vs time

Amplitude modulation vs time

Frequency modulation vs time

RF IQ vs time

Time overview

CCDF

Peak-to-Average ratio

Settling time, frequency, and phase (Opt. 12) views

Frequency settling vs time, Phase settling vs time

Noise figure and gain (Opt. 14) views

Noise figure vs. frequency

Gain vs. frequency

Noise figure, gain at a single frequency

Y-factor vs. frequency

Noise temperature vs. frequency

Uncertainty calculator

Results table of all measurements

Advanced Pulse Analysis

Pulse results table

Pulse trace (selectable by pulse number)

Pulse statistics (trend of pulse results, FFT of time trend and histogram)

Cumulative Statistics, Cumulative Histogram and Pulse-Ogram

Digital demod (Opt. 21) views

Constellation diagram

EVM vs time

Symbol table (binary or hexadecimal)

Magnitude and phase error versus time, and signal quality

Demodulated IQ vs time

Eye diagram

Trellis diagram

Frequency deviation vs time

Flexible OFDM analysis (Opt. 22) views

Constellation, scalar measurement summary

EVM or power vs carrier

Symbol table (binary or hexadecimal)

Frequency offset analysis

Signal analysis can be performed either at center frequency or the assigned measurement frequency up to the limits of the instrument's acquisition and measurement bandwidths.

WLAN 802.11a/b/g/j/p measurement application (Opt. 23)

WLAN Power vs time, WLAN symbol table, WLAN constellation, Spectrum emission mask

Error vector magnitude (EVM) vs symbol (or time), vs subcarrier (or frequency)

Mag error vs symbol (or time), vs subcarrier (or frequency)

Phase error vs symbol (or time), vs subcarrier (or frequency)

Channel frequency response vs symbol (or time), vs subcarrier (or frequency)

Spectral flatness vs symbol (or time), vs subcarrier (or frequency)

WLAN 802.11n measurement application (Opt. 24)

WLAN Power vs time, WLAN symbol table, WLAN constellation, Spectrum emission mask

Error vector magnitude (EVM) vs symbol (or time), vs subcarrier (or frequency)

Mag error vs symbol (or time), vs subcarrier (or frequency)

Phase error vs symbol (or time), vs subcarrier (or frequency)

Channel frequency response vs symbol (or time), vs subcarrier (or frequency)

Spectral flatness vs symbol (or time), vs subcarrier (or frequency)

WLAN 802.11ac measurement application (Opt. 25)

WLAN Power vs time, WLAN symbol table, WLAN constellation, Spectrum emission mask

Error vector magnitude (EVM) vs symbol (or time), vs subcarrier (or frequency)

Mag error vs symbol (or time), vs subcarrier (or frequency)

Phase error vs symbol (or time), vs subcarrier (or frequency)

Channel frequency response vs symbol (or time), vs subcarrier (or frequency)

Spectral flatness vs symbol (or time), vs subcarrier (or frequency)

APCO P25 measurement application (Opt. 26)

RF output power, operating frequency accuracy, modulation emission spectrum,

unwanted emissions spurious, adjacent channel power ratio, frequency deviation,

modulation fidelity, frequency error, eye diagram, symbol table, symbol rate accuracy,

transmitter power and encoder attack time, transmitter throughput delay, frequency deviation vs. time,

power vs. time, transient frequency behavior, HCPM transmitter logical channel peak adjacent channel power ratio,

HCPM transmitter logical channel off slot power, HCPM transmitter logical channel power envelope,

HCPM transmitter logical channel time alignment, cross-correlated markers

Bluetooth Measurements (Opt. 27 and Opt. 31)

Peak power, average power, adjacent channel power or inband emission mask,

-20dB bandwidth, frequency error, modulation characteristics including ΔF1avg (11110000),

ΔF2avg (10101010), ΔF2 > 115 kHz, ΔF2/ΔF1 ratio, frequency deviation vs. time with packet

and octet level measurement information, carrier frequency f0, frequency offset (Preamble

and Payload), max frequency offset, frequency drift f₁-f₀, max drift rate f_n-f₀

and f_n-f_n-5, center frequency offset table and frequency drift table, color-coded

symbol table, packet header decoding information, eye diagram, constellation diagram,

editable limits.

LTE Downlink RF measurements (Opt. 28)

Adjacent Channel Leakage Ratio (ACLR), Spectrum Emission Mask (SEM), Channel Power, Occupied Bandwidth, Power vs. Time displaying Transmitter OFF power for TDD signals and LTE constellation diagram for PSS, SSS with Cell ID, Group ID, Sector ID and Frequency Error.

EMC pre-compliance and troubleshooting Opt. 32

EMC-EMI display, Pre-compliance Setup Wizard, Measure Ambient, Re-measure Spot, Report. Troubleshooting tools: Inspect, Harmonic Markers, Level Target, Compare Traces, Persistence display

Bandwidth related

Resolution bandwidth

Resolution bandwidth range (spectrum analysis)

0.1 Hz to 5 MHz (10 MHz with Opt. B85, 20 MHz with Opt. B16x) (1, 2, 3, 5 sequence, Auto-coupled), or user selected (arbitrary)

Resolution bandwidth shape

Approximately Gaussian, shape factor 4.1:1 (60:3 dB) ±3%, typical

Resolution bandwidth accuracy

±0.5% (Auto-coupled RBW mode)

Alternative resolution bandwidth types

Kaiser window (RBW, Gaussian), –6 dB mil, CISPR, Blackman-Harris 4B window, Uniform (none) window, Flat-top (CW ampl.) window, Hanning window

Video bandwidth

Video bandwidth range

1 Hz to 10 MHz plus wide open

RBW/VBW maximum

10,000:1

RBW/VBW minimum

1:1 plus wide open

Resolution

5% of entered value

Accuracy (typical)

±10%

Time domain bandwidth (amplitude vs time display)

Time domain bandwidth range

At least 1/10 to 1/10,000 of acquisition bandwidth, 1 Hz minimum

Time domain BW shape

20 MHz (60 MHz, Opt. B85/B16x), shape factor <2.5:1 (60:3 dB) typical

Time domain bandwidth accuracy

≤10 MHz, approximately Gaussian, shape factor 4.1:1 (60:3 dB), ±10% typical

1 Hz to 20 MHz, and (>20 MHz to 60 MHz Opt. B85/B16x), ±10%

Minimum settable spectrum analysis RBW vs. span

Frequency span	RBW
>10 MHz	100 Hz
>1.25 MHz to 10 MHz	10 Hz
≤1 MHz	1 Hz
≤100 kHz	0.1 Hz

Spectrum display

Traces

Three traces + 1 math waveform + 1 trace from spectrogram for spectrum display

Detector

Peak, –Peak, Average (VRMS), ±Peak, Sample, CISPR (Avg, Peak, Quasi-peak average (of logs))

Trace functions

Normal, Average, Max hold, Min hold, Average (of logs)

Spectrum trace length

801, 2401, 4001, 8001, 10401, 16001, 32001, 64001 points

Sweep speed (typical-mean)

RBW = auto, RF/IF optimization: minimize sweep time

Opt. B25

2000 MHz/s

Opt. B40

3300 MHz/s

Opt. B85

8000 MHz/s (RSA5103B/RSA5106B)

6000 MHz/s (RSA5115B/RSA5126B)

Opt. B16x

11000 MHz/s (RSA5103B/RSA5106B)

8000 MHz/s (RSA5115B/RSA5126B)

Minimum FFT Length vs. Trace Length (Independent of Span and RBW)

Trace length (points)	Minimum FFT length
801	4001
1024	8192
2401	10401
4096	16384

DPX related

DPX® digital phosphor spectrum processing

Characteristic	Performance
Spectrum processing rate (RBW = auto, trace length 801)	390,625 per second
Spectrum processing rate (RBW = auto, trace length 801) (Option 300 with Option 09)	3,125,000 per second for Span/RBW ratio ≤ 333
	390,625 per second for Span/RBW ratio > 333
DPX bitmap resolution	201 × 801
DPX bitmap color dynamic range	233 levels
Marker information	Amplitude, frequency, and signal density on the DPX display
Minimum signal duration for 100% probability of detection (Max-hold on)	See minimum signal duration for 100% probability of trigger at 100% amplitude table
Span Range (Continuous processing)	100 Hz to 25 MHz (Opt. B25) (40 MHz with Opt. B40) (85 MHz with Opt. B85, B85HD) (125 MHz with Opt. B125, B125HD) (165 MHz with Opt. B16x, B16xHD)
Span range (Swept)	Up to instrument frequency range
Dwell time per step	50 ms to 100 s
Trace processing	Color-graded bitmap, +Peak, –Peak, average
Trace length	801, 2401, 4001, 10401
Resolution BW accuracy (Auto-Coupled)	±0.5%

Resolution BW Range vs. Acquisition Bandwidth (DPX^®)

Acquisition bandwidth	RBW (Min)	RBW (Max)
165 MHz	25 kHz	20 MHz
85 MHz	12.9 kHz	10 MHz
40 MHz	6.06 kHz	10 MHz
25 MHz	3.79 kHz	3.8 MHz
20 MHz	3.04 kHz	3.04 MHz
10 MHz	1.52 kHz	1.52 MHz
5 MHz	758 Hz	760 kHz
2 MHz	303 Hz	304 kHz
1 MHz	152 Hz	152 kHz
500 kHz	75.8 Hz	76 kHz
200 kHz	30.3 Hz	30.4 kHz
100 kHz	15.2 Hz	15.2 kHz
50 kHz	7.58 Hz	7.6 kHz
20 kHz	3.03 Hz	3.04 kHz
10 kHz	1.52 Hz	1.52 kHz
5 kHz	758 Hz	760 Hz
2 kHz	0.303 Hz	304 Hz
1 kHz	0.152 Hz	152 Hz
500 Hz	0.1 Hz	76 Hz
200 Hz	0.1 Hz	30.4 Hz
100 Hz	0.1 Hz	15.2 Hz

Stability

Residual FM

<2 Hz_p-p in 1 second (95% confidence, typical).

Phase related

Phase noise sidebands

dBc/Hz at specified center frequency (CF)

	CF = 10 MHz	CF = 1 GHz	CF = 2 GHz	CF = 6 GHz	CF = 10 GHz	CF = 20 GHz
Offset	Typical	Spec/Typical	Typical	Typical	Typical	Typical
1 kHz	–128	–103/–107	–107	–104	–99	–95
10 kHz	–134	–109/–113	–112	–108	–108	–106
100 kHz	–134	–112/–117	–115	–114	–108	–106
1 MHz	–135	–130/–139	–137	–135	–128	–125
6 MHz	–140	–137/–146	–142	–147	–145	–140
10 MHz	NA	–137/–146	–142	–147	–147	–144

Integrated phase (RMS), typical

Integrated from 1 kHz to 10 MHz.

Measurement frequency	Integrated phase, radians
1 GHz	1.01 × 10–3
2 GHz	1.23 × 10–3
6 GHz	1.51 × 10–3
10 GHz	2.51 × 10–3
20 GHz	3.27 × 10–3

Typical phase noise performance as measured by Opt. 11.

Amplitude

Specifications excluding mismatch error

Measurement range

Displayed average noise level to maximum measurable input

Input attenuator range

0 dB to 55 dB, 5 dB step

Maximum safe input level

Average continuous

+30 dBm (RF ATT ≥10 dB, preamp off)

Average continuous

+20 dBm (RF ATT ≥10 dB, preamp on)

Pulsed RF

50 W (RF ATT ≥30 dB, PW <10 μs, 1% duty cycle)

Maximum measurable input level

Average continuous

+30 dBm (RF ATT: Auto)

Pulsed RF

10 W (RF Input, RF ATT: Auto, PW <10 μs, 1% duty cycle repetitive pulses)

Max DC voltage

±5 V

Log display range

0.01 dBm/div to 20 dB/div

Display divisions

10 divisions

Display units

dBm, dBmV, Watts, Volts, Amps, dBuW, dBuV, dBuA, dBW, dBV, dBV/m, and dBA/m

Marker readout resolution, dB units

0.01 dB

Marker readout resolution, Volts units

Reference-level dependent, as small as 0.001 μV

Reference level setting range

0.1 dB step, –170 dBm to +50 dBm (minimum ref. level –50 dBm at center frequency <80 MHz)

Level linearity

±0.1 dB (0 to –70 dB from reference level)

Amplitude accuracy

Absolute amplitude accuracy at calibration point

±0.31 dB (100 MHz, –10 dBm signal, 10 dB ATT, 18 °C to 28 °C)

Input attenuator switching uncertainty

±0.3 dB (RSA5103B/RSA5106B)

±0.15 dB (RSA5115B/RSA5126B)

Absolute amplitude accuracy at center frequency, 95% confidence¹

10 MHz to 3 GHz

±0.3 dB

3 GHz to 6.2 GHz (RSA5106B/15B/26B)

±0.5 dB

6.2 GHz to 15 GHz (RSA5115B/26B)

±0.75 dB

15 GHz to 26.5 GHz (RSA5126B)

±0.9 dB

¹18 °C to 28 °C, Ref Level ≤ -15 dBm, Attenuator Auto-coupled, Signal Level -15 dBm to -50 dBm. 10 Hz ≤ RBW ≤ 1 MHz, after alignment performed.

VSWR

Typical
RSA5103B / RSA5106B 1
Frequency range	Preamp OFF (95% confidence)	Preamp ON (Typical)	Preamp ON, 0 dB attenuation (Typical)
>10 kHz to 10 MHz	<1.6	--	--
>10 MHz to 2.0 GHz	<1.1	<1.2	<1.5
>2 GHz to 3 GHz	<1.25	<1.4	<1.6
>3 GHz to 5 GHz	<1.25	<1.4	<1.4
>5 GHz to 5.5 GHz	<1.3	<1.4	<1.4
>5.5 GHz to 6.2GHz	<1.3	<1.4	<1.75

Typical
RSA5115B / RSA5126B1
Frequency range	Preamp OFF (95% confidence)	Preamp ON (Typical)	Preamp ON, 0 dB attenuation (Typical)
>10 kHz to 10 MHz	<1.6	--	--
10 MHz to 3.0 GHz	<1.3	<1.4	<1.9
>3.0 GHz to 6.2 GHz	<1.3	<1.5	<1.9
>6.2 GHz to 11 GHz	<1.5	<1.8	<1.9 (RSA5115B) <2.25 (RSA5126B)
>11 GHz to 15 GHz	<1.5	<1.8	<1.9
>15 GHz to 22 GHz	<1.5	<1.8	<1.9
>22 GHz to 25 GHz	<1.7	<2.0	<1.9
>25 GHz to 26.5 GHz	<1.7	<2.0	<2.1

¹Atten. = 10 dB, CF set within 200 MHz of VSWR frequency

Frequency response

18 °C to 28 °C, atten. = 10 dB, preamp off

10 MHz to 32 MHz (LF band)

±0.2 dB

10 MHz to 3 GHz

±0.35 dB

>3 GHz to 6.2 GHz (RSA5106B)

±0.5 dB

>6.2 GHz to 15 GHz (RSA5115B)

±1.0 dB

>15 GHz to 26.5 GHz (RSA5115B)

±1.2 dB

5 °C to 40 °C, all attenuator settings (typical, preamp off)

100 Hz to 32 MHz (LF band)

±0.8 dB

9 kHz to 3 GHz

±0.5 dB

1 MHz to 3 GHz (RSA5115B/26B)

±0.5 dB

>3 GHz to 6.2 GHz (RSA5106B)

±1.0 dB

>6.2 GHz to 15 GHz (RSA5115B/26B)

±1.0 dB

>15 GHz to 26.5 GHz (RSA5126B)

±1.5 dB

5 °C to 40 °C, (RSA5103B/RSA5106B Opt. 50) (typical, preamp on, atten.=10 dB)

1 MHz to 32 MHz (LF band)

±0.8 dB

1 MHz to 3 GHz

±0.8 dB

>3 GHz to 6.2 GHz (RSA5106B)

±1.3 dB

5 °C to 40 °C, (RSA5115B / RSA5126B Opt. 51) (typical, preamp on, atten.=10 dB)

1 MHz to 3 GHz

±0.8 dB

>3 GHz to 6.2 GHz

±1.3 dB

>6.2 GHz to 15 GHz

±1.5 dB

>15 GHz to 26.5 GHz (RSA5126B)

±2.0 dB

Noise and distortion

3^rd order intermodulation distortion at 2.13 GHz ¹

RSA5103B / RSA5106B

–84 dBc

RSA5115B / RSA5126B

–80 dBc

¹Each signal level –25 dBm, Ref level –20 dBm, Attenuator = 0 dB, 1 MHz tone separation.

3rd order intermodulation distortion – typical ¹

Note: 3rd order intercept point is calculated from 3rd order intermodulation performance.

Frequency range	3rd order intermodulation distortion, dBc (typical)		3rd order intercept, dBm (typical)
	RSA5103B/5106B	RSA5115B/5126B	RSA5103B/5106B	RSA5115B/5126B
10 kHz to 32 MHz (LF band)	–75	–75	+12.5	+12.5
1 MHz to 120 MHz	–70	–70	+10	+10
>80 MHz to 300 MHz	–76	–76	+13	+13
>300 MHz to 6.2 GHz	–84	–82	+17	+16
>6.2 GHz to 15 GHz	--	–72	--	+11
15 GHz to 26.5 GHz	--	–72	--	+11

¹Each signal level –25 dBm, Ref level –20 dBm, Attenuator = 0 dB, 1 MHz tone separation.

3rd order intermodulation distortion (preamp ON) – typical ¹

Note: 3rd order intercept point is calculated from 3rd order intermodulation performance.

Frequency range	3rd order intermodulation distortion, dBc (typical)		3rd order intercept, dBm (typical)
	RSA5103B/5106B	RSA5115B/5126B	RSA5103B/5106B	RSA5115B/5126B
1 MHz to 32 MHz (LF band)	-75	-75	-12.5	-12.5
1 MHz to 120 MHz	-70	-80	-15	-10
>120 MHz to 300 MHz	-75	-80	-12.5	-10
>300 MHz to 3.0 GHz	-80	-90	-10	-5
>3.0 GHz to 6.2 GHz	-90	-90	-5	-5
>6.2 GHz to 15 GHz	--	-80	--	-10
>15 GHz to 126.5 GHz	--	-80	--	-10

¹Each signal level –25 dBm, Ref level –20 dBm, Attenuator = 0 dB, 1 MHz tone separation.

RSA5103B / RSA5106B 2^nd harmonic distortion ¹

10 MHz to 1 GHz

< –80 dBc

>1 GHz to 3.1 GHz

< –83 dBc

¹–40 dBm at RF input, attenuator = 0, preamp off, typical

RSA5115B / RSA5126B 2^nd harmonic distortion¹

10 MHz to 500 MHz

< –80 dBc

>500 MHz to 1 GHz

< –74 dBc

>1 GHz to 3.1 GHz

< –74 dBc

>3.1 GHz to 7.5 GHz

< –85 dBc

>7.5 GHz to 13.25 GHz

< –85 dBc

¹–40 dBm at RF input, attenuator = 0, preamp off, typical

RSA5103B / RSA5106B displayed average noise level¹, preamp off

Frequency range	Spec, dBm/Hz	Typical , dBm/Hz
LF Band (all models)
1 Hz to 100 Hz	--	–129
>100 Hz to 2 kHz	–124	–143
>2 kHz to 10 kHz	–141	–152
>10 kHz to 32 MHz	–150	–153
RF band
9 kHz to 1 MHz	–108	–111
>1 MHz to 10 MHz	–136	–139
>10 MHz to 2 GHz	–153	–157
>2 GHz to 3 GHz	–152	–156
>3 GHz to 4 GHz (RSA5106B)	–151	–155
>4 GHz to 6.2 GHz (RSA5106B)	–149	–153

¹Measured using 1 kHz RBW, 100 kHz span, 100 averages, minimum noise mode, input terminated, log-average detector and trace function.

RSA5115B / RSA5126B displayed average noise level, preamp off ¹

Frequency range	Spec, dBm/Hz	Typical , dBm/Hz
LF Band (all models)
1 Hz to 100 Hz		–129
>100 Hz to 2 kHz	–124	–143
>2 kHz to 10 kHz	–141	–152
>10 kHz to 32 MHz	–150	–153
RF band
>1 MHz to 10 MHz	–136	–139
>10 MHz to 3 GHz	–152	–155
>3 GHz to 4 GHz	–151	–155
>4 GHz to 6.2 GHz	–149	–152
>6.2 GHz to 13 GHz	–146	–149
>13 GHz to 23 GHz	–144	–147
>23 GHz to 26.5 GHz (RSA5126B)	–140	–143

¹Measured using 1 kHz RBW, 100 kHz span, 100 averages, minimum noise mode, input terminated, log-average detector and trace function.

Preamplifier performance (Opt. 50)

Frequency range

1 MHz to 3.0 GHz or 6.2 GHz (RSA5106B)

Noise figure at 2 GHz

7 dB

Gain at 2 GHz

20 dB (nominal)

Preamplifier performance (Opt. 51)

Frequency range

1 MHz to 15 GHz or 26.5 GHz (RSA5115B or RSA5126B)

Noise figure at 15 GHz

<10 dB

Noise figure at 26.5 GHz

<13 dB

Gain at 10 GHz

20 dB (nominal)

Displayed Average Noise Level¹, preamp on (Opt. 50)

Frequency range	Specification	Typical
LF band
1 MHz to 32 MHz	–158 dBm/Hz	–160 dBm/Hz
RF band
1 MHz to 10 MHz	–158 dBm/Hz	–160 dBm/Hz
>10 MHz to 2 GHz	–164 dBm/Hz	–167 dBm/Hz
>2 GHz to 3 GHz	–163 dBm/Hz	–165 dBm/Hz
>3 GHz to 6.2 GHz (RSA5106B)	–162 dBm/Hz	–164 dBm/Hz

¹Measured using 1 kHz RBW, 100 kHz span, 100 averages, minimum noise mode, input terminated, log-average trace detector and function.

Displayed average noise level¹, preamp on (Opt. 51)

Frequency range	Specification	Typical
RF band
1 MHz to 10 MHz	–158 dBm/Hz	–160 dBm/Hz
>10 MHz to 2 GHz	–164 dBm/Hz	–167 dBm/Hz
>2 GHz to 3 GHz	–163 dBm/Hz	–165 dBm/Hz
>3 GHz to 4 GHz	–160 dBm/Hz	–163 dBm/Hz
>4 GHz to 6.2 GHz	–159 dBm/Hz	–162 dBm/Hz
>6.2 GHz to 13 GHz	–159 dBm/Hz	–162 dBm/Hz
>13 GHz to 23 GHz	–157 dBm/Hz	–160 dBm/Hz
>23 GHz to 26.5 GHz	–153 dBm/Hz	–156 dBm/Hz

¹Measured using 1 kHz RBW, 100 kHz span, 100 averages, minimum noise mode, input terminated, log-average trace detector and function.

Residual response

Input terminated, RBW = 1 kHz, attenuator = 0 dB, reference level –30 dBm

500 kHz to 32 MHz, LF band

< –100 dBm (typical)

1 MHz to 80 MHz, RF band

< –75 dBm (typical)

>80 MHz to 200 MHz

< –95 dBm (typical)

>200 MHz to 3 GHz

–95 dBm

>3 GHz to 6.2 GHz (RSA5106B / RSA5115B / RSA5126B)

–95 dBm

>6.2 GHz to 15 GHz (RSA5115B / RSA5126B)

–95 dBm

>15 GHz to 26.5 GHz (RSA5126B)

–95 dBm

Image response, up to 165 MHz bandwidth

Ref = –30 dBm, attenuator = 10 dB, RF input level = –30 dBm, RBW = 10 Hz.

100 Hz to 30 MHz

< –75 dBc

30 MHz to 3 GHz

< –75 dBc

>3 GHz to 6.2 GHz (RSA5106B)

< –70 dBc

>6.2 GHz to 15 GHz (RSA5115B / RSA5126B)

< –76 dBc

>15 GHz to 26.5 GHz (RSA5126B)

< –72 dBc

Spurious response with signal at CF, offset ≥400 kHz¹

	Span ≤25 MHz (Opt. B25)		Span ≤40 MHz (Opt. B40) 2		Opt. B85/B125/B16x2		Opt. B85HD, B125HD, B16xHD2
	Swept spans >25 MHz		Swept spans >40 MHz		40 MHz < span ≤ 160 MHz		40 MHz < span ≤160 MHz
Frequency	Specification	Typical	Specification	Typical	Specification	Typical	Typical
10 kHz to 32 MHz (LF band)	–80 dBc	–85 dBc	--	--	--	--	--
30 MHz to 3 GHz	–73 dBc	–80 dBc	–73 dBc	–80 dBc	–73 dBc	–75 dBc	–80 dBc
>3 GHz to 6.2 GHz (RSA5106B / RSA5115B / RSA5126B)	–73 dBc	–80 dBc	–73 dBc	–80 dBc	–73 dBc	–75 dBc	–80 dBc
6.2 GHz to 15 GHz (RSA5115B / RSA5126B)	–70 dBc	–80 dBc	–70 dBc	–80 dBc	–70 dBc	–73 dBc	–80 dBc
15 GHz to 26.5 GHz (RSA5126B)	–66 dBc	–76 dBc	–66 dBc	–76 dBc	–66 dBc	–73 dBc	–76 dBc

¹RF input level = –15 dBm, Attenuator = 10 dB, Mode: Auto. Input signal at center frequency. Center Frequency > 90 MHz, Opt. B40/B85/B16x. For acquisition bandwidth 15 - 25 MHz with signals at center frequency and at ±(37.5 MHz to 42.5 MHz): 65 dBc.

²CF> 150 MHz for Opt.B40 / B85 / B16x / B85HD / B125HD / B16xHD

Spurious response with signal at CF (10 kHz ≤ offset < 400 kHz, Span = 1 MHz)¹

Frequency	Typical
10 kHz to 32 MHz (LF band)	–75 dBc
30 MHz to 3 GHz	–75 dBc
3 GHz to 6.2 GHz (RSA5106B)	–75 dBc
6.2 GHz to 15 GHz (RSA5115B / RSA5126B)	–75 dBc
15 GHz to 26.5 GHz (RSA5126B)	–68 dBc

¹RF Input Level = –15 dBm, Attenuator = 10 dB, Mode: Auto. Input signal at center frequency. Center frequency > 90 MHz, Opt. B40/B85/B16x. For acquisition bandwidth 15 - 25 MHz with signals at center frequency and at ±(37.5 MHz to 42.5 MHz ): 65 dBc.

Spurious response with signal at Half-IF (3.532.75 GHz)

<–80 dBc (RF input level, –30 dBm)

Spurious response with signal, other than CF (typical)

Frequency	Span ≤25MHz, swept spans >25MHz	Opt. B40, Span ≤40MHz, swept spans >40 MHz 1	Opt. B85, 40MHz < Span ≤ 85 MHz1	Opt. B16x, 85MHz < Span ≤ 165 MHz1, 2	Opt. B85HD, B125HD, B16xHD , 40 MHz < span ≤160 MHz1
1 MHz - 32 MHz (LF Band)	–80 dBc	--	--	--	--
30 MHz - 3 GHz	–80 dBc	–80 dBc	–76 dBc	–73 dBc	-80 dBc
3 GHz - 6.2 GHz (RSA5106B)	–80 dBc	–80 dBc	–76 dBc	–73 dBc	-80 dBc
6.2 GHz - 15 GHz (RSA5115B)	–80 dBc	–80 dBc	–73 dBc	–73 dBc	-80 dBc
15 GHz - 26.5 GHz (RSA5126B)	–76 dBc	–76 dBc	–73 dBc	–73 dBc	-76 dBc

¹CF ≥ 150 MHZ for Opt. B40 / B85 / B125 / B16x.

²-70 dBc for input signals 20 MHz above or below instrument center frequency.

Local oscillator feed-through to input connector (attenuator = 10 dB)

< –60 dBm (RSA5103B / RSA5106B)

< –90 dbm (RSA5115B / RSA5126B)

Adjacent channel leakage ratio dynamic range

Measured with test signal amplitude adjusted for optimum performance (CF = 2.13 GHz)

		ACLR, typical
Signal type, measurement mode		Adjacent	Alternate
3GPP downlink, 1 DPCH
	Uncorrected	–69 dB	–70 dB
	Noise corrected	–75 dB	–77 dB

IF frequency response and phase linearity, includes all preselection and image rejection filters¹

Measurement frequency (GHz)	Acquisition bandwidth	Amplitude flatness (Spec)	Amplitude flatness (Typ, RMS)	Phase linearity (Typ, RMS)
0.001 to 0.032 (LF band)	≤20 MHz	±0.4 dB	0.3 dB	0.5°
Opt. B25
0.01 to 6.2  2	≤300 kHz	±0.1 dB	0.05 dB	0.1°
0.03 to 6.2	≤25 MHz	±0.3 dB	0.2 dB	0.5°
Opt. B40
0.03 to 6.2	≤40 MHz	±0.3 dB	0.2 dB	0.5°
Opt. B85/B85HD
0.07 to 3.0	≤85 MHz	±0.5 dB	0.3 dB	1.5°
>3.0 to 6.2	≤85 MHz	±0.5 dB	0.4 dB	1.5°
Opt. B125/B125HD
0.07 to 6.2	≤125 MHz	±1.0 dB	0.70 dB	1.5°
Opt. B16x/B16xHD
0.07 to 6.2	≤165 MHz	±0.5 dB	0.4 dB	1.5°

¹Amplitude flatness and phase deviation over the acquisition BW, includes RF frequency response. Attenuator setting: 10 dB.

²High dynamic range mode selected.

RSA5115B / RSA5126B IF frequency response and phase linearity

Includes all preselection and image rejection filters ¹

Measurement frequency (GHz)	Span	Amplitude flatness (Spec)	Amplitude flatness (Typ, RMS)	Phase linearity (Typ, RMS)
6.2 to 26.5	≤300 kHz	±0.10 dB 2	0.05 dB	0.2°
6.2 to 26.5	≤25/40 MHz	±0.50 dB	0.40 dB	1.0°
6.2 to 26.5	≤80 MHz	±0.75 dB	0.70 dB	1.5°
6.2 to 26.5	≤125 MHz	±1.0 dB	0.70 dB	1.5°
6.2 to 26.5	≤165 MHz	±1.0 dB	0.70 dB	1.5°

¹Amplitude flatness and phase deviation over the acquisition BW, includes RF frequency response. Attenuator setting: 10 dB.

²High dynamic range mode selected

DPX zero-span performance

Zero-span amplitude, frequency, phase performance (nominal)

Measurement BW range

100 Hz to maximum acquisition bandwidth of instrument

Time domain BW (TDBW) range

At least 1/10 to 1/10,000 of acquisition bandwidth, 1 Hz minimum

Time domain BW (TDBW) accuracy

±1%

Sweep time range

100 ns (minimum)

2000 s (maximum, Measurement BW >80 MHz)

Time accuracy

±(0.5% + Reference frequency accuracy)

Zero-span trigger timing uncertainty (Power trigger)

±(Zero-span sweep time/400) at trigger point

DPX frequency display range

±100 MHz maximum

DPX phase display range

±200 degrees maximum

DPX waveforms/s

50,000 triggered waveforms/s for sweep time ≤20 μs

DPX spectrogram trace detection

+Peak, –Peak, Avg (V_RMS)

DPX spectrogram trace length

801 to 10401

DPX spectrogram memory depth

Trace length = 801: 60,000 traces

Trace length = 2401: 20,000 traces

Trace length = 4001: 12,000 traces

Trace length = 10401: 4,600 traces

Time resolution per line

User settable 125 µs to 6400 s

Maximum recording time vs line resolution

7.5 seconds (801 points/trace, 125 μs/line) to 4444 days (801 points/trace, 6400 s/line)

Digital IQ Output (Opt. 65)

Connector type

MDR (3M) 50 pin × 2

Data output

Data is corrected for amplitude and phase response in real time

Data format

I data: 16 bit LVDS

Q data: 16 bit LVDS

Control output

Clock: LVDS, Max 50 MHz (200 MHz, Opt. B85, B16x) DV (Data valid), MSW (Most significant word) indicators, LVDS

Control input

IQ data output enabled, connecting GND enables output of IQ data

Clock rising edge to data transition time (Hold time)

8.4 ns (typical, Opt. B25 or B40), 1.58 ns (typical, Opt. B85 or B16x)

Data transition to clock rising edge (Setup time)

8.2 ns (typical, Opt. B25 or B40), 1.54 ns (typical, Opt. B85 or Opt. B16x)

Zero-span analog output (Opt. 66)

General information

Option 66 provides for a real-time analog representation of the detected output of the analyzer. This output is available when either the DPX spectrum or DPX zero span function is used in spans up to the maximum acquisition bandwidth. The bandwidth of the analog output is adjustable using the resolution bandwidth control of the DPX spectrum analyzer, or can be made independent of the spectrum analyzer. The output is "OFF" when the instrument is in swept spectrum analyzer mode, as it does not correspond to the output of the swept output

Connector type

BNC - Female

Output impedance

On: 50 Ω, Off: 5 kΩ

Output voltage

Typical

1.0V @ 0 dBm input

0 dBm reference level, 10 dB/div vertical scale, measured into a 50 Ω load. Full-scale voltage is relative to reference level.

Maximum

1.25 V

Accuracy

± 5% of full-scale voltage

Slope

10 mV/dB

10 dB/div vertical scale, measured into a 50 Ω load. Slope will vary with vertical scale setting.

Output range log fidelity

> 60 dB @ 1 GHz CF

Output log accuracy

± 0.75 dB within range

Output delay accuracy

RF Input to Analog Out

± (1 μs + 10%)

Output bandwidth

Up to maximum RBW

Continuous output

Continuous output for spans up to the maximum real-time acquisition bandwidth of the instrument.

Output is disabled for swept spans.

Output reverse power protection

±20 V

AM/FM/PM and direct audio measurement (Opt. 10)

Analog demodulation

Carrier frequency range (for modulation and audio measurements)

(1/2 × audio analysis bandwidth) to maximum input frequency

Maximum audio frequency span

10 MHz

Audio filters

Low pass (kHz)

0.3, 3, 15, 30, 80, 300, and user-entered up to 0.9 × audio bandwidth

High pass (Hz)

20, 50, 300, 400, and user-entered up to 0.9 × audio bandwidth

Standard

CCITT, C-Message

De-emphasis (μs)

25, 50, 75, 750, and user-entered

File

User-supplied .TXT or .CSV file of amplitude/frequency pairs. Maximum 1000 pairs

FM Modulation Analysis (Modulation Index >0.1)

FM measurements

Carrier Power, Carrier Frequency Error, Audio Frequency, Deviation (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

Carrier power accuracy (10 MHz to 2 GHz, -20 to 0 dBm input power)

±0.85 dB

Carrier frequency accuracy (deviation: 1 to 10 kHz)

±0.5 Hz + (transmitter frequency × reference frequency error)

FM deviation accuracy (rate: 1 kHz to 1 MHz)

±(1% of (rate + deviation) + 50 Hz)

FM rate accuracy (deviation: 1 to 100 kHz)

±0.2 Hz

Residuals (FM) (rate: 1 to 10 kHz, deviation: 5 kHz)

THD

0.10%

Distortion

0.7%

SINAD

43 dB

AM modulation analysis

AM measurements

Carrier Power, Audio Frequency, Modulation Depth (+Peak, –Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

Carrier power accuracy (10 MHz to 2 GHz, –20 to 0 dBm input power)

±0.85 dB

AM depth accuracy (rate: 1 to 100 kHz, depth: 10% to 90%)

±0.2% + 0.01 × measured value

AM rate accuracy (rate: 1 kHz to 1 MHz, depth: 50%)

±0.2 Hz

Residuals (AM)

THD

0.16%

Distortion

0.13%

SINAD

58 dB

PM modulation analysis

PM measurements

Carrier Power, Carrier Frequency Error, Audio Frequency, Deviation (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

Carrier power accuracy (10 MHz to 2 GHz, -20 to 0 dBm input power)

±0.85 dB

Carrier frequency accuracy (deviation: 0.628 rad)

±0.02 Hz + (transmitter frequency × reference frequency error)

PM deviation accuracy (rate: 10 to 20 kHz, deviation: 0.628 to 6 rad)

±100% × (0.005 + (rate / 1 MHz))

PM rate accuracy (rate: 1 to 10 kHz, deviation: 0.628 rad)

±0.2 Hz

Residuals (PM) (rate: 1 to 10 kHz, deviation: 0.628 rad)

THD

0.1%

Distortion

1%

SINAD

40 dB

Direct audio input

Audio measurements

Signal power, Audio frequency (+Peak, –Peak, Peak-Peak/2, RMS), SINAD, Modulation distortion, S/N, Total harmonic distortion, Total non-harmonic distortion, Hum and Noise

Direct input frequency range (for audio measurements only)

1 Hz to 156 kHz

Maximum audio frequency span

156 kHz

Audio frequency accuracy

±0.2 Hz

Signal power accuracy

±1.5 dB

Residuals (Rate: 1 to 10 kHz, Input level: 0.316 V)

THD

0.1%

Distortion

0.1%

SINAD

60 dB

Phase noise and jitter measurement (Opt. 11)

Carrier frequency range

1 MHz to maximum instrument frequency

Measurements

Carrier power, Frequency error, RMS phase noise, Jitter (time interval error), Residual FM

Residual Phase Noise

See Phase noise specifications

Phase noise and jitter integration bandwidth range

Minimum offset from carrier: 10 Hz

Maximum offset from carrier: 1 GHz

Number of traces

2

Trace and measurement functions

Detection: average or ±Peak

Smoothing Averaging

Optimization: speed or dynamic range

Settling time, frequency, and phase (Opt. 12)¹

¹Measured input signal level > –20 dBm, Attenuator: Auto

Settled frequency uncertainty

95% confidence (typical), at stated measurement frequencies, bandwidths, and # of averages

	Frequency uncertainty at stated measurement bandwidth
Measurement frequency, averages	85 MHz	10 MHz	1 MHz	100 kHz
1 GHz
Single measurement	2 kHz	100 Hz	10 Hz	1 Hz
100 averages	200 Hz	10 Hz	1 Hz	0.1 Hz
1000 averages	50 Hz	2 Hz	1 Hz	0.05 Hz
10 GHz
Single measurement	5 kHz	100 Hz	10 Hz	5 Hz
100 averages	300 Hz	10 Hz	1 Hz	0.5 Hz
1000 averages	100 Hz	5 Hz	0.5 Hz	0.1 Hz
20 GHz
Single measurement	2 kHz	100 Hz	10 Hz	5 Hz
100 averages	200 Hz	10 Hz	1 Hz	0.5 Hz
1000 averages	100 Hz	5 Hz	0.5 Hz	0.2 Hz

Settled phase uncertainty

95% confidence (Typical), at stated measurement frequencies, bandwidths, and # of averages

	Frequency uncertainty at stated measurement bandwidth
Measurement frequency, averages	85 MHz	10 MHz	1 MHz
1 GHz
Single measurement	1.00°	0.50°	0.50°
100 averages	0.10°	0.05°	0.05°
1000 averages	0.05°	0.01°	0.01°
10 GHz
Single measurement	1.50°	1.00°	0.50°
100 averages	0.20°	0.10°	0.05°
1000 averages	0.10°	0.05°	0.02°
20 GHz
Single measurement	1.00°	0.50°	0.50°
100 averages	0.10°	0.05°	0.05°
1000 averages	0.05°	0.02°	0.02°

Gain and Noise Figure (Option 14)

Measurements (tabular)

Noise Figure, Gain, Y-Factor, Noise Temperature, P-Hot, P-Cold

Measurements (displays)

Noise Figure, Gain, Y-Factor, Noise Temperature, Uncertainty Calculator

Single frequency measurements

When Single Frequency mode is selected, each display acts as a meter and single-value readout for each selected trace in the measurement

Measurement configurations

Direct, Up-Converter, Down-Converter

Frequency modes

Single Frequency, Swept (Center+Span or Start-Stop), Frequency Table; 1 to 999 measurement points

Noise source

Constant ENR or tabular entry; entry fields for noise source model and type

Noise sources supported

NoiseCom NC346 series and similar models from other manufacturers

Noise source control

+28 V switched output, rear panel

External gain/loss tables

3 tables or constants available for gain or loss

Measurement control settings

Source settling time, reference temperature, RBW(50 Hz to 10 MHz), Average count(1 to 100)

Instrument input control settings

Attenuator value, Preamp On/Off

Trace controls

3 traces per display: Ave(V_RMS), Max-hold, Min-hold trace functions

Display scaling

Auto or manual: Auto resets scale after each measurement

Markers

Up to 5 markers on any trace; Absolute and Delta marker functions

Limit mask testing

Positive and negative limits may be applied to noise figure, gain, Y-factor traces; limits and Pass/Fail indicated on screen

Uncertainty calculator

Provides noise figure and gain measurement uncertainty based on user-entered values for ENR, external preamp, external preamp, and spectrum analyzer parameters

Application preset for Noise Figure and Gain

Sets the analyzer to measure Gain, Noise Figure, and the Measurement Table. Sets attenuation to zero, preamplifier ON, and acquisition mode to best for minimum noise

Performance

Specification	Description
Frequency range	10 MHz to maximum frequency of instrument (nominal)
Noise figure measurement range	0 to 30 dB (nominal)
Gain measurement range	-10 to 30 dB (nominal)
Noise figure and gain measurement resolution	0.01 dB (nominal)
Noise figure measurement error	±0.1 dB (typical) 1
Gain measurement error	±0.1 dB (typical) 1

Note: These conditions for Noise Figure and Gain specifications apply: Operating temperature 18 to 28 deg. C, after 20 minute warmup with internal preamp ON, immediately after internal alignment. Specified error includes only the error of the spectrum analyzer. Uncertainty from errors in ENR source level, external amplifier gain, low SN ratio and measurement system mismatch are not included, and can all be estimated using the uncertainty calculator included in the software.

¹For (ENR of noise source) > (measured noise figure + 4 dB)

Pulse measurements (Opt. 20)

Measurements

Average on power, Peak power, Average transmitted power, Pulse width, Rise time, Fall time, Repetition interval (seconds), Repetition rate (Hz), Duty factor (%), Duty factor (ratio), Ripple (dB), Ripple (%), Droop (dB), Droop (%), Overshoot (dB), Overshoot (%), Pulse frequency, Delta frequency, Pulse-Ref Pulse frequency difference, Pulse-Ref Pulse Phase difference, Pulse-Pulse frequency difference, Pulse-Pulse phase difference, RMS frequency error, Max frequency error, RMS phase error, Max phase error, Frequency deviation, Phase deviation, Impulse response (dB), Impulse response (time), Time stamp

Minimum pulse width for detection

150 ns (Opt. B25/B40), 50 ns (Opt. B85/B16x)

Number of pulses¹

1 to 200,000; offline analysis of more than 40,000 continuous pulses is recommended using fast frame mode and fast save option

¹Actual number depends on time length, pulse bandwidth and instrument configuration.

System rise time (typical)

<40 ns (Opt. B25), <25 ns (Opt. B40), <12 ns (Opt. B85), <7 ns (Opt. B16x)

Pulse measurement accuracy

Signal conditions: Unless otherwise stated, Pulse width >450 ns (150 ns, Opt. B85/B16x), S/N Ratio ≥30 dB, Duty cycle 0.5 to 0.001, Temperature 18 °C to 28 °C

Impulse response

Measurement range: 15 to 40 dB across the width of the chirp

Measurement accuracy (typical): ±2 dB for a signal 40 dB in amplitude and delayed 1% to 40% of the pulse chirp width¹

¹Chirp width 100 MHz, pulse width 10 μs, minimum signal delay 1% of pulse width or 10/(chirp bandwidth), whichever is greater, and minimum 2000 sample points during pulse on-time.

Impulse response weighting

Taylor window

Pulse measurement performance

Pulse amplitude and timing (typical)

Average on power¹

±0.3 dB + Absolute amplitude accuracy

Average transmitted power¹

±0.4 dB + Absolute amplitude accuracy

Peak power¹

±0.4 dB + Absolute amplitude accuracy

Pulse width

±0.25% of reading

Duty factor

±0.2% of reading

¹Pulse width >300 ns (100 ns, Opt. B85/B16x) SNR ≥30 dB

Frequency and phase error referenced to nonchirped signal

At stated frequencies and measurement bandwidths ¹, typical, 95% confidence

Bandwidth	CF	RMS frequency error	Pulse to pulse frequency	Pulse to pulse delta frequency	Pulse to pulse phase
25 MHz	2 GHz	±2.5 kHz	±15 kHz	±500 Hz	±0.2°
	10 GHz	±2.5 kHz	±20 kHz	±1.5 kHz	±0.5°
	20 GHz	±3.5 kHz	±25 kHz	±2 kHz	±0.8°
40 MHz	2 GHz	±3.5 kHz	±20 kHz	±1 kHz	±0.2°
	10 GHz	±5 kHz	±30 kHz	±2 kHz	±0.5°
	20 GHz	±7.5 kHz	±40 kHz	±3 kHz	±0.8°
60 MHz	2 GHz	±8 kHz	±50 kHz	±1.5 kHz	±0.3°
	10 GHz	±15 kHz	±75 kHz	±3 kHz	±0.5°
	20 GHz	±20 kHz	±100 kHz	±4 kHz	±0.8°
85 MHz	2 GHz	±15 kHz	±100 kHz	±2 kHz	±0.3°
	10 GHz	±20 kHz	±125 kHz	±3 kHz	±0.5°
	20 GHz	±25 kHz	±175 kHz	±4 kHz	±0.8°
160 MHz	2 GHz	±20 kHz	±100 kHz	±4.5 kHz	±0.3°
	10 GHz	±25 kHz	±125 kHz	±6 kHz	±0.5°
	20 GHz	±40 kHz	±175 kHz	±8 kHz	±0.8°

¹Pulse ON Power ≥ -20 dBm, Signal peak at reference Level, Attenuator = Auto, t_meas- t_reference≤ 10 ms, Frequency estimation: Manual. Pulse-to-Pulse measurement time position excludes the beginning and ending of the pulse extending for a time = (10 / Measurement BW) as measured from 50% of the t_(rise)or t_(fall). Absolute frequency error determined over center 50% of pulse.

Frequency and phase error referenced to a linear chirp

At stated frequencies and measurement bandwidths ¹, typical

Bandwidth	CF	RMS frequency error	Pulse to pulse frequency	Pulse to pulse phase
25 MHz	2 GHz	±5 kHz	±15 kHz	±0.25°
	10 GHz	±8 kHz	±20 kHz	±0.5°
	20 GHz	±10 kHz	±25 kHz	±0.8°
40 MHz	2 GHz	±5 kHz	±20 kHz	±0.25°
	10 GHz	±8 kHz	±30 kHz	±0.5°
	20 GHz	±10 kHz	±50 kHz	±0.8°
60 MHz	2 GHz	±25 kHz	±125 kHz	±0.3°
	10 GHz	±30 kHz	±150 kHz	±0.5°
	20 GHz	±30 kHz	±150 kHz	±0.8°
85 MHz	2 GHz	±25 kHz	±125 kHz	±0.3°
	10 GHz	±30 kHz	±150 kHz	±0.5°
	20 GHz	±30 kHz	±175 kHz	±0.8°
160 MHz	2 GHz	±35 kHz	±125 kHz	±0.3°
	10 GHz	±40 kHz	±150 kHz	±0.5°
	20 GHz	±40 kHz	±200 kHz	±0.8°

¹Signal type: Linear chirp, Peak-to-Peak chirp deviation: ≤0.8 Measurement BW, Pulse ON Power ≥ -20 dBm, Signal peak at reference Level, Attenuator = 0 dB, t_meas- t_reference≤ 10 ms, Frequency estimation: Manual. Pulse-to-Pulse measurement time position excludes the beginning and ending of the pulse extending for a time = (10 / Measurement BW) as measured from 50% of the t_(rise)or t_(fall). Absolute frequency error determined over center 50% of pulse.

Digital modulation analysis (Opt. 21)

Modulation formats

π/2DBPSK, BPSK, SBPSK, QPSK, DQPSK, π/4DQPSK, D8PSK, D16PSK, 8PSK, OQPSK, SOQPSK, CPM, 16/32-APSK, 16/32/64/128/256QAM, MSK, GMSK, 2-FSK, 4-FSK, 8-FSK, 16-FSK, C4FM

Analysis period

Up to 81,000 samples

Filter types

Measurement filters

Square-root raised cosine, Raised cosine, Gaussian, Rectangular, IS-95, IS-95 EQ, C4FM-P25, Half-sine, None, User defined

Reference filters

Raised cosine, Gaussian, Rectangular, IS-95, SBPSK-MIL, SOQPSK-MIL, SOQPSK-ARTM, none, user defined

Alpha/B*T range

0.001 to 1, 0.001 step

Measurements

Constellation, Error vector magnitude (EVM) vs. Time, Modulation error ratio (MER), Magnitude error vs. Time, Phase error vs. Time, Signal quality, Symbol table, Rho

FSK only: Frequency deviation, Symbol timing error

Symbol rate range

1 kS/s to 100 MS/s (modulated signal must be contained entirely within acquisition BW of the instrument)

QPSK residual EVM¹

100 kHz symbol rate

<0.35%

1 MHz symbol rate

<0.35%

10 MHz symbol rate

<0.4%

30 MHz symbol rate (Opt. B40/B85/B16x)

<0.75%

60 MHz symbol rate (Opt. B85/B16x)

<1.0%

120 MHz symbol rate (Opt. B16x)

<1.5%

¹CF = 2 GHz, Measurement filter = Root raised cosine, Reference filter = Raised cosine, Analysis length = 200 symbols.

Offset QPSK residual EVM ¹

100 kHz symbol rate, 200 kHz measurement BW

<0.5%

1 MHz symbol rate, 2 MHz measurement BW

<0.5%

10 MHz symbol rate, 20 MHz measurement BW

<1.1%

¹CF = 2 GHz, Measurement filter = Root raised cosine, Reference filter = Raised cosine, Analysis length = 200 symbols.

256 QAM residual EVM¹

10 MHz symbol rate

<0.4%

30 MHz symbol rate (Opt. B40/B85/B16x)

<0.6%

60 MHz symbol rate (Opt. B85/B16x)

<0.6%

120 MHz symbol rate (Opt. B16x)

<1.0%

¹CF = 2 GHz, Measurement filter = Root raised cosine, Reference filter = Raised cosine, Analysis length = 400 symbols 20 averages.

S-OQPSK (MIL) residual EVM¹

4 kHz symbol rate, 64 kHz measurement bandwidth, CF = 250 MHz

<0.3%

20 kHz symbol rate, 320 kHz measurement bandwidth, CF = 2 GHz

<0.5%

100 kHz symbol rate, 1.6 MHz measurement bandwidth, CF = 2 GHz

<0.5%

1 MHz symbol rate, 16 MHz measurement bandwidth, CF = 2 GHz

<0.5%

¹Reference Filter: MIL STD Measurement Filter: none.

S-OQPSK (ARTM) residual EVM ¹

4 kHz symbol rate, 64 kHz measurement bandwidth, CF = 250 MHz

<0.3%

20 kHz symbol rate, 320 kHz measurement bandwidth, CF = 2 GHz

<0.4%

100 kHz symbol rate, 1.6 MHz measurement bandwidth, CF = 2 GHz

<0.4%

1 MHz symbol rate, 16 MHz measurement bandwidth, CF = 2 GHz

<0.4%

¹Reference Filter: MIL STD Measurement Filter: none.

S-BPSK (MIL) residual EVM¹

4 kHz symbol rate, 64 kHz measurement bandwidth, CF = 250 MHz

<0.25%

20 kHz symbol rate, 320 kHz measurement bandwidth, CF = 2 GHz

<0.5%

100 kHz symbol rate, 1.6 MHz measurement bandwidth, CF = 2 GHz

<0.5%

1 MHz symbol rate, 1.6 MHz measurement bandwidth, CF = 2 GHz

<0.5%

¹Reference Filter: MIL STD.

CPM (MIL) residual EVM¹

4 kHz symbol rate, 64 kHz measurement bandwidth, CF = 250 MHz

<0.3%

20 kHz symbol rate, 320 kHz measurement bandwidth, CF = 2 GHz

<0.4%

100 kHz symbol rate, 1.6 MHz measurement bandwidth, CF = 2 GHz

<0.4%

1 MHz symbol rate, 16 MHz measurement bandwidth, CF = 2 GHz

<0.4%

¹Reference Filter: MIL STD.

2/4/8/16 FSK residual RMS FSK error¹

2FSK, 10 kHz symbol rate, 10 kHz frequency deviation, CF = 2 GHz

<0.3%

4/8/16FSK, 10 kHz symbol rate, 10 kHz frequency deviation, CF = 2 GHz

<0.4%

¹Reference filter: None, Measurement filter: None.

Adaptive equalizer

Type

Linear, decision-directed, feed-forward (FIR) equalizer with co-efficient adaptation and adjustable convergence rate

Modulation types supported

BPSK, QPSK, OQPSK, π/2DBPSK, π/4DQPSK, 8PSK, 8DPSK, 16DPSK, 16/32/64/128/256QAM

Reference filters for all modulation types except OQPSK

Raised cosine, rectangular, none

Reference filters for OQPSK

Raised cosine, half sine

Filter length

3 to 2001 taps

Taps/Symbol: raised cosine, half sine

1, 2, 4, 8

Taps/Symbol: rectangular filter, no filter

1

Equalizer controls

Off, train, hold, reset

Flexible OFDM (Opt. 22)

Recallable standards

WiMAX 802.16-2004, WLAN 802.11 a/g/j

Parameter settings

Guard interval, subcarrier spacing, channel bandwidth

Advanced parameter settings

Carrier detect: 802.11, 802.16-2004 - Auto-detect; Manual select BPSK; QPSK, 16QAM, 64QAM

Channel estimation: Preamble, Preamble + Data

Pilot tracking: Phase, Amplitude, Timing

Frequency correction: On, Off

Summary measurements

Symbol clock error, Frequency error, Average power, Peak-to-Average, CPE

EVM (RMS and peak) for all carriers, plot carriers, data carriers

OFDM parameters: Number of carriers, Guard interval (%), Subcarrier spacing (Hz), FFT Length

Power (Average, Peak-to-Average)

Displays

EVM vs symbol, vs subcarrier

Subcarrier power vs symbol, vs subcarrier

Mag error vs symbol, vs subcarrier

Phase error vs symbol, vs subcarrier

Channel frequency response

Residual EVM

-49 dB (WiMAX 802.16-2004, 5 MHz BW)

-49 dB (WLAN 802.11g, 20 MHz BW)

Signal input power optimized for best EVM

WLAN IEEE802.11a/b/g/j/p (Opt. 23)

Modulation formats

DBPSK (DSSS-1M), DQPSK (DSSS-2M), CCK 5.5M, CCK 11M , OFDM (BPSK, QPSK, 16QAM, 64QAM)

Measurements and displays

Burst index, Burst power, Peak to average burst power, IQ origin offset, Frequency error, Common pilot error, Symbol clock error

RMS and Peak EVM for Pilots/Data, Peak EVM located per symbol and subcarrier

Packet header format information

Average power and RMS EVM per section of the header

WLAN power vs time, WLAN symbol table, WLAN constellation

Spectrum emission mask, spurious

Error vector magnitude (EVM) vs symbol (or time), vs subcarrier (or frequency)

Mag error vs symbol (or time), vs subcarrier (or frequency)

Phase error vs symbol (or time), vs subcarrier (or frequency)

WLAN channel frequency response vs symbol (or time), vs subcarrier (or frequency)

WLAN spectral flatness vs symbol (or time), vs subcarrier (or frequency)

Residual EVM - 802.11b (CCK-11 Mbps)

RMS-EVM over 1000 chips, EQ On

Signal input power optimized for best EVM

2.4 GHz:

1%(–40 dB) typical, 0.9% (–40.9 dB) typical-mean

Residual EVM - 802.11a/g/j (OFDM, 20 MHz, 64-QAM)

RMS-EVM averaged over 20 bursts, 16 symbols each

Signal input power optimized for best EVM

2.4 GHz

–49 dB typical, –50 dB typical-mean

5.8 GHz

–49 dB typical, –50 dB typical-mean

WLAN IEEE802.11n (Opt. 24)

Modulation formats

OFDM (BPSK, QPSK, 16 or 64QAM)

Measurements and displays

Burst index, Burst power, Peak to average burst power, IQ origin offset, Frequency error, Common pilot error, Symbol clock error

RMS and Peak EVM for Pilots/Data, Peak EVM located per symbol and subcarrier

Packet header format information

Average power and RMS EVM per section of the header

WLAN power vs time, WLAN symbol table, WLAN constellation

Spectrum emission mask, spurious

Error vector magnitude (EVM) vs symbol (or time), vs subcarrier (or frequency)

Mag error vs symbol (or time), vs subcarrier (or frequency)

Phase error vs symbol (or time), vs subcarrier (or frequency)

WLAN channel frequency response vs symbol (or time), vs subcarrier (or frequency)

WLAN spectral flatness vs symbol (or time), vs subcarrier (or frequency)

Residual EVM - 802.11n (40 MHz, 64-QAM)

RMS-EVM over averaged over 20 bursts, 16 symbols each

Signal input power optimized for best EVM

5.8 GHz

–48 dB typical, –48.5 dB typical-mean

WLAN IEEE802.11ac (Opt. 25)

Modulation formats

OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM)

Measurements and displays

Burst index, Burst power, Peak to average burst power, IQ origin offset, Frequency error, Common pilot error, Symbol clock error

RMS and Peak EVM for Pilots/Data, Peak EVM located per symbol and subcarrier

Packet header format information

Average power and RMS EVM per section of the header

WLAN power vs time, WLAN symbol table, WLAN constellation

Spectrum emission mask, spurious

Error vector magnitude (EVM) vs symbol (or time), vs subcarrier (or frequency)

Mag error vs symbol (or time), vs subcarrier (or frequency)

Phase error vs symbol (or time), vs subcarrier (or frequency)

WLAN channel frequency response vs symbol (or time), vs subcarrier (or frequency)

WLAN spectral flatness vs symbol (or time), vs subcarrier (or frequency)

Residual EVM - 802.11ac

RMS-EVM averaged over 20 bursts, 16 symbols each

Signal input power optimized for best EVM

5.8 GHz (80 MHz, 256-QAM)

–48 dB typical, –48.5 dB typical-mean

5.8 GHz (160 MHz, 256-QAM)

–45 dB typical, –45.5 dB typical-mean

EMC pre-compliance and troubleshooting (Opt. 32)

EMC pre-compliance and troubleshooting

Standards

EN55011, EN55012, EN55013, EN55014, EN55015, EN55025, EN55032, EN60601, DEF STAN, FCC Part 15, FCC Part18, MIL-STD 461G

Features

EMC-EMI display, Wizard to setup accessories and limit lines, Inspect, Harmonic Markers, Level Target, Compare Traces, Measure Ambient, Report generation, Re-measure Spot

Detectors

+Peak, Avg, Avg (of logs), Avg (VRMS), CISPR QuasiPeak, CISPR Peak, CISPR Average, CISPR Average of Logs, MIL +Peak, DEF STAN Avg, DEF STAN Peak

Limit lines

Up to 3 Limit Lines with corresponding margins

Resolution BW

Set per standard or user definable

Dwell time

Set per standard or user definable

Report format

PDF, HTML, MHT,RTF, XLSX, Image File format

Accessory type

Antenna, Near Field Probe, Cable, Amplifier, Limiter, Attenuator, Filter, Other

Correction format

Gain/Loss Constant, Gain/loss table, Antenna Factor

Traces

Save/recall up to 5 traces, Math trace (trace1 minus trace2), Ambient trace

APCO P25 (Option 26)

Modulation formats

Phase 1 (C4FM), Phase 2 (HCPM, HDQPSK)

Measurements and displays

RF output power, operating frequency accuracy, modulation emission spectrum,

unwanted emissions spurious, adjacent channel power ratio, frequency deviation,

modulation fidelity, frequency error, eye diagram, symbol table, symbol rate accuracy,

transmitter power and encoder attack time, transmitter throughput delay, frequency

deviation vs. time, power vs. time, transient frequency behavior, HCPM transmitter logical

channel peak adjacent channel power ratio, HCPM transmitter logical channel off slot power,

HCPM transmitter logical channel power envelope, HCPM transmitter logical channel time alignment

Residual modulation fidelity

Phase 1 (C4FM)

≤1.0% typical

Phase 2 (HCPM)

≤0.5% typical

Phase 2 (HDQPSK)

≤0.4% typical

Adjacent channel power ratio ¹

25 kHz offset from the center and bandwidth of 6 kHz

Phase 1 (C4FM): -74 dBc typical

Phase 2 (HCPM): -74 dBc typical

Phase 2 (HDQPSK): -75 dBc typical

62.5 kHz offset from the center and bandwidth of 6 kHz

-75 dBc typical

¹Measured with test signal amplitude adjusted for optimum performance if necessary. Measured with Averaging, 10 waveforms.

Bluetooth (Options 27 and 31)

Basic Rate, Bluetooth Low Energy, Enhanced Data Rate - Revision 4.2, Bluetooth® 5 when option 31 is enabled

Measurements and displays

Peak power, average power, adjacent channel power or inband emission mask,

-20 dB bandwidth, frequency error, modulation characteristics including ΔF1avg (11110000),

ΔF2avg (10101010), ΔF2 > 115 kHz, ΔF2/ΔF1 ratio, frequency deviation vs. time with packet and octet

level measurement information, carrier frequency f0, frequency offset (Preamble and Payload), max

frequency offset, frequency drift f₁-f₀, max drift rate f_n-f₀and f_n-f_n-5, center frequency

offset table and frequency drift table, color-coded symbol table, packet header decoding information,

eye diagram, constellation diagram

Output power (average and peak)

Level uncertainty

Refer to instrument amplitude and flatness specification

Measurement range

> -70 dBm

Modulation characteristics (ΔF₁avg, ΔF₂avg, ΔF₂avg/ ΔF₁avg, ΔF₂max ≥115 kHz)

Deviation range

± 280 kHz

Deviation uncertainty (at 0 dBm)

< 2 kHz + instrument freq. uncertainty

Measurement resolution

10 Hz

Measurement range

Nominal channel frequency ±100 kHz

Initial Carrier Frequency Tolerance (ICFT)

Measurement uncertainty (at 0 dBm)

<1 kHz + instrument frequency uncertainty

Measurement resolution

10 Hz

Measurement range

Nominal channel frequency ±100 kHz

Carrier frequency drift

Supported measurements

Max freq. offset, drift f₁- f₀, max drift f_n-f₀, max drift f_n-f_n-5(50 μs)

Measurement uncertainty

< 1 kHz + instrument frequency uncertainty

Measurement resolution

10 Hz

Measurement range

Nominal channel frequency ±100 kHz

In-band emissions and ACP

Level uncertainty

Refer to instrument amplitude and flatness specification

LTE Downlink RF measurements (Opt. 28)

Standard Supported

3GPP TS 36.141 Version 12.5

Frame Format supported

FDD and TDD

Measurements and Displays Supported

Adjacent Channel Leakage Ratio (ACLR), Spectrum Emission Mask (SEM), Channel Power, Occupied Bandwidth, Power vs. Time showing Transmitter OFF power for TDD signals and LTE constellation diagram for PSS, SSS with Cell ID, Group ID, Sector ID and Frequency Error.

ACLR with E-UTRA bands (Nominal, with Noise Correction)

1st Adjacent Channel

73 dB

2nd Adjacent Channel

74 dB

Mapping and field strength (Option MAP)

RF field strength

Signal strength indicator

Located at right-side of display

Measurement bandwidth

Up to 165 MHz, dependent on span and RBW setting

Tone type

Variable frequency

Mapping

Map types directly supported

Pitney Bowes MapInfo (*.mif), Bitmap (*.bmp), Open Street Maps (.osm)

Saved measurement results

Measurement data files (exported results)

Map file used for the measurements

Google earth KMZ file

Recallable results files (trace and setup files)

MapInfo-compatible MIF/MID files

Analog modulation analysis accuracy (typical)

AM

±2% (0 dBm input at center, carrier frequency 1 GHz, 10 to 60% modulation depth)

FM

±1% of span

(0 dBm input at center)

(Carrier frequency 1 GHz, 400 Hz/1 kHz Input/Modulated frequency)

PM

±3°

(0 dBm input at center)

(Carrier frequency 1 GHz, 1 kHz/5 kHz Input/Modulated frequency)

Inputs and outputs

Front panel

Display

Touch panel, 10.4 in. (264 mm)

RF input connector

N-type female, 50 Ω (RSA5103B, RSA5106B)

N-Type Female Planar Crown (RSA5115B)

3.5mm Female Planar Crown (RSA5126B)

Trigger out

BNC, High: >2.0 V, Low: <0.4 V, Output current 1 mA (LVTTL)

Trigger in

BNC, 50 Ω/5 kΩ impedance (nominal), ±5 V max input, -2.5 V to +2.5 V trigger level

USB ports

(2) USB 2.0

Audio

Speaker

Rear panel

10 MHz REF OUT

50 Ω, BNC, >0 dBm

External REF IN

50 Ω, 10 MHz, BNC

Trig 2 / gate IN

BNC, High: 1.6 to 5.0 V, Low: 0 to 0.5 V

GPIB interface

IEEE 488.2

LAN interface ethernet

RJ45, 10/100/1000BASE-T

USB ports

(2) USB 2.0

VGA output

VGA compatible, 15 DSUB

Audio out

3.5 mm headphone jack

Noise source drive

BNC, +28 V, 140 mA (nominal)

Turn ON time: 100 μs, Turn OFF time: 500 μs

Digital I and Q out

2 connectors, LVDS (Opt. 65)

Analog Zero Span Out

1 connector, BNC (Opt. 66)

General characteristics

Temperature range

Operating

+5 °C to +40 °C

Storage

–20 °C to +60 °C

Warm-up time

20 minutes

Altitude

Operating

Up to 3000 m (approximately 10,000 ft.)

Nonoperating

Up to 12,190 m (40,000 ft.)

Relative humidity

Operating and nonoperating

+40 °C at 95% relative humidity, meets intent of EN 60068-2-30. ¹

¹Frequency amplitude response may vary up to ±3 dB at +40 °C and greater than 45% relative humidity.

Vibration

Operating (except when equipped with option 56 removable SSD)

0.22G_RMS . Profile = 0.00010 g² /Hz at 5-350 Hz, -3 dB/Octave slope from 350-500 Hz, 0.00007 g² /Hz at 500 Hz, 3 Axes at 10 min/axis

Nonoperating

2.28G_RMS . Profile = 0.0175 g² /Hz at 5-100 Hz, -3 dB/Octave slope from 100-200 Hz, 0.00875 g² /Hz at 200-350 Hz,-3 dB/Octave slope from 350-500 Hz, 0.006132 g² /Hz at 500 Hz, 3 Axes at 10 min/axis

Shock

Operating

15 G, half-sine, 11 ms duration, three shocks per axis in each direction (18 shocks total)

Nonoperating

30 G, half-sine, 11 ms duration, three shocks per axis in each direction (18 shocks total)

Data storage

Internal HDD (Opt. 59), USB ports, removable SSD (Opt. 56)

Power

Power requirements

90 V_ACto 264 V_AC, 50 Hz to 60 Hz

90 V_ACto 132 V_AC, 400 Hz

Power consumption

400 W max

EMC and safety compliance

Safety

UL 61010-1:2004

CSA C22.2 No.61010-1-04

Electromagnetic compatibility, complies with

EU council EMC Directive 2004/108/EC

EN61326, CISPR 11, Class A

ACMA (Australia/New Zealand)

FCC 47CFR, Part 15, Subpart B, Class A (USA)

Physical characteristics

With feet

Dimensions (with feet)

Height

282 mm (11.1 in.)

Width

473 mm (18.6 in.)

Depth

531 mm (20.9 in.)

Weight

29 kg (64.7 lb.) With all options.
