Компания Schwarzbeck Mess-Elektronik - немецкая фирма, разрабатывающая и производящая продукцию для измерений и испытаний на ЭМС (электромагнитную совместимость). Компания была основана в 1953 году в Германии Гюнтером Шварцбеком, который во всей Европе считается основоположником по созданию приборов для ЭМС-измерений. Головной офис Schwarzbeck Mess-Elektronik расположен в городе Шёнау-им-Шварцвальд.
Компания Schwarzbeck Mess-Elektronik выпускает широкий ряд измерительных антенн с сопутствующими аксессуарами, эквиваленты сети, системы… подробнее
Description:

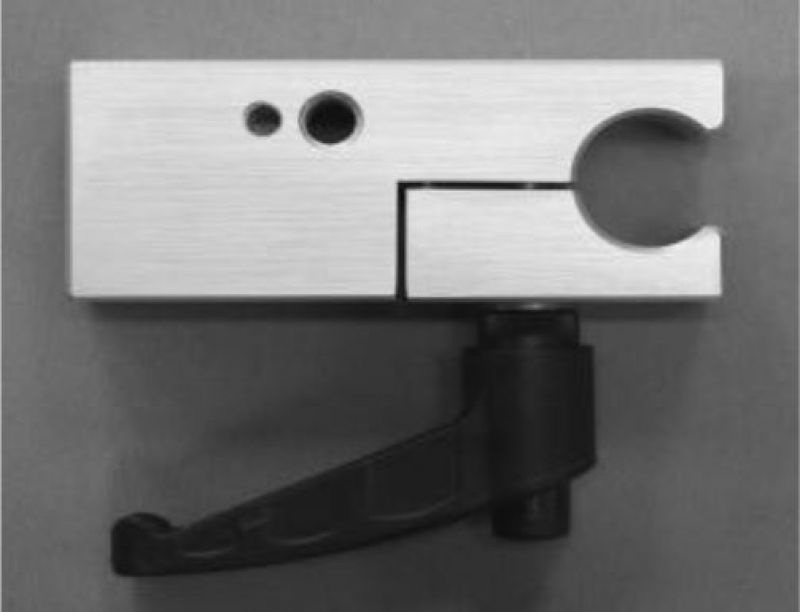

The mast adaptor AA 9209 is used together with the tripod AM 9144 for mounting Antennas with 22 mm tube. Alternatively it can be used in combination with many other common tripods which have an 1/4" male thread (small camera thread). The polarization can be changed continuously by turning the antenna tube inside the adaptor. The AA 9209 should be used for the following antenna types: STLP 9128 D / STLP 9128 D special / STLP 9128 E / STLP 9128 E special. Starting from model year 2009 all these antennas are equipped with a 22 mm tube in the rotational center. To hold such a large antenna in the center of gravity and in the center of rotation at the same time it is required to place the antenna next to the mast tube. This allows to change the polarization without any height offset. AA 9209 is slightly longer than AA 9202 and thus provides this side-mounting possibility. A stabile lever allows fixing the polarization of the antenna.
Description:
The mast adaptor AA 9209 is used together with the tripod AM 9144 for mounting Antennas with 22 mm tube. Alternatively it can be used in combination with many other common tripods which have an 1/4" male thread (small camera thread). The polarization can be changed continuously by turning the antenna tube inside the adaptor. The AA 9209 should be used for the following antenna types: STLP 9128 D / STLP 9128 D special / STLP 9128 E / STLP 9128 E special. Starting from model year 2009 all these antennas are equipped with a 22 mm tube in the rotational center. To hold such a large antenna in the center of gravity and in the center of rotation at the same time it is required to place the antenna next to the mast tube. This allows to change the polarization without any height offset. AA 9209 is slightly longer than AA 9202 and thus provides this side-mounting possibility. A stabile lever allows fixing the polarization of the antenna.
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
| Specifications: | |
| Material: | Aluminium (Eloxal) |
| Dimensions without lever: | 100x40x30 mm |
| Weight: | 305 g |
| Max. Antenna weight: | 12 kg |
| Max torque: | 25 Nm |
| Threads: | 3/8'', 1/4'' |
| Number of sides with 1/4" thread | 3 |
| Number of sides with 3/8" thread | 4 |
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
AA 9209
|
AA 9209 антенный адаптер
|
По запросу |
