Some antennas are equipped with 3/8’’ female threads. This thread is also called the large camera thread. Such antennas can be directly mounted on tripods with 3/8 inch male thread, e.g. AM 9144. Adapters are usually not required.
Some mast systems use the widely used

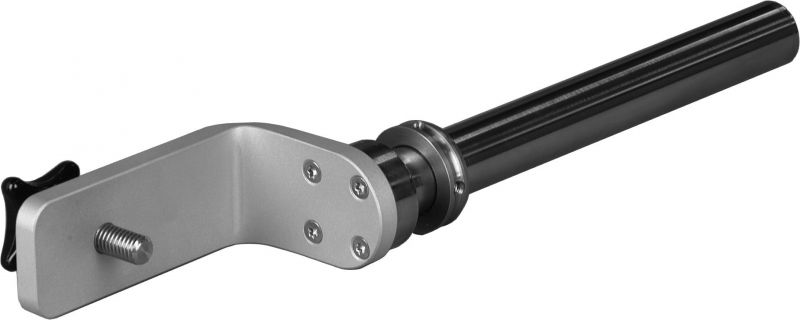

22 mm antenna tube with indexing ring (see Fig. 2) to fix the antenna. If the antenna is not equipped with a 22 mm tube the AA 9213 is required (see Fig. 1).
AA 9213 is perfectly suited for small antennas. Larger antennas might cause torque around the 22 mm tube. Such large antennas should only be mounted if the center of gravity is below the 22 mm tube.
The indexing ring can be shifted along the tube after loosening 4 grub screws. It can also be removed completely. The star handle screw 3/8’’ is undetachably fixed to the Adapter.
Some antennas are equipped with 3/8’’ female threads. This thread is also called the large camera thread. Such antennas can be directly mounted on tripods with 3/8 inch male thread, e.g. AM 9144. Adapters are usually not required.
Some mast systems use the widely used
22 mm antenna tube with indexing ring (see Fig. 2) to fix the antenna. If the antenna is not equipped with a 22 mm tube the AA 9213 is required (see Fig. 1).
AA 9213 is perfectly suited for small antennas. Larger antennas might cause torque around the 22 mm tube. Such large antennas should only be mounted if the center of gravity is below the 22 mm tube.
The indexing ring can be shifted along the tube after loosening 4 grub screws. It can also be removed completely. The star handle screw 3/8’’ is undetachably fixed to the Adapter.
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
| Specifications: | |
| Dimensions without lever | 300x100x38 mm |
| Free tube length: | 184 mm |
| Tube diameter: | 22 mm |
| Diameter of the indexing ring: | 35 mm |
| Aluminium bar length: | 62 mm |
| Aluminium bar height: | 36 mm |
| Weight: | 468 g |
| Thread: | 3/8'' |
| Free thread length: | 14 mm |
