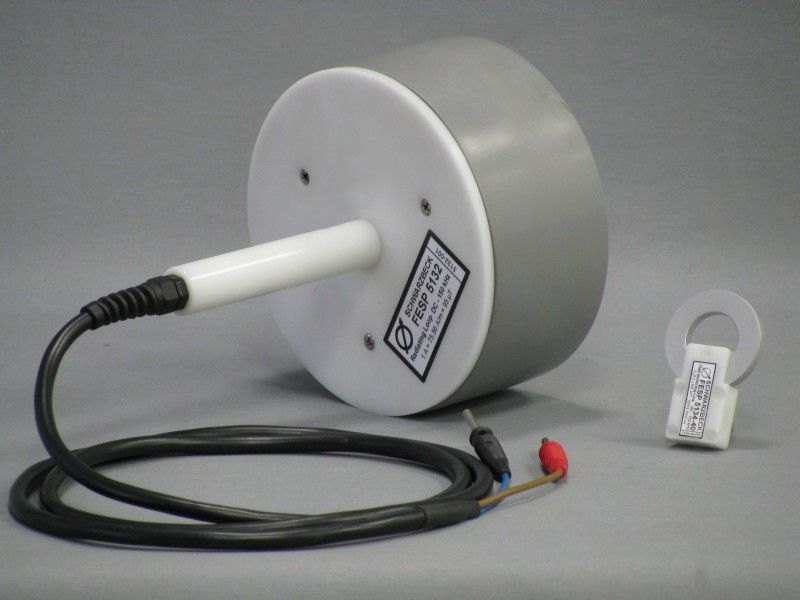

The magnetic, handheld coil FESP 5132 was designed to generate defined magnetic fieldstrength in the audio frequency range up to 100 kHz. The main application is immunity testing against magnetic fields according to EN 55103 and MIL-STD-461 E. Depending on the current source characteristics magnetic fields up to 1500 A/m can be generated for a short time.
The generated magnetic fieldstrength is proportional to the coil current. A distance ring allows a precise spacing of 50 mm between coil and EUT surface. Other distance rings can be used to scale the current-fieldstrength ratio. The highest fieldstrength levels can be achieved using the shortest ring. There are further rings available on request in order to provide a certain scaling between coil current and magnetic fieldstrength (e.g. 1 Amp coil current = 100 Amp/m fieldstrength).
Application as magnetic field probe:
The FESP 5132 can also be used to measure existing magnetic fields. The open circuit output voltage is directly proportional to the magnetic fieldstrength (at fixed frequency) or directly proportional to frequency (at constant magnetic fieldstrength).
The magnetic, handheld coil FESP 5132 was designed to generate defined magnetic fieldstrength in the audio frequency range up to 100 kHz. The main application is immunity testing against magnetic fields according to EN 55103 and MIL-STD-461 E. Depending on the current source characteristics magnetic fields up to 1500 A/m can be generated for a short time.
The generated magnetic fieldstrength is proportional to the coil current. A distance ring allows a precise spacing of 50 mm between coil and EUT surface. Other distance rings can be used to scale the current-fieldstrength ratio. The highest fieldstrength levels can be achieved using the shortest ring. There are further rings available on request in order to provide a certain scaling between coil current and magnetic fieldstrength (e.g. 1 Amp coil current = 100 Amp/m fieldstrength).
Application as magnetic field probe:
The FESP 5132 can also be used to measure existing magnetic fields. The open circuit output voltage is directly proportional to the magnetic fieldstrength (at fixed frequency) or directly proportional to frequency (at constant magnetic fieldstrength).
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
| Number of turns: | 20 |
| Wire diameter: | 2 mm Cu (AWG 12) |
| Maximum Coil Current: | 20 A (5 min.) |
| Nominal Coil Current: | 10 A continuous |
| Max. Magn. Field Strength: | 1500 A/m (5 min.) |
| Nominal Magn. Field Strength: | 750 A/m continuous |
|
Magn. Field Strength, 1 A Coil Current: (with 50 mm distance ring) |
75.56 A/m |
|
Current required for 1 A/m: |
13.23 mA |
| Medium coil diameter: | 120 mm |
| Spacing coil center to measurement plane: | 50 mm |
| Mechanical Dimensions: | 0.16 m x 0.25 (0.3) m |
| Terminals: | 4 mm |
| Usable Frequency Range: | 0 - 150 kHz |
|
Resistance: |
0.1 Ω |
|
Weight: |
1.2 kg |
|
Standard: |
ISO 11452-8 MIL 461E RS101 EN 55103 5.18.3.2 |
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
FESP 5132
|
Излучающая рамка FESP 5132
|
По запросу |
1
| Опции |
|
LoopHolder50
|
Калибровочная оснастка, чтобы закрепить FESP 5134-40 в FESP 5132 на расстоянии 50 mm в соотв. MIL461E схема RS101-3
|
По запросу |
