Компания Schwarzbeck Mess-Elektronik - немецкая фирма, разрабатывающая и производящая продукцию для измерений и испытаний на ЭМС (электромагнитную совместимость). Компания была основана в 1953 году в Германии Гюнтером Шварцбеком, который во всей Европе считается основоположником по созданию приборов для ЭМС-измерений. Головной офис Schwarzbeck Mess-Elektronik расположен в городе Шёнау-им-Шварцвальд.
Компания Schwarzbeck Mess-Elektronik выпускает широкий ряд измерительных антенн с сопутствующими аксессуарами, эквиваленты сети, системы… подробнее

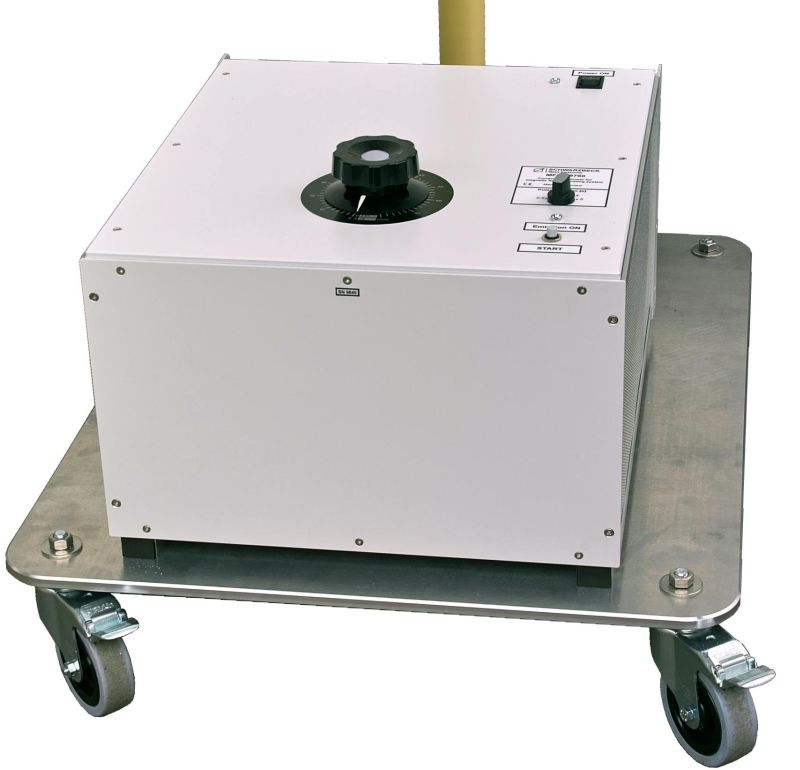

The MFPO 9760 is a current transformer for the typical mains frequencies of 50 Hz / 60 Hz. It is used to feed the 1 m square induction coil FESP 5410-1. This coil can reach magnetic field strengths of 1000 A/m for short time and 360 A/m continuously in its center. As this coil has only one turn it has relatively low inductance and can be used for fast signals in the time domain. On the other hand a one turn coil has a low coil factor and needs to be driven with hundreds of Ampere to reach the fields expected by IEC 61000-4-8.
The pulse generator which is built into MFPO 9760 allows defined “ON intervals” of 0.5…5.0 seconds. Other time intervals can be set by manually holding the start button longer. Alternatively the interval can be set usiing the remote input.
The MFPO 9760 is a current transformer for the typical mains frequencies of 50 Hz / 60 Hz. It is used to feed the 1 m square induction coil FESP 5410-1. This coil can reach magnetic field strengths of 1000 A/m for short time and 360 A/m continuously in its center. As this coil has only one turn it has relatively low inductance and can be used for fast signals in the time domain. On the other hand a one turn coil has a low coil factor and needs to be driven with hundreds of Ampere to reach the fields expected by IEC 61000-4-8.
The pulse generator which is built into MFPO 9760 allows defined “ON intervals” of 0.5…5.0 seconds. Other time intervals can be set by manually holding the start button longer. Alternatively the interval can be set usiing the remote input.
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
- Узнайте по тел.: +7 (495) 105 96 88
- Напишите нам письмо: info@micro-electronics.ru
| Technical data MFPO 9760 with FESP 5410-1 | |
| Power requirement: | 230 V / 50/60 Hz / 16 A |
| Max. cont. current into coil: | 400 A |
| Max current (5 min): | 600 A |
| Max current (max 5 sec.): | 1200 A |
| Max. field strength (coil center, max 5 sec.): | >1000 A/m |
| Dimensions MFPO 9760 (W x D x H): | 650 x 800 x 490 |
| Weight: | approx. 60 kg |
| Connector: | male threads M16 |
|
Standard: |
IEC 61000-4-8 |
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
MFPO 9760
|
Трансформатор тока и генератор импульсов MFPO 9760
|
По запросу |
