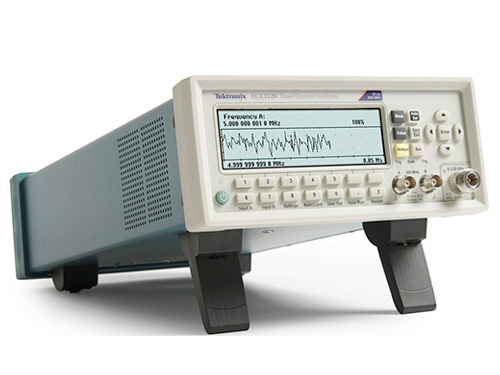

Частотомер/измеритель временных интервалов/анализатор 20 ГГц / 100 пс

FCA3000
Для увеличения картинки наведите мышкой
FCA3000FCA3000FCA3000
FCA3000FCA3000FCA3000
НаличиеПо запросу
По запросу
По запросу
По запросу
Частотомеры FCA3000 Подробнее
Обзор
Свернуть Развернуть
Основные возможности и технические характеристики

Features & Benefits

Key Performance Specifications
  • 300 MHz, 3 GHz, 20 GHz Models
  • 300-400 MHz in Manual Trigger Mode
  • Up to 3 Input Channels
  • 50 ps (FCA3100 Series) or 100 ps (FCA3000 Series) Single-shot Time Resolution
  • 12 Digit/s Frequency Resolution
  • 0.001° Phase Resolution
  • 3 mV or better Voltage Resolution
  • Optional 5×10–8 High-stability Oven Time Base
Measurement Throughput
  • 250k Sample/s Data Transfer Rate to Internal Memory(Up to 3.75M samples stored)
  • Up to 15k Sample/s Data Transfer Rate over USB/GPIB Bus(Block mode)
  • Up to 650 Individually Triggered Measurements/s
Available Functions and Features
  • Automated Measurements: Frequency, Period, Ratio, Time Interval, Time Interval Error, Pulse Width, Rise/Fall Time, Phase Angle, Duty Cycle, Maximum Voltage, Minimum Voltage, Peak-to-Peak Voltage
  • Totalize Measurement (FCA3100 Series)
  • Multi-parameter Display
  • Trend Plot Mode
  • Measurement Statistics Mode
  • Histogram Mode
  • Allan Deviation
  • Zero Dead-time Frequency/Period Measurements
  • Continuous Data Streaming over USB/GPIB Bus during Measurement (FCA3100 Series)
  • Programmable Pulse Output from 0.5 Hz to 50 MHz
Connectivity
  • Optional Rear-panel Inputs
  • USB Device and GPIB Ports on Rear Panel for Quick PC Connectivity
  • GPIB Interface Supports Full SCPI-compatible Programmability and offers an Emulation Mode for Plug-and-Play Replacement in Existing ATE Systems
  • External Arming Input
  • 10 MHz Reference Oscillator Output
  • Includes National Instrument's LabVIEW SignalExpress™ TE Limited Edition Software for Connecting Your Bench
  • Optional TimeView™ Software Available for Modulation Domain Analysis
3-year Warranty

Feature-rich Tools for Precision Measurements

The FCA3000 and FCA3100 Timer/Counter/Analyzer Series pack many different functions into one feature-rich instrument. With industry-leading frequency and time resolution, the FCA Series comes standard with deep internal memory and a fast data transfer rate of 250k Samples/s to internal memory. In addition, the multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.

Industry-leading Performance for Demanding Designs

High-resolution is critical for R&D and production testing on today's demanding designs. The FCA Series delivers 12-digit/s frequency resolution and for time measurements, single-shot resolution of 50 ps (FCA3100 Series) or 100 ps (FCA3000 Series) is available with measurement values displayed up to 14 digits. With industry-leading performance, the FCA Series provides you with fast, precise measurements.

Unique Features for Accurate Measurements

To ensure correct measurements of Allan Deviation, the FCA3100 Series offers a zero dead-time measurement technique and continuous time stamping of trigger events. This feature is vital for mechanical and medical measurements where every single cycle must be measured. The FCA3000 Series offers this functionality through the USB/GPIB interfaces with a raw time-stamping function.

For correct calculation of statistical parameters, the FCA Series comes standard with limit-qualifying capability. By setting limits, you can isolate one cluster in your calculation. This is important for applications such as verifying the jitter of digital pulses that appear in discrete clusters in CD players or in HDB3-coded data.

Also available is hysteresis compensation for time interval measurements. By adding hysteresis, you can reduce trigger-level error from the typical 15-20 mV found in most counters on the market today, down to a typical 2.5 mV. This means 6-8 times improved trigger precision in critical time interval measurements.

Fast Throughput Reduces Test Time

The FCA Timer/Counter/Analyzer Series offers industry-best throughput, saving you up to 90% on your testing time compared to other timer/counters on the market. Up to 250,000 measurement results per second can be stored in the internal memory. Alternatively, you can transfer up to 15,000 measurement results per second in Block mode through the GPIB or USB interface. For added flexibility, the FCA3100 Series offers a zero dead-time counter feature to continuously stream measurement data over the GPIB/USB bus during, not after, measurement. This creates a dynamic measurement and analysis system.

Analyze Your Device with the Industry's Only Graphical Display

With the unique display of the FCA Series, you can measure multiple parameters of the same signal from one test connection. To reveal signal quality issues like drift, intermittent transients, and stability, you can view the data as a real-time trend plot or a histogram with the FCA Series graphical display mode, or you can use measurement statistics to track how signal parameters are changing over time. A single-button Analyze mode gives you fast insight into the behavior of your device right on the timer/counter's display.

Multi-parameter Display
Thumbnail

Multi-parameter Display.

With the multi-parameter display, you can read important auxiliary measurement values (such as Vmax, Vmin, Vp-p, and more) displayed with your main frequency, time, period, or phase measurements. With one glance, you can see the information you need to quickly assess your device's performance.

Thumbnail

Phase Relationship Measurement.

With up to 3 input channels, you can measure the relationship between different signals. For example, you can measure the phase relationship between the input and output signals of your device. You can read other critical parameters simultaneously, such as the test frequency of the signal and the voltage ratio (in dB), in one glance with the multi-parameter display.

Measurement Trend Plots
Thumbnail

Trend Plot Analysis.

Depending on your test case, your signal parameters may change from instant to instant. With the Trend Plot Analysis mode, you can graphically plot the trend of a measured value over time.

Measurement Statistics
Thumbnail

Measurement Statistics.

With integrated statistics processing, you can calculate the average, standard, and Allan deviation of a measurement, as well as track the minimum and maximum measured values, all with the push of a button.

Histogram Plots
Thumbnail

Histogram Plot.

To graphically see the average and standard deviation of a set of measurements, you can use the histogram function to see the distribution of measurement results.

Optional Modulation Domain Analysis
Thumbnail

Tektronix TimeView™ Software.

With the optional Tektronix TimeView™ software (TVA3000), the FCA Timer/Counter/Analyzer Series can become a high-performance modulation domain analyzer. With high measurement speeds (up to 250k measurement/s) and large memory depth (up to 3.75M points), fast frequency changes can be captured in real time and then analyzed with TimeView. This comprehensive software tool allows for remote instrument control, and the analysis and display of measurement results in a choice of graphs. For example, results can be displayed as raw data, statistical histogram, waveform graph (as if you were using an oscilloscope), or as an FFT spectrum graph. TimeView further allows analysis of modulation parameters like modulation depth or frequency modulation index.

Designed to Make Your Work Easier

The FCA Timer/Counter/Analyzer Series are designed with the ease of use and familiar operation you have come to expect from Tektronix.

Intuitive Operation

Menu-oriented settings reduce the risk of mistakes. With dedicated and menu-driven front-panel buttons, you will have fast access to frequently used functions and parameters, reducing setup time. For example, a single-touch Analyze key toggles you between Statistics, Trend Plot, and Histogram modes.

Autoset Function

Similar to Tektronix oscilloscopes, the front-panel Autoset button will automatically set optimum trigger levels and hysteresis adapted to the actual signal applied.

Easy PC Connectivity

Connect to your PC with the rear-panel GPIB or USB device ports. The GPIB interface operates in SCPI/GPIB for plug-and-play replacement in existing ATE systems or easy integration into larger test systems. If desired, an emulation mode for existing timer/counters is available.

Connect Your Bench for Intelligent Debug

Easily capture, save, and analyze measurement results from your FCA Series timer/counter/analyzer with the special Tektronix Edition of National Instruments LabVIEW SignalExpress™ software. Every FCA Series timer/counter/analyzer ships with a free copy of the Limited Edition version of SignalExpress for basic instrument control, data logging, and analysis. The optional Professional Edition offers over 200 built-in functions that provide additional signal processing, advanced analysis, sweeping, limit testing, and user-defined step capabilities.

SignalExpress supports the range of Tektronix bench instruments*1 enabling you to connect your entire test bench. You can then access the feature-rich tools packed into each instrument from one intuitive software interface. This allows you to automate complex measurements requiring multiple instruments, log data for an extended period of time, time-correlate data from multiple instruments, and easily capture and analyze your results, all from your PC. Only Tektronix offers a connected test bench of intelligent instruments to simplify and speed debug of your complex design.

Performance You Can Count On

In addition to industry-leading service and support, every FCA Series timer/counter/analyzer comes backed with a three-year standard warranty.

Select the Performance/Features to Meet Your Needs

Feature

FCA3100 Series

FCA3000 Series

Frequency Resolution

12 digit/s

12 digit/s

Time Resolution

50 ps

100 ps

Voltage Resolution

1 mV

3 mV

Meas. Speed to Internal Memory

250k measurement/s

3.5M results

250k measurement/s

750k results

Talker-only Output (GPIB/USB)

4k measurement/s

No

Individually Triggered Measurements

650/s

500/s

Block Transfer Speed

15k measurement/s

5k measurement/s

Frequency/Period, Time, Phase, Volt, Duty Cycle, Pulse, Rise Time

Yes

Yes

Graphic Display of Trend, Histogram, Modulation Domain

Yes

Yes

Totalize, TIE

Yes

No

Programmable Pulse Output

Yes

No

Continuous Measurements

Yes

No

Свернуть Развернуть
Основные возможности и технические характеристики

Features & Benefits

Key Performance Specifications
  • 300 MHz, 3 GHz, 20 GHz Models
  • 300-400 MHz in Manual Trigger Mode
  • Up to 3 Input Channels
  • 50 ps (FCA3100 Series) or 100 ps (FCA3000 Series) Single-shot Time Resolution
  • 12 Digit/s Frequency Resolution
  • 0.001° Phase Resolution
  • 3 mV or better Voltage Resolution
  • Optional 5×10–8 High-stability Oven Time Base
Measurement Throughput
  • 250k Sample/s Data Transfer Rate to Internal Memory(Up to 3.75M samples stored)
  • Up to 15k Sample/s Data Transfer Rate over USB/GPIB Bus(Block mode)
  • Up to 650 Individually Triggered Measurements/s
Available Functions and Features
  • Automated Measurements: Frequency, Period, Ratio, Time Interval, Time Interval Error, Pulse Width, Rise/Fall Time, Phase Angle, Duty Cycle, Maximum Voltage, Minimum Voltage, Peak-to-Peak Voltage
  • Totalize Measurement (FCA3100 Series)
  • Multi-parameter Display
  • Trend Plot Mode
  • Measurement Statistics Mode
  • Histogram Mode
  • Allan Deviation
  • Zero Dead-time Frequency/Period Measurements
  • Continuous Data Streaming over USB/GPIB Bus during Measurement (FCA3100 Series)
  • Programmable Pulse Output from 0.5 Hz to 50 MHz
Connectivity
  • Optional Rear-panel Inputs
  • USB Device and GPIB Ports on Rear Panel for Quick PC Connectivity
  • GPIB Interface Supports Full SCPI-compatible Programmability and offers an Emulation Mode for Plug-and-Play Replacement in Existing ATE Systems
  • External Arming Input
  • 10 MHz Reference Oscillator Output
  • Includes National Instrument's LabVIEW SignalExpress™ TE Limited Edition Software for Connecting Your Bench
  • Optional TimeView™ Software Available for Modulation Domain Analysis
3-year Warranty

Feature-rich Tools for Precision Measurements

The FCA3000 and FCA3100 Timer/Counter/Analyzer Series pack many different functions into one feature-rich instrument. With industry-leading frequency and time resolution, the FCA Series comes standard with deep internal memory and a fast data transfer rate of 250k Samples/s to internal memory. In addition, the multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.

Industry-leading Performance for Demanding Designs

High-resolution is critical for R&D and production testing on today's demanding designs. The FCA Series delivers 12-digit/s frequency resolution and for time measurements, single-shot resolution of 50 ps (FCA3100 Series) or 100 ps (FCA3000 Series) is available with measurement values displayed up to 14 digits. With industry-leading performance, the FCA Series provides you with fast, precise measurements.

Unique Features for Accurate Measurements

To ensure correct measurements of Allan Deviation, the FCA3100 Series offers a zero dead-time measurement technique and continuous time stamping of trigger events. This feature is vital for mechanical and medical measurements where every single cycle must be measured. The FCA3000 Series offers this functionality through the USB/GPIB interfaces with a raw time-stamping function.

For correct calculation of statistical parameters, the FCA Series comes standard with limit-qualifying capability. By setting limits, you can isolate one cluster in your calculation. This is important for applications such as verifying the jitter of digital pulses that appear in discrete clusters in CD players or in HDB3-coded data.

Also available is hysteresis compensation for time interval measurements. By adding hysteresis, you can reduce trigger-level error from the typical 15-20 mV found in most counters on the market today, down to a typical 2.5 mV. This means 6-8 times improved trigger precision in critical time interval measurements.

Fast Throughput Reduces Test Time

The FCA Timer/Counter/Analyzer Series offers industry-best throughput, saving you up to 90% on your testing time compared to other timer/counters on the market. Up to 250,000 measurement results per second can be stored in the internal memory. Alternatively, you can transfer up to 15,000 measurement results per second in Block mode through the GPIB or USB interface. For added flexibility, the FCA3100 Series offers a zero dead-time counter feature to continuously stream measurement data over the GPIB/USB bus during, not after, measurement. This creates a dynamic measurement and analysis system.

Analyze Your Device with the Industry's Only Graphical Display

With the unique display of the FCA Series, you can measure multiple parameters of the same signal from one test connection. To reveal signal quality issues like drift, intermittent transients, and stability, you can view the data as a real-time trend plot or a histogram with the FCA Series graphical display mode, or you can use measurement statistics to track how signal parameters are changing over time. A single-button Analyze mode gives you fast insight into the behavior of your device right on the timer/counter's display.

Multi-parameter Display
Thumbnail

Multi-parameter Display.

With the multi-parameter display, you can read important auxiliary measurement values (such as Vmax, Vmin, Vp-p, and more) displayed with your main frequency, time, period, or phase measurements. With one glance, you can see the information you need to quickly assess your device's performance.

Thumbnail

Phase Relationship Measurement.

With up to 3 input channels, you can measure the relationship between different signals. For example, you can measure the phase relationship between the input and output signals of your device. You can read other critical parameters simultaneously, such as the test frequency of the signal and the voltage ratio (in dB), in one glance with the multi-parameter display.

Measurement Trend Plots
Thumbnail

Trend Plot Analysis.

Depending on your test case, your signal parameters may change from instant to instant. With the Trend Plot Analysis mode, you can graphically plot the trend of a measured value over time.

Measurement Statistics
Thumbnail

Measurement Statistics.

With integrated statistics processing, you can calculate the average, standard, and Allan deviation of a measurement, as well as track the minimum and maximum measured values, all with the push of a button.

Histogram Plots
Thumbnail

Histogram Plot.

To graphically see the average and standard deviation of a set of measurements, you can use the histogram function to see the distribution of measurement results.

Optional Modulation Domain Analysis
Thumbnail

Tektronix TimeView™ Software.

With the optional Tektronix TimeView™ software (TVA3000), the FCA Timer/Counter/Analyzer Series can become a high-performance modulation domain analyzer. With high measurement speeds (up to 250k measurement/s) and large memory depth (up to 3.75M points), fast frequency changes can be captured in real time and then analyzed with TimeView. This comprehensive software tool allows for remote instrument control, and the analysis and display of measurement results in a choice of graphs. For example, results can be displayed as raw data, statistical histogram, waveform graph (as if you were using an oscilloscope), or as an FFT spectrum graph. TimeView further allows analysis of modulation parameters like modulation depth or frequency modulation index.

Designed to Make Your Work Easier

The FCA Timer/Counter/Analyzer Series are designed with the ease of use and familiar operation you have come to expect from Tektronix.

Intuitive Operation

Menu-oriented settings reduce the risk of mistakes. With dedicated and menu-driven front-panel buttons, you will have fast access to frequently used functions and parameters, reducing setup time. For example, a single-touch Analyze key toggles you between Statistics, Trend Plot, and Histogram modes.

Autoset Function

Similar to Tektronix oscilloscopes, the front-panel Autoset button will automatically set optimum trigger levels and hysteresis adapted to the actual signal applied.

Easy PC Connectivity

Connect to your PC with the rear-panel GPIB or USB device ports. The GPIB interface operates in SCPI/GPIB for plug-and-play replacement in existing ATE systems or easy integration into larger test systems. If desired, an emulation mode for existing timer/counters is available.

Connect Your Bench for Intelligent Debug

Easily capture, save, and analyze measurement results from your FCA Series timer/counter/analyzer with the special Tektronix Edition of National Instruments LabVIEW SignalExpress™ software. Every FCA Series timer/counter/analyzer ships with a free copy of the Limited Edition version of SignalExpress for basic instrument control, data logging, and analysis. The optional Professional Edition offers over 200 built-in functions that provide additional signal processing, advanced analysis, sweeping, limit testing, and user-defined step capabilities.

SignalExpress supports the range of Tektronix bench instruments*1 enabling you to connect your entire test bench. You can then access the feature-rich tools packed into each instrument from one intuitive software interface. This allows you to automate complex measurements requiring multiple instruments, log data for an extended period of time, time-correlate data from multiple instruments, and easily capture and analyze your results, all from your PC. Only Tektronix offers a connected test bench of intelligent instruments to simplify and speed debug of your complex design.

Performance You Can Count On

In addition to industry-leading service and support, every FCA Series timer/counter/analyzer comes backed with a three-year standard warranty.

Select the Performance/Features to Meet Your Needs

Feature

FCA3100 Series

FCA3000 Series

Frequency Resolution

12 digit/s

12 digit/s

Time Resolution

50 ps

100 ps

Voltage Resolution

1 mV

3 mV

Meas. Speed to Internal Memory

250k measurement/s

3.5M results

250k measurement/s

750k results

Talker-only Output (GPIB/USB)

4k measurement/s

No

Individually Triggered Measurements

650/s

500/s

Block Transfer Speed

15k measurement/s

5k measurement/s

Frequency/Period, Time, Phase, Volt, Duty Cycle, Pulse, Rise Time

Yes

Yes

Graphic Display of Trend, Histogram, Modulation Domain

Yes

Yes

Totalize, TIE

Yes

No

Programmable Pulse Output

Yes

No

Continuous Measurements

Yes

No

  • Timer/Counter
  • Line cord
  • Calibration certificate
  • Quick Start User Manual
  • CD-ROM with user manual (English, French, German, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Japanese)
  • Programmer's Guide
  • Technical Specifications
  • Trial version of TimeView™ Software, and CD-ROM with National Instruments LabVIEW SignalExpress™ Tektronix Edition
  • Limited Edition Software.
  • Timer/Counter
  • Line cord
  • Calibration certificate
  • Quick Start User Manual
  • CD-ROM with user manual (English, French, German, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Japanese)
  • Programmer's Guide
  • Technical Specifications
  • Trial version of TimeView™ Software, and CD-ROM with National Instruments LabVIEW SignalExpress™ Tektronix Edition
  • Limited Edition Software.
  • Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    51532-12
    Частотомеры универсальные
    Tektronix FCA3000, FCA3003, FCA3020, FCA3100, FCA3103, FCA3120, MCA3027, MCA3040
    Фирма "Altaria Services Sp. Z O.O", Польша
    04.09.2022

    Свернуть Развернуть
    Сведения о реестре СИ

    Номер в Госреестре

    Наименование СИ

    Обозначение типа СИ

    Изготовитель

    Срок свидетельства или заводской номер

    51532-12
    Частотомеры универсальные
    Tektronix FCA3000, FCA3003, FCA3020, FCA3100, FCA3103, FCA3120, MCA3027, MCA3040
    Фирма "Altaria Services Sp. Z O.O", Польша
    04.09.2022

    Характеристики
    Загрузить технические характеристики

    Measuring Functions

    All measurements are displayed with a large main parameter value and smaller auxiliary parameter values (with less resolution). Some measurements are only available as auxiliary parameters.

    Frequency A, B, C

    Characteristic

    Description

    Mode

    Normal, Back-to-Back (FCA3100 Series)

    Range

       Input A, B

    0.001 Hz to 300 MHz

    300-400 MHz in Manual Trigger mode

       Input C

    100 MHz to 3 GHz or 300 MHz to 20 GHz

    Resolution

    12 digits in 1 s measuring time (normal)

    11 digits in 1 s measuring time (back-to-back)

    Aux Parameters

    Vmax, Vmin, Vp-p


    Frequency Burst A, B, C(FCA3020 and FCA3120 – 20 GHz Only)

    Characteristic

    Description

    Frequency and PRF of repetitive burst signals can be measured without an external control signal and with selectable-start arming delay.

    Functions

    Frequency in burst (in Hz) PRF (in Hz)

    Range

    Input A, B, C: See Frequency spec.

    Minimum Burst Duration

    Down to 40 ns

    Minimum Pulses in Burst

       Input A, B

    3 (6 above 160 MHz)

       Input C

    3 × prescaler factor

    PRF Range

    0.5 Hz to 1 MHz

    Start Delay

    10 ns to 2 s, 10 ns resolution

    Aux Parameters

    PRF


    Period A, B, C

    Characteristic

    Description

    Mode

    Single, Average, Back-to-Back (FCA3100 Series)

    Range

       Input A, B

    3.3 ns to 1000 s (single, average)

    4.0 µs to 1000 s (back-to-back)

       Input C

    10 ns down to 50 ps

    Resolution

    100 ps (single); 12 digit/s avg. (FCA3000 Series)

    50 ps (single); 12 digit/s avg. (FCA3100 Series)

    Aux Parameters

    Vmax, Vmin, Vp-p


    Ratio A/B, B/A, C/A, C/B

    Characteristic

    Description

    Range

    (10–9) to 1011

    Input Frequency

       Input A, B

    0.1 Hz to 300 MHz

    300-400 MHz in Manual Trigger mode

       Input C

    3 or 20 GHz

    Aux Parameters

    Freq 1, Freq 2


    Time Interval A to B, B to A, A to A, B to B

    Characteristic

    Description

    Range

    Normal calculation: 0 ns to +106 s

    Smart calculation: –106 s to +106 s

    Resolution

    100 ps single (FCA3000 Series)

    50 ps single (FCA3100 Series)

    Min Pulse Width

    1.6 ns

    Smart Calculation

    Smart Time Interval to determine sign (A before B or A after B)


    Positive and Negative Pulse Width A, B

    Characteristic

    Description

    Range

    2.3 ns to 106 s

    Min Pulse Width

    2.3 ns

    Aux Parameters

    Vmax, Vmin, Vp-p


    Rise and Fall Time A, B

    Characteristic

    Description

    Range

    1.5 ns to 106 s

    Trigger Levels

    10% and 90% of signal amplitude

    Min Pulse Width

    1.6 ns

    Aux Parameters

    Slew rate, Vmax, Vmin


    Time Interval Error (TIE) A, B

    Normalized period back-to-back measurements, calculated as TIE(k) = k * TREF - ∑TI, when TI = Individual Period Back-to-Back and TREF = Reference Period Value.


    Positive and Negative Duty Factor A, B

    Characteristic

    Description

    Range

    0.000001 to 0.999999

    Frequency Range

    0.1 Hz to 300 MHz

    Aux Parameters

    Period, pulse width


    Phase A Relative B, B Relative A

    Characteristic

    Description

    Range

    –180° to +360°

    Resolution

    Single cycle: 0.001° to 10 kHz, decreasing to 1° >10 MHz. Resolution can be improved by averaging (statistics)

    Frequency Range

    Up to 160 MHz

    Aux Parameters

    Freq (A), Va/Vb (in dB)


    Totalize A, B (FCA3100 Series)

    Characteristic

    Description

    Mode

    Tot A, Tot B, Tot A+B, Tot A–B, Tot A/B

    Range

    1 to 1010 counts

    Frequency Range

    Up to 160 MHz

    Start Control

    Manual, start arming

    Stop Control

    Manual, stop arming, timed

    Aux Parameters

    Other Totalize functions


    Vmax, Vmin, Vp-p A, B

    Characteristic

    Description

    Range

    –50 V to +50 V, –5 V to +5 V

    Range is limited by the specification for max input voltage without damage (see input A, B)

    Frequency Range

    DC, 1 Hz to 300 MHz

    Mode

    Vmax, Vmin, Vp-p

    Resolution

    3 mV (FCA3000 Series)

    1 mV (FCA3100 Series)

    Uncertainty (5 V range, typical)

       DC, 1 Hz to 1 kHz

    1% + 15 mV

       1 kHz to 20 MHz

    3% + 15 mV

       20 to 100 MHz

    10% + 15 mV

       100 to 300 MHz

    30% + 15 mV

    Aux Parameters

    Vmin, Vmax, Vp-p


    Time Stamping A, B, C

    Characteristic

    Description

    Raw time-stamp data together with pulse counts on inputs A, B, or C, accessible through GPIB or USB only.

    Max Sample Speed

    See GPIB specifications

    Max Frequency

    160 MHz

    Time-stamp Resolution

    100 ps (FCA3000 Series)

    50 ps (FCA3100 Series)


    Input and Output Specifications

    Inputs A and B

    Characteristic

    Description

    Frequency Range

    DC Coupled: DC to 300 MHz

    AC Coupled: 10 Hz to 300 MHz

    300-400 MHz in Manual Trigger mode for both AC and DC

    Impedance

    1 MΩ / 20 pF or 50 Ω (VSWR ≤ 2:1)

    Trigger Slope

    Positive or negative

    Max Channel Timing Difference

    500 ps

    Sensitivity

    15 mVRMS (DC-200 MHz)

    25 mVRMS (200-400 MHz)

    Attenuation

    X1, X10

    Dynamic Range (X1)

    30 mVp-p to 10 Vp-p within ±5 V window

    Trigger Level

    Readout on display

       Resolution

    FCA3000 Series: 3 mV

    FCA3100 Series: 1 mV

       Uncertainty (X1)

    ±(15 mV + 1% of trigger level)

       AUTO trigger level

    Trigger level is automatically set to 50% point of input signal (10% and 90% for rise/fall time)

    Auto Hysteresis

       Time

    Min hysteresis window (hysteresis compensation)

       Frequency

    One-third of input signal amplitude

       Frequency Range

    1 Hz to 300 MHz

    Analog LP Filter

    Nominal 100 kHz, RC type

    Digital LP Filter

    1 Hz to 50 MHz cutoff frequency

    Max Voltage without Damage

       1 MΩ

    350 V (DC + AC peak) to 440 Hz, falling to 12 VRMS (X1) at 1 MHz

       50 Ω

    12 VRMS (Unprotected Input)

    Connector

    BNC


    Input C – 3 GHz (FCA3003 and FCA3103 Products)

    Characteristic

    Description

    Operating Input Voltage Range

       100 to 300 MHz

    20 mVRMS to 12 VRMS

       0.3 to 2.5 GHz

    10 mVRMS to 12 VRMS

       2.5 to 2.7 GHz

    20 mVRMS to 12 VRMS

       2.7 to 3.0 GHz

    40 mVRMS to 12 VRMS

    Prescaler Factor

    16

    Impedance

    50 Ω nominal, VSWR < 2.5:1

    Max Voltage without Damage

    12 VRMS, pin-diode protected

    Connector

    Type-N Female


    Input C – 20 GHz (FCA3020 and FCA3120 Products)

    Characteristic

    Description

    Frequency Range

    0.25 to 20 GHz

    Operating Input Voltage Range

       250 to 500 MHz

    –21 to +27 dBm

       0.5 to 14 GHz

    –27 to +27 dBm

       14 to 18 GHz

    –27 to +27 dBm

       18 to 20 GHz

    –21 to +27 dBm

    Prescaler Factor

    128

    Impedance

    50 Ω nominal, VSWR < 2.0:1

    AM Tolerance

    >90% within sensitivity range

    Max Voltage without Damage

    +27 dBm

    Connector

    Type Precision-N Female


    Rear Panel Inputs and Outputs

    Characteristic

    Description

    Reference Input

    1, 5, or 10 MHz; 0.1 to 5 VRMS sine; impedance ≥1 kΩ

    Reference Output

    10 MHz; >1 VRMS sine into 50 Ω

    Arming Input

    Arming of all measuring functions

       Impedance

    Approx. 1 kΩ

       Frequency range

    DC to 80 MHz

    Pulse Output

    (FCA3100 Series)

    Programmable through front GPIB/USB

       Mode

    Pulse Out, Gate Open, Alarm Out

       Period

    20 ns - 2 s, in 10 ns increments

       Pulse width

    10 ns - 2 s, in 10 ns increments

       Output

    TTL levels in 50 Ω, rise time 2 ns

    Rear-panel Measurement Inputs

    A, B, C (Option RP only)

       Impedance

    1 MΩ / 50 pF or 50 Ω (VSWR ≤ 2:1)

       Connectors

    SMA female for rear input C

    BNC for all other inputs/outputs


    Auxiliary Functions

    Trigger Holdoff

    Characteristic

    Description

    Time Delay Range

    20 ns to 2 s, 10 ns resolution


    External Start and Stop Arming

    Characteristic

    Description

    Modes

    Start, Stop, Start and Stop Arming

    Input Channels

    A, B, or (rear panel) E

    Max Rep. Rate for Arming Signal

       Channel A, B

    160 MHz

       Channel E

    80 MHz

    Start-time Delay Range

    20 ns to 2 s, 10 ns resolution


    Statistics

    Characteristic

    Description

    Functions

    Maximum, Minimum, Mean, ΔMax-Min, Standard Deviation, and Allan Deviation

    Display

    Numeric, histograms, or trend plots

    Sample Size

    2 to 2 × 109 samples

    Limit Qualifier

    Off, or capture values above, below, inside, or outside limits

    Measurement Pacing

    Pacing Time Range: 4 µs to 500 s


    Mathematics

    Characteristic

    Description

    Functions

    (K*X+L)/M and (K/X+L)/M. X is current reading and K, L, and M are constants; set using the keyboard or as frozen reference value (X0)


    Other Functions

    Characteristic

    Description

    Measuring Time

    20 ns to 1000 s for frequency, burst, and period average. Single cycle for other measuring functions

    Time-base Reference

    Internal, external, or automatic

    Display Hold

    Freezes the result, until a new measurement is initiated through a restart

    Limit Alarm

    Graphical indication on front panel and/or SRQ through GPIB, plus pulse output connector (FCA3100 Series)

    Limit Values

    Lower limit, upper limit

    Settings

    Off, or alarm if value is above, below, inside, or outside limits

    On Alarm

    Stop or Continue

    Display

    Numeric + Graphic

    Stored Instrument Setups

    20. Instrument setups can be saved/recalled from internal nonvolatile memory. 10 can be user protected

    Display

    Backlit LCD graphics screen for menu control, numerical readout, and status information

       Number of digits

    14 digits in Numerical mode

       Resolution

    320 × 97 pixels


    GPIB Interface

    Characteristic

    Description

    Compatibility

    IEEE 488.2-1987, SCPI 199953131A Compatibility mode

    Interface Functions

    SH1, AH1, T6, L4, SR1, RL1, DC1, DT1, E2

    Max Measurement Rate

       GPIB

    15k/5k readings/s (Block mode)

    4k/- readings/s (Talker Only mode)

    650/500 readings/s (individual GET triggered)

       To internal memory

    250k readings/s

    Internal Memory Size

    750k readings (FCA3000 Series)

    3.75M readings (FCA3100 Series)


    USB Interface

    Characteristic

    Description

    USB Version

    2.0 full speed (11 Mb/s)


    Calibration

    Characteristic

    Description

    Mode

    Closed case, menu controlled

    Calibration Frequencies

    0.1, 1, 5, 10, 1.544, and 2.048 MHz


    General Specifications

    Environmental Data

    Characteristic

    Description

    Class

    MIL-PRF-28800F, Class 3

    Operating Temp

    0 °C to +50 °C

    Storage Temp

    –40 °C to +71 °C

    Humidity

    5-95% (10-30 °C)

    5-75% (30-40 °C)

    5-45% (40-50 °C)

    Altitude

    Operating: 2,000 m

    Storage: 12,000 m

    Safety

    Directive 2006/95/EC, EN61010-1, UL61010-1, CAN/CSA C22.2 No. 61010-1

    EMC

    EU Directive 2004/108/EC, EN61326-1, EN61326-2-1, Class A


    Power Requirements

    Characteristic

    Description

    Basic Version

    90 to 265 VRMS, 45 to 440 Hz, <40 W


    Time-base Options

    Characteristic

    Standard

    Medium Stability (MS)

    High Stability (HS)

    Time-base Type

    TCXO

    OCXO

    OCXO

    Uncertainty Due to –

       Aging

          Per 24h

    NA

    <5×10–9*1

    <5×10–10*1

          Per month

    <5×10–7

    <6×10–8

    <1×10–8

          Per year

    <5×10–6

    <2×10–7

    <5×10–8

       Temperature variation (typ. values)

          0-50 °C

    <1×10–5

    <5×10–8

    <5×10–9

          20-26 °C

    <3×10–6

    <2×10–8

    <1×10–9

    Short-term Stability: t = 1 s

    Not specified

    <1×10–10

    <1×10–11

    Root Allan Variance: t = 10 s

    Not specified

    <1×10–10

    <1×10–11

    Power-on Stability

    NA

    <1×10–7

    <1×10–8

       Deviation versus final value after 24h ON time, after a warm-up time of:

    30 min

    30 min

    10 min

    Total Uncertainty, for Operating Temperature 20 °C to 26 °C, at 2σ (95%) Confidence Interval

       1 year after calibration

    <7×10–6

    <2.4×10–7

    <0.6×10–7

       2 years after calibration

    <1.2×10–5

    <4.6×10–7

    <1.2×10–7


    *1 After 1 month of continuous operation.

    Physical

    Dimension

    mm

    in.

    Height

    90

    3.6

    Width

    210

    8.25

    Depth

    395

    15.6

    Weight

    kg

    lb.

    Net

    2.7

    5.8

    Shipping

    3.5

    7.5


    Модели и опции
    Товар
    Модели и Опции
    Описание
    Цена Заказать
    Модели
    FCA3000
    Частотомер/измеритель временных интервалов/анализатор 300 МГц / 100 пс
    По запросу
    - шт +
    FCA3003
    Частотомер/измеритель временных интервалов/анализатор 3 ГГц / 100 пс
    По запросу
    - шт +
    FCA3020
    Частотомер/измеритель временных интервалов/анализатор 20 ГГц / 100 пс
    По запросу
    - шт +
    Service options
    C3
    Calibration Service3Years
    По запросу
    - шт +
    C5
    Calibration Service5Years
    По запросу
    - шт +
    D1
    Calibration Data Report
    По запросу
    - шт +
    R5
    Repair Service 5 Years
    По запросу
    - шт +
    SILV200
    Standard Warranty Extended to 5 Years (FCA3000, FCA3003, FCA3100, and FCA3103)
    По запросу
    - шт +
    SILV400
    Standard Warranty Extended to 5 Years (FCA3020 and FCA3120)
    По запросу
    - шт +
    Power plug options
    A3
    Australia
    По запросу
    - шт +
    A5
    Switzerland
    По запросу
    - шт +
    A6
    Japan
    По запросу
    - шт +
    A10
    China
    По запросу
    - шт +
    A11
    India
    По запросу
    - шт +
    A12
    Brazil
    По запросу
    - шт +
    E1
    UK and Euro (FCA3000 and FCA3100 only)
    По запросу
    - шт +
    A0
    North America
    По запросу
    - шт +
    A1
    Universal Euro
    По запросу
    - шт +
    A2
    United Kingdom
    По запросу
    - шт +
    Instrument options
    MS
    Medium-stability Oven Time Base
    По запросу
    - шт +
    HS
    High-stability Oven Time Base
    По запросу
    - шт +
    RP
    Rear-panel Connectors
    По запросу
    - шт +
    Recommended Accessories and Software
    RMU2U
    Rackmount Shelf Kit for 2 Units
    По запросу
    - шт +
    HCTEK4321
    Hard Carrying Case
    По запросу
    - шт +
    ACD4000
    Soft Carrying Case
    По запросу
    - шт +
    174-4401-xx
    USB Host to Device Cable, 3 ft.
    По запросу
    - шт +
    012-0991-xx
    GPIB Cable, Double Shielded
    По запросу
    - шт +
    012-1256-xx
    BNC Male to BNC Male, Cable Shielded, 9 ft., 50 Q
    По запросу
    - шт +
    012-0482-xx
    BNC Male to BNC Male, Cable Shielded, 3 ft., 50 Q
    По запросу
    - шт +
    SIGEXPTE
    National Instruments SignalExpress™ Tektronix Edition Interactive Measurement Software - Professional Version
    По запросу
    - шт +
    TVA3000
    TimeView™Modulation Domain Analysis Software
    По запросу
    - шт +
    Библиотека

    Основные сведения о продукте

    Посмотреть более подробную информацию о возможностях этого продукта.

    Технические характеристики

    Отзывы
    Добавить отзыв
    Оцените товар:
    Ваше имя
    Достоинства

    Недостатки

    Комментарий

    Символы на картинке


    Тут еще никто ничего не писал, стань первым!
    Список просмотренных товаров пуст
    Список избранного пуст
    Ваша корзина пуста
    Помощь
    Ошибка на сайте? Выдели её и нажми Ctrl+Enter
