Генератор сигналов, 120 МГц, 2 канала
Наличие: По запросуПо запросу По запросу По запросу
Генераторы сигналов 33600A Подробнее
Американская компания Keysight Technologies начала свою историю в 1930-х годах прошлого века. Сегодня – это лидер в производстве измерительного оборудования и САПР (систем автоматизированного проектирования). Keysight Technologies предлагает интегрированные решения, объединяющие измерения, экстракцию параметров и верификацию разработок.
Компания Keysight Technologies производит осциллографы, анализаторы, измерители, генераторы, источники питания, а также… подробнее
Обзор
Свернуть
Развернуть
Основные возможности и технические характеристики
Generate Trueform arbitrary waveforms with less jitter, more idelity and greater resolution
33600A Series waveform generators with exclusive Trueform
signal generation technology offer more capability, idelity
and lexibility than previous generation Direct Digital Synthesis (DDS) generators. Use them to accelerate your development process from start to inish.
- 1 GSa/s sampling rate and up to 120 MHz bandwidth
- Arbs with sequencing and up to 64 MSa memory
- 1 ps jitter, 200x better than DDS generators
- 5x lower harmonic distortion than DDS
- Compatible with Keysight Technologies, Inc. BenchVue software
Over the past two decades, DDS has been the waveform generation technology of choice in function generators and economical arbitrary waveform generators. DDS enables waveform generators with great frequency resolution, convenient custom waveforms, and a low price.
As with any technology, DDS has its limitations. Engineers with exacting requirements have had to either work around the compromised performance or spend up to 5 times more for a high- end, point-per-clock waveform generator.
Keysight Technologies, Inc. Trueform technology offers an alternative that blends the best of DDS and point-per-clock architectures, giving you the beneits of both without the limitations of either. Trueform technology uses an exclusive digital sampling technique that delivers unmatched performance at the same low price you are accustomed to with DDS.
The table below highlights the revolutionary capabilities of Trueform technology.
Свернуть
Развернуть
Основные возможности и технические характеристики
Generate Trueform arbitrary waveforms with less jitter, more idelity and greater resolution
33600A Series waveform generators with exclusive Trueform
signal generation technology offer more capability, idelity
and lexibility than previous generation Direct Digital Synthesis (DDS) generators. Use them to accelerate your development process from start to inish.
- 1 GSa/s sampling rate and up to 120 MHz bandwidth
- Arbs with sequencing and up to 64 MSa memory
- 1 ps jitter, 200x better than DDS generators
- 5x lower harmonic distortion than DDS
- Compatible with Keysight Technologies, Inc. BenchVue software
Over the past two decades, DDS has been the waveform generation technology of choice in function generators and economical arbitrary waveform generators. DDS enables waveform generators with great frequency resolution, convenient custom waveforms, and a low price.
As with any technology, DDS has its limitations. Engineers with exacting requirements have had to either work around the compromised performance or spend up to 5 times more for a high- end, point-per-clock waveform generator.
Keysight Technologies, Inc. Trueform technology offers an alternative that blends the best of DDS and point-per-clock architectures, giving you the beneits of both without the limitations of either. Trueform technology uses an exclusive digital sampling technique that delivers unmatched performance at the same low price you are accustomed to with DDS.
The table below highlights the revolutionary capabilities of Trueform technology.
Свернуть
Развернуть
Комплектация
All models come with a rich set of built-in
standard features
including LAN

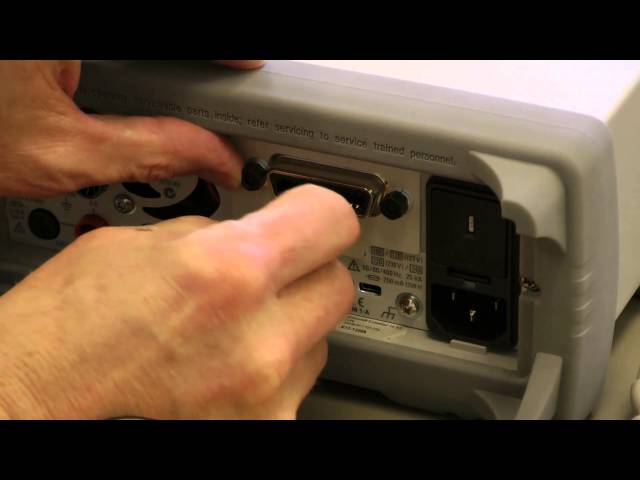

USB and optional GPIB interface
4 MSample of memory, an external timebase input
Basic waveform generation software
Свернуть
Развернуть
Комплектация
All models come with a rich set of built-in
standard features
including LAN
USB and optional GPIB interface
4 MSample of memory, an external timebase input
Basic waveform generation software
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
Свернуть
Развернуть
Сведения о реестре СИ
|
Номер в Госреестре |
Наименование СИ |
Обозначение типа СИ |
Изготовитель |
Срок свидетельства или заводской номер |
|---|---|---|---|---|
| Не в реестре | ||||
Характеристики
Загрузить технические характеристики
| Specifications | |||||||||
| Unless otherwise stated, all speciications apply with a 50-Ω resistive load and automatic amplitude range selection enabled. | |||||||||
| Instrument characteristics | |||||||||
| Models & options | |||||||||
| Model number | 33611A | 33612A | 33621A | 33622A | |||||
| Maximum frequency | 80 MHz | 80 MHz | 120 MHz | 120 MHz | |||||
| Number of channels | 1 | 2 | 1 | 2 | |||||
| Option MEM | Increases arbitrary waveform memory from 4 MSa/channel to 64 MSa/channel | ||||||||
| Option IQP | IQ player (33612A/22A only) | ||||||||
| Option SEC | Enables NISPOM and ile security | ||||||||
| Option OCX | Oven-controlled frequency reference for improved stability, jitter, and phase noise | ||||||||
| Waveforms | |||||||||
| Standard | Sine, Square, Ramp, Pulse, Triangle, Gaussian Noise, PRBS (Pseudorandom Binary Sequence), DC | ||||||||
| Built-in arbitrary | Cardiac, Exponential Fall, Exponential Rise, Gaussian Pulse, Haversine, Lorentz, D-Lorentz, Negative Ramp, Sinc | ||||||||
| User-deined arbitrary | Up to 4 MSa (64 MSa with Option MEM) with multi-segment sequencing | ||||||||
| Operating modes & modulation types | |||||||||
| Operating modes | Continuous, Modulate, Frequency Sweep, Counted Burst, Gated Burst | ||||||||

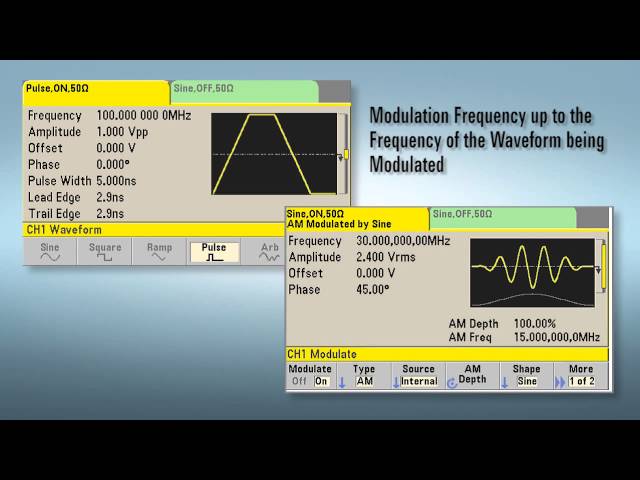

| Modulation types | AM, FM, PM, FSK, BPSK, PWM, Sum (carrier + modulation) | ||||||||
| Waveform characteristics (all 33600A models) | |||||||||
| Sine | |||||||||
| Frequency ranges | |||||||||
| VOUT ≤ 10 Vpp | 1 µHz to 60 MHz, 1-µHz resolution | ||||||||
| VOUT ≤ 8 Vpp | 1 µHz to 80 MHz, 1-µHz resolution | ||||||||
| VOUT ≤ 4 Vpp | 1 µHz to 120 MHz, 1-µHz resolution 1 | ||||||||
| Amplitude latness (rel. to 1 kHz) (spec) 2, 3 | VOUT = 1 Vpp | VOUT > 1 Vpp | |||||||
| fOUT < 10 MHz | ± 0.10 dB | ± 0.10 dB | |||||||
| fOUT = 10 MHz to 60 MHz | ± 0.20 dB | ± 0.25 dB | |||||||
| fOUT = 60 MHz to 80 MHz | ± 0.30 dB | ± 0.40 dB | |||||||
| fOUT = 80 MHz to 120 MHz 1 | ± 0.40 dB | ± 0.50 dB | |||||||
| Harmonic distortion (typ) 2 | VOUT = 1 Vpp | VOUT = 4 Vpp | VOUT = 8 Vpp | VOUT=10 Vpp | |||||
| fOUT < 1 MHz | −70 dBc | −69 dBc | −68 dBc | −67 dBc | |||||
| fOUT < 1 MHz to 10 MHz | −61 dBc | −58 dBc | −54 dBc | −51 dBc | |||||
| fOUT > 10 MHz | −43 dBc | −36 dBc | −40 dBc | −39 dBc | |||||
| THD (typ) 2 | VOUT = 1 Vpp | VOUT > 1 Vpp | |||||||
| fOUT = 20 Hz to 20 kHz | 0.03% | 0.04% | |||||||
| Non-harmonic spurious (VOUT ≥ 300 mVpp) (typ) 2, 4 | |||||||||
| fOUT < 10 MHz | −80 dBc | ||||||||
| fOUT = 10 MHz to 60 MHz | −75 dBc | ||||||||
| fOUT > 60 MHz | −70 dBc | ||||||||
| Phase noise (SSB) (meas) 5 | fOUT = 80 MHz | fOUT = 80 MHz, Opt OCX | fOUT = 120 MHz 1 | fOUT= 120 MHz, Opt OCX 1 | |||||
| 100-Hz offset | −105 dBc/Hz | −114 dBc/Hz | −101 dBc/Hz | −110 dBc/Hz | |||||
| 1-kHz offset | −116 dBc/Hz | −122 dBc/Hz | −112 dBc/Hz | −118 dBc/Hz | |||||
| 10-kHz offset | −122 dBc/Hz | −125 dBc/Hz | −118 dBc/Hz | −121 dBc/Hz | |||||
| 100-kHz offset | −129 dBc/Hz | −131 dBc/Hz | −125 dBc/Hz | −127 dBc/Hz | |||||
| Square & pulse | |||||||||
| Frequency ranges | |||||||||
| Vout≤10Vpp | 1 μHz to 50 MHz, 1-pHz resolution | ||||||||
| Vout≤4pp | 1 μHz to 100 MHz, 1-pHz resolution 1 | ||||||||
| Rise & fall time (nom) | Square | Pulse | |||||||
| Vout ≤ 4Vpp | 2.9 ns | 2.9 ns to 1 ms, independently variable, 100-ps resolution | |||||||
| Vout ≤ 4Vpp | 4.0 ns | 3.3 ns to 1 ms, independently variable, 100-ps resolutio | |||||||
| Overshoot (typ) | Square | Pulse, min. edge | Pulse, 4-ns edge | Pulse, > 6-ns edge | |||||
| Vout ≤ 4 Vpp | < 4% | < 4% | < 2% | < 2% | |||||
| Vout ≤ 4Vpp | < 4% | < 7% | < 4% | < 2% | |||||
| Duty cycle 6 | 0.01% to 99.99%, 0.01% resolution | ||||||||
| Pulse width | |||||||||
| Vout≤4pp | 5 ns minimum (high or low), 1-ps resolution | ||||||||
| Vout≤4pp | 8 ns minimum (high or low), 1-ps resolution | ||||||||
| Jitter (rms) (meas) 7 | Standard | Opt OCX | |||||||
| 10-Hz to 40-MHz band | 1 ps | 0.5 ps | |||||||
| Ramp & triangle | |||||||||
| Frequency range | 1 pHz to 800 kHz, 1-pHz resolution | ||||||||
| Ramp symmetry | 0% to 100%, 0.1% resolution, (0% is negative ramp, 100% is positive ramp, 50% is triangle) | ||||||||
| Nonlinearity (typ) | < 0.05% from 5% to 95% of the signal amplitude | ||||||||
| Gaussian noise | |||||||||
| Variable bandwidth (nom) | |||||||||
| Vout≤10Vpp | 1 mHz to 60 MHz | ||||||||
| Vout≤8Vpp | 1 mHz to 80 MHz | ||||||||
| Vout≤4Vpp | 1 mHz to 120 MHz 1 | ||||||||
| Crest factor (nom) | 4,6 | ||||||||
| Repetition period Pseudorandom binary sequence (PRBS) Bit rate | > 100 years | ||||||||
| Vout ≤ 10 Vpp | 1 mbps to 100 Mbps, 1-mbps resolution | ||||||||
| Vout ≤ 4 Vpp | 1 mbps to 200 Mbps, 1-mbps resolution 1 | ||||||||
| Sequence length | 2m-1, m = 3 to 32 | ||||||||
| Rise & fall time (nom) | |||||||||
| Vout ≤ 4 Vpp | 2.9 ns to 1 ms, independently variable, 100-ps resolution | ||||||||
| Vout > 4 Vpp | 3.3 ns to 1 ms, independently variable, 100-ps resolution | ||||||||
| Arbitrary waveforms | |||||||||
| Waveform length | 32 Sa to 4 MSa per channel (64 MSa with Option MEM) in increments of 1 Sa | ||||||||
| Sample rate (FS) | |||||||||
| 33611A/12A | 1 pSa/s to 660 MSa/s, 1-pSa/s resolution 8 | ||||||||
| 33621A/12A | 1 pSa/s to 1 GSa/s , 1-pSa/s resolution 8 | ||||||||
| Voltage resolution | 14 bits | ||||||||
| Waveform ilters |
“Normal” (highest bandwidth, ~5% preshoot and overshoot), “Step” (lower bandwidth, ~0% preshoot or overshoot), or “Off” (transitions from point to point occur as quickly as possible) |
||||||||
| Frequency and time characteristics | Filter = “Normal” | Filter = “Step” | Filter = “Off” | ||||||
| Bandwidth (-3 dB)(nom) | 0.27 x Fs (100 MHz max) | 0.13 x Fs (100 MHz max) | 100 MHz | ||||||
| Rise & fall time (nom) | 0.35/bandwidth (3.5 ns min) 0.35/bandwidth (3.5 ns min) 3.5 ns | ||||||||
| Jitter (rms) (meas) 8 | < 2 ps | < 1 ps | < 10 ps | ||||||
| Arbitrary waveform sequencing | |||||||||
| Operation | Individual arbitrary waveforms (segments) can be combined into user-defined lists (sequences) to form longer, more complex waveforms. Each sequence step specifies whether to repeat the associated segment a certain number of times, to repeat it indefinitely, to repeat it until a Trigger event occurs, or to stop and wait for a Trigger event. Additionally, the behavior of the Sync output (Marker) can be specified in each step. To improve throughput, multiple sequences and segments can be pre-loaded into volatile memory. | ||||||||
| Segment length | 32 Sa to 4 MSa per channel (64 MSa with Option MEM) in increments of 1 Sa | ||||||||
| Sequence length | 1 to 512 steps | ||||||||
| Segment repeat count | 1 to 106 or “Infinite” | ||||||||
| Waveform output characteristics | |||||||||
| General | |||||||||
| Connector | Front-panel BNC, shell and pin isolated from chassis (±42 V maximum) | ||||||||
| Function | On, Off, or Inverted | ||||||||
| Output impedance (nom) | 50 Ω | ||||||||
| Isolation | Connector shells for channel output(s), Sync, and Mod In are connected together but isolated from the instrument’s chassis. Maximum allowable voltage on isolated connector shell or pin is ±42 V relative to chassis. | ||||||||
| Overload protection | Output turns off automatically when an overload is applied. Instrument will tolerate a short circuit to ground indefinitely. | ||||||||
| Amplitude | |||||||||
| Range 9 |
1 mVpp to 10 Vpp into 50 Ω, 4-digit resolution 2 mVpp to 20 Vpp into open circuit, 4-digit resolution |
||||||||
| Units | Vpp, Vrms, or dBm | ||||||||
| Accuracy (at 1 kHz) (spec) 3 | ± (1% of setting in Vpp) ± (1 mVpp) | ||||||||
| Voltage limit function | User-definable maximum and minimum voltage limits | ||||||||
| DC offset | |||||||||
| Range | ± (5 VDC - Peak AC) into 50 Ω, 4-digit resolution ± (10 VDC - Peak AC) into open circuit, 4-digit resolution | ||||||||
| Accuracy (spec) 3 | ± (1% of Offset setting) ± (0.25% of amplitude in Vpp) ± (2 mV) | ||||||||
|
Frequency accuracy (spec) Standard frequency reference |
|||||||||
| 1 year, 18 to 28 °C | ± (1 ppm of setting + 15 pHz) | ||||||||
| 1 year, 0 to 55 °C | ± (2 ppm of setting + 15 pHz) | ||||||||
| High-stability frequency reference (Option OCX) | |||||||||
| 1 year, 0 to 55 °C | ± (0.1 ppm of setting + 15 pHz) | ||||||||
| Modulation, burst, and sweep capability | |||||||||
| Carrier | AM | FM | PM | FSK | BPSK | PWM | Sum | Burst | Sweep |
| Sine & square | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |
| Pulse | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| Ramp & triangle | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |
| Gaussian noise | ■ | ■ | ■10 | ||||||
| PRBS | ■ | ■ | ■ | ■ | ■ | ||||
| Single arbitrary | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||
| Sequenced arbitrary | ■ | ■ | |||||||
| Modulating signals | |||||||||
| Carrier | Sine | Square | Ramp | Triangle | Noise | PRBS | Arbitrary | External | |
| Sine | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |
| Square & pulse | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |
| Ramp & triangle | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |
| Gaussian noise | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||
| PRBS | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||
| Arbitrary | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||
| Modulation, burst, and sweep characteristics | |||||||||
| Amplitude modulation (AM) | |||||||||
| Source | Internal or external (all models), or other channel (33612A/22A only) | ||||||||
| Type | Full-Carrier or Double-Sideband Suppressed-Carrier (DSSC) | ||||||||
| Depth 11 | 0% to 120%, 0.01% resolution | ||||||||
| Frequency modulation (FM) 12 | |||||||||
| Source | Internal or external (all models), or other channel (33612A/22A only) | ||||||||
| Deviation | 1 pHz to 40 MHz (33611A/12A) or 60 MHz (33621A/22A), 1-pHz resolution | ||||||||
| Phase modulation (PM) | |||||||||
| Source | Internal or external (all models), or other channel (33612A/22A only) | ||||||||
| Deviation | 0° to 360°, 0.1° resolution | ||||||||
| Frequency-shift key modulation (FSK) 12 | |||||||||
| Source | Internal timer or rear-panel connector | ||||||||
| Mark & space | Any frequency within the carrier signal's range | ||||||||
| Rate | < 1 MHz | ||||||||
| Binary phase-shift key modulation (BPSK) | |||||||||
| Source | Internal timer or rear-panel connector | ||||||||
| Phase shift | 0° to 360°, 0.1° resolution | ||||||||
| Rate | < 1 MHz | ||||||||
| Pulse-width modulation (PWM) | |||||||||
| Source | Internal or external (all models), or other channel (33612A/22A only) | ||||||||
| Deviation 6 | 0% to 100% of pulse width, 0.01% resolution | ||||||||
| Additive modulation (Sum) | |||||||||
| Source | Internal or external (all models), or other channel (33612A/22A only) | ||||||||
| Ratio 11 | 0% to 100% of carrier amplitude, 0.01% resolution | ||||||||
| Burst characteristics 10 | |||||||||
| Type | Counted or gated | ||||||||
| Counted burst operation | Each trigger event causes the instrument to produce from 1 to 108 or an “infinite” number of waveform cycles. | ||||||||
| Gated burst operation | Instrument produces waveforms while the trigger is in the “on” state. For Gaussian Noise, waveform generation stops immediately when the trigger is in the “off” state. All other waveforms stop at the completion of a cycle; more than one cycle might elapse before generation stops. | ||||||||
| Start/stop phase | -360° to +360°, 0.1° resolution | ||||||||
| Trigger source | Internal timer or rear-panel connector | ||||||||
| Marker | Indicated by the trailing edge of the Sync pulse; adjustable to any cycle of the burst. | ||||||||
| Modulation, burst, and sweep characteristics, continued | |||||||||
| Sweep characteristics12 | |||||||||
| Type | Linear, Logarithmic, or List (up to 128 user-defined frequencies) | ||||||||
| Operation | Linear and Logarithmic sweeps are characterized by a Sweep time (during which the frequency changes smoothly from Start to Stop), a Hold time (during which the frequency stays at the Stop frequency), and a Return time (during which the frequency changes smoothly from Stop to Start). Returns are always linear. | ||||||||
| Direction | Up (start < stop) or Down (start > stop) | ||||||||
| Sweep time | |||||||||
| Linear | 1 ms to 3600 s, 1-ms resolution; 3601 s to 250,000 s, 1-s resolution | ||||||||
| Logarithmic | 1 ms to 500 s, 1-ms resolution | ||||||||
| Hold time | 0 to 3600 s, 1-ms resolution | ||||||||
| Return time | 0 to 3600 s, 1-ms resolution | ||||||||
| Trigger source 14 | Immediate (continuous), external (rear-panel connector), manual (front-panel button), bus, or Internal timer | ||||||||
| Marker | Indicated by the trailing edge of the Sync pulse; adjustable to any frequency between Start and Stop for Linear and Logarithmic types or any frequency in the list for List type. | ||||||||
| Internal timer for FSK, BPSK, burst, and sweep | |||||||||
| Range | 1 μs to 4000 s, 4-ns resolution | ||||||||
| Two-channel characteristics (33612A/22A only) | |||||||||
| Standard | |||||||||
| Operating modes | Independent, Coupled parameter(s), Combined (Ch 1 + Ch 2), Equal (Ch 1 = Ch 2), or Differential (Ch 1 = -Ch 2) | ||||||||
| Parameter coupling | None, Frequency (ratio or difference) and/or Amplitude and DC offset | ||||||||
| Relative Phase | 0° to 360°, 0.1° resolution | ||||||||
| Channel-to-channel skew (typ) | < 100 ps (both channels configured identically) | ||||||||
| Crosstalk (typ) | < -85 dB | ||||||||
| IQ Player (Option IQP) | |||||||||
| Operation | This option enables a two-channel model with arbitrary waveform capability to function as a baseband IQ (quadrature modulation) source. Programmable impairments include amplitude imbalance, DC offset difference, and channel-to-channel time skew. | ||||||||
| Channel-to-channel amplitude imbalance 11 | -30% to +30%, 0.001% resolution | ||||||||
| Channel-to-channel DC offset difference | ± (5 VDC - Peak AC), 0.1-mV resolution into 50 Ω ± (10 VDC - Peak AC), 0.2-resolution into open circuit | ||||||||
| Channel-to-channel time skew | -1 to +1 ns, 10-ps resolution | ||||||||
| Display views | Voltage-vs-Time or Constellation (Ch 1-vs-Ch 2) | ||||||||
| Sync/marker output | |||||||||
| Connector | Front-panel BNC, shell and pin isolated from chassis (± 42 V maximum) | ||||||||
| Functions | Sync, Sweep Marker, Burst Marker, Arbitrary Waveform Marker, or Off | ||||||||
| Assignment | Channel 1 or Channel 2 | ||||||||
| Polarity | Normal or Inverted | ||||||||
| Output level (nom) | 0 to +1.5 V into 50 Ω; 0 to +3.0 V into high impedance | ||||||||
| Output impedance (nom) | 50 Ω | ||||||||
| Minimum pulse width (nom) | 5 ns | ||||||||
| Modulation input | |||||||||
| Connector | Rear-panel BNC, shell and pin isolated from chassis (±42 V maximum) | ||||||||
| Assignment | Channel 1, Channel 2, or both | ||||||||
| Voltage level (nom) | ±1 V or ±5 V full scale, selectable | ||||||||
| Input Impedance (nom) | 5 kΩ | ||||||||
| Bandwidth (-3 dB) (typ) | 0 Hz to 100 kH | ||||||||
| External trigger/gate input/output | |||||||||
| General characteristics | |||||||||
| Connector | Rear-panel BNC, chassis-referenced (functions as Input or Output) | ||||||||
| Assignment: Input | Channel 1, Channel 2, or both | ||||||||
| Output | Channel 1 or Channel 2 | ||||||||
| Polarity | Positive or Negative slope | ||||||||
| Maximum Rate | 1 MHz | ||||||||
| Input characteristics | |||||||||
| Threshold voltage (nom) | (Output Level setting)/2 | ||||||||
| Impedance (nom) | 10 kΩ, DC-coupled | ||||||||
| Minimum pulse width | 100 ns | ||||||||
| Variable Trigger Delay | 0 to 1000 s, 1-ns resolution | ||||||||
| Latency (typ) 15 | < 140 ns | ||||||||
| Jitter (typ) | < 320 ps, rms | ||||||||
| Output characteristics | |||||||||
| Output voltage (nom) | |||||||||
| Low level | 0 V | ||||||||
| High level | 0.9 V to 3.8 V into high impedance, 0.1-V resolution | ||||||||
| Impedance (nom) | 50 Ω | ||||||||
| Duty cycle (nom) | 50% | ||||||||
| Fan-out | Up to four Keysight 33600A Series waveform generators | ||||||||
| External frequency reference input/output | |||||||||
| Input characteristics | |||||||||
| Connector | Rear-panel BNC, shell and pin isolated from chassis and all other connectors (±42 V max.) | ||||||||
| Frequency range: Standard | 10 MHz ± 20 Hz | ||||||||
| Option OCX | 10 MHz ± 1 Hz | ||||||||
| Voltage | 200 mVpp to 5 Vpp | ||||||||
| Impedance | 1 kΩ ll 20 pF, AC-coupled | ||||||||
| Lock time (typ) | < 2 s | ||||||||
| Output characteristics | |||||||||
| Connector | Rear-panel BNC, chassis-referenced | ||||||||
| Frequency (nom) | 10 MHz | ||||||||
| Level (nom) | 0 dBm (632 mVpp) into 50 Ω | ||||||||
| Impedance (nom) | 50 Ω | ||||||||
| Programming times | |||||||||
| Configuration changes (meas) | LAN (socket) | LAN (VXI-11) | USB 2.0 | GPIB | |||||
| Change function (meas) | 29.2 ms | 29.7 ms | 29.4 ms | 29.2 ms | |||||
| Change frequency (meas) | 2.7 ms | 3.3 ms | 2.8 ms | 2.7 ms | |||||
| Change amplitude (meas) | 8.3 ms | 9.0 ms | 8.3 ms | 8.3 ms | |||||
| Select Arb. waveform (16 k samples)(meas) | 12.7 ms | 13.9 ms | 13.1 ms | 12.6 ms | |||||
| Arbitrary waveform download to volatile | |||||||||
| 4 K samples (binary transfer) (meas) | 6.4 ms | 13.2 ms | 6.6 ms | 52.3 ms | |||||
| 1 M samples (binary transfer) (meas) | 1.26 s | 2.40 s | 1.25 s | 12.3 s | |||||
| Memory | |||||||||
| Arbitrary waveform | |||||||||
| Volatile | 4 MSa/channel (64 MSa/channel with Option MEM). 512 sequence steps per channel | ||||||||
| Non-volatile | 970 MB in file system (~485 MSa of arbitrary waveform records) | ||||||||
| Instrument state | |||||||||
| Store/recall | User-defined instrument states with user-defined names in file system | ||||||||
| Power-On state | Default settings or state at power-off, selectable | ||||||||
| USB file system | |||||||||
| Front-panel port | USB 2.0 high-speed mass storage class (MSC) device | ||||||||
| Capability | Read or write instrument configuration settings, instrument states, arbitrary-waveform, and sequence files. | ||||||||
| Speed (nom) | 10 MB/s | ||||||||
| General characteristics | |||||||||
| Computer interfaces | |||||||||
| LXI-C (rev. 1.3) | 10/100Base-T (Sockets & VXI-11 protocols) USB 2.0 (USB-TMC488 protocol) GPIB/IEEE-488.1, IEEE-488.2 | ||||||||
| Web user interface | Remote operation and monitoring | ||||||||
| Programming language | SCPI-1999, IEEE-488.2 Keysight 33210A, 33220A, 33250A, and 33500A/B Series compatible | ||||||||
| Graphical display | 4.3-inch color TFT, WQVGA (480x272) with LED backlight | ||||||||
| Real-time clock/calendar battery | CR-2032 coin-type, replaceable, >5-year life (typ) | ||||||||
| Mechanical | |||||||||
| Size (nom) |
261.1 mm W x 103.8 mm H x 303.2 mm D (with bumpers installed) 212.8 mm W x 88.3 mm H x 272.3 mm D (with bumpers removed) 2U x ½ rack width |
||||||||
| Weight (nom) | 3.5 Kg (7.7 lbs.) | ||||||||
Модели и опции
Товар |
|
|
|
Модели и Опции |
Описание |
Цена | Заказать |
0
| Модели |
|
33611A
|
Генератор сигналов, 80 МГц, 1 канал
|
По запросу | ||
|
33612A
|
Генератор сигналов, 80 МГц, 2 канала
|
По запросу | ||
|
33621A
|
Генератор сигналов, 120 МГц, 1 канал
|
По запросу | ||
|
33622A
|
Генератор сигналов, 120 МГц, 2 канала
|
По запросу |
Библиотека
Основные сведения о продукте
Посмотреть более подробную информацию о возможностях этого продукта.
